Cyber Power - PDU41021 - Switched PDU 15A 120V NEMA 5-15P input 16 NEMA 5-15R output 12ft cord 1U 3 Year Warranty

Part number:
PDU41021
Price:

The CyberPower PDU41021, a 1U rackmount, switched power distribution unit (PDU) provides 100-120Vac, 15A output via sixteen (16) NEMA 5-15R receptacles from a single NEMA 5-15P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.



Outlets can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41021 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.



Features:



  • Power Distribution: Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
  • Switch-Free Design: Safeguards against accidental power shutdown.
  • Switchable Outlets: Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.
  • Cyber Power Management Console: Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, either immediately or on a schedule, in order to power cycle connected equipment. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.
  • Remote and Local Monitoring: The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.
  • Automatic Event Notifications: Provide immediate updates about power events via email, SMS text, or SNMP traps.
  • Upgradeable Firmware: Downloadable improvements (firmware updates) to programs that run the PDU.
  • Digital Display: Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
  • Network-Grade Plugs and Outlets: Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
  • Long Input Power Cord: Reaches distant power sources, allowing the PDU to be placed where it’s needed.
  • Cord Retention Tray: Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
  • Configurable Mounting Brackets: Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
  • Durable Metal Housing: Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
  • Three-Year Limited Warranty: Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
Input
Cord Length12 ft (3.7 m)
Derated Input Current12 A
Input Frequency Range50 Hz – 60 Hz
Input Plug TypeNEMA 5-15P
Maximum Input Current15A
PhaseSingle Phase
Plug StyleStraight
Output
Meter ReadoutPower Control Display
Nominal Output Voltage100 – 120 VAC
Outlet Type16 – NEMA 5-15R
Outlets – # of Banks2

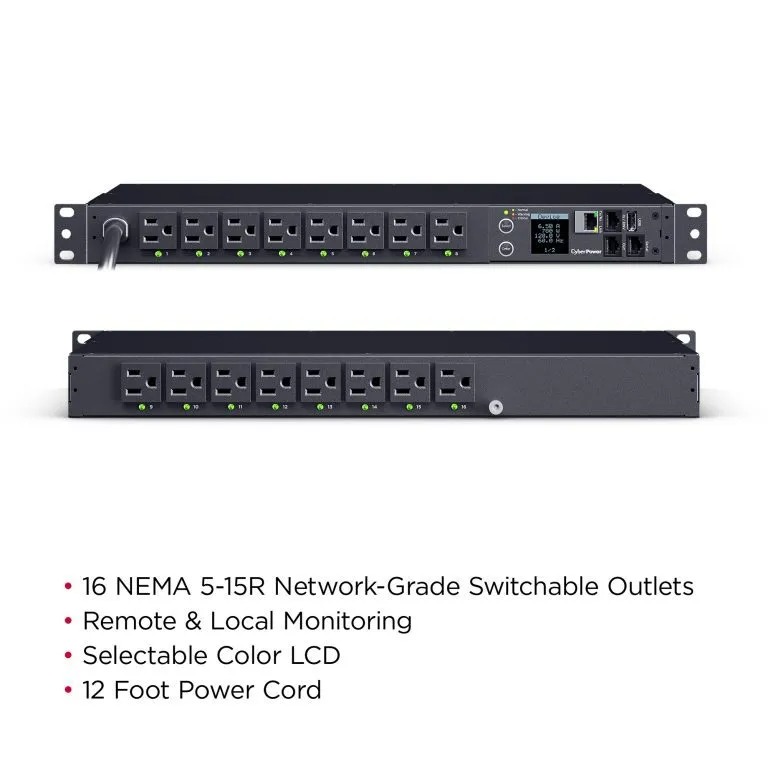

Outlets – Front8

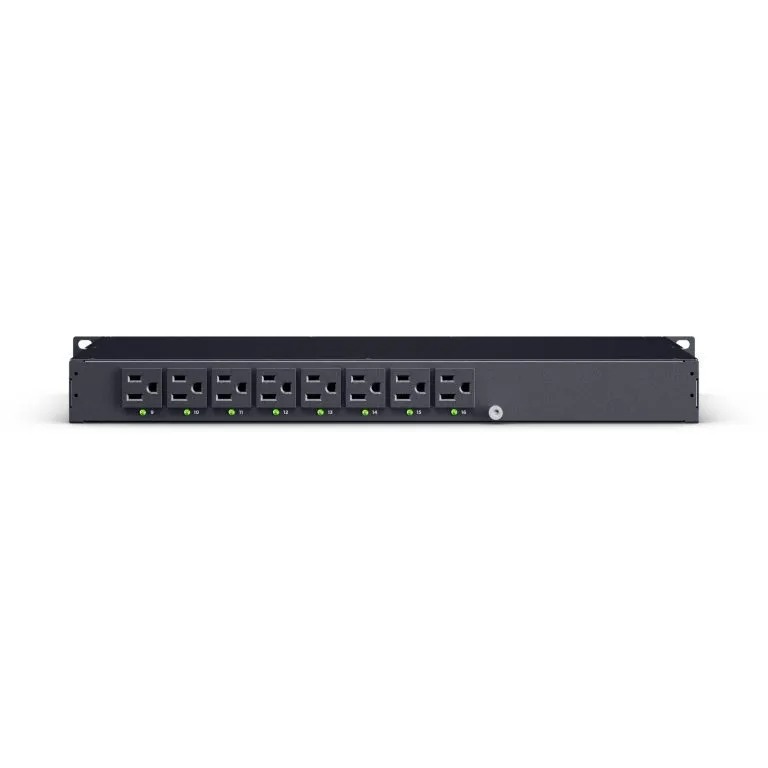

Outlets – Rear8
Outlets – Total16
Overload Protection15A
Overload Protection (Each Bank)None
USB Charge PortNo
Management & Communications
Environmental SensorOptional, via RJ45
Hardware Connection PortRJ45
Universal (RJ45)
LCDMultifunction LCD
LED IndicatorsTx/Rx
LINK
Outlets
Status
Load
Modular Expandability (Cascading)Yes, via RJ45
Outlet switchingYes
SNMP / HTTP Remote MonitoringIPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog, RADIUS, LDAP, LDAPS, Windows AD
Upgradeable firmwareYes
Physical
Adjustable Mounting Brackets1 set
ColorBlack
Cord Retention Tray/Cord OrganizersYes
External Site Ground PinYes
Form Factors Supported1U Rackmount
Material of ConstructionMetal
Rack Height1U
StyleHorizontal Rackmount
Dimensions
Physical Dimensions – (WxHxD) (cm)43.31 x 4.45 x 21.46 (cm)

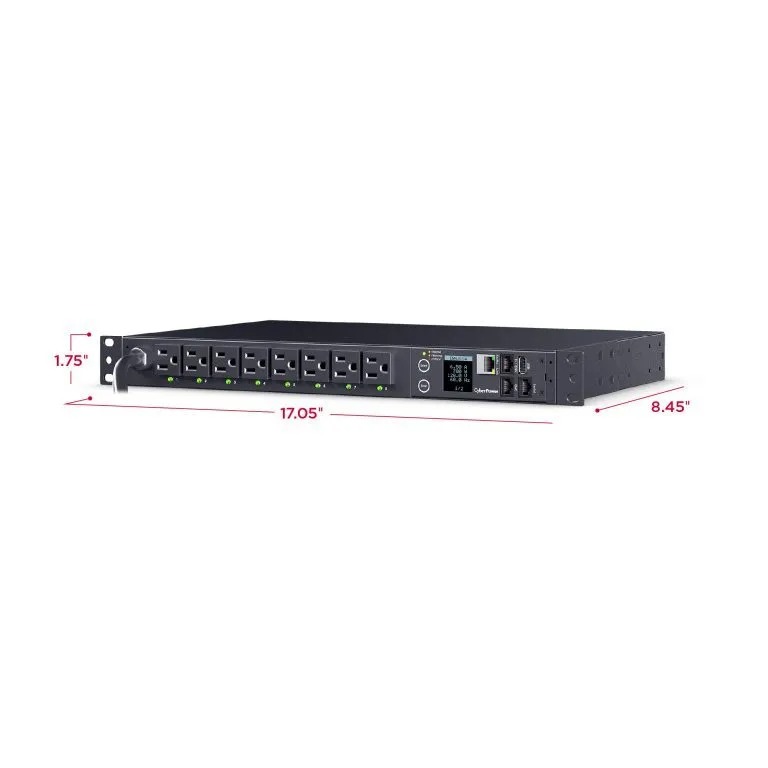

Physical Dimensions – (WxHxD) (in)17.05 x 1.75 x 8.45 (in)
Physical Dimensions – (WxHxD) (mm)433 x 44 x 215 (mm)
Physical Weight (kg)3.81
Physical Weight (lb)8.4
Dimensions – Shipping
Shipping – Weight (kg)5.53
Shipping – Weight (lb)12.2
Shipping Dimensions – (WxHxD) (cm)55.25 x 12.7 x 40.64 (cm)
Shipping Dimensions – (WxHxD) (in)21.75 x 5 x 16 (in)
Shipping Dimensions – (WxHxD) (mm)552.45 x 127.0 x 406.4 (mm)
Environmental
Operating Elevation0 – 11483 ft (0 – 3500 m)
Operating Relative Humidity0 – 95 % (non-condensing)
Operating Temperature32 – 140 °F (0 – 60 °C)
Storage Elevation0 – 49213 ft (0 – 14999 m)
Storage Temperature5 – 149 °F (-15 – 65 °C)
Certifications
EnvironmentalRoHS Compliant
SafetyUL62368
FCC Class A
Warranty
Extended Warranty OptionWEXT5YR-PDU1B
Product Warranty3 Year Limited Warranty
