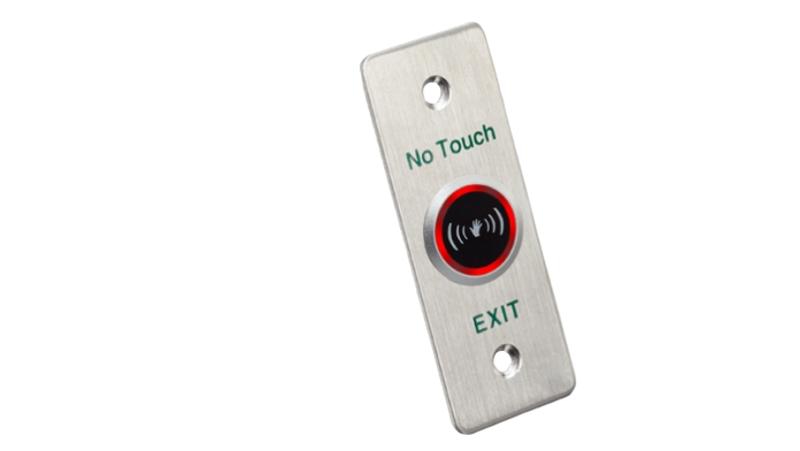

Hikvision - DS-K7P04 - Touchless Exit Button
Part number:
DS-K7P04
Price:
Exit & Emergency Button
Features:
- New version of DS-K7P03, there is "/T" in the label
- Stainless steel panel
- Dimension(L×W×H): 90×35×37.7mm(3.54×1.38×1.48")
| Specification | |
| General | |
| Working temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Working humidity | 0 to 95% (relative humidity) |
| Dimensions | 90 mm × 35 mm × 37.7 mm (3.54" × 1.38" × 1.48") |
| Weight | 0.18 kg (0.40 lb) |
| Material | Panel: stainless steel |
| Power supply | 30 VDC, 1 A |
| Door type | All kinds of narrow doorframes |
| Signal output | NO/NC/COM contact |
| Aging Test | Already passed 1 million times aging test |
| Exit Button | |
| Current rating | 1 A@30 VDC |
| Output contact | NO/NC/COM contact |
| Aging test | Already passed 1 million times aging test |
| Suitable door | All kinds of narrow doorframes |
