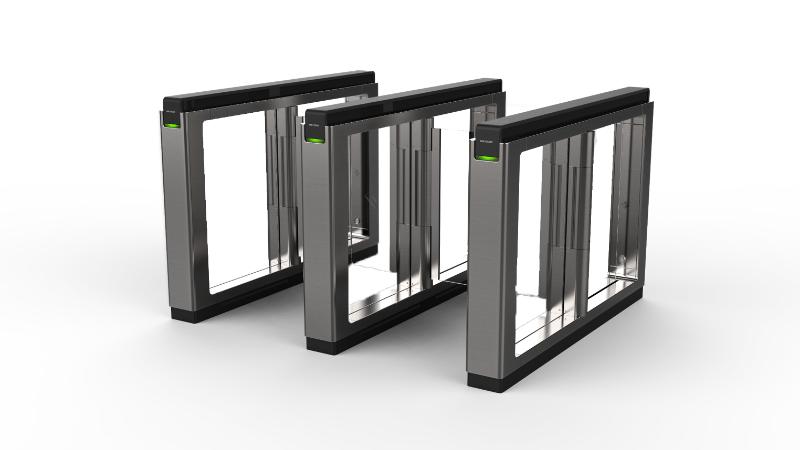

The swing barrier with two barriers and 24 pairs of IR lights is designed to detect unauthorized entrance or exit. By adopting the swing barrier integrated with the access control system, person should authenticate to pass through the lane via swiping IC or ID card, scanning QR code, etc. It is widely used in attractions, stadiums, construction sites, residences, etc
Features:
- TCP/IP network communication: The communication data is specially encrypted to relieve the concern of privacy leak
- Permissions validation and anti-tailgating
- Bidirectional (Entering/Exiting) lane:The barrier opening and closing speed can be configured according to the visitors flow
- The barrier will be locked or stop working when people are nipped
- Self-detection, Self-diagnostics, and automatic alarm
- Audible and visual alarm will be triggered when detecting intrusion, tailgating, reverse passing, climbing over barrier, and overstay
- Fire alarm passing: When the fire alarm is triggered, the barrier will be open automatically for emergency evacuation.
| Model | DS-K3B801SX | |
| System | MCBF | ＞ 6 million times |
| Motor | Servo motor | |
Interface | Network interface | 1 |
| RS-485 | 4 | |
| RS-232 | 4 | |
| Lock output | 2 | |
| IO input | 4 | |
| IO output | 4 | |
| Capacity | Card capacity | 60,000 |
| Event capacity | 180,000 | |
General |
Throughput | 30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method |
Power supply method | 100 to 240 VAC; 50 to 60 Hz | |
IR light detectors | 24 pairs | |
Working temperature | -10 °C to 55 °C (14 °F to 131 °F) | |
| Lane width | 550 mm to 1100 mm (21.65" to 43.31") | |
Working humidity | 10% to 95% (No Condensing) | |
Barrier material | Acrylic glass | |
Pedestal material | SUS304 stainless steel with the thickness of 2 mm (0.08") | |
Dimensions | With packaging: 1688 mm × 348 mm × 1318 mm (66.5" × 13.7" × 51.9") Without packaging: 1500 mm × 160 mm × 1010 mm (59.1" × 6.3" × 39.8") | |
Application environment | Indoor | |
Weight | Left and right pedestal: 146.5 kg (323.0 lbs) Middle pedestal: 170.4 kg (375.7 lbs) | |
| Approval | CE/FCC/CB/RoHS/REACH/WEEE | |
