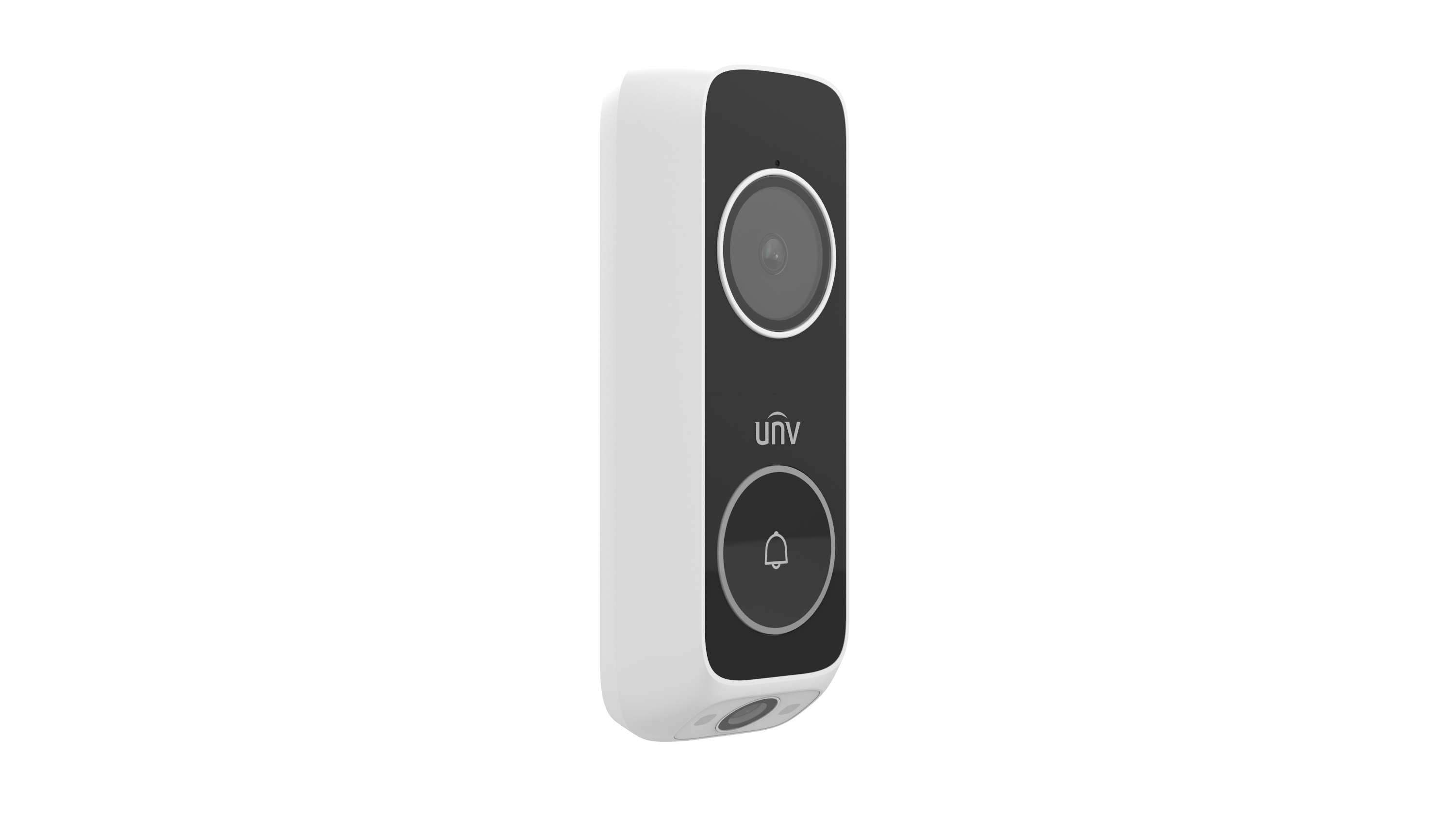

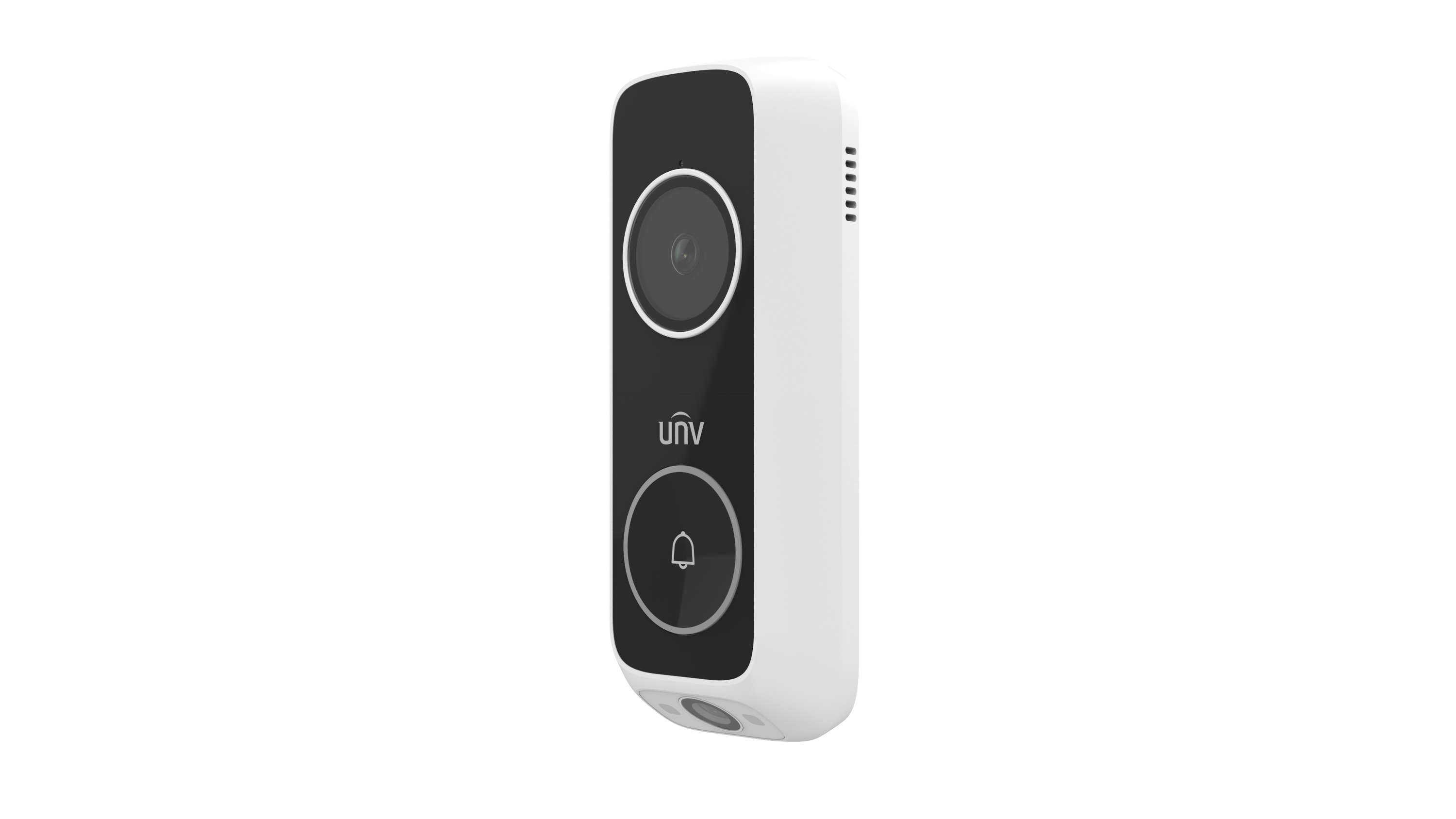

Uniview - ED-525B-WB - UNV 3MP+2MP Video Doorbell
Part number:
ED-525B-WB
Price:
Dual Camera Video Doorbell
Features:
- Supports mechanical chime and wireless chime.
- Supports connection to a Uniview NVR for live view, playback, and alarm search.
- Supports reporting motion detection alarms, human body detection alarms, and package detection alarms to UNV-Link and NVR.
- 3 MP + 2 MP dual cameras: The main camera for observing visitors, and the sub camera for monitoring the ground in front of the door, providing a wider view.
- Supports noise suppression.
- Supports true HDR and WDR, capturing clearer images in backlit scenes.
- Supports calling the UNV-Link app, allows you to answer visitor calls anytime, anywhere using the app.
- Supports Sub-1GHz wireless chime.
- Supports dual-band Wi-Fi (2.4 GHz and 5 GHz) and Wi-Fi 6, faster video streaming and real-time monitoring.
- Supports network connection through Bluetooth, quick and simple.
- Built-in 8 GB eMMC storage, no extra storage costs necessary.
| ED-525B-WB | ||
| Camera | ||
| Resolution -- main camera | 3MP | |
| Resolution -- sub camera | 2MP | |
| FOV -- main camera | Horizontal: 116° Vertical: 82.5° Diagonal: 131° | |
| FOV -- sub camera | Horizontal: 96.8° Vertical: 52.6° Diagonal: 109.9° | |
| Power kit | ||
| power kit | 240 mAH rechargeable lithium battery (for mechanical chime) | |
| Charge temperature | 0 °C to 45 °C | |
| Alarm Event | ||
| Motion detection alarm | Support | |
| UMD alarm | Supports human body detection alarm | |
| Package detection alarm | Support | |
| Wi-Fi | ||
| Operating frequency band | 2.4 GHz and 5G Hz | |
| BLE function | Compatible, integrated BLE, supports network connection via Bluetooth | |
| Antenna type | Built-in omnidirectional antenna | |
| WLAN | 802.11 b/g/n/ax | |
| Encryption | WPA-PSK/WPA2-PSK/WPA3-personal | |
| Bluetooth | Support, integrated in Wi-Fi chip | |
| SUB-1G | ||
| SUB-1G | Supported, for chime connection | |
| Chimes | Max. 3 wireless chimes or 1 mechanical chime | |
| Interface | ||
| Reset button | 1 micro switch for both pairing and reset | |
| Built-in Mic | Support | |
| Built-in speaker | Support | |
| Interface protocol | UNV private protocol | |
| Network protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP | |
| Illuminator | ||
| Illumination scheme | IR + white light | |
| Illumination distance | IR: 5 meters White light: 2 meters | |
| Min. Illumination | 0.02 lux | |
| General | ||
| Dimensions | 55.8 mm × 156.5 mm × 27.9 mm | |
| Weight | Net weight: 142g Gross weight: 295g | |
| Power consumption | 10W | |
| Installation method | With bracket installation, the power cable is installed on the bracket, and the doorbell is connected to the bracket through the contacts. | |
| Button | One call button | |
| Power source | Contact: AC 12 V to 24 V | |
| Operating temperature | -30 °C to 60 °C | |
| Ingress protection | IP65 | |
| WDR | ||
| WDR | Supports DWDR, main camera 80dB, sub camera 58dB | |
| Video | ||
| Video compression | H.265, H.264 | |
| Audio | ||
| Audio bit rate | 128 Kbps | |
| Audio sampling rate | 8K | |
| Audio compression | G711, MP3, PCM | |
| Certification | ||
| Certification | CB, CE LVD, CE EMC, CE RED, FCC SDOC, FCC ID | |
