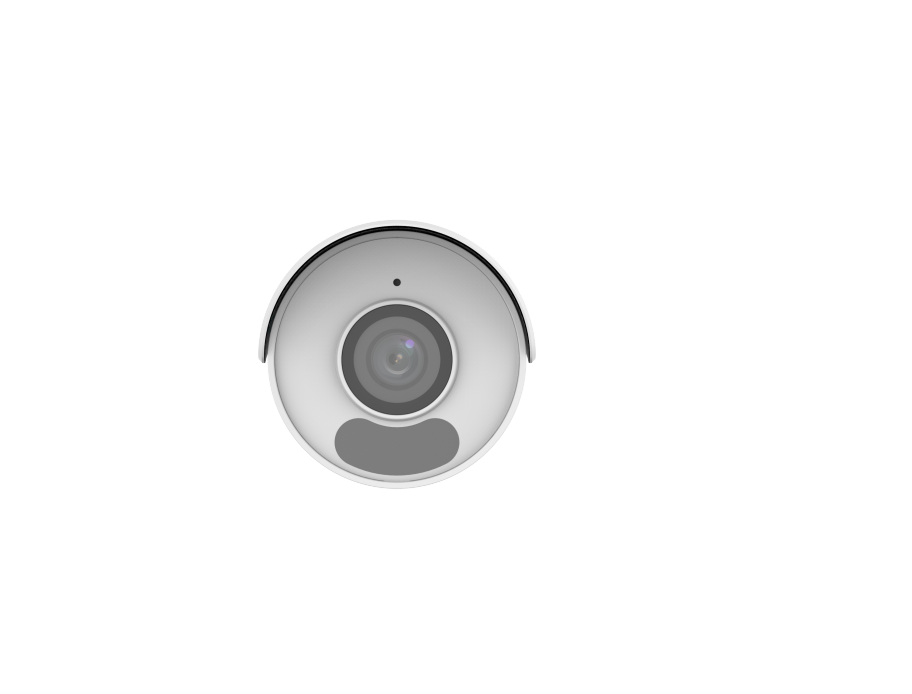

8MP Mini Fixed Bullet Network Camera
| Camera | Description |
| Resolution | 8MP |
| Sensor | 1/2.7''CMOS |
| Min. Illumination | Colour: 0.01 lux (F1.6, AGC ON) 0 lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | 120dB |
| Lens | Description |
| Lens type | IPC-B128-APF28KM:2.8mm IPC-B128-APF40KM:4.0mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | IPC-B128-APF28KM:107.0° IPC-B128-APF40KM:91.2° |
| Field of View (V) | IPC-B128-APF28KM:59.7° IPC-B128-APF40KM:47.9° |
| Field of View (D) | IPC-B128-APF28KM:111.5° IPC-B128-APF40KM:95.9° |
| DORI | Description |
| DORI Distance（Lens） | IPC-B128-APF28KM:2.8mm IPC-B128-APF40KM:4.0mm |
| DORI Distance（Detect） | IPC-B128-APF28KM:63.0m(206.7ft) IPC-B128-APF40KM:90.0m(295.2ft) |
| DORI Distance（Observe） | IPC-B128-APF28KM:25.2m(82.7ft) IPC-B128-APF40KM:36.0m(118.1ft) |
| DORI Distance（Recognize） | IPC-B128-APF28KM:12.6m(41.3ft) IPC-B128-APF40KM:18.0m(59.1ft) |
| DORI Distance（Identify） | IPC-B128-APF28KM:6.3m(20.7ft) IPC-B128-APF40KM:9.0m(29.5ft) |
| Illuminator | Description |
| Illumination Distance(IR) | 30m |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | Description |
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 8MP (3840*2160)@15fps ; 5MP (2880*1620)@25/20fps ;4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps Sub Stream: 720P (1280*720)@30/25fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video stream | Dual streams |
| Image | Description |
| White Balance | Auto;Outdoor;Fine Tune;Sodium Lamp;Locked;Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal;Flip Vertical;Flip Horizontal;180°;90°Clockwise;90°Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events | Description |
| Basic Detection | Cross line;intrusion(based on human body detection);Motion detection;Tampering alarm;Audio detection |
| General Function | Watermark;IP Address Filtering;Access Policy;ARP Protection;RTSP Authentication;User Authentication;HTTP Authentication |
| Audio | Description |
| Audio Compression | G.711U;G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8KHZ |
| Storage | Description |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR;NAS(NFS) |
| Network | Description |
| Protocols | IPv4;IPv6;IGMP;ICMP;ARP;TCP;UDP;DHCP;RTP;RTSP;RTCP;RTMP;DNS;DDNS;NTP; FTP;UPnP;HTTP;HTTPS;SMTP;SSL/TLS;802.1x;SNMP;PPPoE |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T);API;SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF |
| Client | Uniarch Client;Uniarch app |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above;Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Interface | Description |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
| Certification | Description |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection | IP67 (IEC 60529) |
| General | Description |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 3.7W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions | 191 × 73 × 71mm (7.5” × 2.9” × 2.8”) |
| Weight | 0.43kg(0.95lb) |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge protection | 4KV |
| Reset button | N/A |
