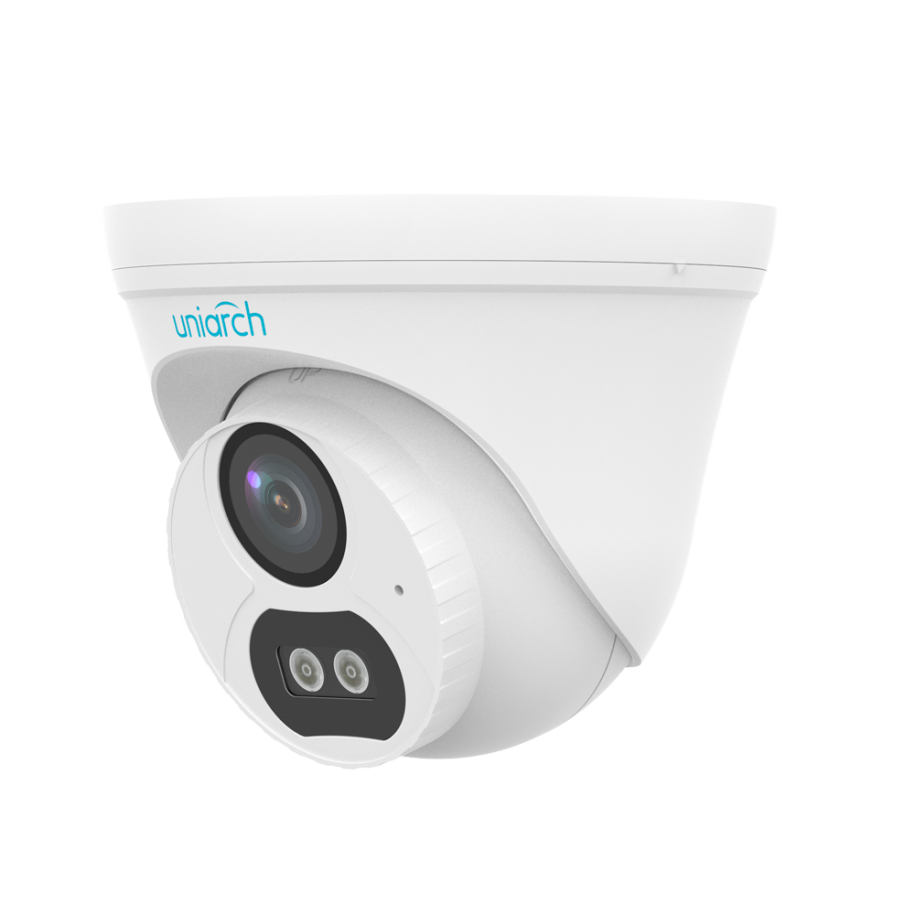

UNV - IPC-T134-AF28-DL-ECO - 4MP Eco Dual Light Fixed Camera Uniarch
• Turret IP Camera Uniarch
• 1/3.0"
• CMOS
• 4 Megapixel (2560x1440)
• 2.8 mm Lens
• 0.01 Lux
• Ultra265/H.265/H.264
• IR Range: 30 m
• RJ45 10 M/100 M Base-TX Ethernet
• PoE: IEEE 802.3af
• IP67
• IR Cut
• WEB, CMS, Smartphone and NVR interface
• ONVIF
• Integrated microphone
| Brand | Uniarch |
| Image Sensor | 1/3.0" CMOS |
| Day / Night | Mechanical ICR filter |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Lens | 2.8 mm |
| Field of View (FOV) | Horizontal: 87.8° Vertical: 48.9° Diagonal: 99° |
| Range Performance (DORI) | Detect: 51.4 m Observe: 20.6 m Recognize: 10.3 m Identify: 5.1 m |
| Main Stream Rate | 4 MP (2560x1440)@30fps 1080P (1920*1080)@30fps 720P (1280*720)@30fps |
| Extra Stream Rate | 640*360@30fps 2CIF (704*288)@30fps CIF (352*288)@30fps |
| Compression | Ultra265 / H.265 / H.264 |
| Wide Dynamic Range (WDR) | DWDR |
| Minimum Illumination | 0.01 Lux (Colour) 0 Lux with IR |
| Infrared Range | 30 m |
| Image Improvements | DWDR, AGC, 2D/3D-DNR, ROI, Privacy Mask, Smart IR |
| Internal Memory | Does not have |
| Alarms | Does not have |
| Audio | Built-in microphone |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | 2.5 W, PoE IEEE802.3af |
| Interoperability | ONVIF, API, SDK |
| Operating Temperature | -30º C ~ 60º C |
| Degree of Protection | Weatherproof IP67 |
| Dimensions (H x W x D) | 65 x 61 x 140 mm |
| Weight | 150 g |
| Material | Plastic |
This Turret IP Camera features a 4-megapixel image sensor using a 1/3.0-inch CMOS, delivering a maximum resolution of 2560 by 1440 pixels. It is equipped with a fixed 2.8mm lens, providing an 87.8º horizontal field of view. The main video stream supports 30 frames per second and uses Ultra265, H.265, and H.264 compression. It incorporates an infrared illuminator effective up to 30 meters and includes a built-in microphone.
The imaging includes Digital Wide Dynamic Range, Automatic Gain Control, 2D and 3D Digital Noise Reduction, Smart IR, Region of Interest, and Privacy Mask. The housing is constructed from plastic with an IP67-rated protection against dust and water. It is designed to operate in a temperature range from -30ºC to ~ 60ºC. Power is supplied via Power over Ethernet using the IEEE 802.3af standard, with a typical power consumption of 2.5 watts.
