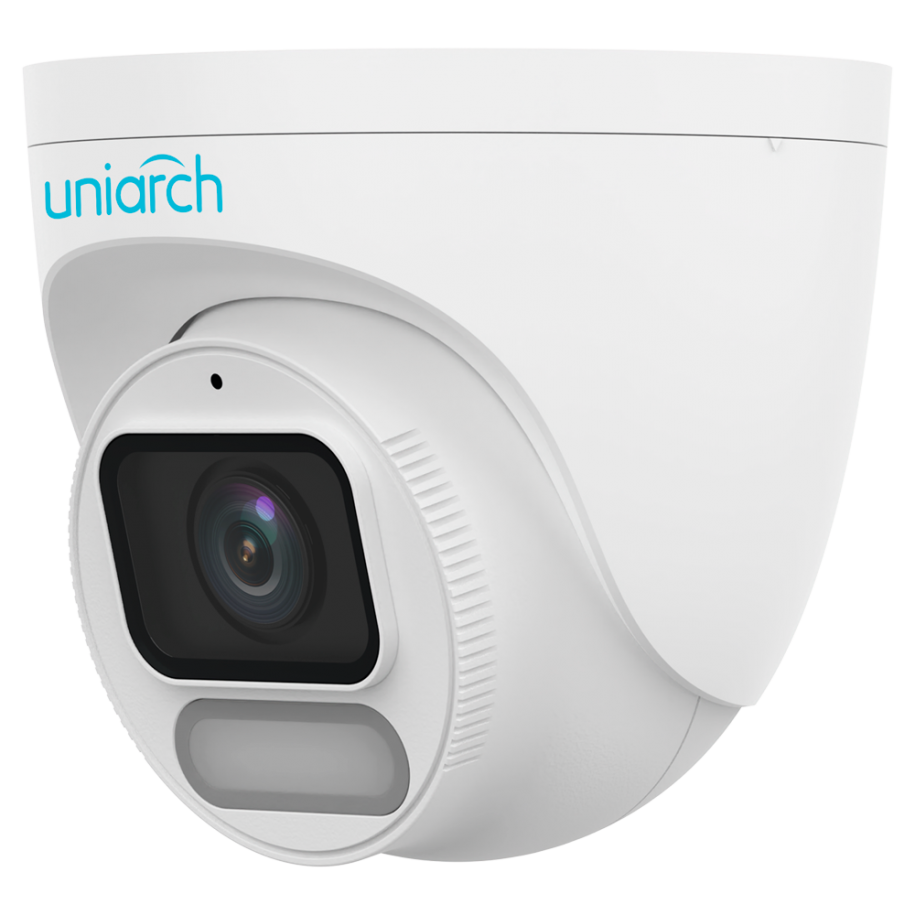

UNV - IPC-T242-ADF28K-WP - 2MP Halo Fixed Camera Uniarch
• IP Camera Turret Uniarch
• 2 MP (1920x1080)
• Lens 2.8 mm
• microSD 512 GB
• White light 30 m
• WDR 120 dB
• Hunter Color with WISE-ISP technology
• PoE
• UMD (Ultra Motion Detection)
• IP67
• Built-in microphone
• Corridor mode 9:16
• ONVIF
| Brand | Uniarch |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920 x 1080) |
| Lens | 2.8 mm (H: 99º, V: 53º, D: 118º) |
| Main Stream Rate | 1080P (1920*1080)@30fps 720P (1280*720)@30fps |
| Extra Stream Rate | 720P (1280*720)@30fps D1 (720*576)@30fps 640*360@30fps 2CIF (704*288)@30fps CIF (352*288)@30fps |
| Compression | Ultra265/H.265/H.264 |
| Range Performance (DORI) | Detection: 45 m Remark: 18 m Recognition: 9 m Identification: 4.5 m |
| Minimum Illumination | Colour: 0.0003Lux (F1.0, AGC ON) 0 lux with supplementary light |
| White Light Scope | 30 m |
| Basic Detection | Motion detection, ultra motion detection, anti-tamper alarm, audio detection |
| Ultra Motion Detection (UMD) | Support |
| Image Improvements | AGC, 2D/3D-NR, ROI, privacy mask |
| Day / Night | Mechanical ICR filter |
| Audio | Built-in microphone |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (Profile S, Profile T), API |
| Material | Graphene + Plastic |
| Power | DC 12V / 2.6W PoE (IEEE 802.3 af) |
| Operating Temperature | -30º C ~ 60º C |
| Degree of Protection | Weatherproof IP67 |
| Dimensions (Without support) | 198 × 74 × 74 mm |
| Weight | 400 g |
This IP Camera Turret features a 2 MP image sensor using a 1/2.7-inch Progressive Scan CMOS, delivering a maximum resolution of 1920 by 1080 pixels. It is equipped with a fixed 2.8mm lens, providing a wide 99º horizontal field of view. The main video stream supports 1080P resolution at 30 frames per second and uses Ultra265, H.265, and H.264 compression. It incorporates a supplementary white light illuminator with a range of 30 meters and includes a built-in microphone.
The imaging includes Automatic Gain Control, 2D and 3D Noise Reduction, Region of Interest, and Privacy Mask. The housing is constructed from graphene and plastic with an IP67-rated protection against dust and water. It is designed to operate in a temperature range from -30ºC to 60ºC. Power can be supplied via DC 12V or Power over Ethernet using the IEEE 802.3af standard, with a typical power consumption of 2.6 watts.
