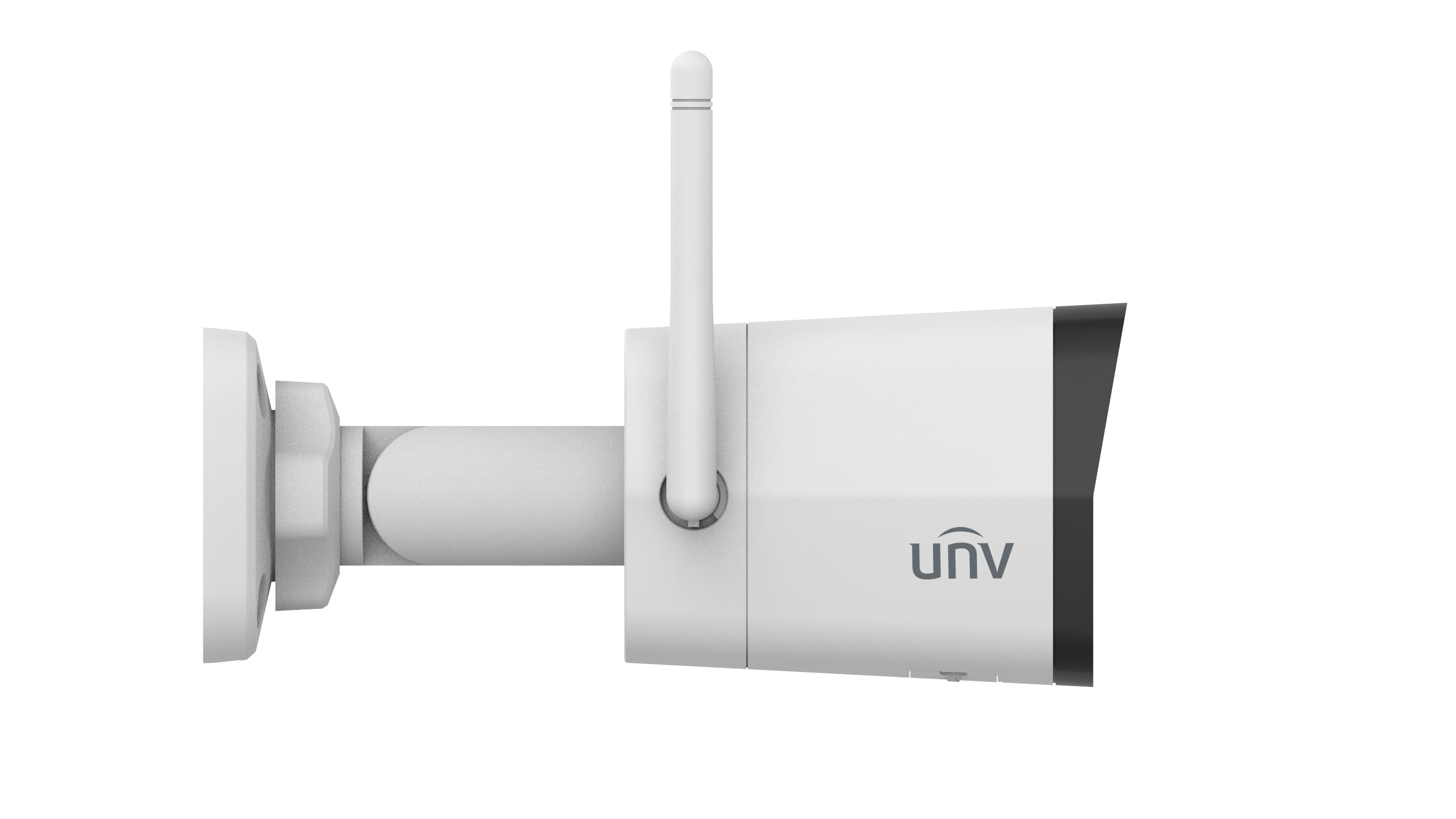

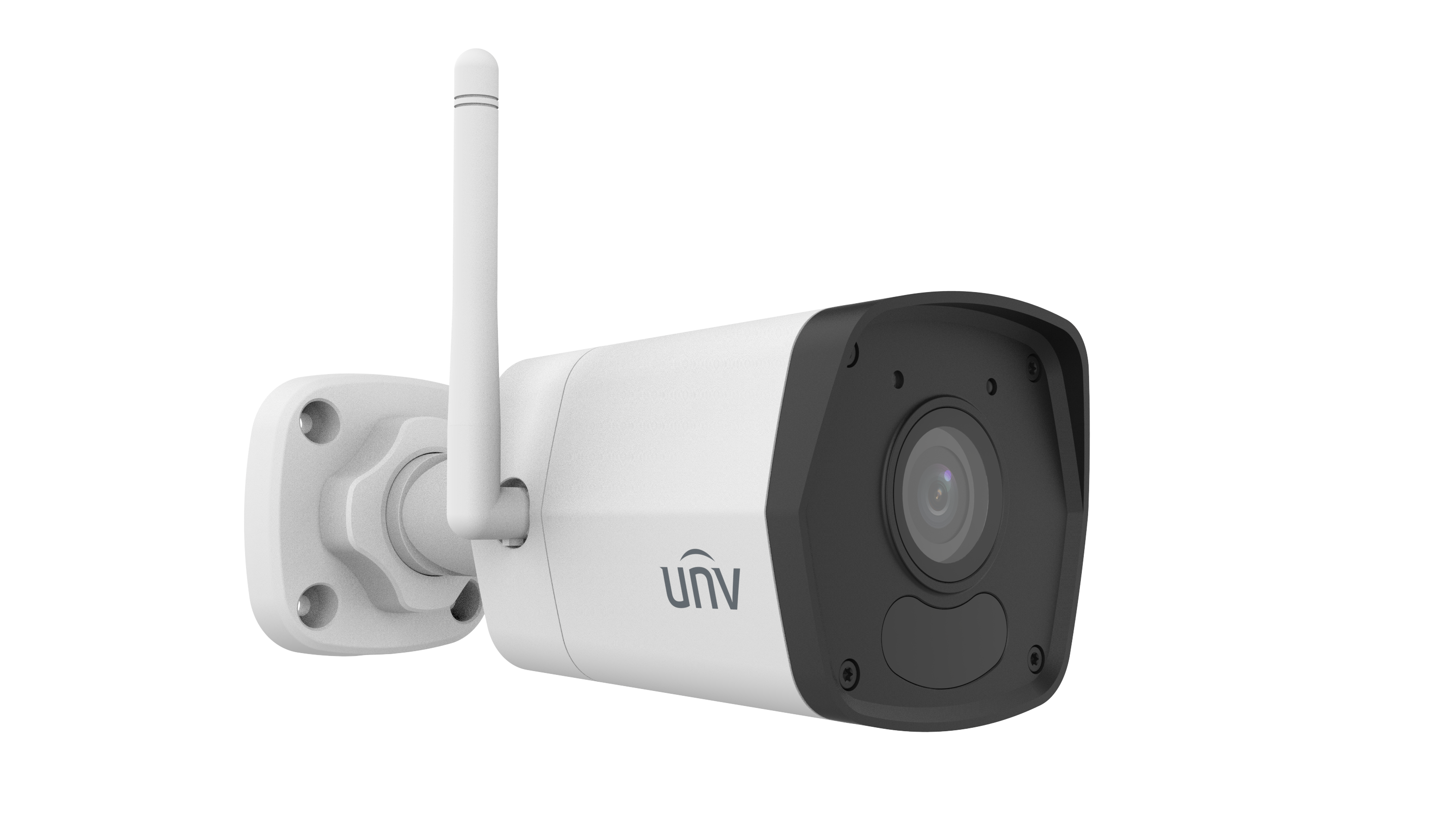

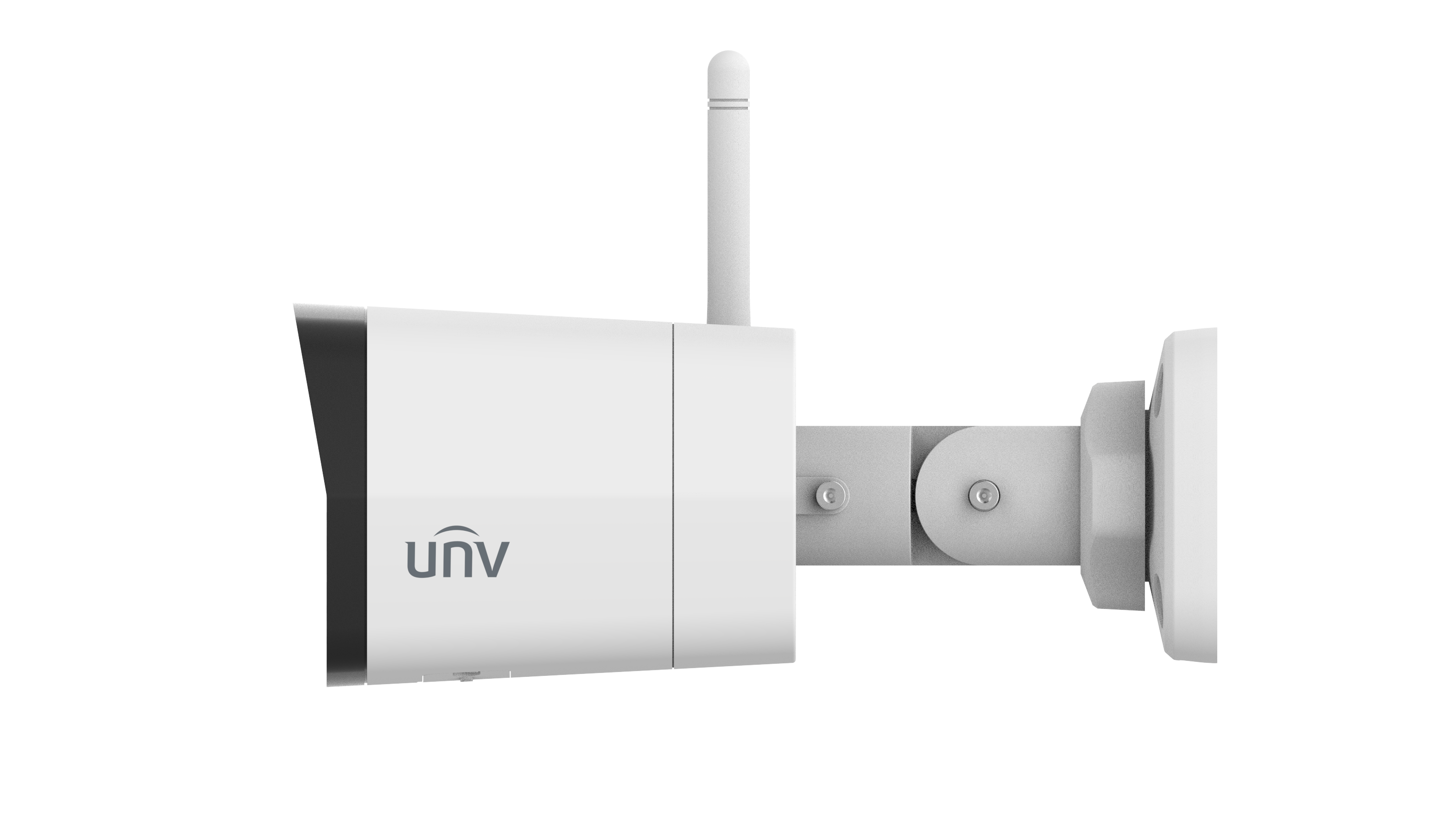

Uniview - IPC2122LB-AF28WK-G - 2MP Wi-Fi Fixed IR Bullet Network Camera
Part number:
IPC2122LB-AF28WK-G
Price:
2MP Wi-Fi Fixed IR Bullet Network Camera
Features:
- High quality image with 2MP, 1/2.9"CMOS sensor
- 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 128 G Micro SD card
- IP67 protection
- 3-Axis
| IPC2122LB-AF28WK-G | IPC2122LB-AF40WK-G | ||
| Camera | |||
| Max Resolution | 2 MP | ||
| Sensor | 1/2.9" CMOS | ||
| Min. Illumination | Colour: 0.01 lux (F2.0 AGC ON) 0 lux with IR on | ||
| Day/Night | IR-cut filter with auto switch (ICR) | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | ||
| S/N | >52 dB | ||
| WDR | DWDR | ||
| Lens | |||
| Focal Length | 2.8 mm | 4.0 mm | |
| Iris Type | Fixed | ||
| Iris | F2.0 | ||
| Field of View (H) | 101.1° | 83.7° | |
| Field of View (V) | 55.0° | 44.6° | |
| Field of View (D) | 111.0° | 89.1° | |
| DORI | |||
| DORI Distance (Lens) | 2.8mm | 4.0mm | |
| DORI Distance (Detect) | 45.0m(147.6ft) | 64.3m(211.0ft) | |
| DORI Distance (Observe) | 18.0m(59.1ft) | 25.7m(84.3ft) | |
| DORI Distance (Recognize) | 9.0m(29.5ft) | 12.9m(42.3ft) | |
| DORI Distance (Identify) | 4.5m(14.8ft) | 6.4m(21.0ft) | |
| Illuminator | |||
| Supplemental Light | IR | ||
| Illumination Distance (IR) | 30 m (98.4 ft) | ||
| Wavelength | 850 nm | ||
| IR On/Off Control | Auto/Manual | ||
| Video | |||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||
| H.264 Code Profile | Baseline profile, Main profile, High profile | ||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps | ||
| Video Bit Rate | 128 Kbps to 6144 Kbps | ||
| U-code | Support | ||
| OSD | Up to 4 OSDs | ||
| Privacy Mask | Support (only NVR) | ||
| ROI | Support | ||
| Video Stream | Dual streams | ||
| Image | |||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | ||
| Digital Noise Reduction | 2D/3D DNR | ||
| Smart IR | Support | ||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | ||
| Dewarping | N/A | ||
| HLC | Support | ||
| BLC | Support | ||
| Defog | Digital defog | ||
| Events | |||
| Basic Detection | Human body detection, Motion detection, Tampering alarm, Audio detection | ||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | ||
| Audio | |||
| Audio Compression | G.711U, G.711A | ||
| Audio Bitrate | 64 Kbps | ||
| Two-way Audio | N/A | ||
| Suppression | Support | ||
| Sampling Rate | 8 kHz | ||
| Storage | |||
| Edge Storage | Micro SD, up to 512 GB | ||
| Network Storage | ANR, NAS (NFS) | ||
| Network | |||
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP | ||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||
| User/Host | Up to 32 users, 2 user levels: administrator and common user | ||
| Client | UNV-Link, UNV-Link Pro, EZStation | ||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | ||
| Wi-Fi | |||
| Wireless Standards | IEEE802.11b/g/n | ||
| Frequency Range | 2.4 GHz to 2.4835 GHz | ||
| Channel Bandwidth | 20 MHz Support | ||
| Modulation Mode | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT | ||
| Wi-Fi Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK | ||
| Transmit Power | 802.11b: 17±1.5 dBm@11 Mbps802.11g: 14±1.5 dBm@54 Mbps802.11n: 12.5±1.5 dBm@150 Mbps | ||
| Receive Sensitivity | 802.11b: -90 dBm@11 Mbps (Typical)802.11g: -75 dBm@54 Mbps (Typical)802.11n: -74 dBm@150 Mbps (Typical) | ||
| Transmission Rate | 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps | ||
| Interface | |||
| Audio I/O | N/A | ||
| Alarm I/O | N/A | ||
| Serial Port | N/A | ||
| Built-in Mic | Support | ||
| Built-in Speaker | N/A | ||
| WIFI | Support | ||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | ||
| Video Output | N/A | ||
| Certification | |||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) | ||
| RF | FCC ID (FCC CFR 47 part15 C)CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) | ||
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | ||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||
| Protection | IP67 (IEC 60529) | ||
| General | |||
| Power | DC 12V±25% | ||
| Power Consumption | Max 4.0W | ||
| Power Interface | Ø5.5 mm coaxial power plug | ||
| Dimensions | 172 × 76 ×72 mm (6.8” × 3” × 2.8”) (L x W x H) | ||
| Weight | 0.25 kg (0.55 lb) | ||
| Material | Metal + Plastic | ||
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | ||
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | ||
| Surge Protection | 4 KV | ||
| Reset Button | Support | ||
| Web Client Language | 4 Languages: English, Russian, Spanish, Vietnamese | ||
