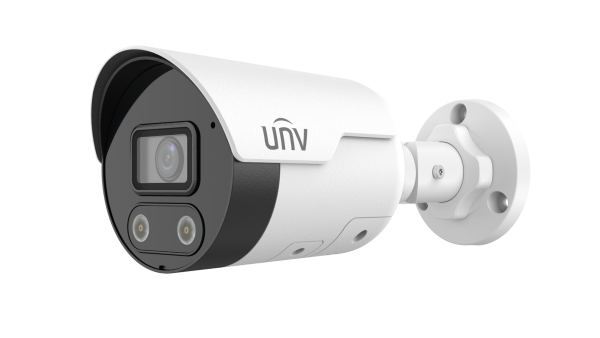

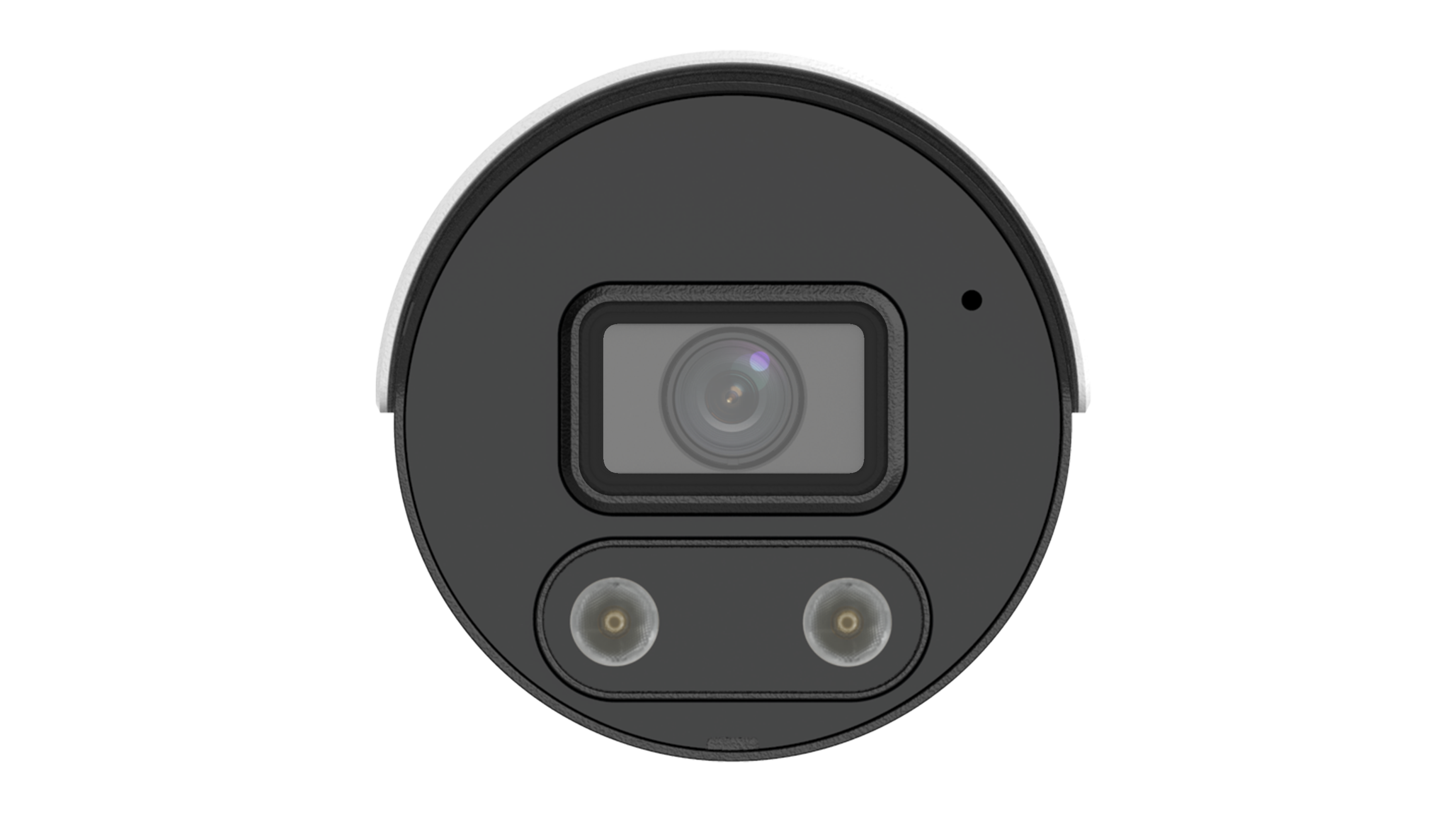

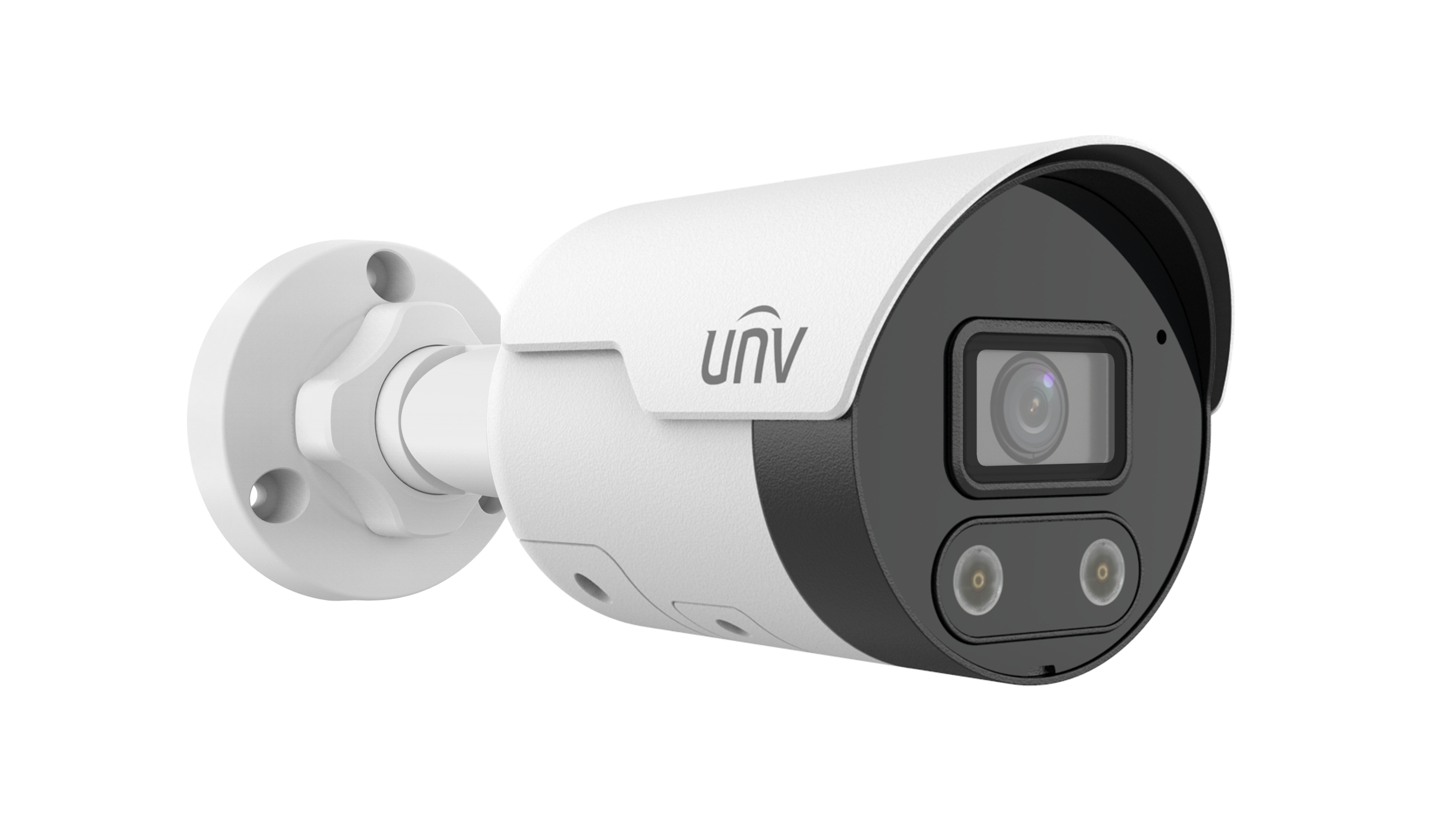

Uniview - IPC2124SB-ADF28KMC-I1 - 4MP WDR Dual-light Alarm Bullet Network Camera
• High quality image with 4 MP, 1/2.9" CMOS sensor
• 4 MP (2688 × 1520)@30/25 (default) fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lighting, accurately focusing on humans, vehicles, and non-motorized vehicles
• Intelligent people flow counting and crowd density monitoring
• 130 dB true WDR technology ensures clear image in strong backlight scene
• Supports 9:16 corridor mode
• Built-in mic and speaker
• Smart IR, up to 40 m (131.2 ft) IR distance
• MicroSD, up to 512 GB
• IP67 protection
| Camera | |
| Max Resolution | 4 MP (2688 × 1520) |
| Sensor | 1/2.9" CMOS |
| Min. Illumination (Color) | 0.003 Lux (F1.4, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | > 56 dB |
| WDR | 130 dB |
| Lens | |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.4 |
| Field of View (H/V/D) | H: 101.1 °, V: 57.1°, D: 117.7 ° |
| Lens Type | Fixed |
| DORI Distance (2.8 mm Lens) | |
| Detect | 63.0 m (206.7 ft.) |
| Observe | 25.2 m (82.7 ft.) |
| Recognize | 12.6 m (41.3 ft.) |
| Identify | 6.3 m (20.7 ft.) |
| Illuminator | |
| Supplemental Light | Dual light |
| Illumination Distance (IR) | 40 m (131.2 ft) |
| Illumination Distance (Warm Light) | 40 m (131.2 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate (Main Stream) | 4 MP (2688 × 1520), max. 30 fps |
| Frame Rate (Sub/Third Stream) | Max. 30 fps for all listed resolutions |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Video Stream | Triple streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC / BLC / Defog | Support (HLC, BLC, Digital defog) |
| Intelligent Features & Events | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter/leave area detection (with false alarm filtering and human/vehicle classification) |
| People Counting | Support people flow counting and crowd density monitoring |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Features | Two-way Audio, Built-in Mic & Speaker |
| Storage & Network | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, G, T, M), API, SDK |
| Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| General & Environment | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 10.0 W |
| Dimensions (L × W × H) | 192 mm × 75 mm × 74 mm (7.6" × 3.0" × 2.9") |
| Weight | 0.41 kg (0.90 lb) |
| Material | Metal + Plastic |
| Protection | IP67 (IEC 60529) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH |
| Surge Protection | 4 KV |
| Web Client Language | 20 Languages |
This network camera features a 4MP 1/2.9-inch CMOS sensor and supports multiple resolutions, including 2,688 x 1,520 at 30 fps. It has a fixed 2.8 mm focal length lens and an integrated infrared illuminator with a range of up to 40 meters. It supports Ultra 265, H.265, H.264, and MJPEG video output formats.
Key imaging features include 130 dB true Wide Dynamic Range, Smart IR and ColorHunter with Wise-ISP technology for full-colour imaging. The camera has a built-in microphone and speaker and offers edge storage via a microSD card slot with a capacity of up to 512 GB. The IP67-rated camera housing is resistant to dust and water.
