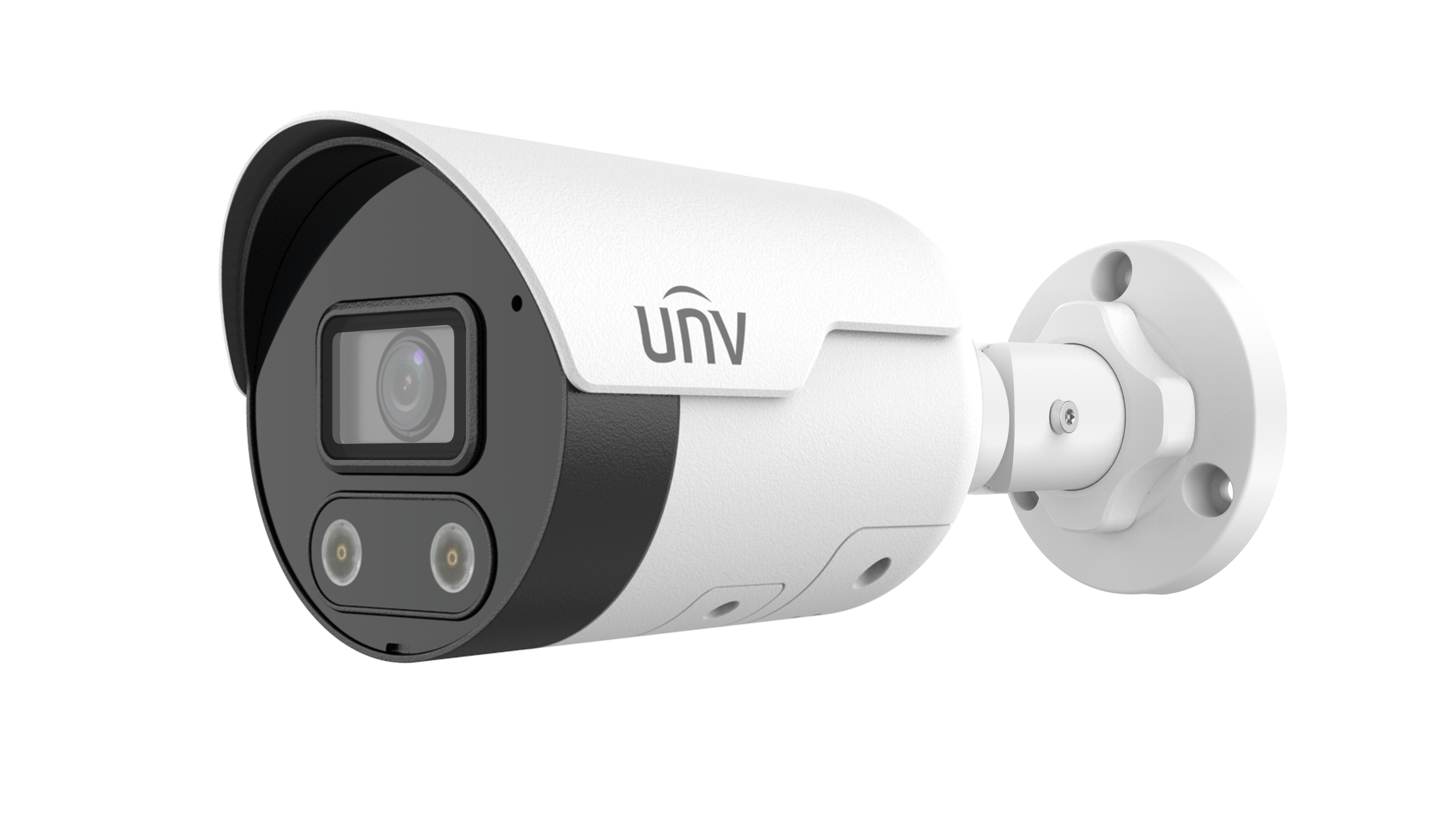

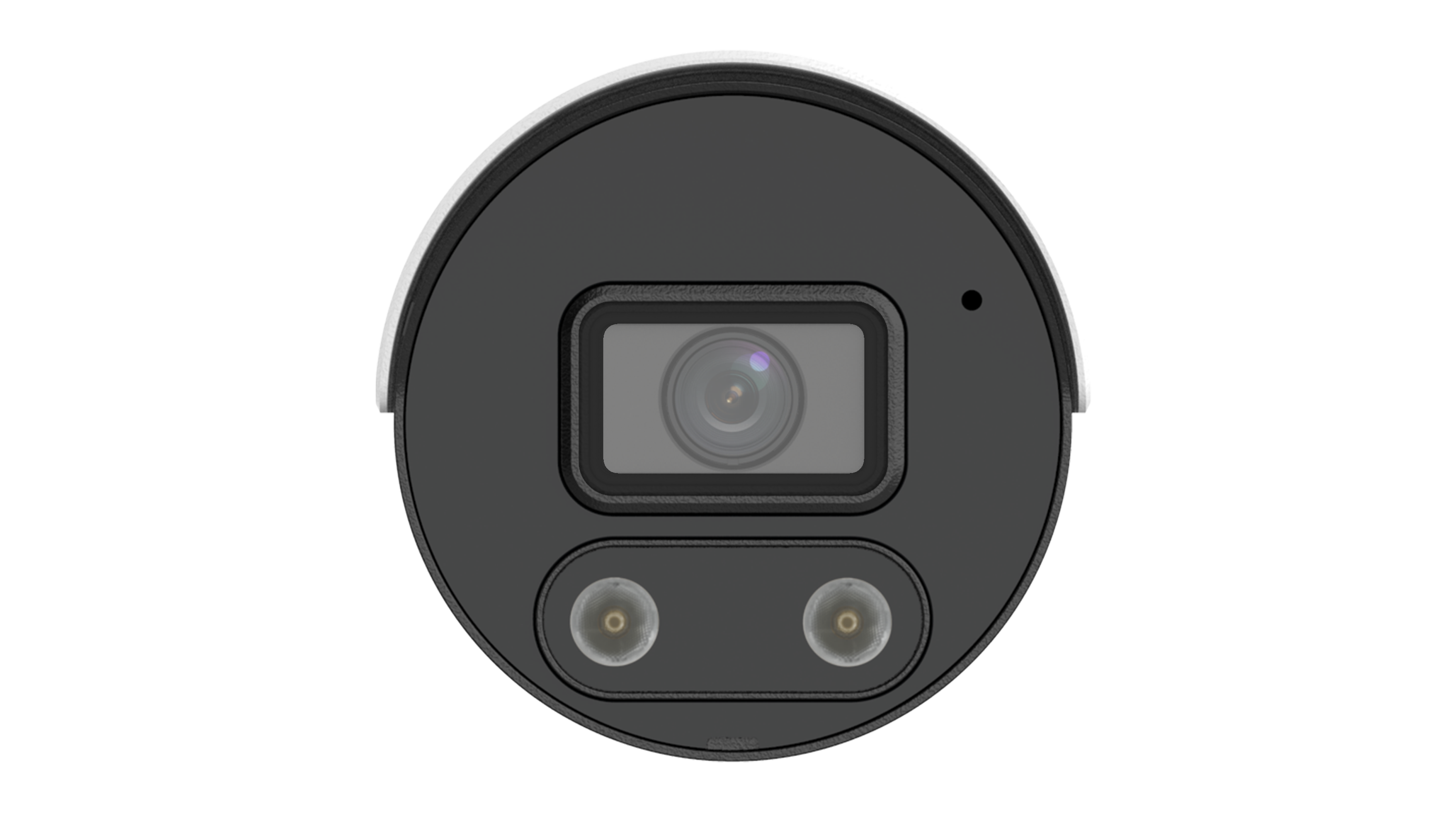

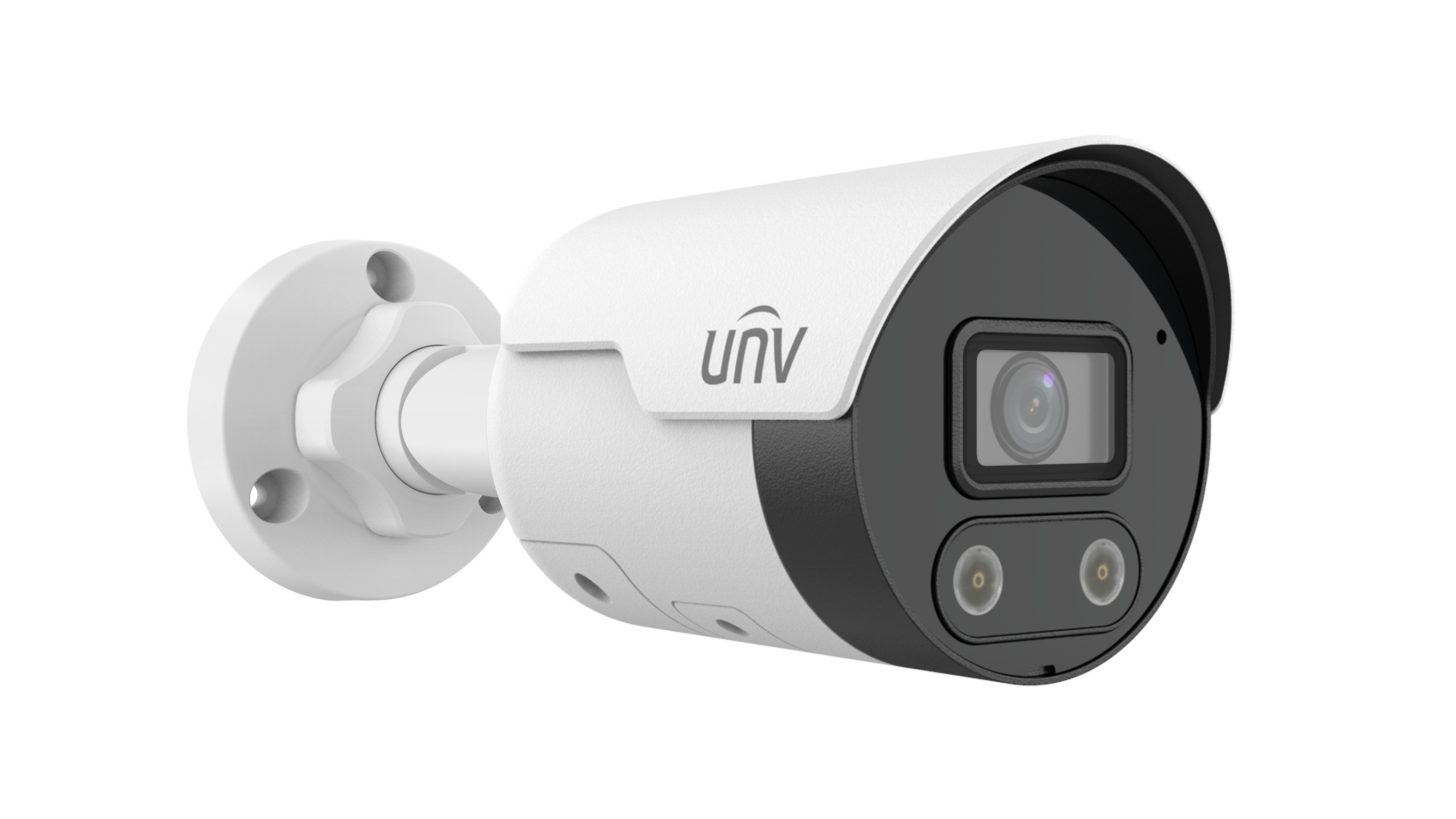

Uniview - IPC2124SB-ADF40KMC-I1 - 4MP Tri-Guard Fixed Dual-light Bullet Network Camera
• High quality image with 4 MP, 1/2.7" CMOS sensor
• 4 MP (2688 × 1520)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
• Supports sound and light alarm linkage. When smart intrusion prevention is triggered, the camera links sound alarm and light linkage
• 120 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Built-in mic and speaker
• Smart IR, up to 30 m (98.4 ft) IR distance
• MicroSD, up to 512 GB
• IP67 protection
• Supports PoE power supply
| Camera | |
| Max Resolution | 4 MP |
| Sensor | 1/2.7" CMOS |
| Min. Illumination (Color) | 0.002 Lux (F1.6, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | >52 dB |
| WDR | 120 dB |
| Lens (4.0 mm) | |
| Focal Length | 4.0 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H/V/D) | H: 83.7°, V: 44.9°, D: 89.2° |
| Lens Type | Fixed |
| DORI Distance (4.0 mm Lens) | |
| Detect | 90.0 m (295.3 ft.) |
| Observe | 36.0 m (118.1 ft.) |
| Recognize | 18.0 m (59.1 ft.) |
| Identify | 9.0 m (29.5 ft.) |
| Illuminator | |
| Supplemental Light | Dual light |
| Illumination Distance (IR/Warm) | 30 m (98.4 ft.) |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate (Main Stream) | 4 MP (2688 × 1520), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Video Stream | Triple streams |
| Image | |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| HLC / BLC / Defog | Support (HLC, BLC, Digital defog) |
| Intelligent Features & Events | |
| Smart Intrusion Prevention | Cross line, intrusion, enter/leave area detection (with human/vehicle filtering) |
| People Counting | Support people flow counting and crowd density monitoring |
| Basic Detection | Motion detection, Tampering alarm, Audio detection |
| Audio | |
| Audio Features | Two-way Audio, Built-in Mic & Speaker |
| Storage & Network | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Compatible Integration | ONVIF (Profile S, G, T, M), API, SDK |
| General & Environment | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 11.5 W |
| Dimensions (L × W × H) | 191 mm × 75 mm × 74 mm (7.5" × 2.9" × 2.9") |
| Material | Metal |
| Protection | IP67 (IEC 60529) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
| Surge Protection | 4 KV |
This 4-megapixel bullet network camera is built around a 1/2.9" CMOS sensor. It supports primary video streams of up to 2688 x 1520 at 30 frames per second, and uses Ultra 265, H.265, H.264, and MJPEG compression formats. The model features a fixed 4.0 mm F1.4 lens that provides an 83.1° horizontal field of view. It is equipped with a dual-light illuminator (IR and warm light) with an effective illumination distance of up to 40 meters for both.
In terms of image processing, the camera boasts 130 dB True Wide Dynamic Range and 2D/3D Digital Noise Reduction. It also supports Smart IR, backlight compensation, digital defogging, and ColorHunter technology for full-color imaging. The housing has an IP67 rating for protection against dust and water ingress. It is designed to operate within an extreme temperature range of -30°C to 60°C. Power can be supplied via DC 12V or PoE (IEEE 802.3af), with a maximum power consumption of 10.0 watts.
