Uniview - IPC2128LB-AF28K-DL - 8MP WDR Dual Light Bullet Network Camera
• High quality image with 8 MP, 1/2.7" CMOS sensor
• 8 MP (3840 × 2160)@20 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• Supports UMD
• Supports 9:16 corridor mode
• Built-in mic
• Smart IR, up to 30 m (98.4 ft) IR distance
• MicroSD, up to 512 GB
• IP67 protection
• Supports PoE power supply
• 3-axis
| Camera | |
| Max Resolution | 8 MP |
| Sensor | 1/2.7" CMOS |
| Min. Illumination (Color) | 0.005 Lux (F1.6, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | >56 dB |
| WDR | 120 dB |
| Lens | |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H/V/D) | H: 100.8°, V: 55.8°, D: 105.7° |
| Lens Type | Fixed |
| DORI | |
| Detect | 84.0 m (275.6 ft.) |
| Observe | 33.6 m (110.2 ft.) |
| Recognize | 16.8 m (55.1 ft.) |
| Identify | 8.4 m (27.6 ft.) |
| Illuminator | |
| Supplemental Light | Dual light |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate (Main Stream) | 8 MP (3840 × 2160), max. 20 fps; 5 MP/4 MP/1080P/720P, max. 30 fps |
| Frame Rate (Sub Stream) | 1080P/720P/D1/640×360/2CIF/CIF, max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Video Stream | Dual streams |
| U-code | Support |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC / BLC / Defog | Support (HLC, BLC, Digital defog) |
| Events & Intelligent | |
| Basic Detection | Motion detection, Ultra motion detection (human/vehicle), Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, etc. |
| Audio | |
| Audio Compression | G.711U, G.711A (64 Kbps) |
| Two-way Audio | N/A |
| Built-in Mic / Speaker | Support / N/A |
| Storage & Network | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS, 802.1x |
| Compatible Integration | ONVIF (Profile S, G, T), API, SDK |
| Network Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| General & Environment | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 5.3 W |
| Dimensions (L × W × H) | 162 mm × 67 mm × 67 mm (6.4" × 2.6" × 2.6") |
| Weight | 0.25 kg (0.55 lb) |
| Material | Metal + Plastic |
| Protection | IP67 (IEC 60529) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Web Client Language | 13 Languages |

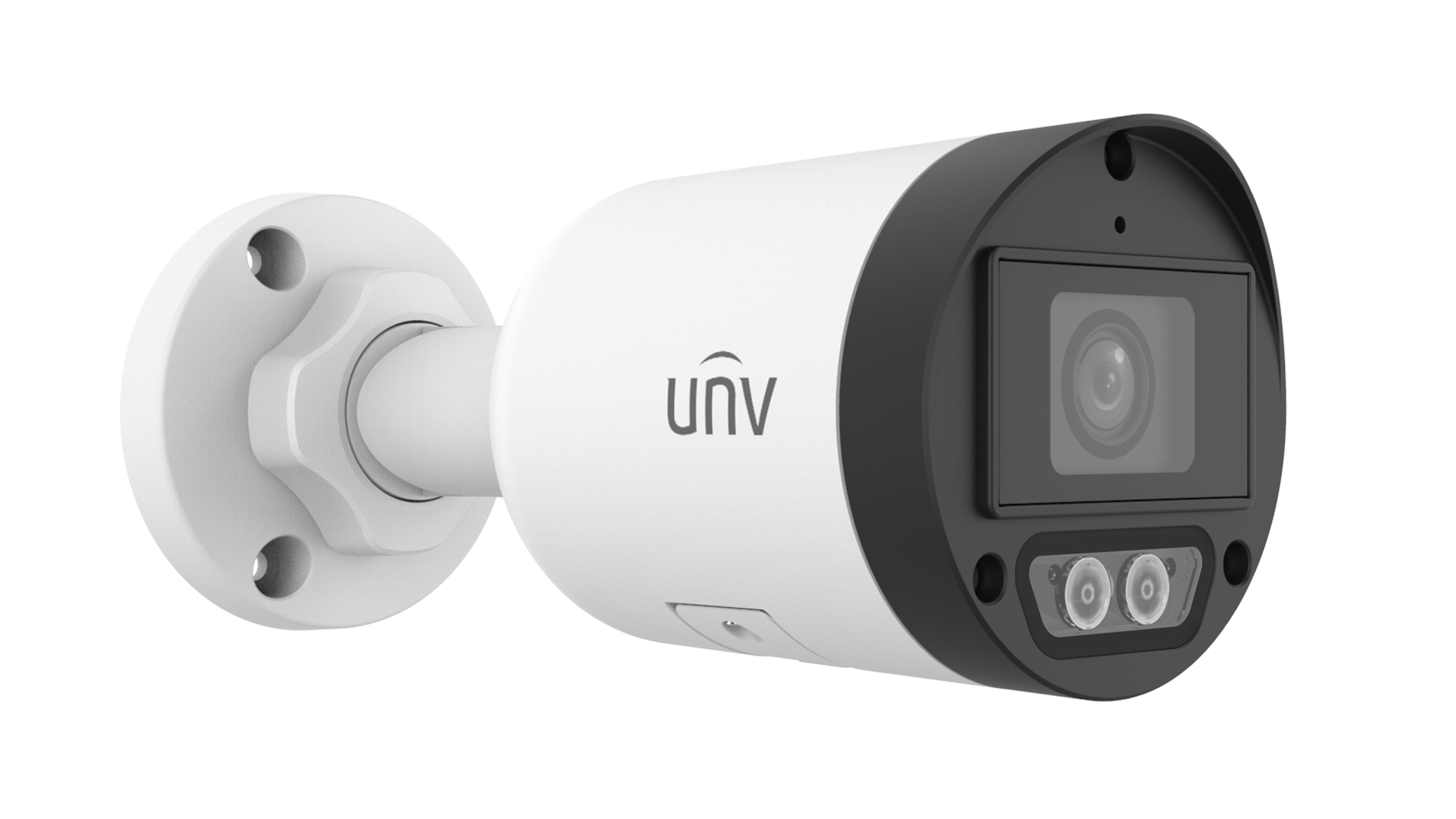

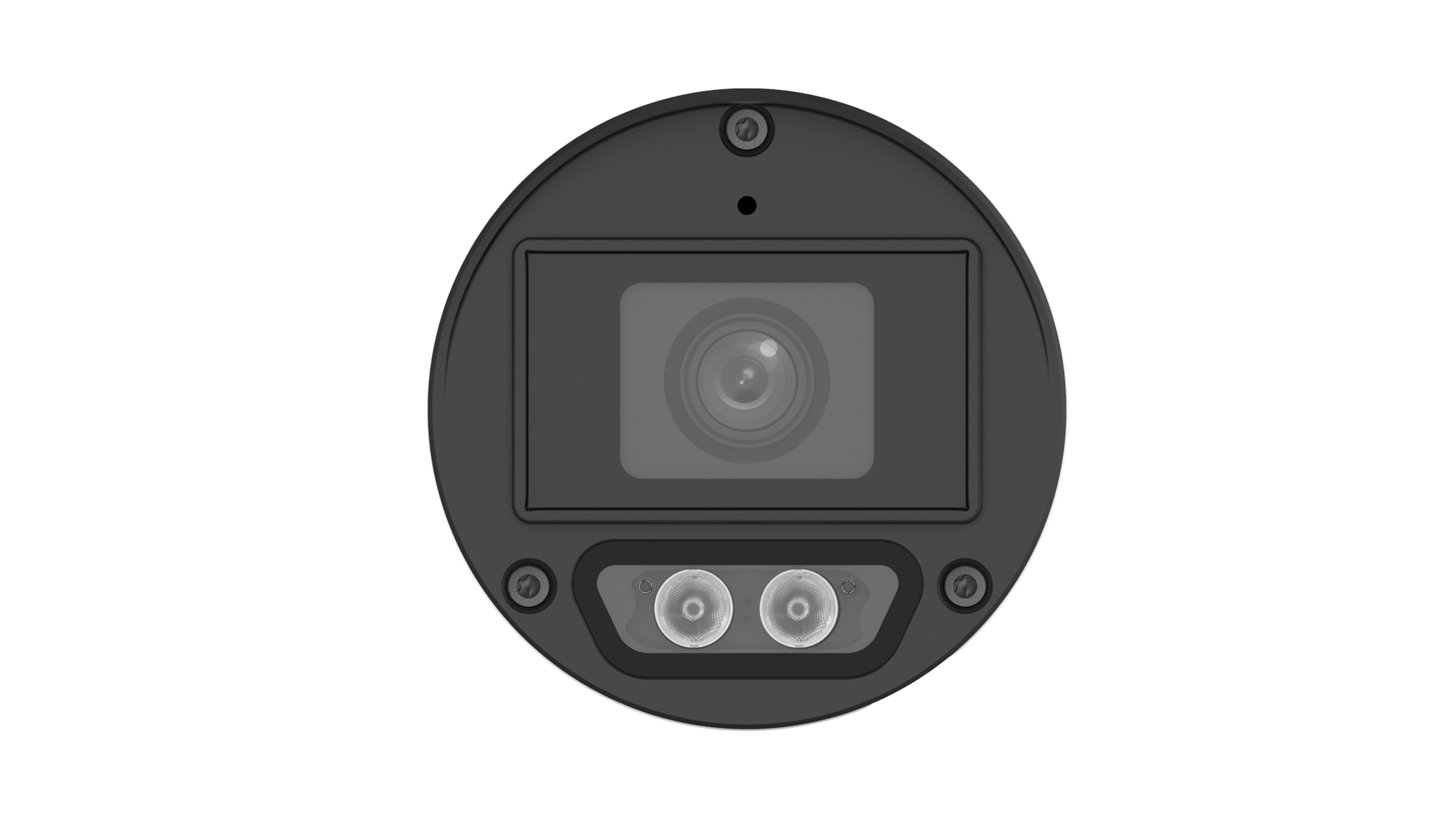

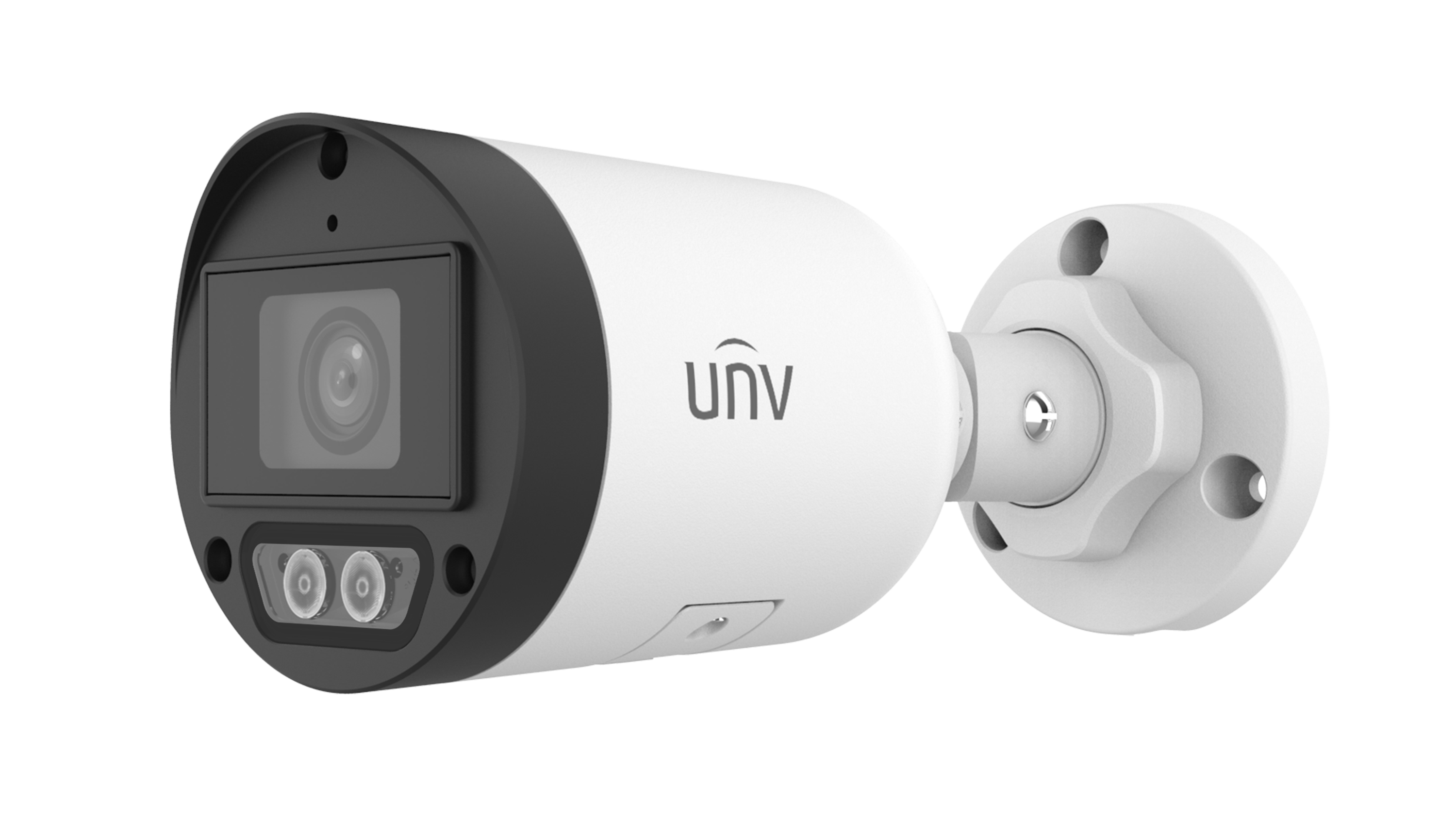

This 8-megapixel bullet network camera is built around a 1/2.7" CMOS sensor. It supports a primary video stream of 3840 x 2160 at 20 frames per second, utilizing Ultra 265, H.265, H.264, and MJPEG compression formats. It features a fixed 2.8 mm F1.6 lens that provides a horizontal field of view of 100.8°, and is equipped with a dual-light illuminator (IR and warm light) with a range of up to 30 meters.
In terms of image processing, the camera is equipped with 120 dB True Wide Dynamic Range and 2D/3D Digital Noise Reduction. It also supports Smart IR, backlight compensation, and digital defogging. The IP67-rated housing is protected against dust and water. It is designed to operate within a temperature range of -30°C to 60°C. Power can be supplied via DC 12V or PoE (IEEE 802.3af), with a maximum power consumption of 5.3 watts.
