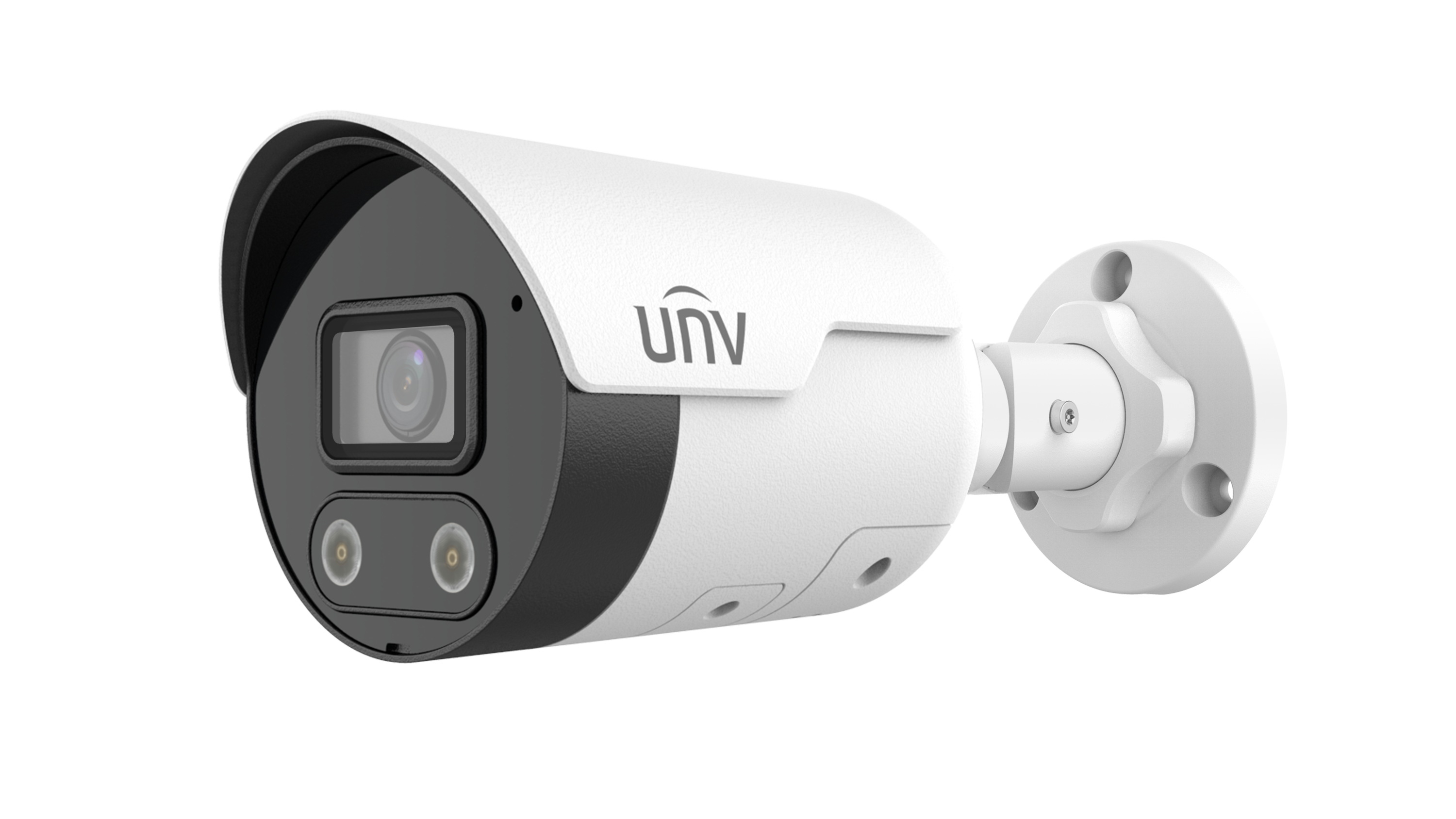

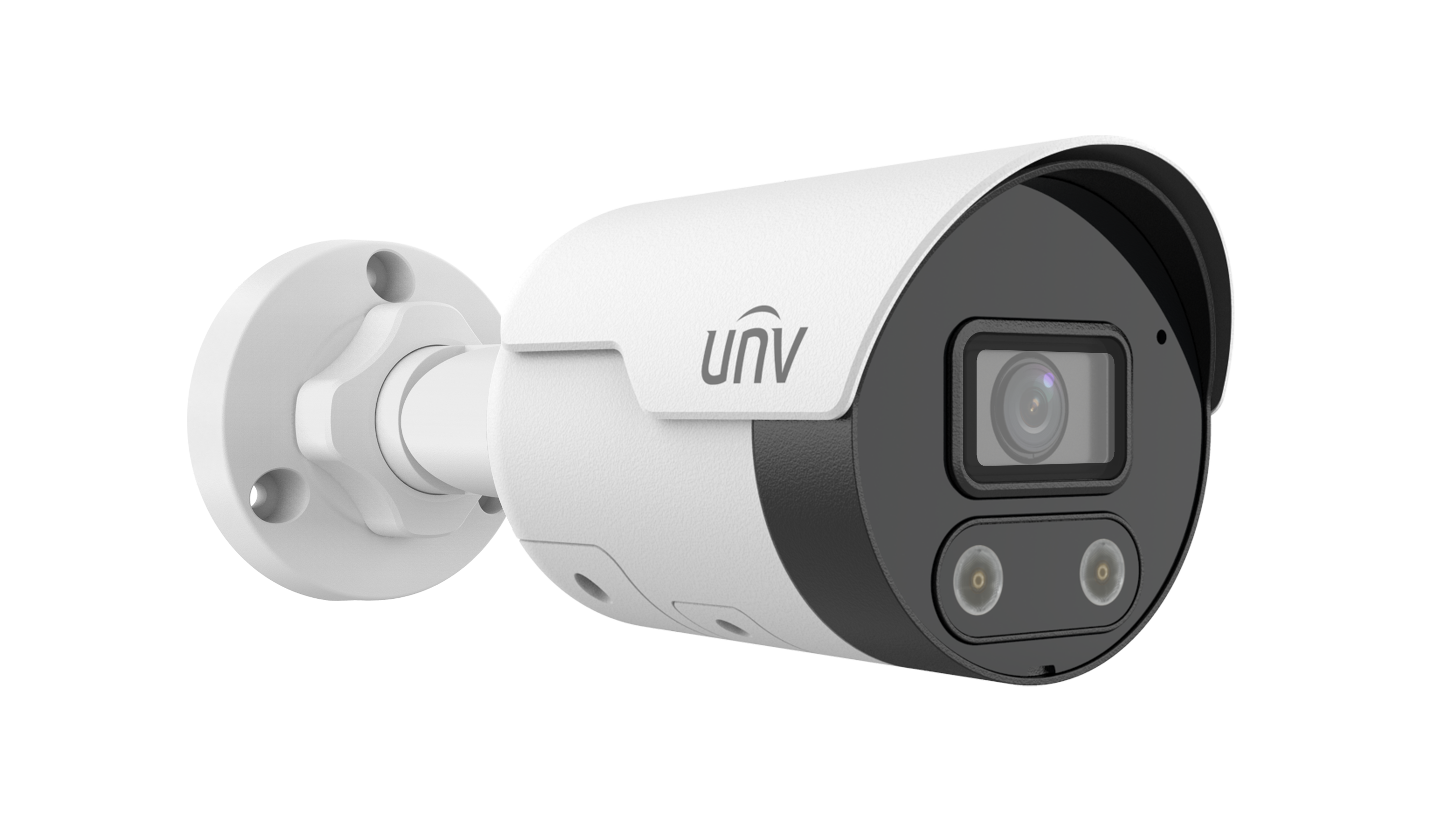

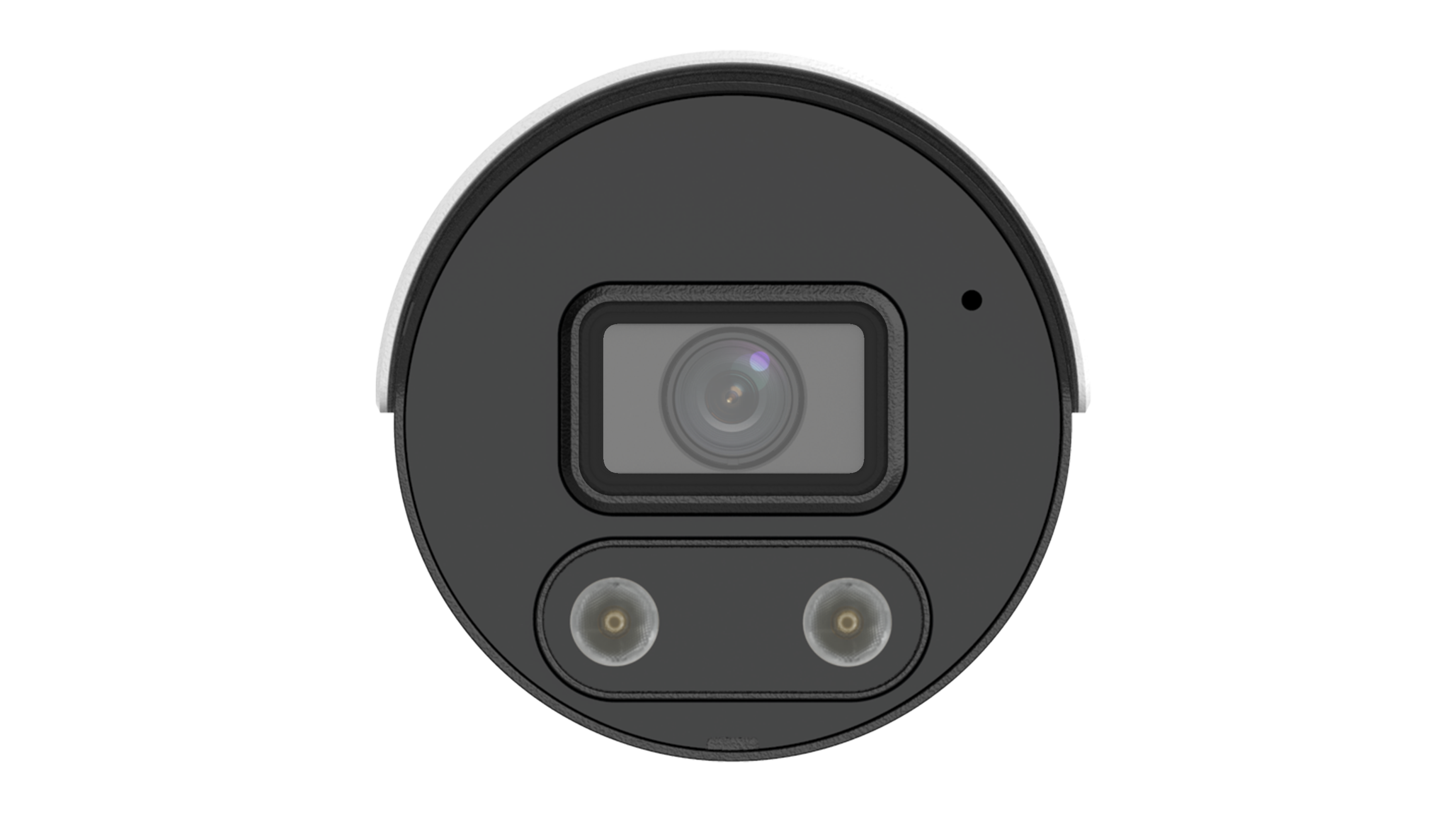

Uniview - IPC2128SB-ADF28KMC-I1 - 8MP WDR Dual-light Alarm Bullet Network Camera
• High quality image with 8 MP, 1/2.7" CMOS sensor
• 8 MP (3840 × 2160)@30/25 (default) fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lighting, accurately focusing on humans, vehicles, and non-motorized vehicles
• Intelligent people flow counting and crowd density monitoring
• 130 dB true WDR technology ensures clear image in strong backlight scene
• Supports 9:16 corridor mode
• Built-in mic and speaker
• Smart IR, up to 40 m (131.2 ft) IR distance
• MicroSD, up to 512 GB
• IP67 protection
| Camera | |
| Max Resolution | 8 MP |
| Sensor | 1/2.7" CMOS |
| Min. Illumination (Color) | 0.003 Lux (F1.4, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | > 56 dB |
| WDR | 130 dB |
| Lens | |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.4 |
| Field of View (H/V/D) | H: 98.7°, V: 53.6°, D: 113.4° |
| Lens Type | Fixed |
| DORI | |
| Detect | 84.0 m (275.6 ft.) |
| Observe | 33.6 m (110.2 ft.) |
| Recognize | 16.8 m (55.1 ft.) |
| Identify | 8.4 m (27.6 ft.) |
| Illuminator | |
| Supplemental Light | Dual light |
| Illumination Distance (IR) | 40 m (131.2 ft) |
| Illumination Distance (Warm Light) | 40 m (131.2 ft) |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate (Main Stream) | 8 MP (3840 × 2160), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Video Stream | Triple streams |
| U-code | Support |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC / BLC / Defog | Support (HLC, BLC, Digital defog) |
| Intelligent & Events | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (with human/vehicle filtering) |
| People Counting | Support people flow counting and crowd density monitoring |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Two-way Audio | Support |
| Built-in Mic / Speaker | Support / Support |
| Storage & Network | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Protocols | IPv4, IPv6, IGMP, TCP, UDP, DHCP, HTTP, HTTPS, RTSP, ONVIF, etc. |
| Compatible Integration | ONVIF (Profile S, G, T, M), API, SDK |
| General & Environment | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 11.0 W |
| Dimensions (L × W × H) | 192 mm × 75 mm × 74 mm (7.6" × 3.0" × 2.9") |
| Weight | 0.42 kg (0.93 lb) |
| Material | Metal + Plastic |
| Protection | IP67 (IEC 60529) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
| Surge Protection | 4 KV |
| Web Client Language | 20 Languages |
This camera is built around a 1/2.7-inch CMOS sensor and delivers a maximum resolution of eight megapixels. It supports a main video stream of 3,840 x 2,160 pixels at 30 frames per second, utilizing video compression formats including Ultra 265, H.265, H.264, and MJPEG. This model features a fixed 2.8 mm F1.4 lens that provides a horizontal field of view of 98.7°, and is equipped with a dual-light illuminator (IR and warm light) with a range of up to 40 meters.
In terms of image processing, the camera incorporates 130 dB true Wide Dynamic Range and 2D/3D Digital Noise Reduction. It also supports Smart IR, backlight compensation, and digital defogging. The IP67-rated housing protects against dust and water ingress. It is designed to operate in extreme temperatures ranging from -30 °C to 60 °C. Power can be supplied via DC 12V or PoE (IEEE 802.3af), with a maximum power consumption of 11.0 watts.
