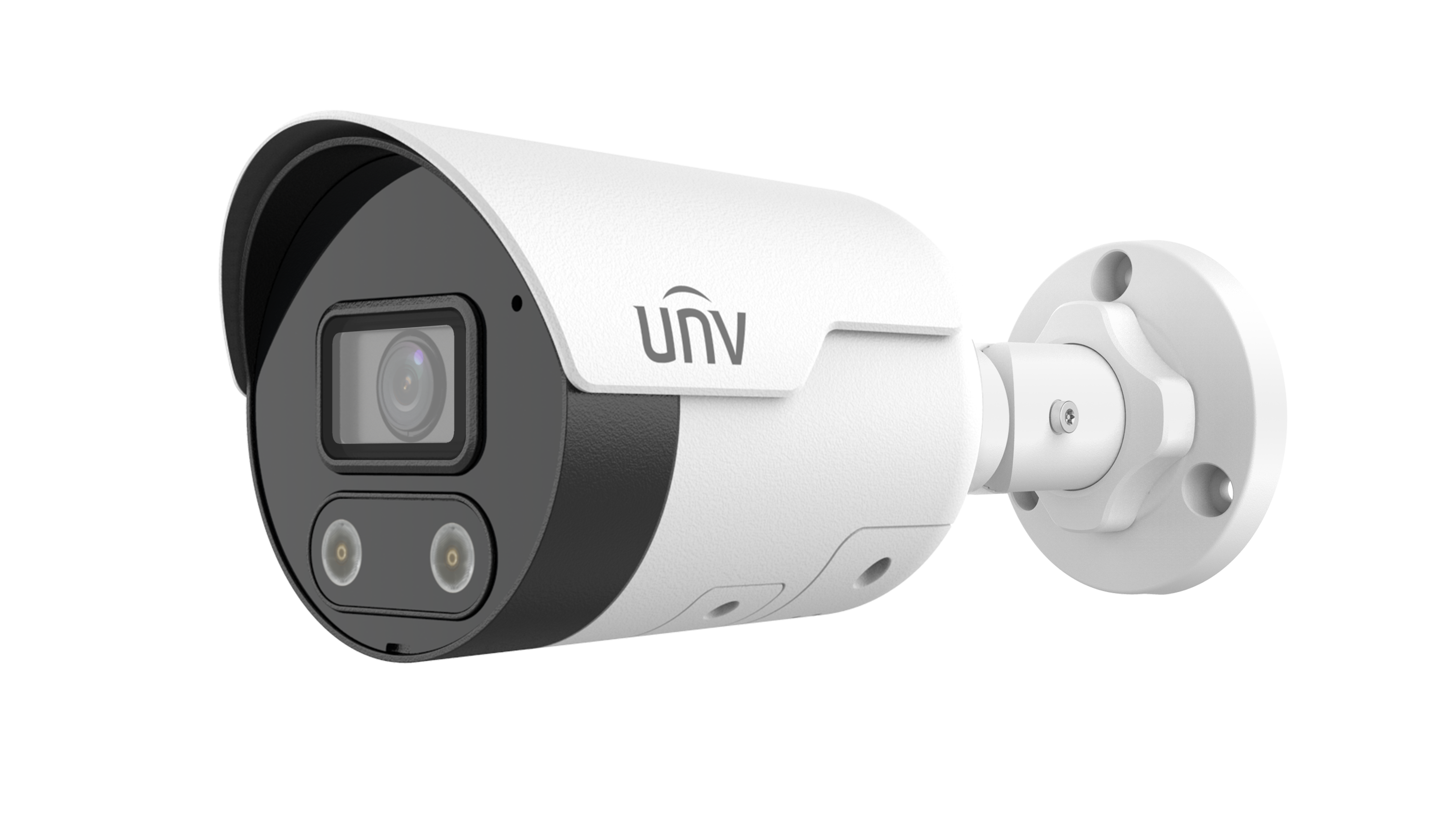

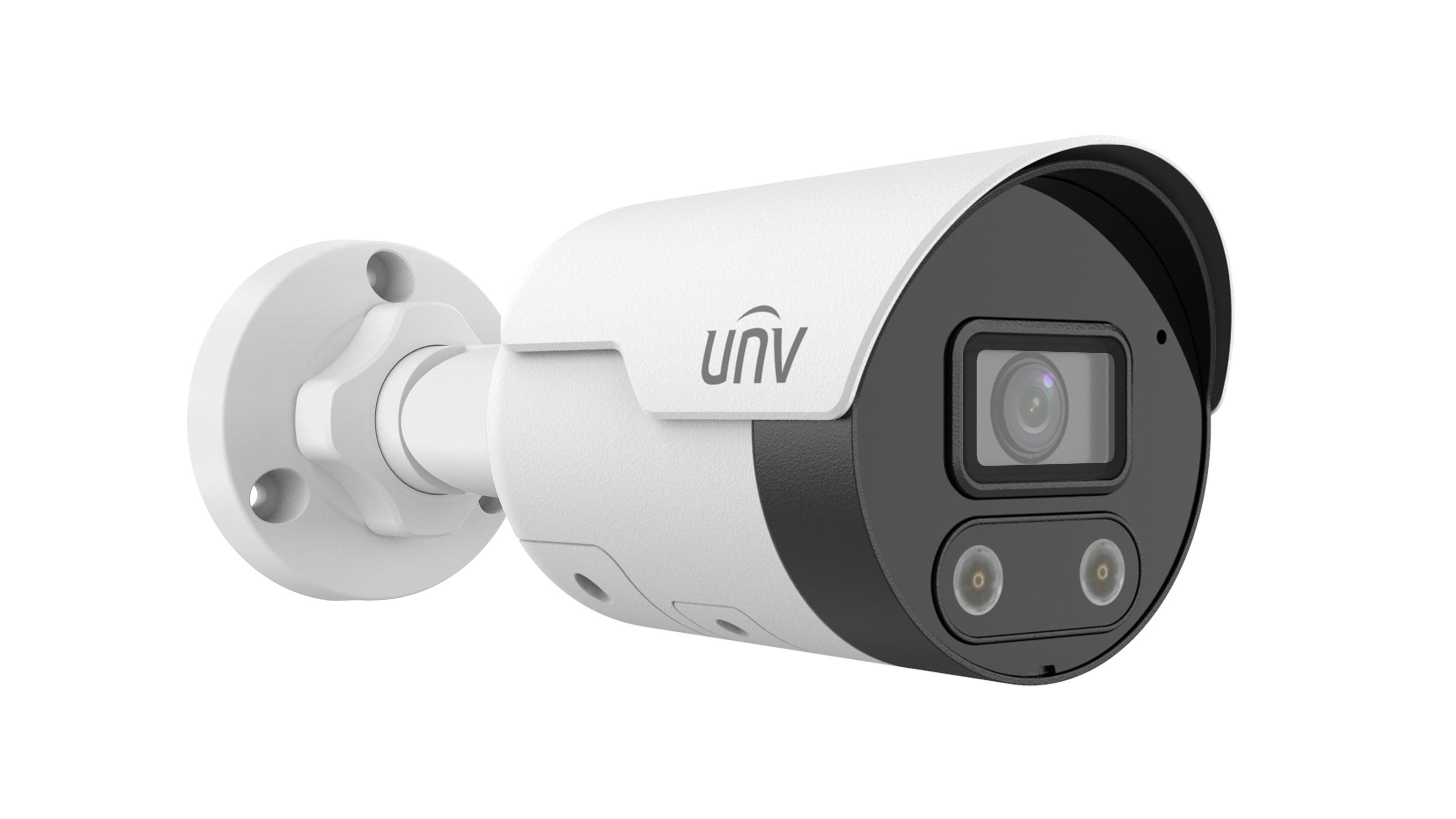

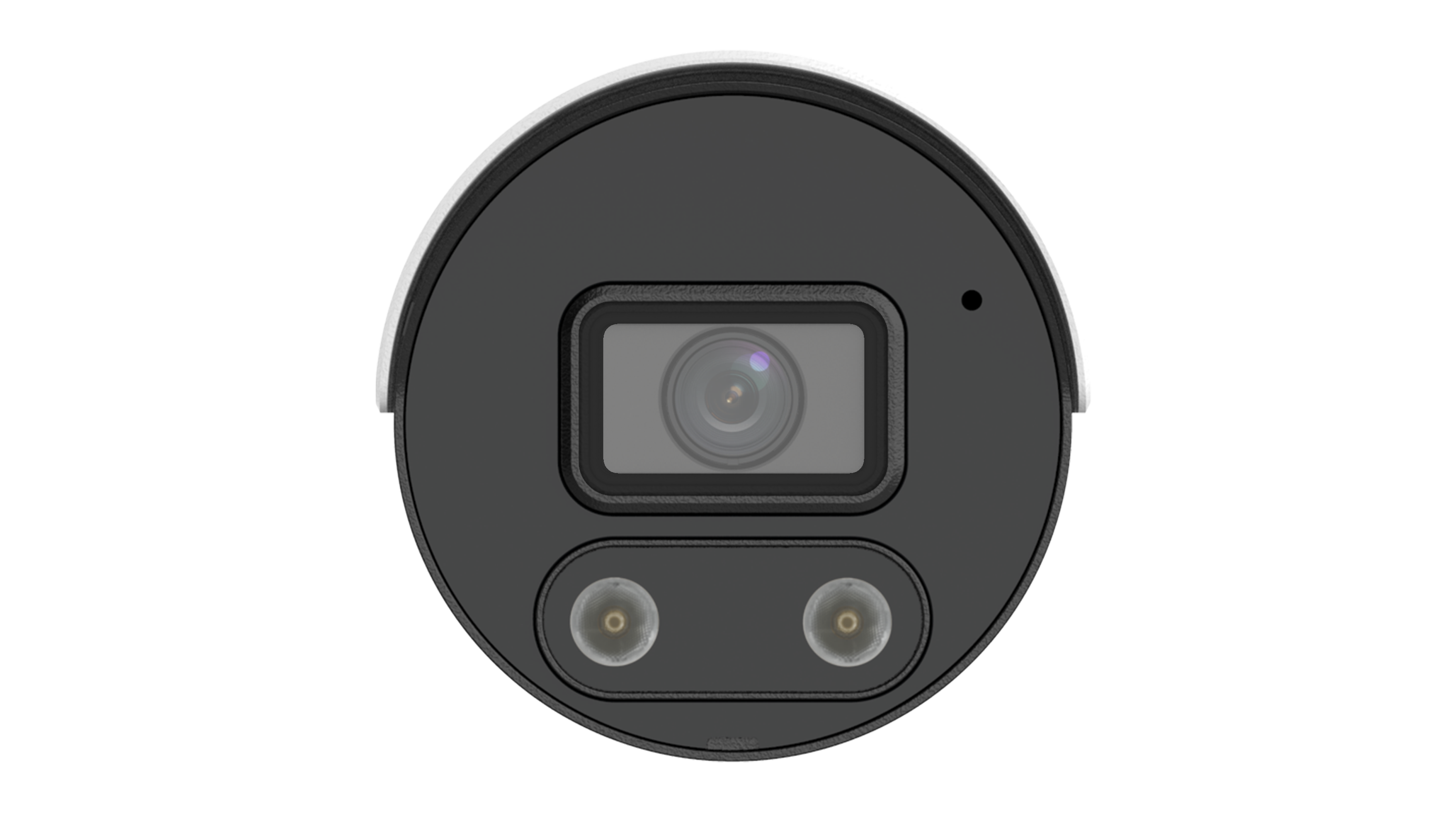

Uniview - IPC2128SB-ADF40KMC-I1 - 8MP WDR Dual-light Alarm Bullet Network Camera
• High quality image with 8 MP, 1/2.7" CMOS sensor
• 8 MP (3840 × 2160)@30/25 (default) fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lighting, accurately focusing on humans, vehicles, and non-motorized vehicles
• Intelligent people flow counting and crowd density monitoring
• 130 dB true WDR technology ensures clear image in strong backlight scene
• Supports 9:16 corridor mode
• Built-in mic and speaker
• Smart IR, up to 40 m (131.2 ft) IR distance
• MicroSD, up to 512 GB
• IP67 protection
| Camera | |
| Max Resolution | 8 MP |
| Sensor | 1/2.7" CMOS |
| Min. Illumination (Color) | 0.003 Lux (F1.4, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | > 56 dB |
| WDR | 130 dB |
| Lens | |
| Focal Length | 4.0 mm |
| Iris Type | Fixed |
| Iris | F1.4 |
| Field of View (H/V/D) | H: 87.1°, V: 50.1°, D: 100.2° |
| Lens Type | Fixed |
| DORI | |
| Detect | 120.0 m (393.7 ft.) |
| Observe | 48.0 m (157.5 ft.) |
| Recognize | 24.0 m (78.7 ft.) |
| Identify | 12.0 m (39.4 ft.) |
| Illuminator | |
| Supplemental Light | Dual light |
| Illumination Distance (IR/Warm Light) | 40 m (131.2 ft) |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate (Main Stream) | 8 MP (3840 × 2160), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Video Stream | Triple streams |
| Image | |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| HLC / BLC / Defog | Support (HLC, BLC, Digital defog) |
| Intelligent & Events | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (with human/vehicle filtering) |
| People Counting | Support people flow counting and crowd density monitoring |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| Audio | |
| Audio Features | Two-way Audio Support, Built-in Mic & Speaker Support |
| Storage & Network | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Compatible Integration | ONVIF (Profile S, G, T, M), API, SDK |
| General & Environment | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 11.0 W |
| Dimensions (L × W × H) | 192 mm × 75 mm × 74 mm (7.6" × 3.0" × 2.9") |
| Material | Metal + Plastic |
| Protection | IP67 (IEC 60529) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
| Surge Protection | 4 KV |
| Web Client Language | 20 Languages |
This camera features a 1/2.7" CMOS sensor and delivers a maximum resolution of 8 megapixels. It supports a main video stream of 3,840 x 2,160 at 30 frames per second and utilizes video compression formats including Ultra 265, H.265, H.264, and MJPEG. The IPC2128SB-ADF40KMC-I1 model features a fixed 4.0 mm F1.4 lens that provides an 87.1° horizontal field of view, and is equipped with a dual-light illuminator (IR and warm light), each of which is effective up to a distance of 40 meters.
For image processing, the camera incorporates 130 dB true Wide Dynamic Range and 2D/3D Digital Noise Reduction. It also supports Smart IR, Backlight Compensation, and digital defog. The housing has an IP67 protection rating against dust and water ingress. It is designed to operate in an extreme temperature range from -30 ℃ to 60 ℃. Power can be supplied via DC 12V or PoE (IEEE 802.3af), with a maximum power consumption of 11.0 watts.
