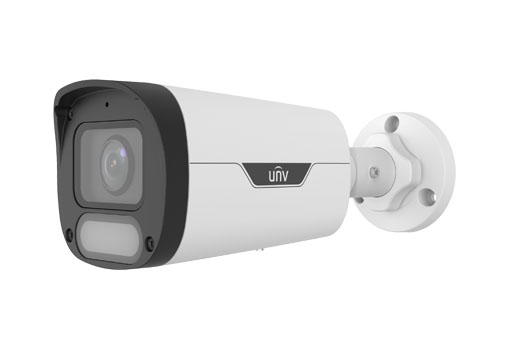

Uniview - IPC2318SR-ADF40KM-WP - UNV 8MP Wise-ISP ColorHunter Fixed Bullet Network Camera(4.0mm)
Part number:
IPC2318SR-ADF40KM-WP
Price:
8MP ColorHunter with WiseISP Fixed Bullet Network Camera 4.0mm
Features:
- High quality image with 8MP, 1/1.8"CMOS sensor and F1.0 large aperture lens
- 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Colorhunter with Wise‑ISP technology ensures 24‑hour full‑color images
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built‑in Mic
- White Light, up to 30m warm light distance
- Supports 512 GB Micro SD card
- IP67 protection
- Support PoE power supply
- 3‑Axis
| Camera | Description |
| Max Resolution | 8MP |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Colour: 0.0003 lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | 120dB |
| Lens | Description |
| Focal Length | IPC2318SR-ADF28KM-WP:2.8 mm IPC2318SR-ADF40KM-WP:4.0 mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | IPC2318SR-ADF28KM-WP:111.0° IPC2318SR-ADF40KM-WP:94.2° |
| Field of View (V) | IPC2318SR-ADF28KM-WP:63.0° IPC2318SR-ADF40KM-WP:51.0° |
| Field of View (D) | IPC2318SR-ADF28KM-WP:131.0° IPC2318SR-ADF40KM-WP:111.7° |
| Lens Type | Fixed |
| DORI | Description |
| DORI Distance (Lens) | IPC2318SR-ADF28KM-WP:2.8mm IPC2318SR-ADF40KM-WP:4.0mm |
| DORI Distance (Detect) | IPC2318SR-ADF28KM-WP:63.0 (206.7ft) IPC2318SR-ADF40KM-WP:90.0(295.3ft) |
| DORI Distance (Observe) | IPC2318SR-ADF28KM-WP:25.2 (82.7ft) IPC2318SR-ADF40KM-WP:36.0(118.1ft) |
| DORI Distance (Recognize) | IPC2318SR-ADF28KM-WP:12.6 (41.3ft) IPC2318SR-ADF40KM-WP:18.0(59.1ft) |
| DORI Distance (Identify) | IPC2318SR-ADF28KM-WP:6.3 (20.7ft) IPC2318SR-ADF40KM-WP:9.0(29.5ft) |
| Illuminator | Description |
| Supplemental Light | Warm Light |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| Light On/Off Control | Auto/Manual |
| Video | Description |
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps ~ 6144 Kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual Streams |
| Image | Description |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart Illumination | Support |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Image Stabilization | N/A |
| Events | Description |
| Basic Detection | Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection; Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection) |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication |
| Audio | Description |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8 KHz |
| Storage | Description |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR; NAS (NFS) |
| Network | Description |
| Protocols | IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; RTMP; SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T); API; SDK |
| User/Host | Up to 32 users, 2 user levels: administrator and common user |
| Security | Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF |
| Client | UNV‑Link; UNV‑Link Pro; EZStation |
| Web Browser | Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Interface | Description |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 x RJ45 10M/100M Base‑TX Ethernet |
| Video Output | N/A |
| Certification | Description |
| EMC | CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368‑1) UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1) |
| Environment | CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection | IP67 (IEC 60529) |
| General | Description |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 3.9W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Dimensions | 206 × 73 × 73mm (8.1” × 2.9” × 2.9”) (L x W x H) |
| Weight | 0.48kg(1.06lb) |
| Material | Metal |
| Working Environment | ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing) |
| Storage Environment | ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing) |
| Surge Protection | 4KV |
| Reset Button | Support |
| Web Client Language | 13 Languages English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
