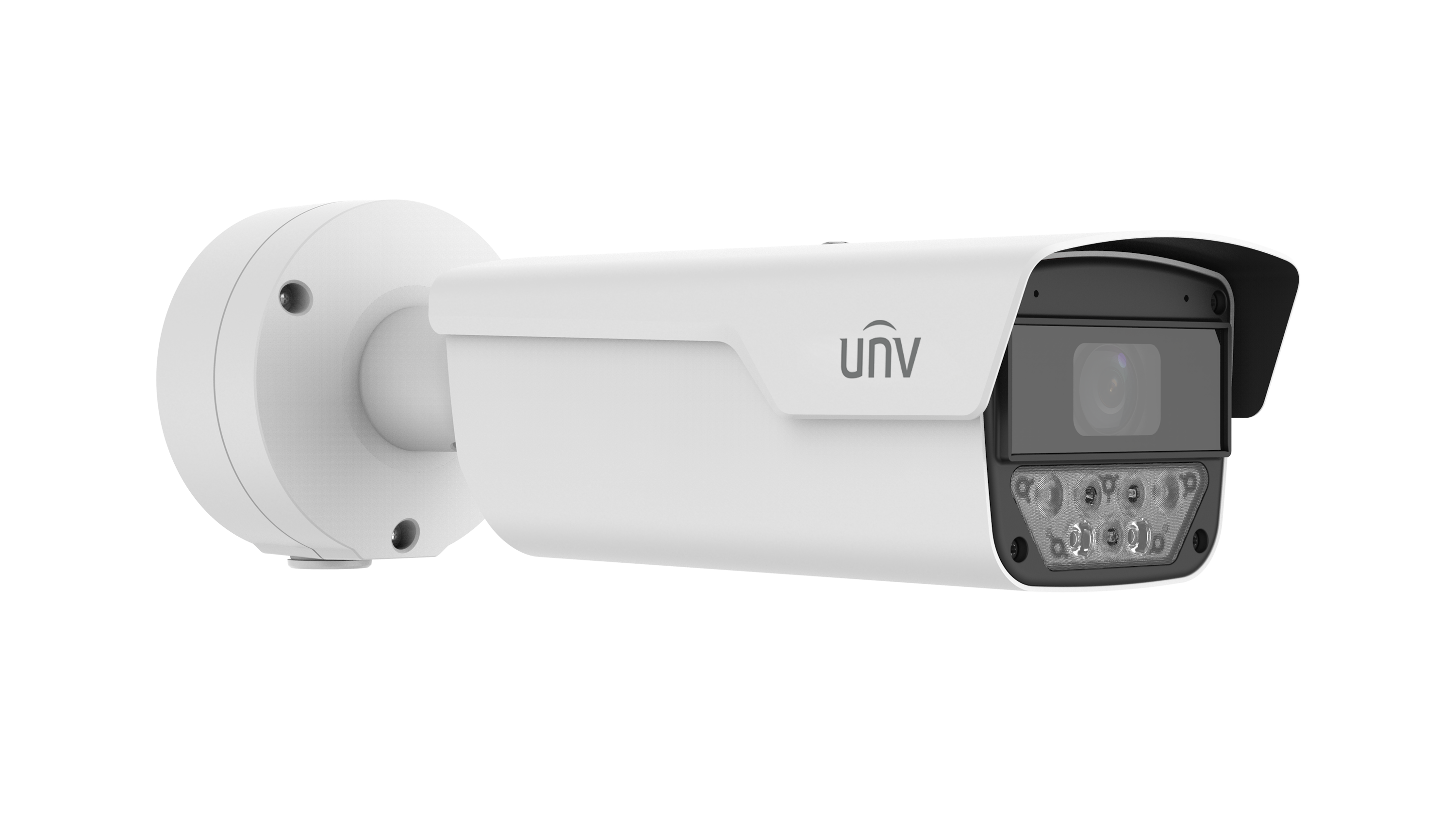

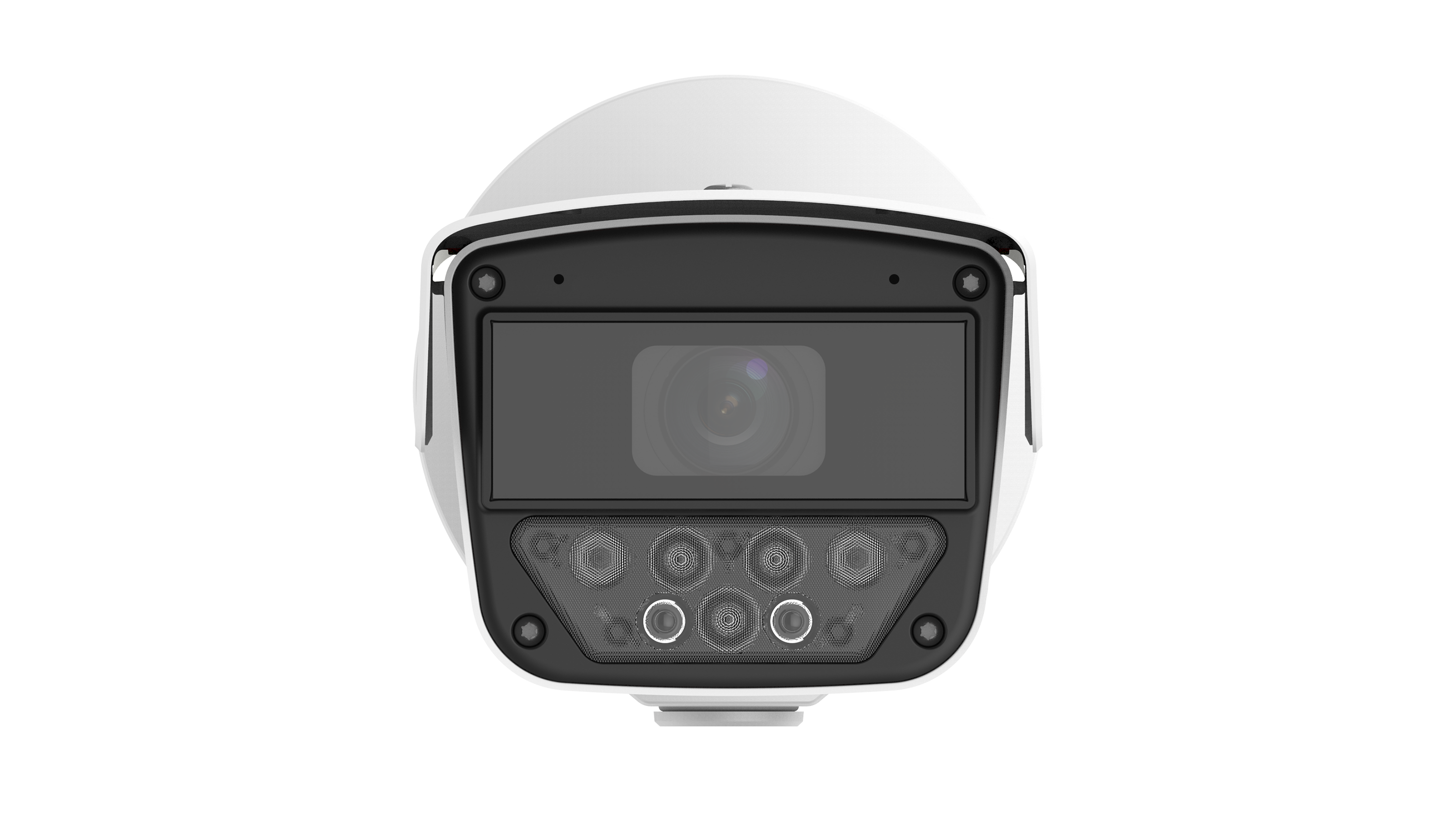

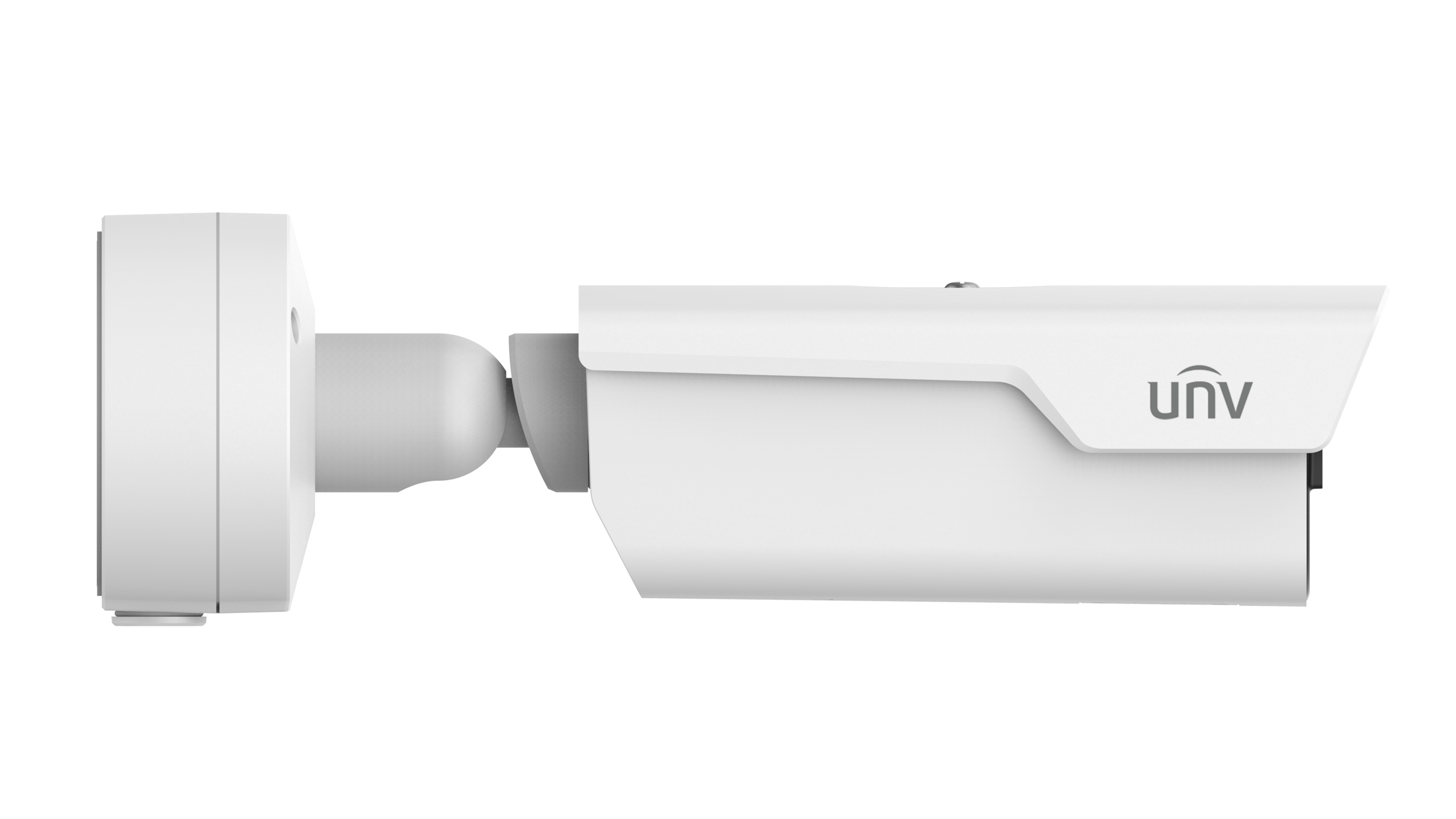

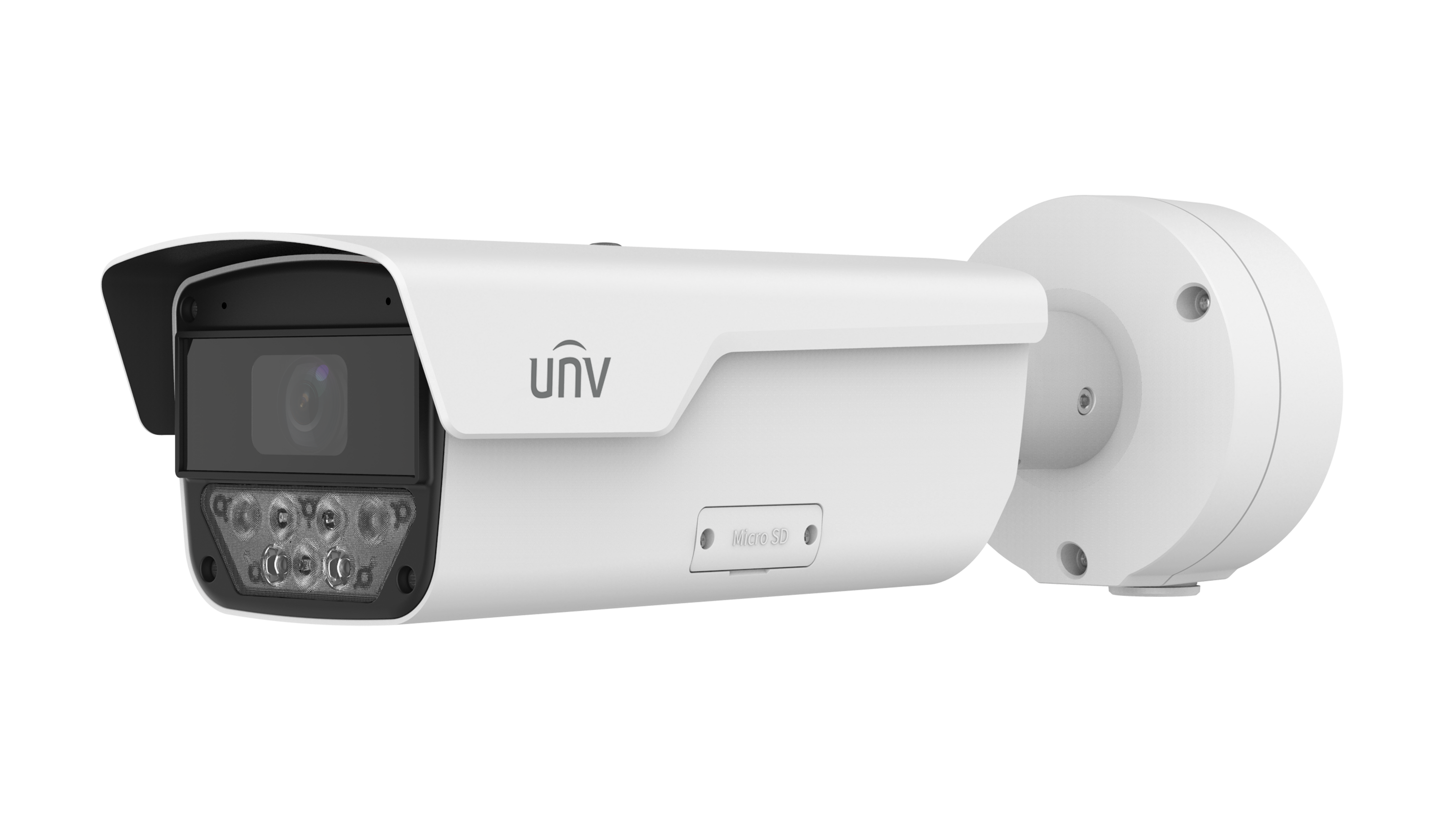

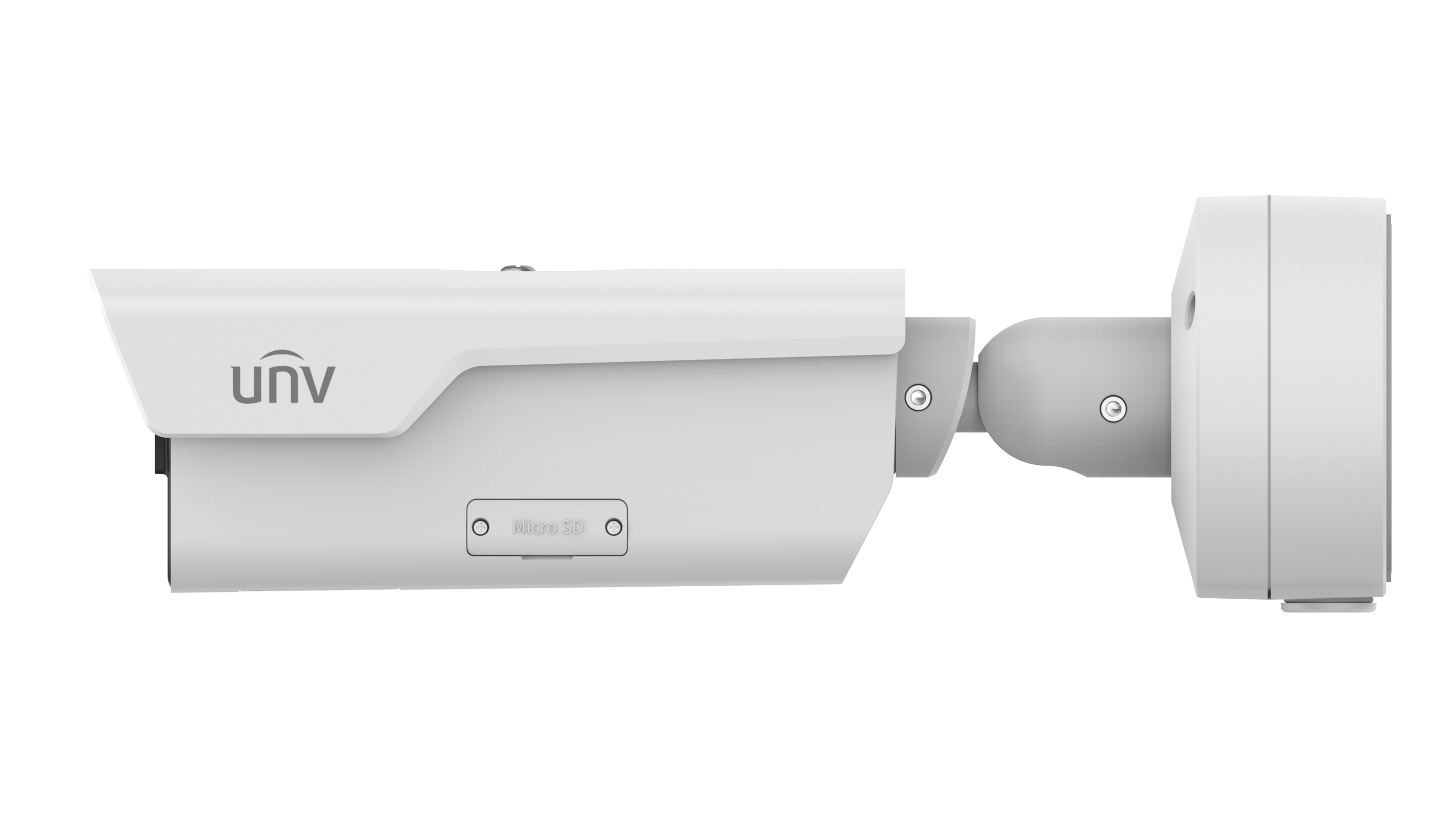

Uniview - IPC268EA-AHDX4K-I1 - 8MP Wise-ISP VF IR Bullet Network Camera
Part number:
IPC268EA-AHDX4K-I1
Price:
8MP Wise-ISP VF IR Bullet Network Camera
Features:
• High quality image with 8 MP, 1/1.8" CMOS sensor
• 3840 × 2160@60 fps in the main stream, offering smoother live video and more details
• Ultra 265, H.265, H.264, MJPEG
• Wise-ISP technology, comprehensive improvement in image quality
• Metadata analyse, supports human body, motor vehicle and non-motor vehicle image capture and attribute collection, realizes data visualization management, allows users to get target information for further data analysis
• supports front-end comparison, supports blocklist and allowlist comparison, increases the concurrent detection number up to 120
• Smart intrusion prevention, supports false alarm filtering, include cross line, intrusion, enter area, leave area detection
• People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 140 dB optical WDR (Wide Dynamic Range)
• DC 12 V or PoE (IEEE 802.3at) power supply
• Wide voltage range of ±25% in DC
| IPC268EA-AHDZK-I1 | IPC268EA-AHDX4K-I1 | |
| Camera | ||
| Sensor | 1/1.8" CMOS | |
| Min. Illumination | Colour:0.001 lux (F1.2, AGC ON) B/W:0.0005 lux (F1.2, AGC ON) 0 lux with IR | Colour:0.003 lux (F1.6, AGC ON) B/W:0.002 lux (F1.6, AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Shutter | Auto/Manual, 1 to 1/100000 s | |
| WDR | 140 dB | |
| S/N | >56 dB | |
| Lens | ||
| Focal Length | 2.8 to 12 mm | 8 to 32 mm |
| Optical Zoom | 4X | |
| Iris | F1.2 | F1.6 |
| Iris Type | P-iris | |
| DORI | ||
| DORI Distance (Detect) | 108.0m(354.3ft)~180.0m(590.6ft) | 240.3m(788.4ft)~644.4m(2114.2ft) |
| DORI Distance (Observe) | 43.2m(141.7ft)~72.0m(236.2ft) | 96.1m(315.4ft)~257.8m(845.7ft) |
| DORI Distance (Recognize) | 21.6m(70.9ft)~36.0m(118.1ft) | 48.1m(157.7ft)~128.9m(422.8ft) |
| DORI Distance (Identify) | 10.8m(35.4ft)~18.0m(59.1ft) | 24.0m(78.8ft)~64.4m(211.4ft) |
| Illuminator | ||
| Illumination Distance (IR) | 60 m (196.9 ft) | 120 m (393.7 ft) |
| IR On/Off Control | Auto/Manual | |
| Wavelength | 850 nm | |
| Video | ||
| Frame Rate-Main Stream | 8MP(3840*2160), Max 60fps | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| Frame Rate-Sub Stream | 2MP(1920*1080), Max 60fps | |
| Video Bit Rate | 128 Kbps to 16 Mbps | |
| Frame Rate-Third Stream | D1 (720*576), Max 60fps | |
| Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) | |
| ROI | Support | |
| Video Stream | Triple streams | |
| OSD | Up to 10 OSDs | |
| Image | ||
| White Balance | Auto&Outdoor&Fine Tune&Sodium Lamp&Locked&Auto2 | |
| Digital Noise Reduction | 2D/3D DNR | |
| Smart IR | Support | |
| Flip | Normal&Flip Vertical&Flip Horizontal&180°&90°Clockwise&90°Anti-clockwise | |
| HLC | Support | |
| Defog | Digital defog | |
| Intelligent | ||
| Metadata Analyse | Support human body, motor vehicle and non-motor vehicle image capture and attribute collection | |
| Recognition | ||
| People Counting | Support people flow counting and crowd density monitoring | |
| Exception Detection | Object Removed,Object Left Behind, Scene change, Defocus detection | Object Removed,Object Left Behind |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |
| Events | ||
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| General Function | Watermark&IP Address Filtering&Access Policy&ARP Protection&RTSP Authentication&User Authentication&HTTP authentication&Alarm input&Alarm output | |
| Audio | ||
| Audio Compression | G.711U&G.711A | |
| Audio Bitrate | 128 Kbps | |
| Two-way Audio | Support | |
| Suppression | Support | |
| Sampling Rate | 16KHZ | |
| Storage | ||
| Edge Storage | Micro SD, up to 512 GB | |
| Network Storage | ANR, NAS (NFS) | |
| Network | ||
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, TLS1.3 | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 | |
| Client | EZStation, UNV-Link, UNV-Link Pro | |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above&Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |
| Interface | ||
| Audio I/O | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |
| Alarm I/O | 3/2 | |
| Serial Port | 1 channel RS485 interface | |
| Built-in Mic | Support, built-in mic*2 | |
| Built-in Speaker | Support | |
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet | |
| Certification | ||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 3rd Ed., 2021-10-22 ) | |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | |
| General | ||
| Power | DC12V(±25%) , PoE+ (IEEE 802.3at) | |
| Power Consumption | Max 16W | Max 19W |
| Power Interface | Ø5.5 mm coaxial power plug | |
| Dimensions | 406 x 126 x 130 mm (16.0” x 5.0” x 5.1”) (L x W x H) | |
| Weight | 1.92kg(4.23lb) | |
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
| Surge Protection | 6 KV | |
| Heater | Support | |
