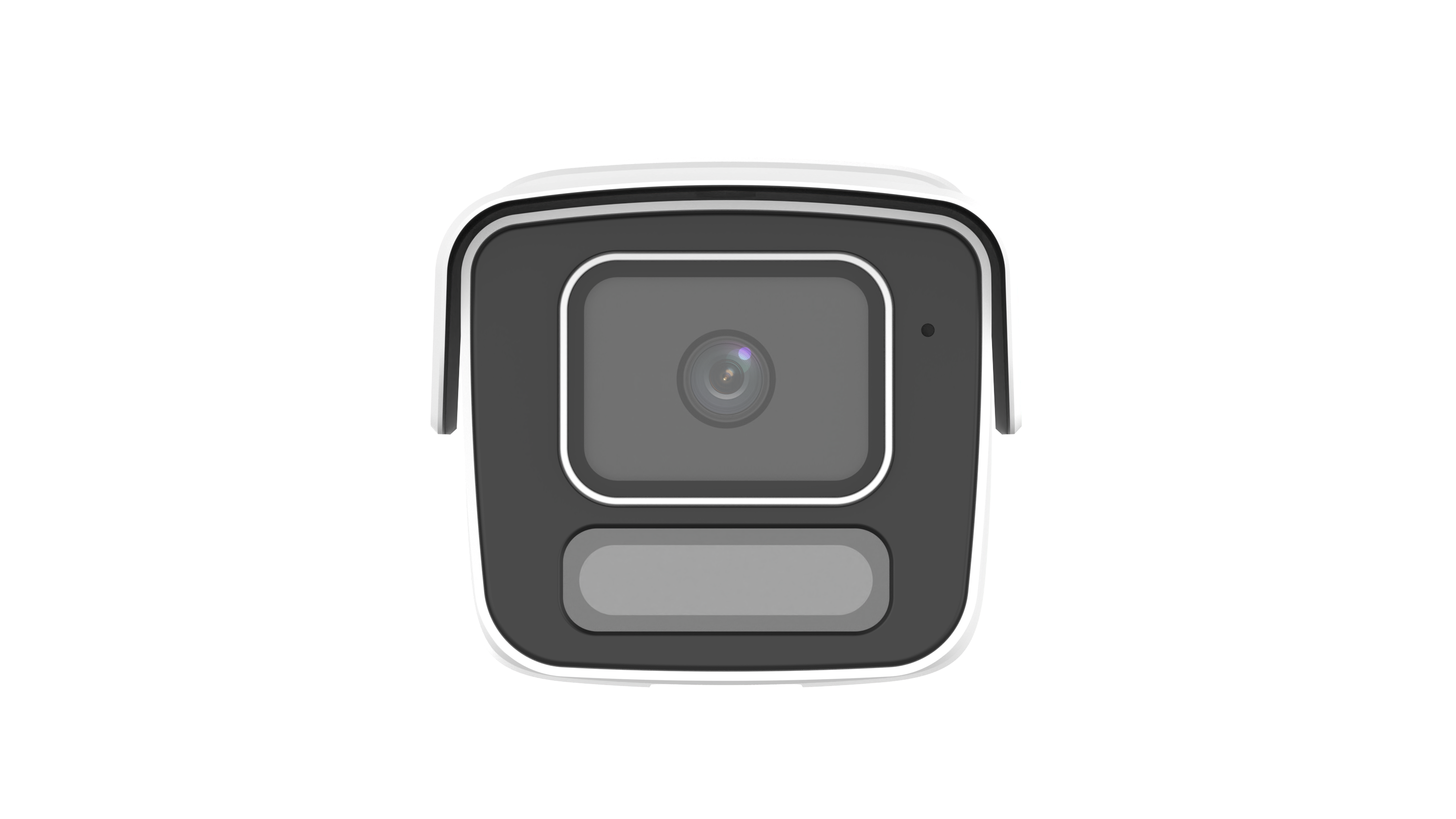

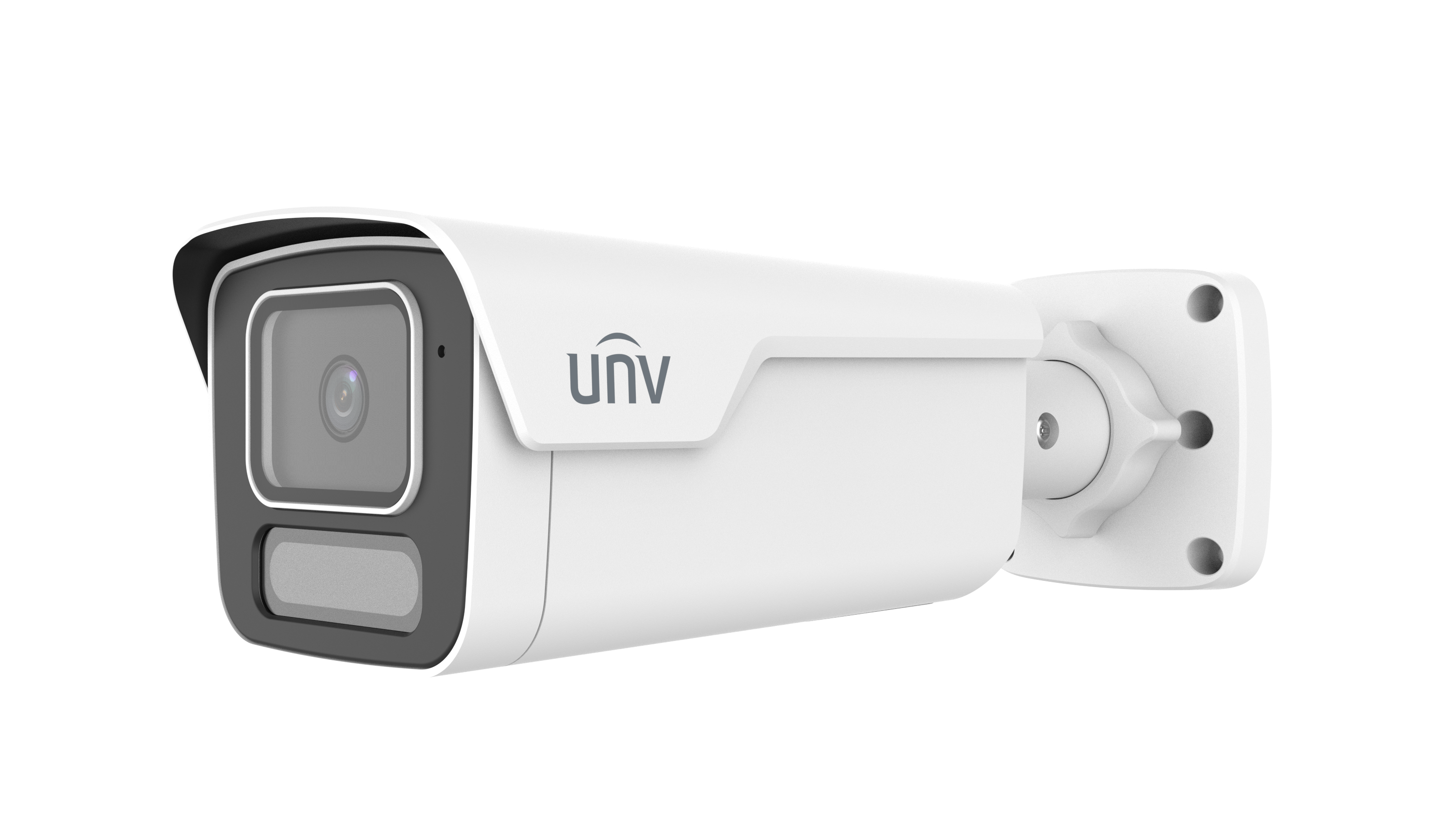

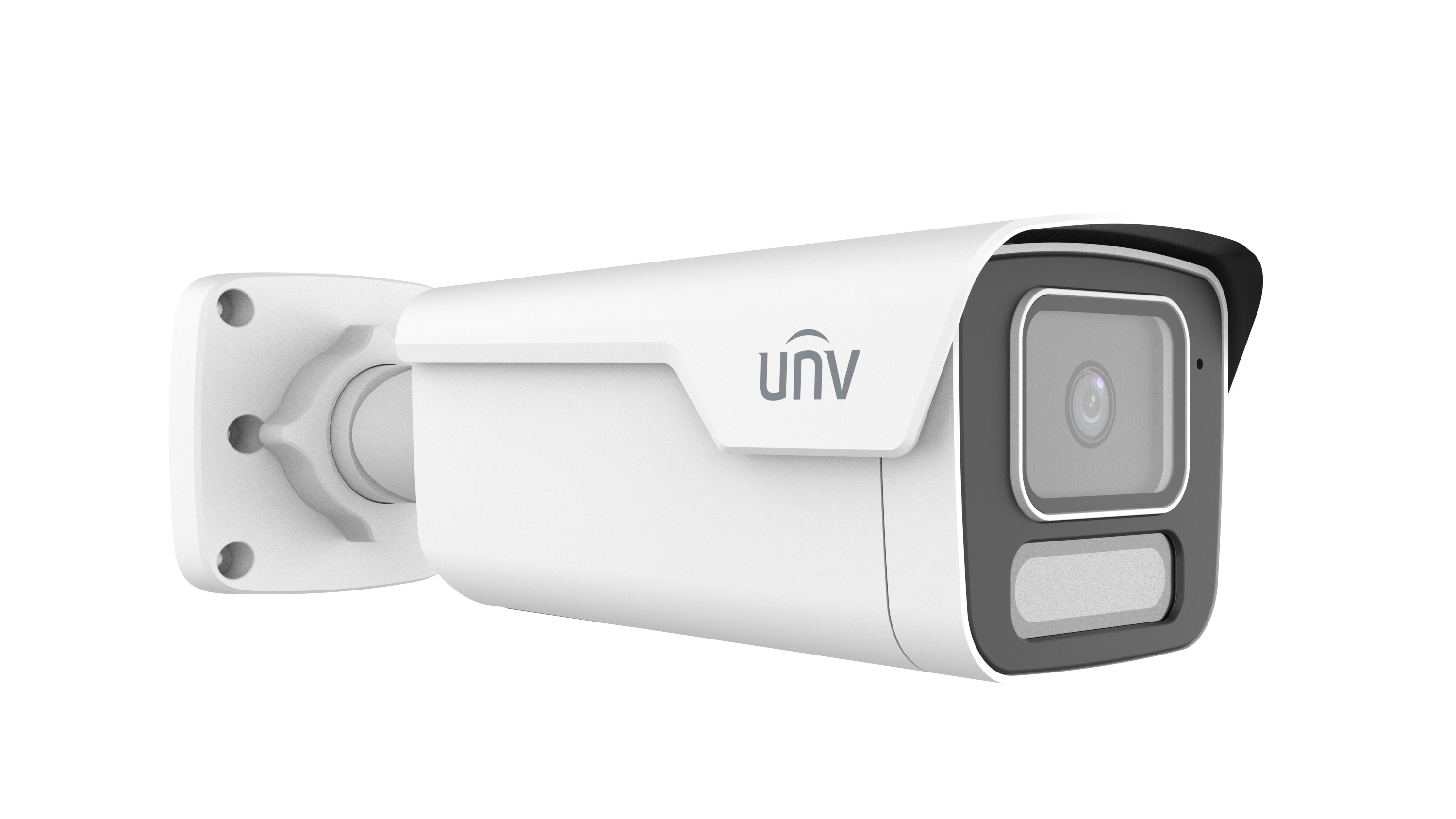

Uniview - IPC2B18SE-ADF28K-WP-I1N - 8MP WDR OwlView Plus Bullet Network Camera
• High quality image with 8 MP, 1/1.2" CMOS sensor
• 8 MP (3840 × 2160)@30/25 fps; 5.3 MP (3072 × 1728)@30/25 fps; 3.6 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720), max. 30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduces false alarm caused by leaves, birds and lights, accurately focusing on human, motor vehicle and non-motor vehicle
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1, built-in mic
• White light, up to 40 m (131.2 ft) warm light distance
• MicroSD, up to 512 GB
• Supports NEMA 4X, IK10 vandal resistant and IP67 protection
| Camera | |
| Max Resolution / Sensor | 8 MP / 1/1.2" CMOS |
| Min. Illumination (Color) | 0.0003 Lux (F1.0, AGC ON) |
| Day/Night / Shutter | IR-cut filter with auto switch (ICR) / Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N / WDR | > 56 dB / 130 dB |
| Lens | |
| Focal Length / Lens Type | 2.8 mm / Fixed |
| Iris Type / Iris | Fixed / F1.0 |
| Field of View (H/V/D) | H: 105.0°, V: 56.1°, D: 121.0° |
| DORI Distance | |
| DORI Distance (Detect) | 43.4 m (142.4 ft.) |
| DORI Distance (Observe) | 17.4 m (57.1 ft.) |
| DORI Distance (Recognize) | 8.7 m (28.5 ft.) |
| DORI Distance (Identify) | 4.3 m (14.1 ft.) |
| Illuminator | |
| Supplemental Light | Warm light (No IR specified) |
| Illumination Distance (Warm Light) | 40 m (131.2 ft) |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG (Baseline/Main/High profile) |
| Frame Rate (Main Stream) | 8 MP (3840 × 2160), max. 30 fps |
| Video Bit Rate / Stream | 128 Kbps to 16 Mbps / Triple streams |
| OSD / Privacy Mask / ROI / U-code | Up to 8 OSDs / Up to 4 areas / Support / Support |
| Image | |
| Digital Noise Reduction | 2D/3D DNR |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Features | ASM (Support), HLC (Support), BLC (Support), Defog (Digital defog) |
| Intelligent | |
| Smart Intrusion Prevention | Cross line, intrusion, enter/leave area detection (human/vehicle filtering) |
| Counting / Collection | People Counting (Support flow/crowd density) / Attribute Collection (SIP with color retrieval) |
| Basic Events | Motion, Ultra motion, Tampering, Audio detection, Object removed, Object Left Behind, Alarm input, Alarm output |
| Audio | |
| Compression / Bitrate | G.711U, G.711A / 64 Kbps (Sampling Rate 8 kHz) |
| Two-way Audio / Suppression | Support / Support |
| Built-in Mic / Speaker | Support / N/A (Speaker not specified) |
| Storage & Network | |
| Edge Storage / Network Storage | MicroSD, up to 512 GB / ANR, NAS (NFS) |
| Network Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, G, T, M), API, SDK |
| Security | Password Protection, Strong Password, HTTPS Encryption, TLS 1.2, WSSE and Digest Authentication for ONVIF, etc. |
| Interface | |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Network / Video Output | 1 × RJ45 10 M/100 M Base-TX Ethernet / N/A |
| General & Environment | |
| Power / Power Consumption | DC 12 V±25%, PoE (IEEE 802.3af) / Max. 6.0 W |
| Dimensions (L × W × H) | 265.2 mm × 95.2 mm × 82.9 mm (10.4" × 3.7" × 3.3" ) |
| Weight / Material | 0.93 kg (2.05 lb) / Metal + Plastic |
| Protection Rating | IP67, IK10, NEMA 4X |
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection / Reset Button | 4 KV / Support |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130), FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863), WEEE (2012/19/EU) |
| Web Client Language | 20 Languages |
The camera utilizes an 8 MP, 1/1.2" CMOS sensor to provide high-resolution video streams up to 3840 × 2160 at 30 frames per second, supporting three simultaneous video streams. Compression is handled by Ultra 265, H.265, H.264, and MJPEG codecs. Optically, it features a fixed 2.8 mm lens with an F1.0 iris, offering a wide 105° horizontal view. Low-light and nighttime scenes are illuminated by a warm light source extending up to 40 meters. The unit incorporates a built-in microphone and supports two-way audio, supplemented by 1-in/1-out ports for external audio and alarm connections.
For image optimization, the camera is equipped with 130 dB True WDR, 2D/3D DNR, BLC, and HLC. It features ColorHunter technology and Auto Scene Match for enhanced visual output. Intelligent video analytics include Smart Intrusion Prevention capable of classifying targets (human, motor vehicle, non-motor vehicle) for cross line, intrusion, enter area, and leave area detection. The camera also provides statistical analysis via people flow counting and crowd density monitoring. Environmental durability is confirmed by IP67, IK10 (vandal resistance), and NEMA 4X protection ratings. The device accepts power via DC 12V (±25%) or PoE (IEEE 802.3af), consuming a maximum of 6.0 W. It is designed to function across a wide temperature spectrum, from -40 °C to 60 °C.
