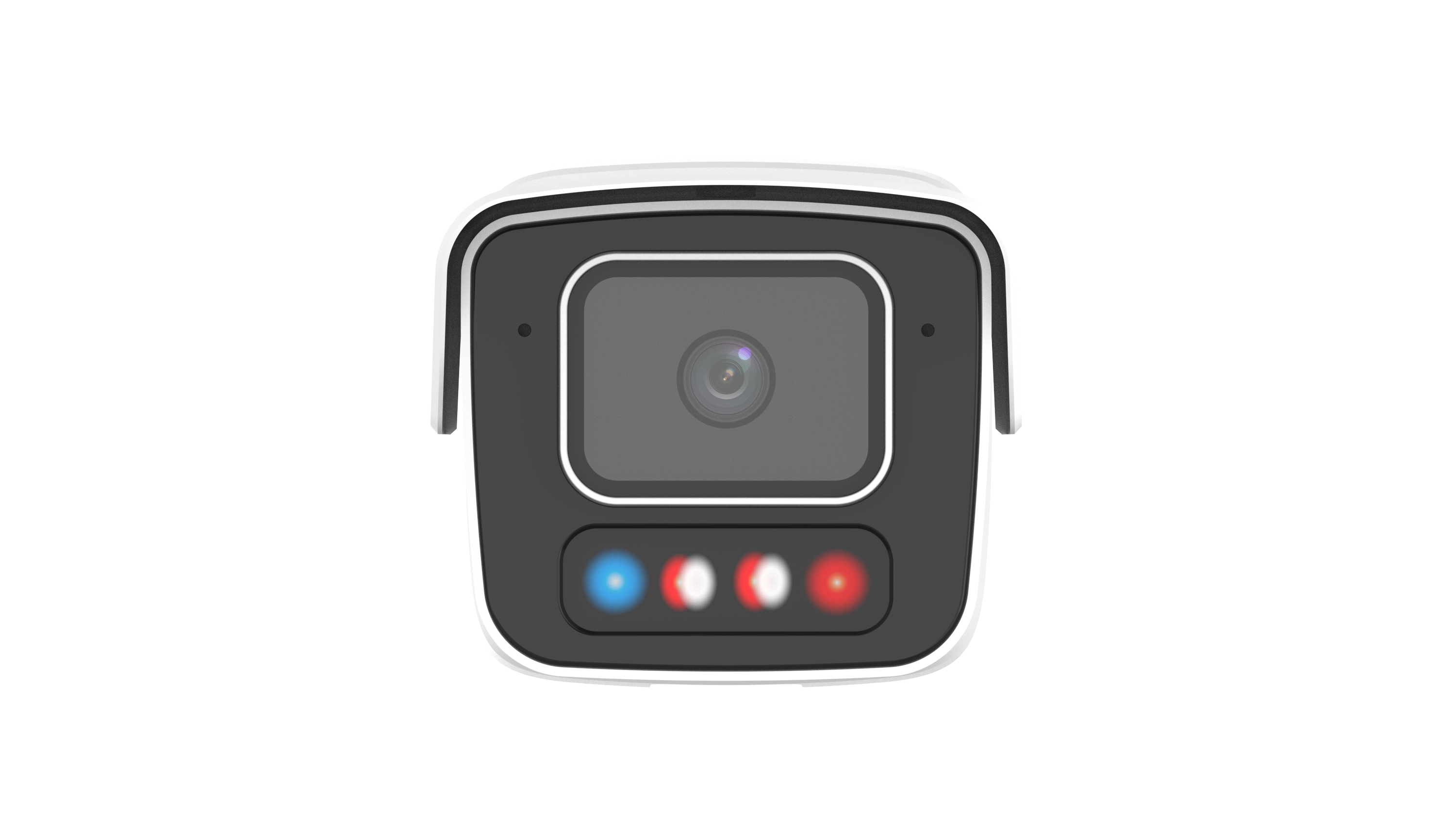

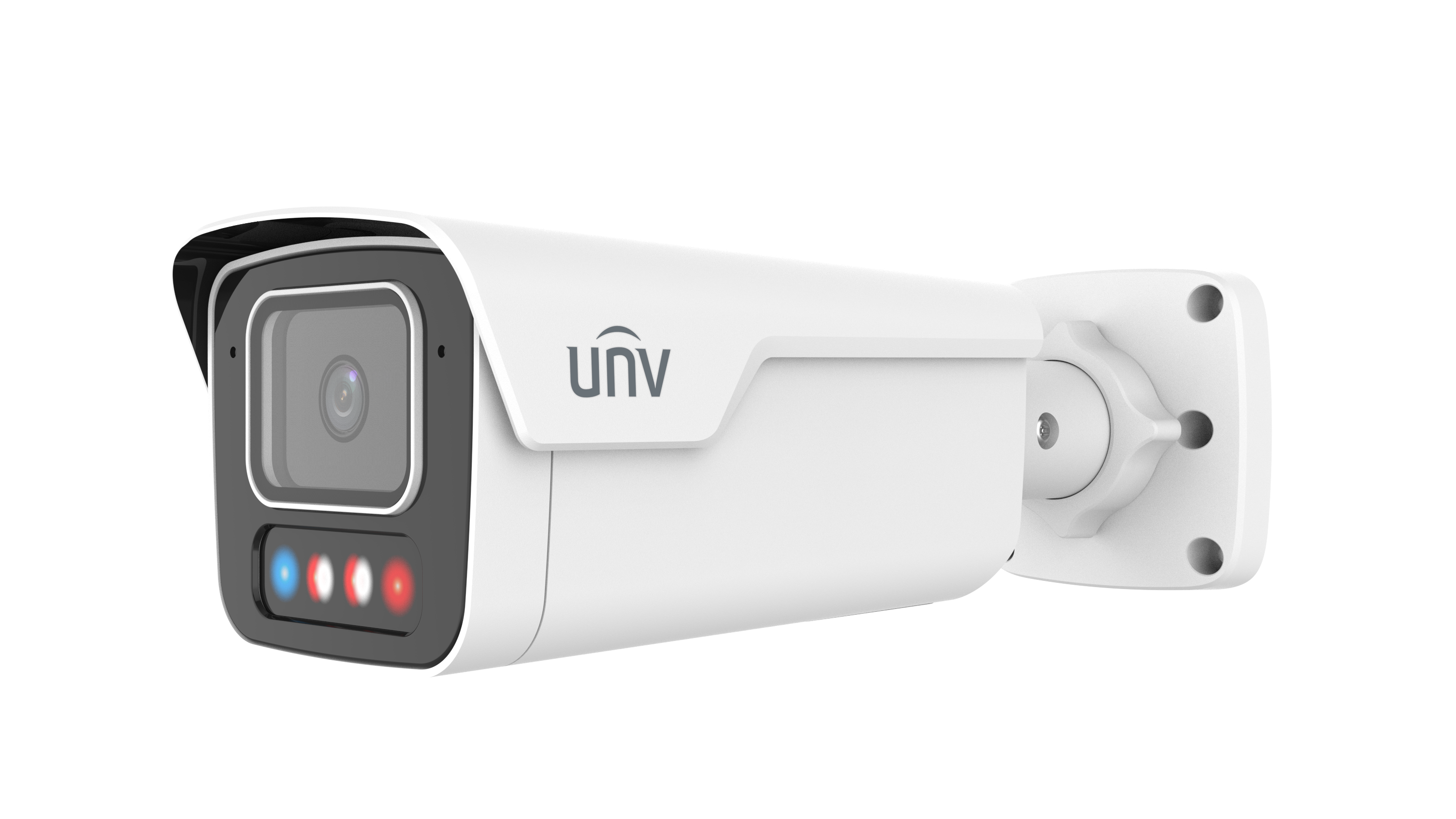

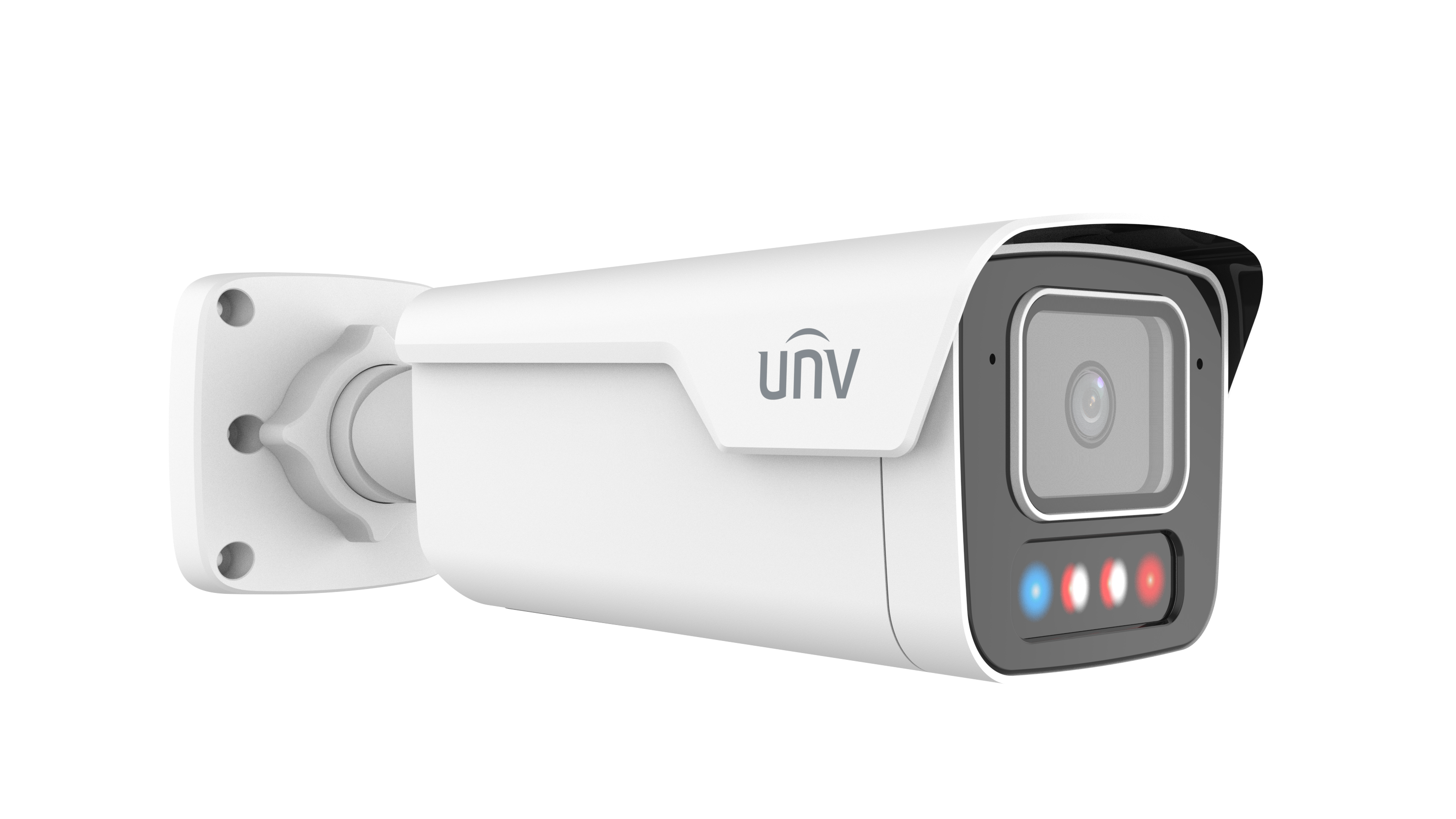

Uniview - IPC2B18SE-ADF28KMC-WP-I1 - 8MP Dual-light Bullet Warning Network Camera
• High quality image with 8 MP, 1/1.8" CMOS sensor
• Features an F1.0 large-aperture lens
• 8 MP (3840 × 2160)@30/25 (default) fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non motor vehicles
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1
• Built-in dual-mic and speaker
• Smart IR, up to 40 m (131.2 ft) IR distance
• White light, up to 40 m (131.2 ft) warm light distance
• MicroSD, up to 512 GB
• IK10 vandal resistant
• Supports NEMA 4X and IP67 protection
| Camera | |
| Max Resolution / Sensor | 8 MP / 1/1.8" CMOS |
| Min. Illumination (Color) | 0.0005 Lux (F1.0, AGC ON) |
| Day/Night / Shutter | IR-cut filter with auto switch (ICR) / Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N / WDR | > 56 dB / 130 dB |
| Lens | |
| Focal Length / Lens Type | 2.8 mm / Fixed |
| Iris Type / Iris | Fixed / F1.0 |
| Field of View (H/V/D) | H: 108.1°, V: 59.5°, D: 130.2° |
| DORI Distance | |
| DORI Distance (Detect) | 63.0 m (206.7 ft.) |
| DORI Distance (Observe) | 25.2 m (82.7 ft.) |
| DORI Distance (Recognize) | 12.6 m (41.3 ft.) |
| DORI Distance (Identify) | 6.3 m (20.7 ft.) |
| Illuminator | |
| Supplemental Light | Dual light (IR and Warm Light) |
| Illumination Distance (IR/Warm) | 40 m (131.2 ft) |
| Control / Wavelength | IR On/Off and Light On/Off Auto/Manual / 850 nm |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG (Baseline/Main/High profile) |
| Frame Rate (Main Stream) | 8 MP (3840 × 2160), max. 30 fps |
| Video Bit Rate / Stream | 128 Kbps to 16 Mbps / Triple streams |
| OSD / Privacy Mask / ROI / U-code | Up to 8 OSDs / Up to 4 areas / Support / Support |
| Image | |
| Digital Noise Reduction | 2D/3D DNR |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Features | Smart Illumination (Support), ASM (Support), HLC (Support), BLC (Support), Defog (Digital defog) |
| Intelligent | |
| Smart Intrusion Prevention | Cross line, intrusion, enter/leave area detection (human/vehicle filtering) |
| Counting / Collection | People Counting (Support flow/crowd density) / Attribute Collection (SIP with color retrieval) |
| Basic Events | Motion, Ultra motion, Tampering, Audio detection, Object removed, Object Left Behind, Alarm input, Alarm output |
| Audio | |
| Compression / Bitrate | G.711U, G.711A / 64 Kbps (Sampling Rate 8 kHz) |
| Two-way Audio / Suppression | Support / Support |
| Storage & Network | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, G, T, M), API, SDK |
| Interface | |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Built-in Mic / Speaker | Built-in dual-mic / Support |
| Network / Video Output | 1 × RJ45 10 M/100 M Base-TX Ethernet / N/A |
| General & Environment | |
| Power / Power Consumption | DC 12 V±25%, PoE (IEEE 802.3af) / Max. 6.5 W |
| Dimensions (L × W × H) | 265.2 mm × 95.2 mm × 82.9 mm (10.4" × 3.7" × 3.3" ) |
| Weight / Material | 1.17 kg (2.58 lb) / Metal + Plastic |
| Protection Rating | IP67, IK10, NEMA 4X |
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection / Reset Button | 4 KV / Support |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4), FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863), WEEE (2012/19/EU) |
| Web Client Language | 20 Languages |
This high-resolution 8-megapixel bullet-style network camera features a large 1/1.8-inch CMOS sensor and a fixed F1.0 aperture lens. It supports a main video stream of 3840 x 2160 at 30 frames per second and uses Ultra 265, H.265, H.264, and MJPEG compression formats. The IPC2B18SE-ADF28KMC-WP-I1 model features a 2.8 mm fixed F1.0 lens, which provides a horizontal field of view of 108.1°. It is also equipped with a dual-light illuminator (infrared and white/warm light), which has a range of up to 40 meters.
Key imaging features include true Wide Dynamic Range of 130 dB, 2D/3D Digital Noise Reduction, and ColorHunter with Wise-ISP technology for superior 24-hour full-color imaging. The camera has a built-in dual microphone and speaker for two-way audio, as well as external audio and alarm input/output interfaces. The housing offers maximum physical protection and boasts IP67 ratings for dust and water resistance, IK10 ratings for vandal resistance, and NEMA 4X ratings for corrosion resistance. It is designed to operate within an extended temperature range of -40°C to 60°C. Power can be supplied via DC 12V or PoE (IEEE 802.3af), with a maximum power consumption of 6.5 watts.
