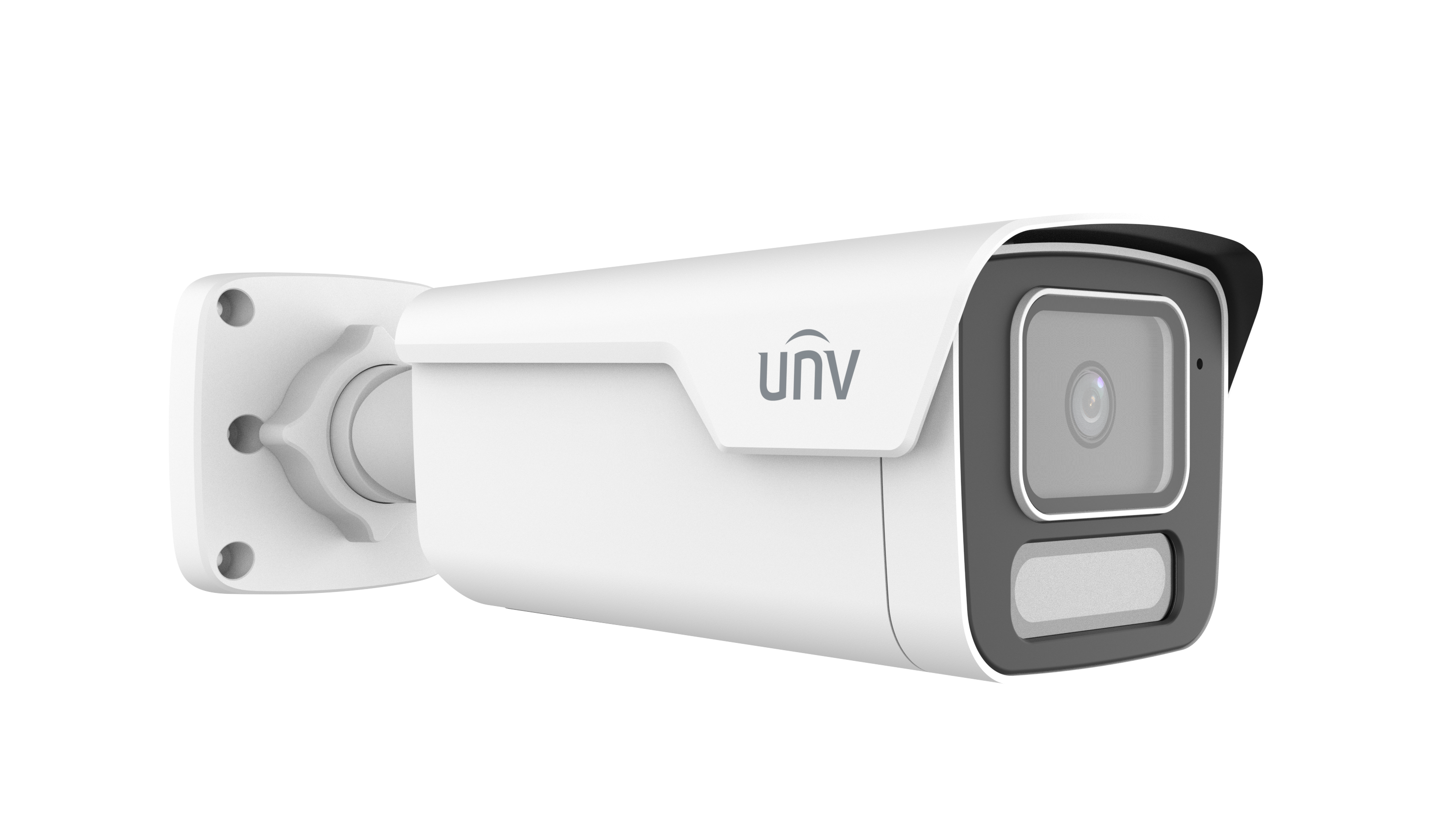

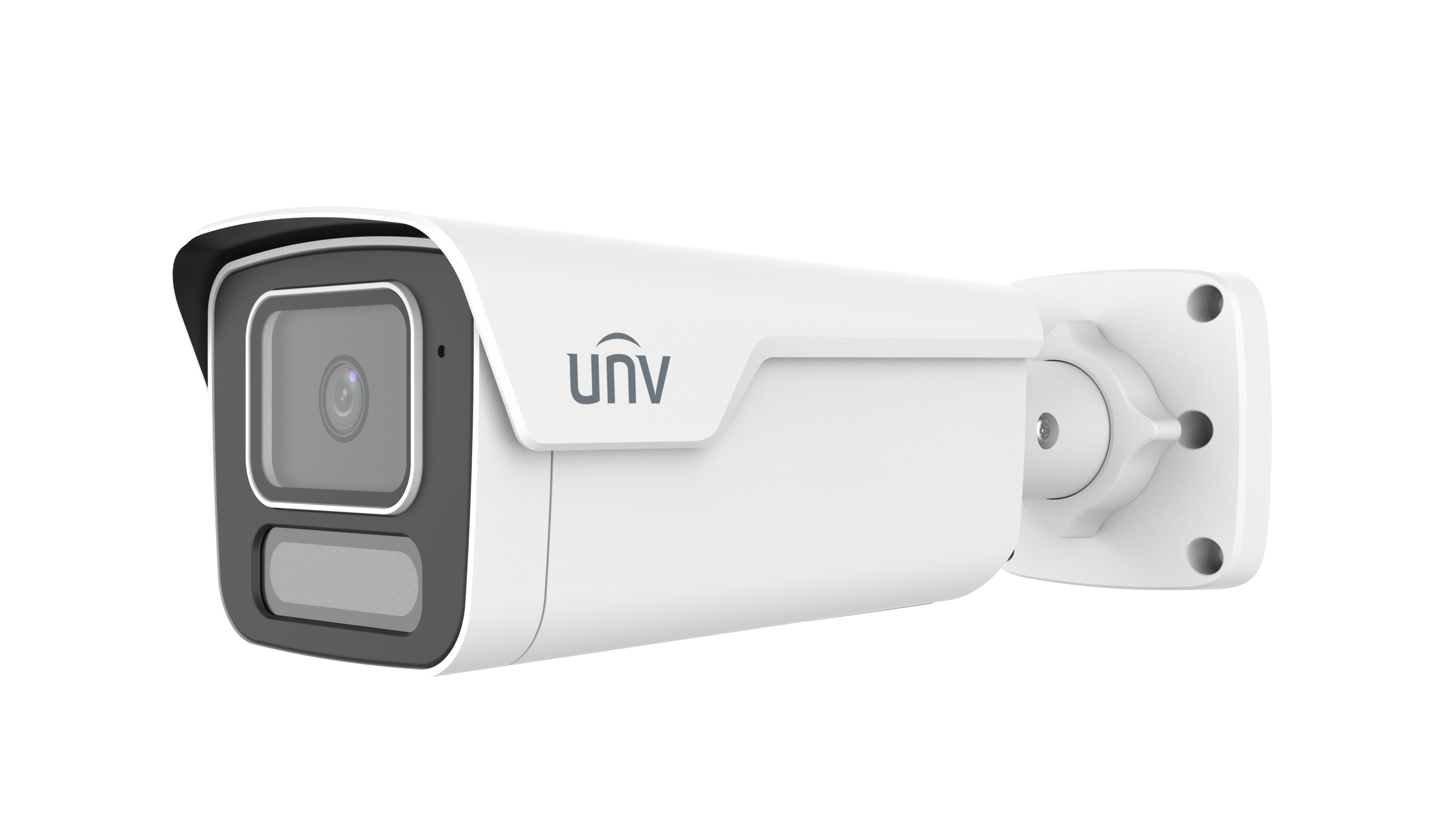

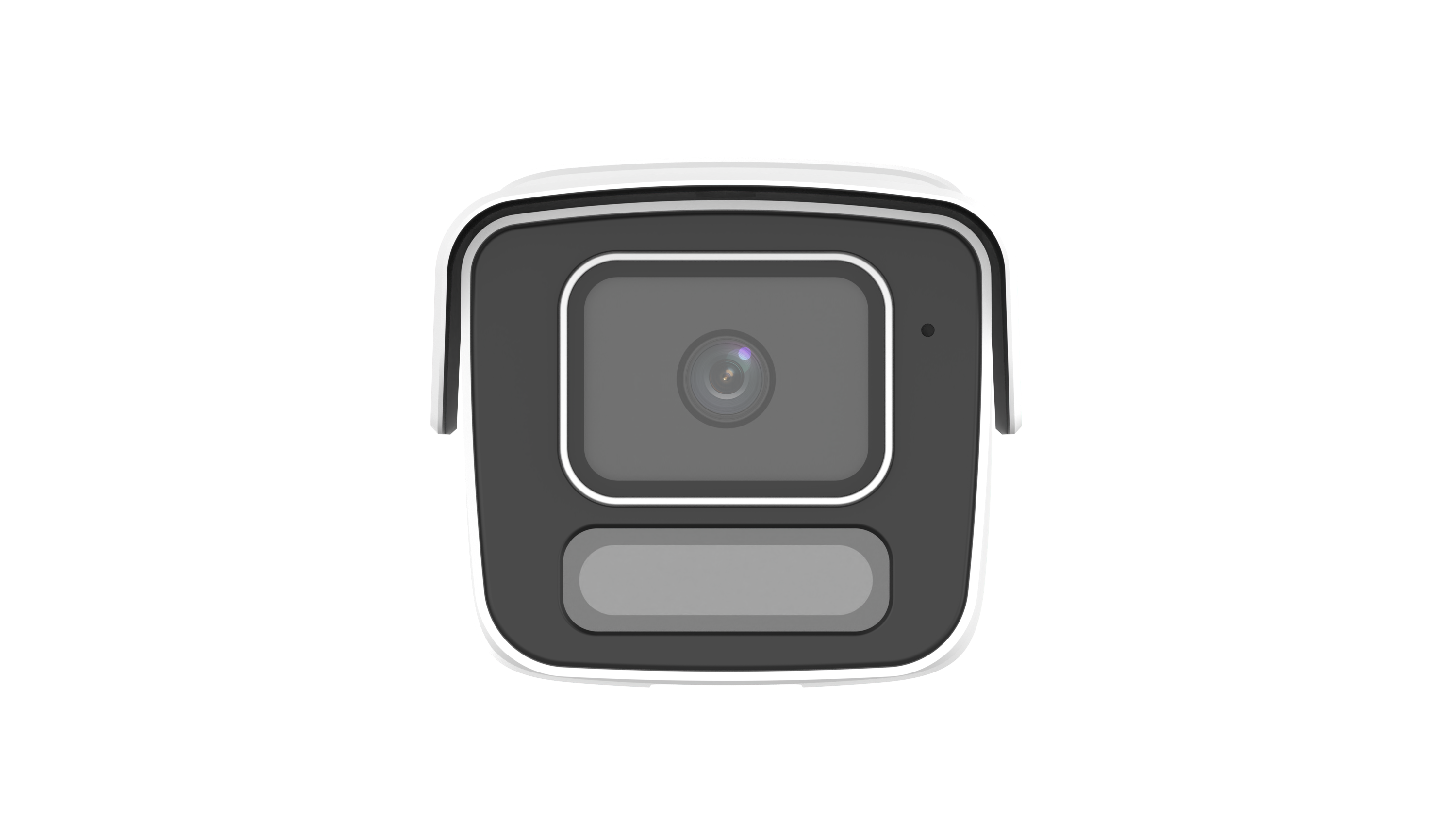

Uniview - IPC2B18SE-ADF40KMC-WP-I1 - 8MP OwlView Plus Tri-Guard Fixed Dual-light Bullet Network Camera
• High quality image with 8 MP, 1/1.2" CMOS sensor
• 8 MP (3840 × 2160)@30/25 fps; 5.3 MP (3072 × 1728)@30/25 fps; 3.6 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720), max. 30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduces false alarm caused by leaves, birds and lights, accurately focusing on human, motor vehicle and non-motor vehicle
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1, built-in mic
• White light, up to 40 m (131.2 ft) warm light distance
• MicroSD, up to 512 GB
• Supports NEMA 4X, IK10 vandal resistant and IP67 protection
| Camera | |
| Max Resolution / Sensor | 8 MP / 1/1.2" CMOS |
| Min. Illumination (Color) | 0.0003 Lux (F1.0, AGC ON) |
| Shutter / Day/Night | Auto/Manual, 1 to 1/100000 s / IR-cut filter with auto switch (ICR) |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N / WDR | > 56 dB / 130 dB |
| Lens | |
| Focal Length / Lens Type | 4.0 mm / Fixed |
| Iris Type / Iris | Fixed / F1.0 |
| Field of View (H/V/D) | H: 88.3°, V: 48.3°, D: 102.5° |
| DORI Distance | |
| DORI Distance (Detect) | 62.1 m (203.7 ft.) |
| DORI Distance (Observe) | 24.8 m (81.4 ft.) |
| DORI Distance (Recognize) | 12.4 m (40.7 ft.) |
| DORI Distance (Identify) | 6.2 m (20.3 ft.) |
| Illuminator | |
| Supplemental Light | Warm light |
| Illumination Distance (Warm Light) | 40 m (131.2 ft) |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG (Baseline/Main/High profile) |
| Frame Rate (Main Stream) | 8 MP (3840 × 2160), max. 30 fps |
| Video Bit Rate / Stream | 128 Kbps to 16 Mbps / Triple streams |
| OSD / Privacy Mask / ROI / U-code | Up to 8 OSDs / Up to 4 areas / Support / Support |
| Image | |
| Digital Noise Reduction | 2D/3D DNR |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Features | ASM (Support), HLC (Support), BLC (Support), Defog (Digital defog) |
| Intelligent | |
| Smart Intrusion Prevention | Cross line, intrusion, enter/leave area detection (human/vehicle filtering) |
| Counting / Collection | People Counting (Support flow/crowd density) / Attribute Collection (SIP with color retrieval) |
| Basic Events | Motion, Ultra motion, Tampering, Audio detection, Object removed, Object Left Behind, Alarm input, Alarm output |
| Audio | |
| Compression / Bitrate | G.711U, G.711A / 64 Kbps (Sampling Rate 8 kHz) |
| Two-way Audio / Suppression | Support / Support |
| Built-in Mic / Speaker | Support / N/A (Speaker not specified) |
| Storage & Network | |
| Edge Storage / Network Storage | MicroSD, up to 512 GB / ANR, NAS (NFS) |
| Network Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, G, T, M), API, SDK |
| Security | Password Protection, Strong Password, HTTPS Encryption, TLS 1.2, WSSE and Digest Authentication for ONVIF, etc. |
| Interface | |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Network / Video Output | 1 × RJ45 10 M/100 M Base-TX Ethernet / N/A |
| General & Environment | |
| Power / Power Consumption | DC 12 V±25%, PoE (IEEE 802.3af) / Max. 6.0 W |
| Dimensions (L × W × H) | 265.2 mm × 95.2 mm × 82.9 mm (10.4" × 3.7" × 3.3" ) |
| Weight / Material | 0.93 kg (2.05 lb) / Metal + Plastic |
| Protection Rating | IP67, IK10, NEMA 4X |
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection / Reset Button | 4 KV / Support |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130), FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863), WEEE (2012/19/EU) |
| Web Client Language | 20 Languages |
This network camera employs an 8 MP, 1/1.8" CMOS sensor, capable of capturing video at a maximum resolution of 3840 × 2160 at 30 frames per second and supporting triple video streams. Video compression utilizes Ultra 265, H.265, H.264, and MJPEG formats. The optical system features a fixed 4.0 mm lens with a wide F1.0 aperture, providing a 94.8° horizontal field of view. The unit features a Dual Light system, offering both IR and Warm Light illumination, with both sources supporting a distance of up to 40 meters. The device includes active deterrence functionality, utilizing red and blue warning lights, and supports two-way audio via a built-in dual-microphone array and speaker, in addition to dedicated 1-in/1-out audio and alarm interfaces.
Image quality is enhanced by 130 dB True Wide Dynamic Range, 2D/3D Digital Noise Reduction, Backlight Compensation, Highlight Compensation, and Auto Scene Match. It incorporates ColorHunter with Wise-ISP technology for superior color imaging. Advanced Intelligent features include Smart Intrusion Prevention with false alarm filtering based on human, motor vehicle, and non-motor vehicle classification, as well as people flow counting and crowd density monitoring. The camera has robust environmental protection, rated IP67 for ingress, IK10 for vandal resistance, and NEMA 4X for corrosion resistance. Power options are DC 12V or PoE (IEEE 802.3af), with a maximum power consumption of 6.0 W. The operational temperature range spans from -40 °C to 60 °C.
