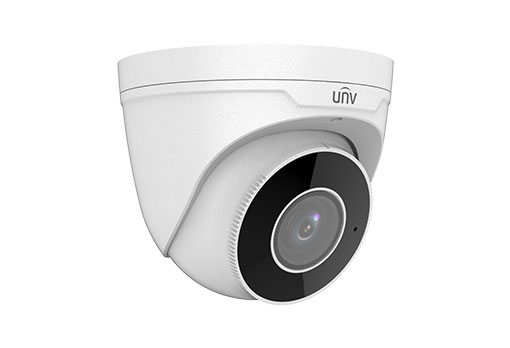

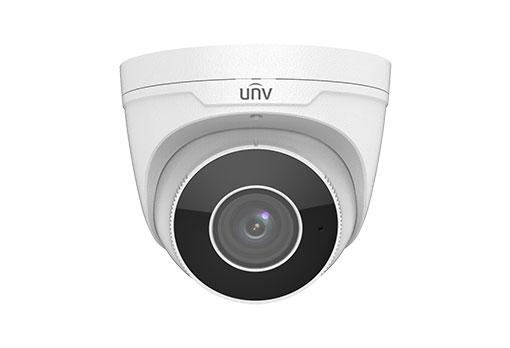

Uniview - IPC3632ER3-DPZ28-C - 2MP WDR (Motorized) VF Eyeball Network IR Camera
Part number:
IPC3632ER3-DPZ28-C
Price:
UNV 2MP WDR IR Eyeball Network Motorized Vari-focal Dome Camera (2.8-12mm, 30m IR, PoE, Built-in MicPhone, SimPlified cable, H.265)
Features:
Optics:
- Day/night functionality
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Smart IR, up to 30m (98ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
Compression:
- Ultra 265, H.264, MJPEG
- Triple streams
- 9:16 corridor mode
Network:
- ONVIF Conformance
Structure:
- Support PoE power supply
- Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| IPC3632ER3-DPZ28-C | ||||
| Camera | ||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | |||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | |
| 2.8 | 45 | 18 | ||
| 12 | 192.9 | 77.1 | ||
| Angle of view (H) | 94.0° ~ 28° | |||
| Angle of View (V) | 56.7° ~ 14.4° | |||
| Angle of View (O) | 122.2° ~ 34.4° | |||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||
| Minimum Illumination | Colour: 0.002Lux (F1.6, AGC ON) 0Lux with IR | |||
| Day/Night | IR-cut filter with auto switch (ICR) | |||
| S/N | >52dB | |||
| IR Range | Up to 30m (98ft) IR range | |||
| wavelength | 850nm | |||
| IR On/Off Control | Auto/Manual | |||
| Defog | Digital Defog | |||
| WDR | 120dB | |||
| Video | ||||
| Video Compression | Ultra 265, H.264, MJPEG | |||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||
| Video Bit Rate | 128 Kbps~16 Mbps | |||
| 9:16 Corridor Mode | Supported | |||
| OSD | Up to 8 OSDs | |||
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping | N\A |
| HLC | Support |
| BLC | Support |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |
| Interface | |
| Built-in Mic | Supported |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Certifications | |
CE: EN 60950-1 Certifications UL: UL60950-1 FCC: FCC Part 15 | |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 8.16W | |
| Dimensions (Ø x H) | Φ129 x 110mm (Ø5.08” x 4.3”) |
| Net Weight | 0.67kg (1.48lb) |
| Material | Front cover： plastic Spherical upper shell：metal globe rear-cover：metal shell：metal base：metal |
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
