• User-Friendly Design: A simple appearance with a logical button layout ensures the keyboard is both aesthetically pleasing and easy to operate.
• Clear Visual Feedback: The 4-inch display screen provides a sharp, detailed image for precise monitoring.
• Precision Control: A 4D joystick delivers exacting command over all PTZ functions (pan, tilt, zoom, focus) and direction (up/down/left/right). The high-quality Hoare joystick mechanism guarantees superior control precision, stability, and extended operational lifetime.
• Convenient Operation: A dedicated power on/off button offers immediate, energy-saving control. The simple and clear keyboard configuration makes the device easy to use and maintain.
• Advanced Management: Supports control and playback of video on a video wall. Keyboard lock functionality with configurable, multi-level user permissions enhances system security.
| General | |
|---|---|
| Screen Size | 4 inches |
| Joystick | Four-dimensional joystick |
| Max Power Consumption | ＜5 W |
| Product Dimensions (W x H x D) | 345.00 x 189.82 x 128.16 mm |
| Weight | 1.2 kg |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10% to 90% RH, noncondensing |
| Other Interfaces | |
| Serial Port | 1 x RS232 (DB9, reserved) 2 x RS485 (half-duplex, reserved) |
| Console | 1 x Console/RS485 shared interface (RJ45) |
| USB | 2 x USB (reserved) |
| Network Interface | 1 x RJ45, 10M/100M/1000M Based-T adaptive interface |
| Power | DC 12V |
| Reset | 1 x Reset button |

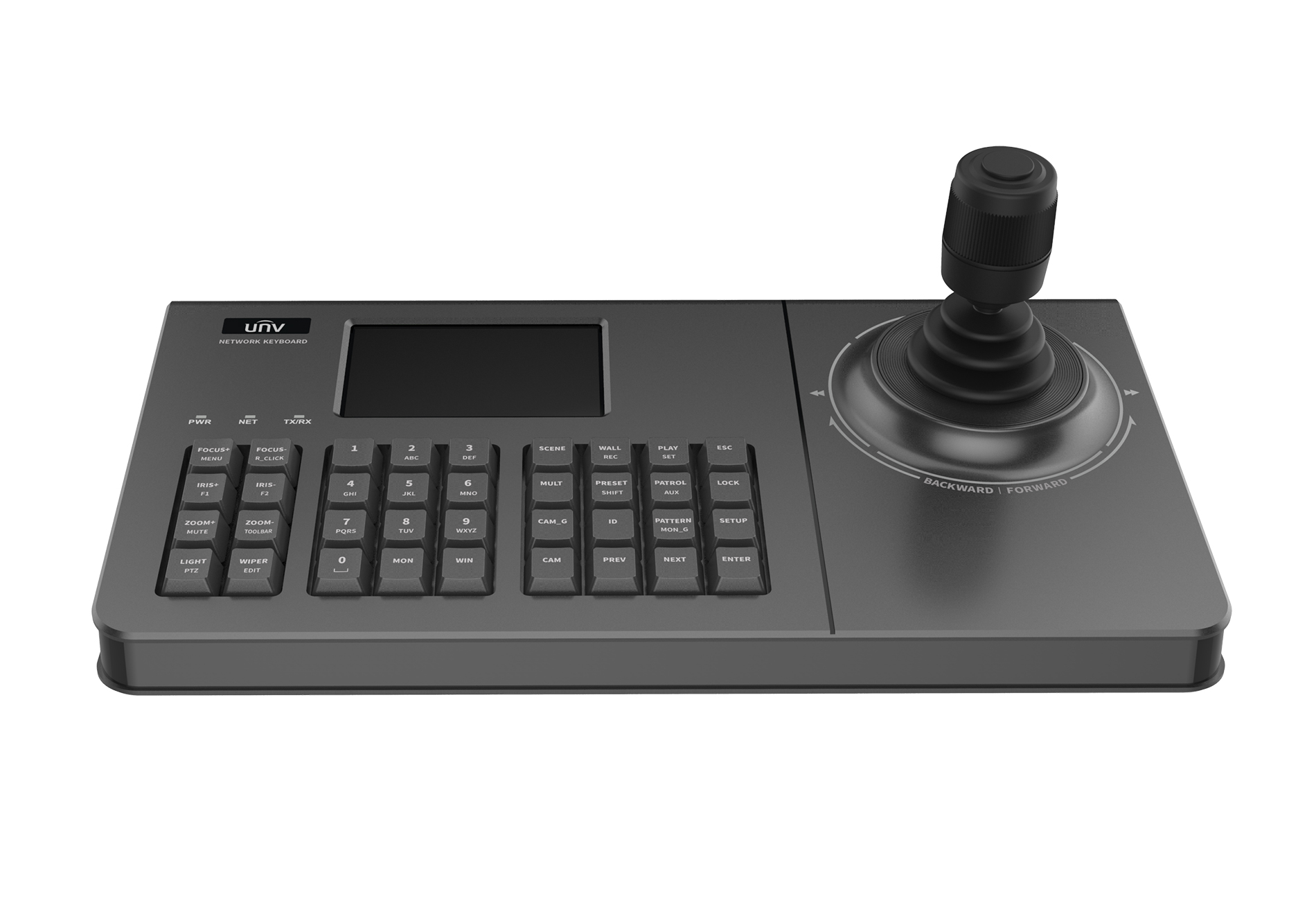

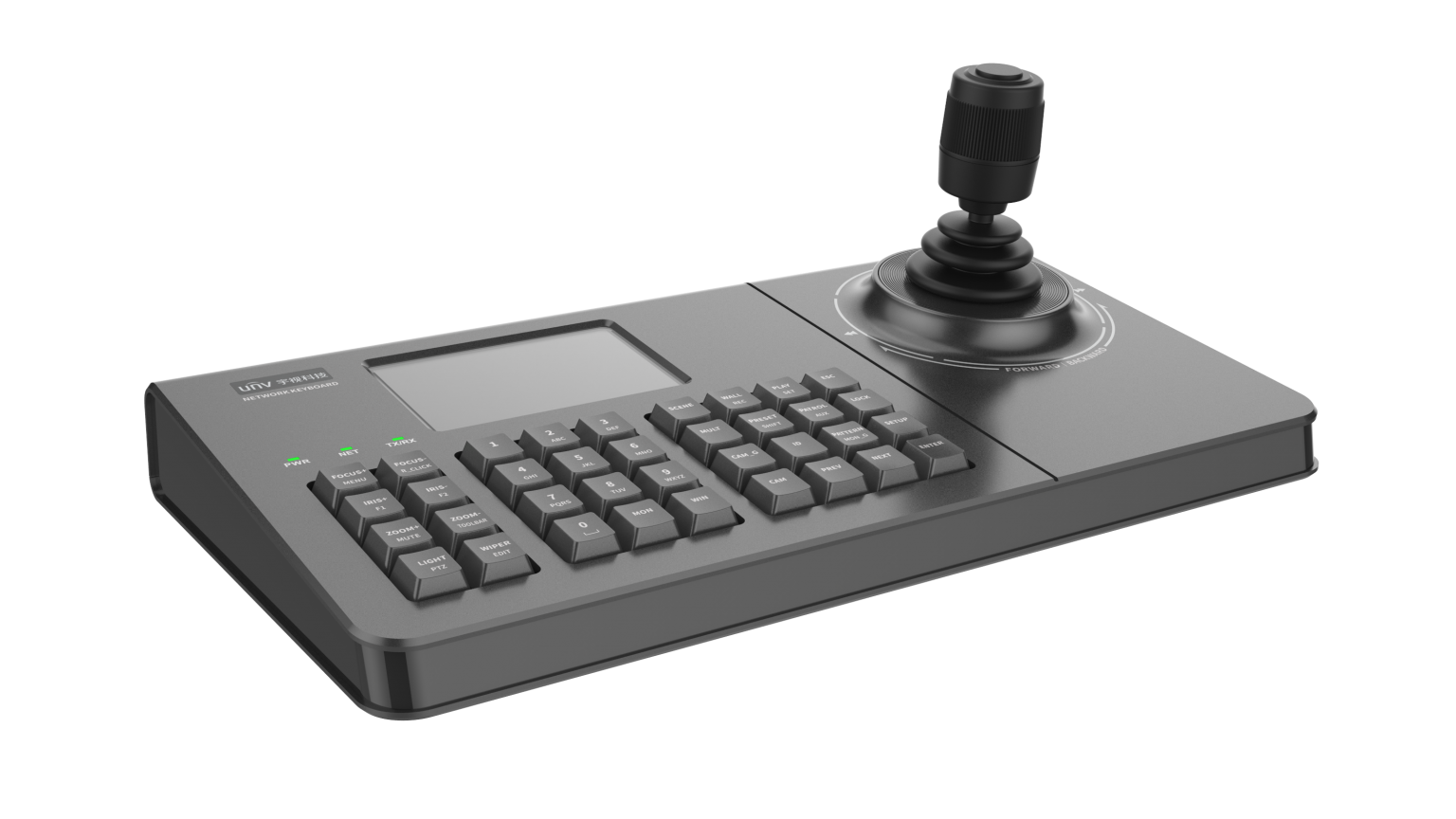

This is a KB-1100-E network keyboard, a control device for managing surveillance camera systems. It is equipped with a 4-inch integrated screen for live view and menus, and a four-dimensional joystick for the direct pan, tilt, and zoom control of compatible cameras. Its primary network connection is a gigabit Ethernet (RJ45) port, and it provides multiple legacy interfaces including RS232 and RS485 serial ports for connecting to older PTZ cameras or DVRs, plus two USB ports. The device is designed for indoor use within a temperature range of -10°C to 55°C. It is powered by a DC 12V adapter and has a very low maximum power consumption of less than 5 watts.
