• Large Touch Interface: 10.2" capacitive touchscreen with responsive 2-point control.
• High-Quality Output: Simultaneous 1920x1080P@60Hz video for sharp, real-time display.
• Massive Capacity: Manages up to 500 IPC/NVR channels in one centralized system.
• Quick Setup: One-click search and add for IP cameras and NVRs.
• Flexible Decoding: Handles 1x4K, 4x1080P, or 8x720P streams with H.264/H.265 support.
• Precision Control: Built-in 4D joystick for direct PTZ (pan/tilt/zoom/focus) operation.
• Video Wall Control: Manages displays through VMS/decoders with windowing, split-screen, and scene control.
• User Customization: Option to enable/disable key tones.
• System Maintenance: Scheduled restart and USB flash drive system upgrades.
| Decoding Format | |
|---|---|
| Supported Formats | H.264, H.265 |
| Decoding Capability | |
| Maximum Resolution/Channels | 1‑ch: 3840 x 2160 @ 25 Hz 4‑ch: 1080P @ 30 Hz 8‑ch: 720P @ 30 Hz |
| Screen Control | |
| Split Screen | 1/4/9 (supports simultaneous display of up to 8 channels) |
| Output | |
| Video Output Resolution | 1920 x 1080 @ 60 Hz |
| Output Interface | |
| HDMI Output | 1 x HDMI output interface |
| Audio Output | 1 x standard 3.5mm audio jack (reserved) |
| Other Interfaces | |
| Serial Port | 1 x RS232 (DB9, reserved) 1 x RS485 (half‑duplex, reserved) |
| Network Interface | 1 x 10M/100M adaptive Ethernet interface (RJ45) |
| USB | 1 x USB interface (used to upgrade device and connect mouse) |
| Power | DC 12 V power interface |
| General | |
| Screen Size | 10.2 inches |
| Joystick | Four‑dimensional joystick |
| Max Power Consumption | ＜15 W |
| Product Dimensions (W x H x D) | 449.7 x 178.6 x 115.4 mm |
| Weight | 1.4 kg |
| Operating Temperature | ‑10 ～ 40°C |
| Operating Humidity | 10% ～ 90% (No‑condensing) |
| Storage Temperature | ‑40 ～ 60°C |

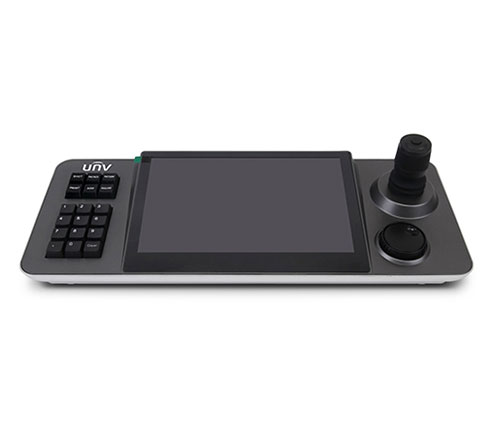

This is a 10.2-inch network keyboard with an integrated LCD screen, primarily used as a control station for video surveillance systems. It features a four-dimensional joystick for controlling Pan-Tilt-Zoom cameras. For video processing, it supports H.264 and H.265 decoding, with a capability of 1 channel of 4K resolution at 25 Hz or up to 8 channels of 720p at 30 Hz simultaneously. The screen can display a 1, 4, or 9 split-screen layout, outputting at 1080p@60Hz via its HDMI port.
It offers connectivity through a 10/100 Mbps Ethernet port, RS232 and RS485 serial ports for legacy camera control, and a USB port for updates and peripherals. The device is designed for indoor use, operating within a temperature range of -10°C to 40°C and powered by a DC 12V source with a maximum power draw of less than 15 watts.
