UNV - NSW2100-9GT1GP-POE-IN - Giga 8 Port Lite Cloud Managed PoE Switch
• Supports Web login, and device configuration and management on the Web interface.
• Supports visiting the cloud by scanning the QR code. Allows to view the device status in real time on the app, and remotely restart the PoE power supply.
• Supports PoE power supply ; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
• Supports the extend mode for up to 250m communication range and 10Mbps auto-negotiation rate.
• Supports port priority. The priority port will be powered first when the PoE power supply is full.
• All metal casing, secure and reliable.
| Hardware | |
|---|---|
| Ports Type | 8x 10/100/1000Mbps PoE port (RJ45) 1x 10/100/1000Mbps port (RJ45) 1x Gigabit SFP |
| Switching Capacity | 20 Gbps |
| Forwarding Performance | 14.88 Mpps |
| Packet Buffer | 4 Mbit |
| MAC Address Table | 8K |
| Priority Ports | 1 to 2 |
| Dimensions (W×D×H) | 169 x 132 x 40 mm |
| Power Supply | AC: 100V to 240V, 50/60Hz |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Mode | Mode A (1236), Mode B (4578) |
| Max. PoE Power | Max capacity: 120W Maximum PoE power for single port: 30W |
| Max. Power Consumption | 125W |
| Cooling Fans | 0 (Fanless) |
| Weight | 0.85 kg |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 10% to 90% (noncondensing) |
| Indicator LEDs | Power: Off: Abnormal power input. Green: Normal power input. Yellow: Total PoE power > 85% of device rating. Link/Act: Off: Disconnected. On: Connected. Blinking: Transmitting data. |
| Software | |
| Ethernet | Supports full duplex, half duplex, and auto-negotiation working modes Supports enabling/disabling ports Supports port auto-negotiation rate Supports port flow statistics Supports four link aggregation groups (up to eight ports) |
| VLAN | Allows up to 10 VLANs with IDs from 1 to 4094 |
| MAC Address Management | Support static MAC, up to 32 entries |
| POE Management | Allows viewing PoE status and enabling/disabling PoE power supply via APP |
| Loop Detection | Loop Detection supported |
| Security | Supports port isolation |
| Maintenance | Supports N:1 port mirroring Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart via software |
| System | Allows viewing device name, current version, IP address, MAC address, DNS, etc. Allows editing and managing IP address and device name |
| Compliance | |
| NDAA Compliant | Support |

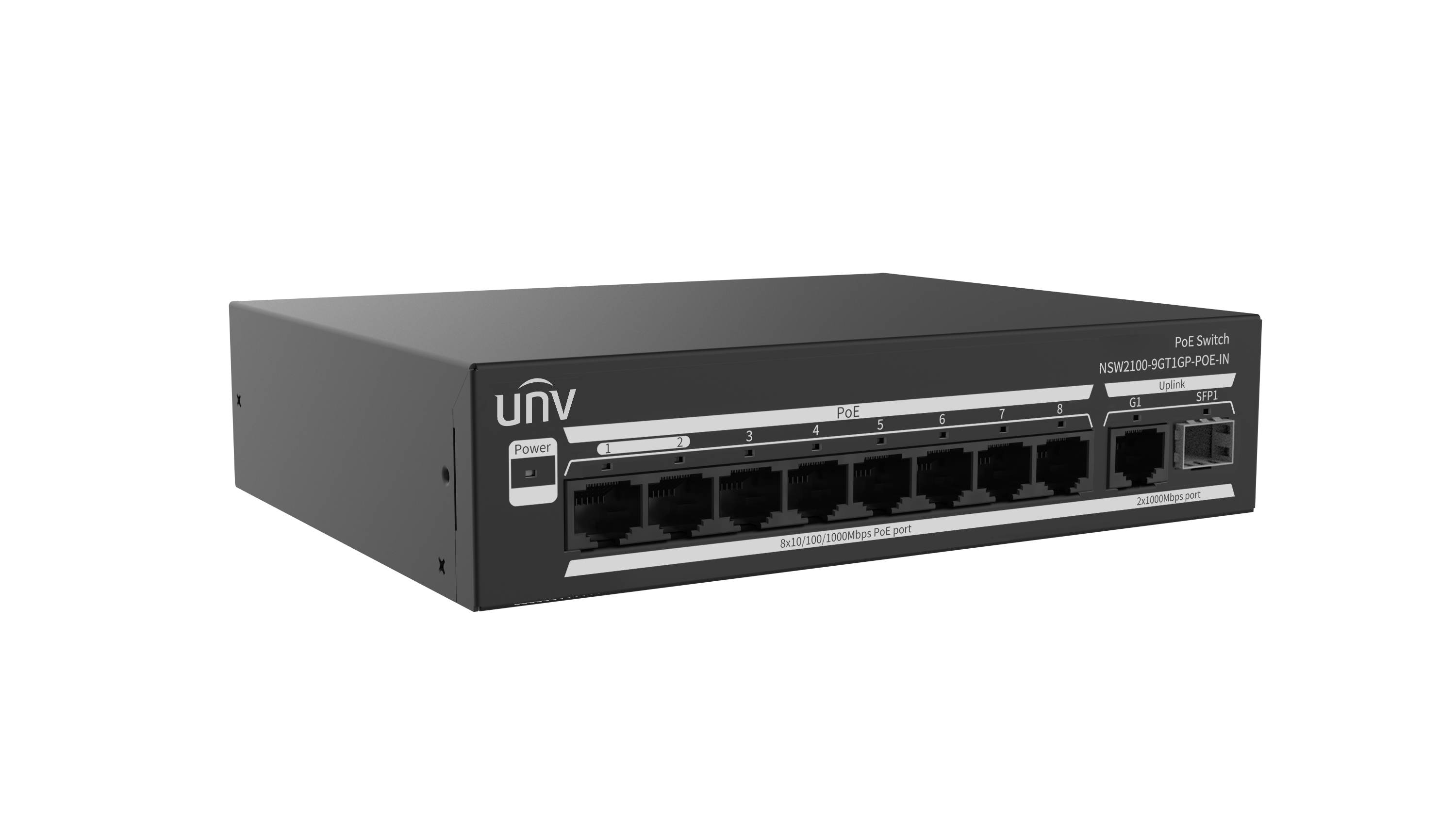

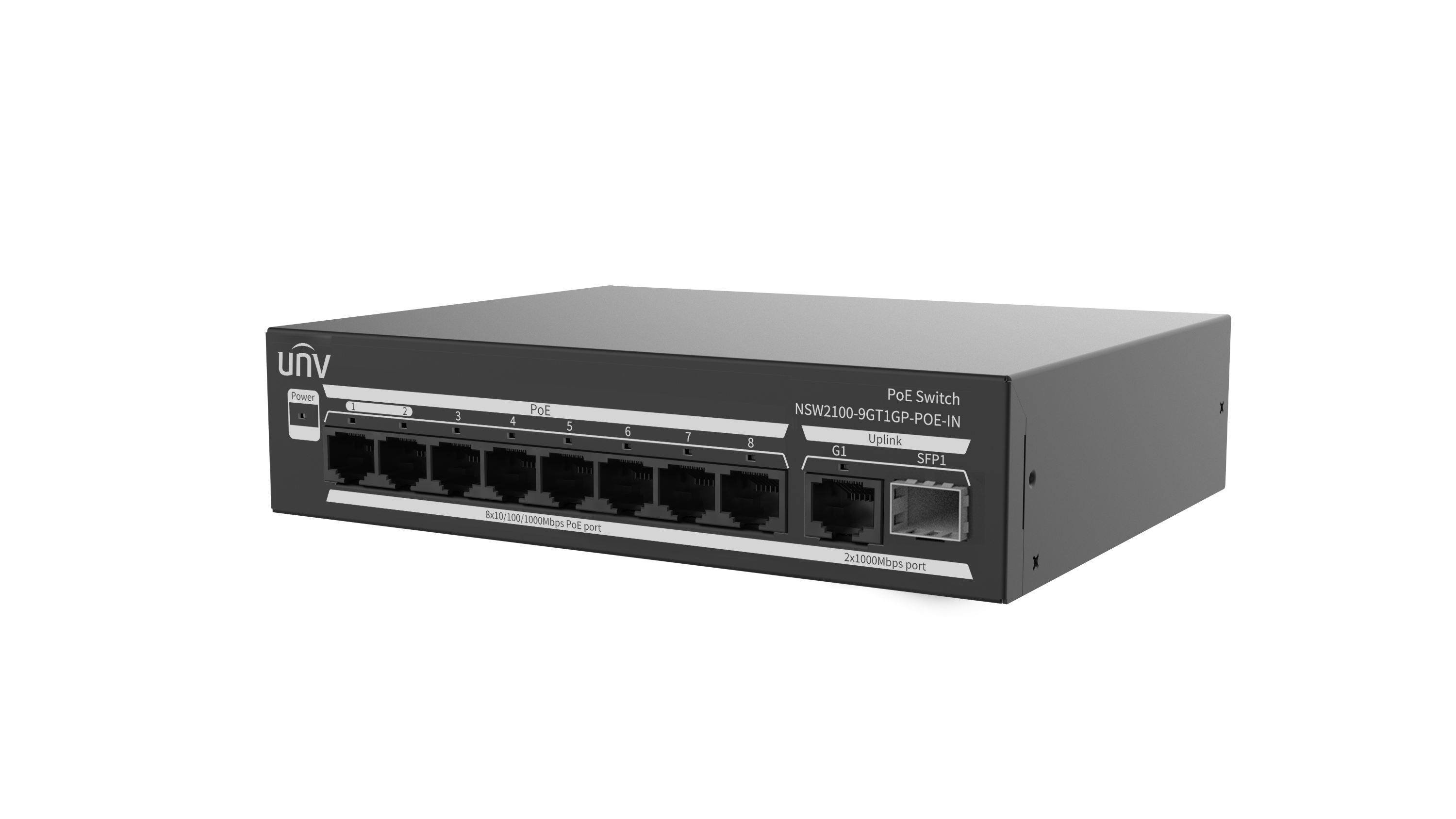

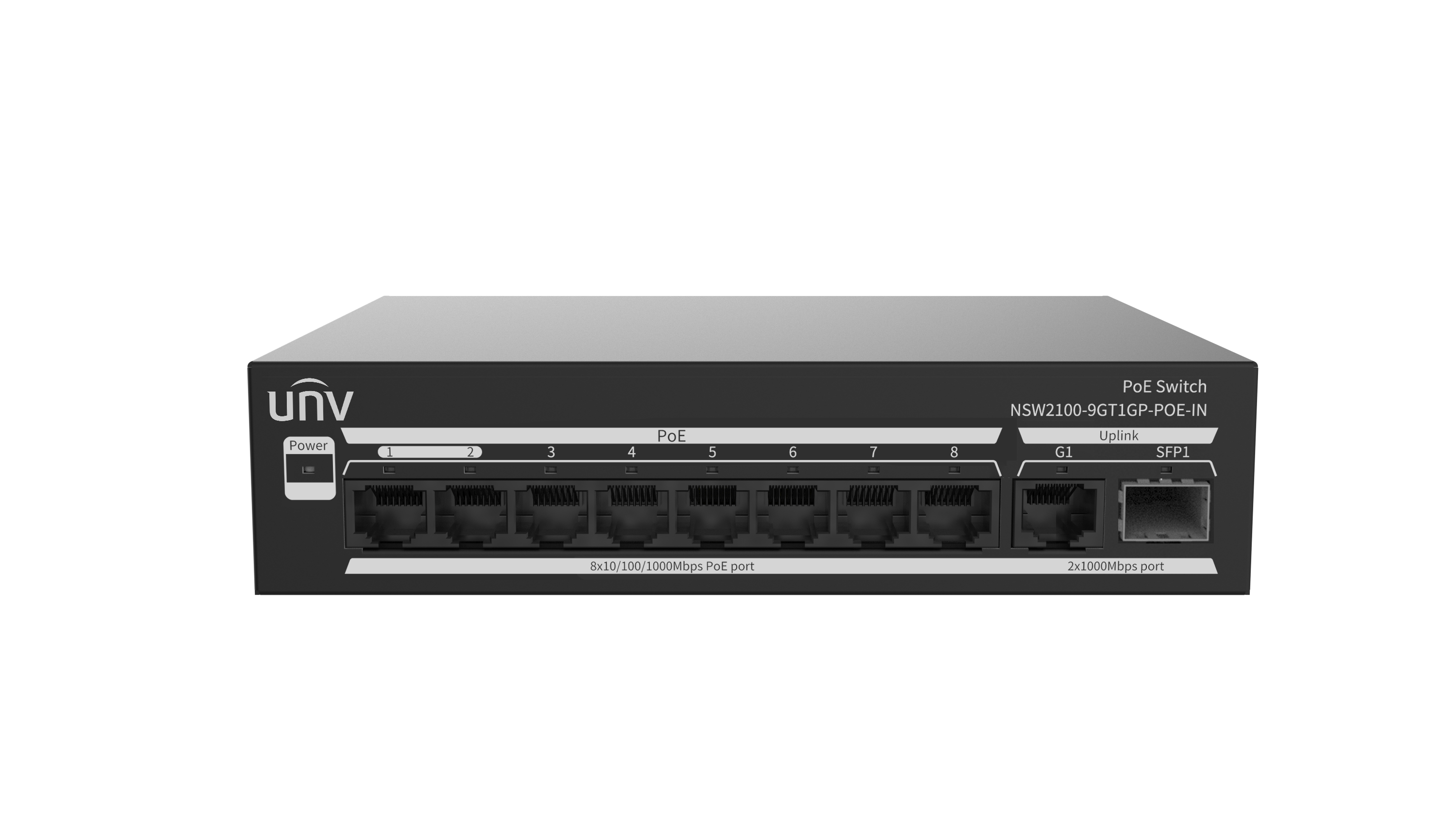

This is a fanless 8-port PoE+ network switch. It provides 8x 10/100/1000Mbps PoE+ ports, 1x standard Gigabit Ethernet port, and 1x Gigabit SFP uplink port. The switch supports the IEEE 802.3af (PoE) and 802.3at (PoE+) standards, delivering up to 30 watts per PoE port with a total system PoE budget of 120 watts.
Its switching capacity is 20 Gbps, with a forwarding performance of 14.88 million packets per second (Mpps). For network management, it supports features such as up to 10 VLANs, four link aggregation groups, port isolation, and loop detection, all configurable via a dedicated software application. The switch is designed for indoor use, operating within a temperature range of 0°C to 45°C. It is powered by a universal AC 100-240V input and consumes a maximum of 125 watts.
