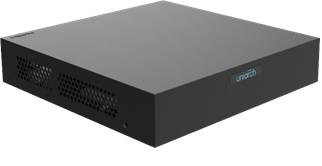

Uniview - NVR-106S3 - Uniarch 1 SATA NVR, 4CH, 6MP
Part number:
NVR-106S3
Price:
Uniarch 1 SATA NVR, 4CH, 6MP
Features:
- Support Ultra 265/H.265/H.264 video formats
- 6/10/16-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 6MP resolution recording
- 1 SATA HDD up to 6TB
- Support cloud upgrade
| Model | NVR-106S3 | NVR-110S3 | NVR-116S3 |
| Video/Audio Input | |||
| IP Video Input | 6-ch | 10-ch | 16-ch |
| Network | |||
| Incoming Bandwidth | 64Mbps | ||
| Outgoing Bandwidth | 48Mbps | ||
| Remote Users | 128 | ||
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | ||
| Video/Audio Output | |||
| HDMI/VGA Output | HDMI: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | ||
| Audio Output | 1-ch, 3.5mm | ||
| Recording Resolution | 6MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF | ||
| Synchronous Playback | 6-ch | 10-ch | 16-ch |
| Corridor Mode Screen | 3/4/5/7 | 3/4/5/7/9/10 | 3/4/5/7/9/10/12/16 |
| Decoding | |||
| Decoding format | Ultra 265/H.265/H.264 | ||
| Live view/Playback | 6MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF | ||
| Capability | 1 x 6MP@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080p@30, 8 x 720p@30, 16 x D1@25 | ||
| Hard Disk | |||
| SATA | 1 SATA interface | ||
| Capacity | Up to 6TB for each disk | ||
| Smart | |||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Auto Tracking | ||
| VCA Search | Behavior Search | ||
| Smart Intrusion Prevention (SIP) by Camera | 4-ch(supports channel 1-4; Alarm only, no image) | ||
| General Alarm | |||
| General Alarm | Motion, Human Body Detection, Video Loss, Alarm Input | ||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access | ||
| External Interface | |||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | ||
| USB Interface | Rear panel: 2 x USB2.0 | ||
| RS232 | NA | ||
| RS485 | NA | ||
| Alarm In | NA | ||
| Alarm Out | NA | ||
| General | |||
| Power Supply | 12V DC/2A Power Consumption: ≤7 W (without HDD) | ||
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | ||
| Dimensions (W×D×H) | 190mm × 195mm × 42mm (7.5" × 7.7" × 1.6") | ||
| Weight (without HDD) | ≤1.0kg (2.20 lb) | ||
| Certification | |||
| Certification | CE FCC WEEE | ||
