• Support Ultra 265/H.265/H.264 video formats
• Support 16/32/64-channel input
• Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
• Support ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
| Decoding | |
|---|---|
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability (Smart Off) | 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30 |
| Decoding Capability (Smart On) | 1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 48 x 720P@30, 64 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth (Smart Off/On) | 384 Mbps / 200 Mbps |
| Outgoing Bandwidth (Smart Off/On) | 384 Mbps / 200 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
| Browser Support (Plugin-free) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Video/Audio Input | |
| IP Video Input | 64 channels |
| RCA Audio Input | 1 channel |
| Peripheral Input (POS) | All channels |
| HDMI Output Resolutions | 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output Resolutions | 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 2 channels |
| Liveview Display Layouts | HDMI1 and VGA1: 1/4/6/8/9/16/25/36/64 HDMI2 and VGA2: 1/4/6/8/9/16 |
| Corridor Mode Layouts | HDMI1 and VGA1: 3/4/5/7/9/10/12/16/32 HDMI2 and VGA2: 3/4/5/7/9/10/12/16 |
| Two-way Audio | 1 channel, RCA (using the audio input and output) |
| FTP/Schedule/Event Snapshot | 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
| Recording | |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Number of Concurrent Playback | 32 channels |
| Synchronous Playback in Local | 16 channels |
| Smart Features | |
| Smart by IPC | All channels (up to 16 images/s in total) Face Detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Smart by NVR | Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
| VCA Search | AcuSearch, AcuTrack, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| AcuSearch Capability | All channels with UNV SIP/UMD Camera, Up to 16-ch with normal camera (16-ch 2MP, 8-ch 4MP, 4-ch 4K) |
| AcuTrack Capability | All channels with UNV SIP/UMD Camera, Up to 16-ch with normal camera (16-ch 2MP, 8-ch 4MP, 4-ch 4K) |
| Face Detection by NVR | Up to 16-ch with UNV Face Detection Camera, Up to 4-ch with normal camera (4-ch 2MP, 2-ch 4MP, 1-ch 4K) |
| Search by Image | Support |
| Vehicle Picture Library | Up to 5 libraries, with up to 25,000 vehicle pictures in total |
| SIP by NVR with normal cameras | Up to 8-ch with normal camera (8-ch 2MP, 4-ch 4MP, 2-ch 4K) |
| UMD by NVR with normal cameras | Up to 16-ch with normal camera (16-ch 2MP, 8-ch 4MP, 4-ch 4K) |
| Capacity of Snapshot Records | 3 million records for face snapshot, 2 million records for vehicle snapshot, 2 million records for SIP |
| Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded |
| GUI Language | |
| Supported Languages | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | |
| SATA Interfaces | 4 |
| Capacity per HDD | Up to 24 TB (max capacity varies with environment temperature and hard disk size; environment temperature should not exceed 40°C) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 0, 1, 5 |
| External Interface | |
| Network Interface | 2 x RJ45 10/100/1000 Mbps self-adaptive Ethernet |
| Network Working Mode | Multi-access, load balance, network fault-tolerance |
| USB Ports | Front panel: 2 x USB 2.0, Rear panel: 2 x USB 3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm Input | 16 channels |
| Alarm Output | 10 channels |
| eSATA | 1 |
| Power Output | 12 V |
| Power Supply | AC 100~240V |
| Working Environment | |
| Working Temperature | -10 ℃ ~ +55 ℃ (+14 ℉ ~ +131 ℉) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 35W |
| Dimensions | |
| Weight (without HDD) | ≤ 5.5 kg (12.1 lb) |
| Height | 2U |
| Dimensions (W x D x H) | 442 mm × 432 mm × 86 mm (17.4" × 17.0" × 3.4") |
| Certification | |
| General Certification | CE; FCC; UL; RoHS; WEEE |
| CE Compliance | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC Compliance | Part15 Subpart B |
| Compliance | |
| NDAA Compliant | Support |

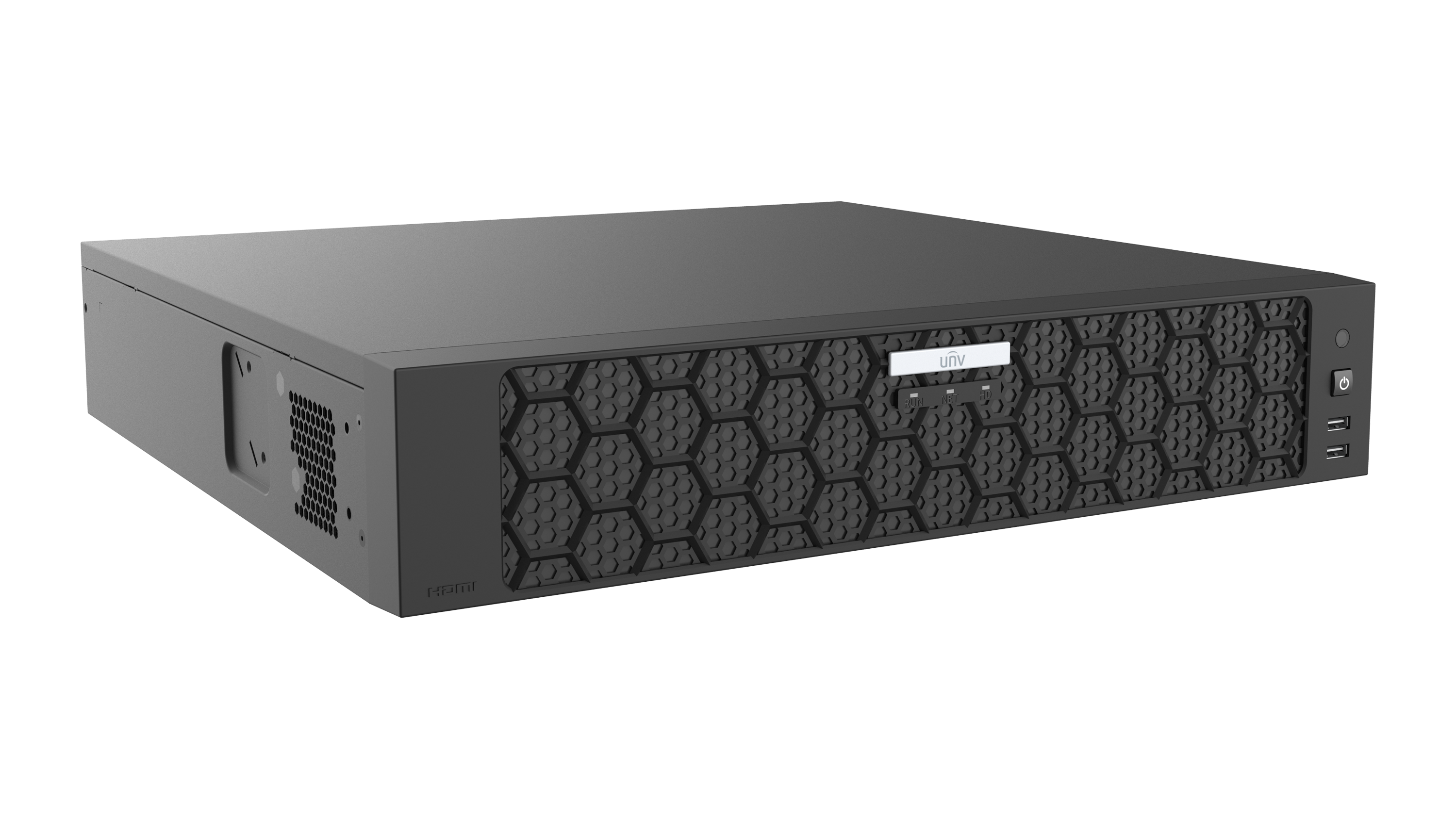

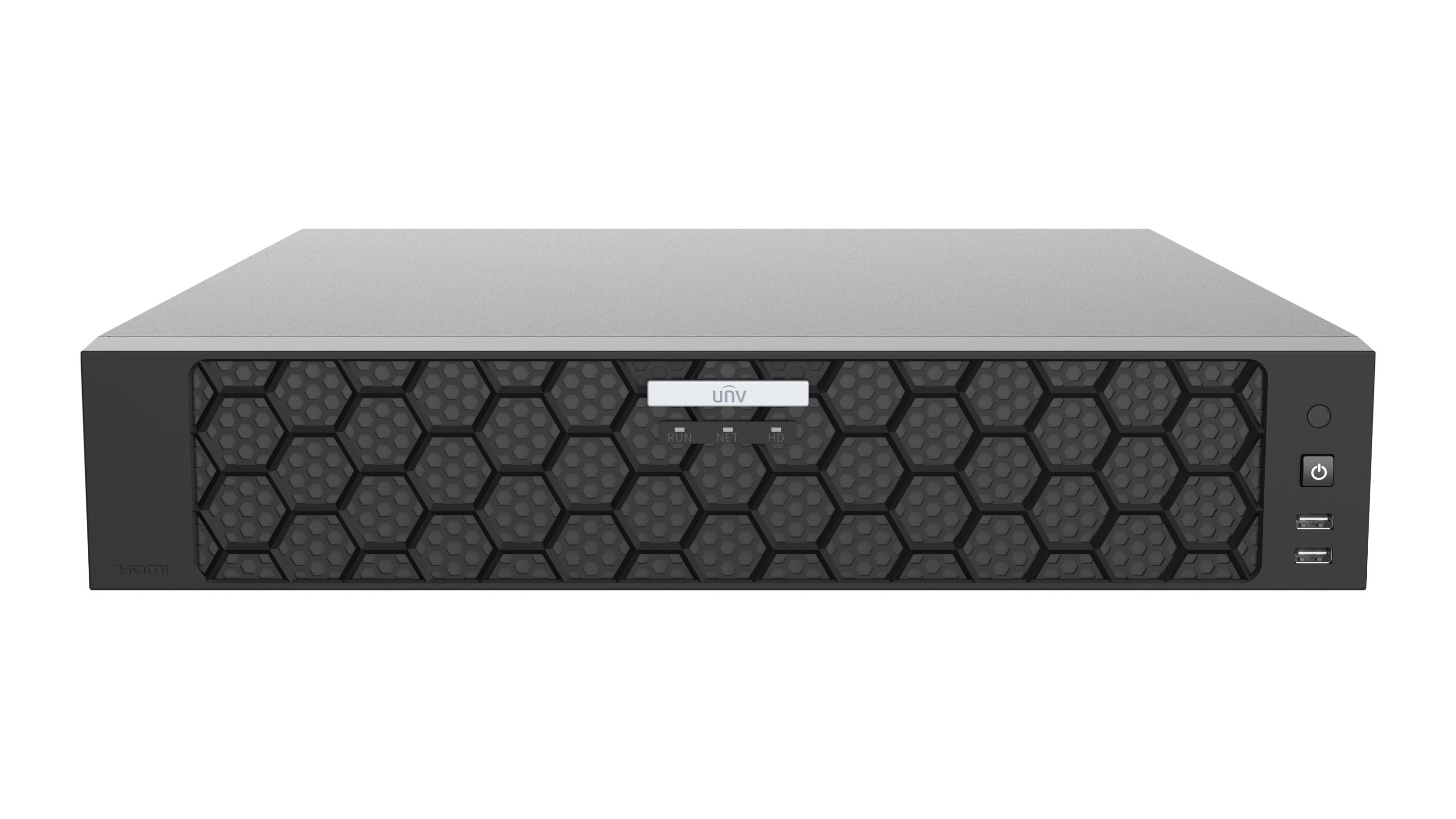

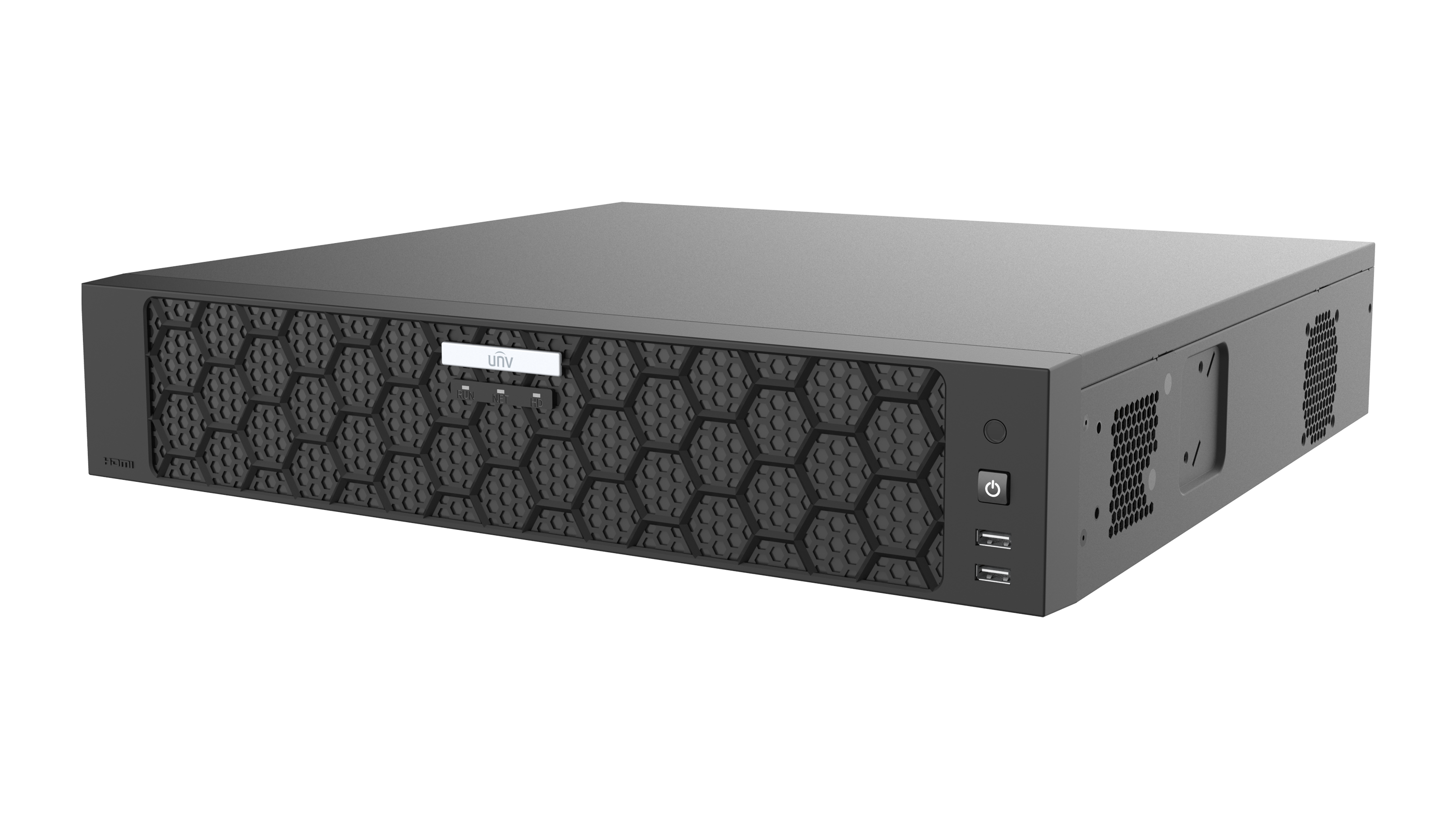

This is a high-capacity 64-channel network video recorder (NVR). It supports Ultra 265, H.265, and H.264 video compression and offers powerful decoding capabilities, such as 8 channels of 4K video at 30 fps with smart features turned off. It has an incoming/outgoing network bandwidth of up to 384 Mbps. The device features 4 SATA hard drive bays, supporting a total capacity of up to 96 TB (4 x 24TB drives), and includes 16 alarm inputs and 10 alarm outputs.
For video output, it provides two HDMI ports (one supporting 4K resolution) and one VGA port. It can accept video input from up to 64 IP cameras and supports advanced video analytics like Face Detection, Vehicle Detection (LPR), and Smart Intrusion Prevention (SIP). The NVR is designed for indoor use within a temperature range of -10°C to 55°C. It is powered by an AC 100-240V source and consumes a maximum of 35 watts without hard drives installed.
