• ARM processor provides high concurrent processing speed.
• Supports network transparent transmission.
• Supports storage battery connection.
• Supports fire alarm linkage for enhanced security.
• Supports multiple authentication methods, including card, password, card & password, and QR code.
• Supports up to 200,000 cards and 300,000 events storage.
• Supports connecting to EZAccess platform (Only permission issuance is supported), UNV Guard server.
• Supports device configuration through the web interface.
• Built-in door lock power supply, no additional power supply required.
• Supports door magnet detection.
• Supports local saving during the network interruption and resumes interrupted data when the network reconnects.
• Supports anti-pass back and door opening with duress password.
| Specification Index | |
|---|---|
| Card Capacity | Common card + personnel password: 200,000 Duress card + duress password: 1,000 Other cards: 100 |
| Event Capacity | 300,000 |
| Time Template | 256 |
| Holiday Template | 256 |
| Check Template | Supports up to 16 check templates configured by weekly schedule, up to 8 time periods per day, and up to 3 authentication modes per time period |
| Basic Business | |
| Communication Mode | TCP/IP |
| Hardware Specification | |
| Network Interface | 1 x 100Mbps Ethernet interface |
| Number Of Controllable Doors | 1 |
| Wiegand Interface | 2 x Wiegand input |
| RS485 Interface | 4 |
| IO Input | 1 x fire input, 4 x zone input, 2 x case input |
| IO Output | 2 |
| Power Output | 2 x DC12V (maximum current for door lock: 5A, for card reader: 1.5A) |
| Door Lock Interface | 1 x door lock control (NC+/NO+/COM) 1 x door magnet, 1 x exit button |
| Tamper Button | Support |
| Application | Indoor |
| Operating Temperature | -30°C to 65°C |
| Rated Input Voltage | AC100V to AC240V (50/60Hz) |
| Spare Power Supply | DC12V/7AH, user-prepared |
| Air Circuit Breaker | Built-in |
| Mount Method | Wall mount |
| Indicator | Power indicator: Steady red when the device is connected to power Operation indicator: Blinks green when the operation is normal Door lock indicator: Steady green when the lock is open Fault indicator 485 indicator Charging indicator Network indicator |
| Dimensions (L x W x H) | 342 mm × 325.5 mm × 88 mm |
| Weight | 3300 g |
| Compliance | |
| NDAA Compliant | Support |

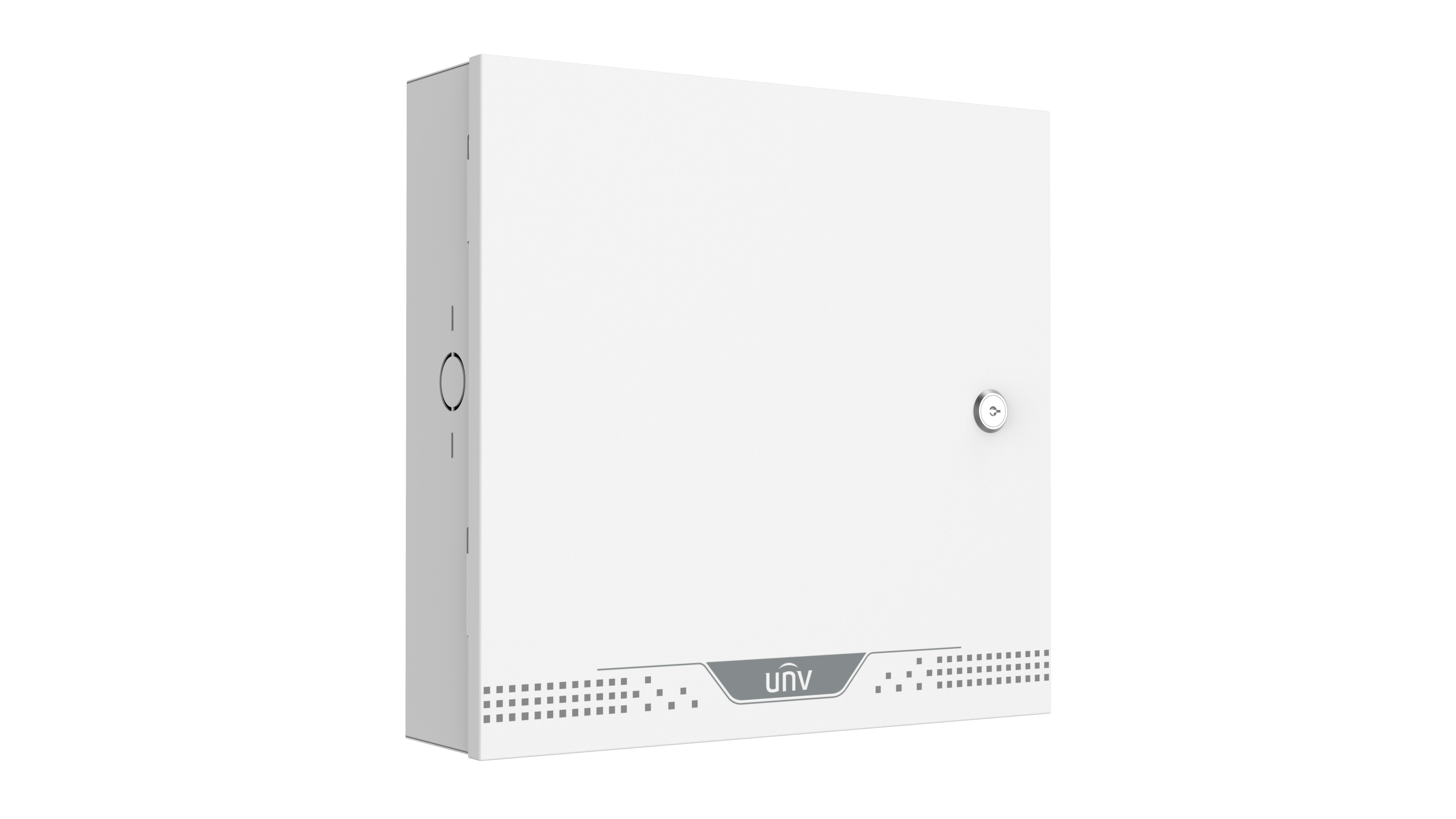

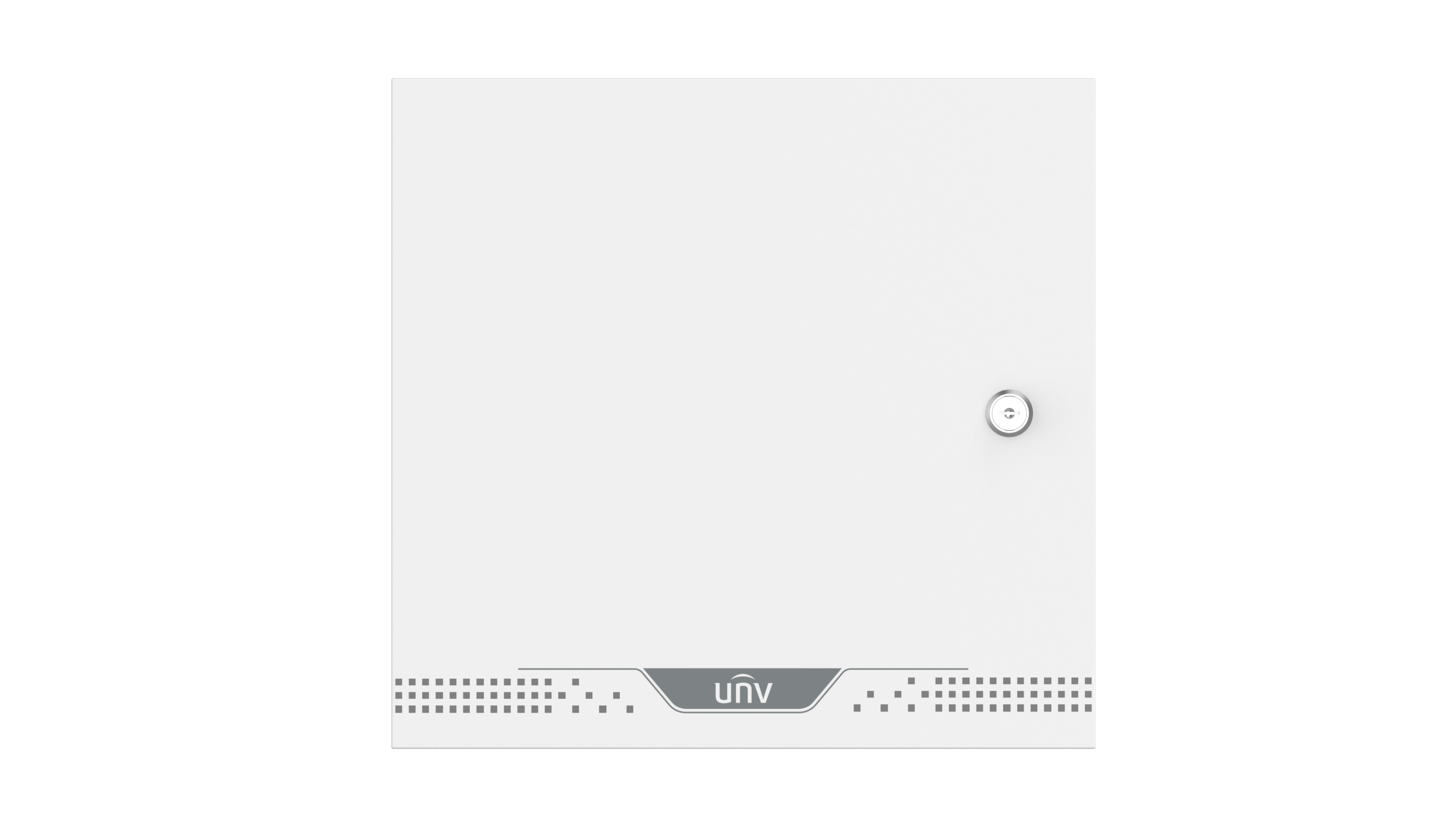

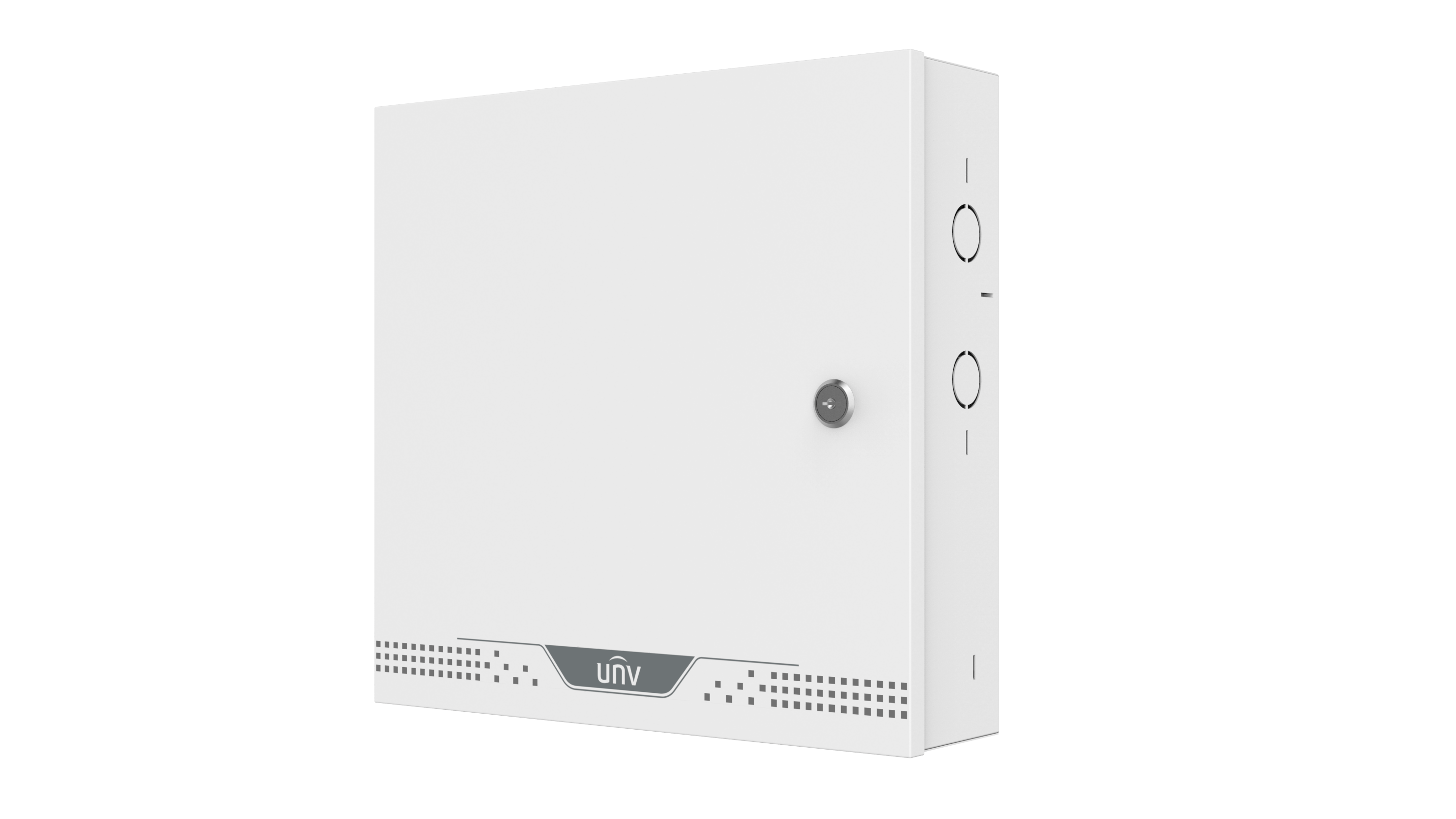

This is a high-capacity single-door access control panel designed for indoor wall-mount installation. It is designed to manage a large user base, supporting up to 200,000 common access cards and passwords and storing 300,000 events. It communicates via a 100Mbps Ethernet interface (TCP/IP) and includes a built-in air circuit breaker for protection.
For peripherals, it provides one Wiegand interface for a card reader, four RS485 communication ports for expansion, and includes 7 general-purpose input/output (I/O) terminals for devices like fire alarms, zone inputs, and exit buttons. It supplies two independent DC12V power outputs for connected door locks and readers, each with a maximum current of 5A for locks. The panel operates within a temperature range of -30°C to 65°C, is powered by a standard AC 100-240V input, and supports an external 12V/7AH backup battery. It also features a tamper button for physical security.
