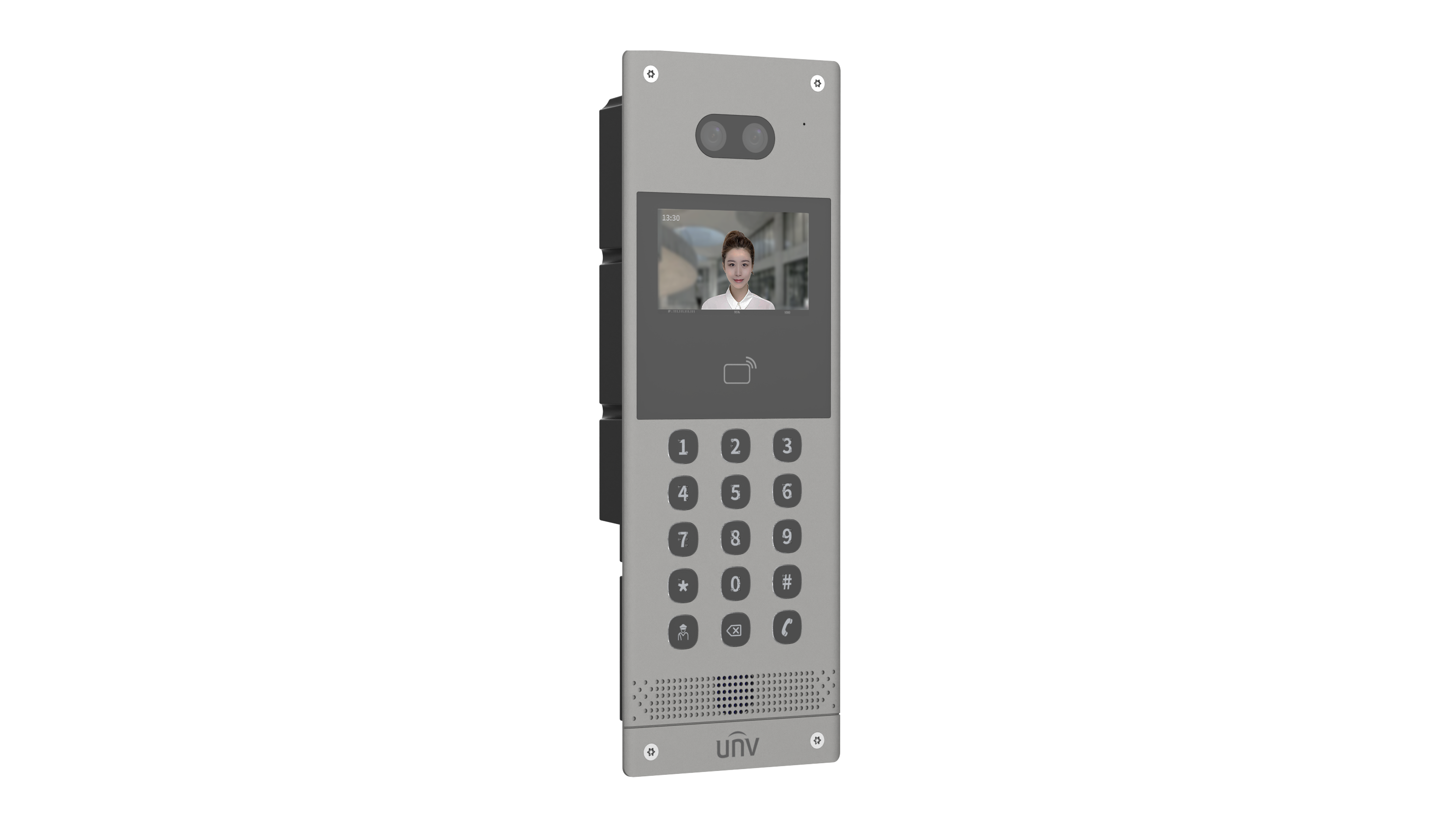

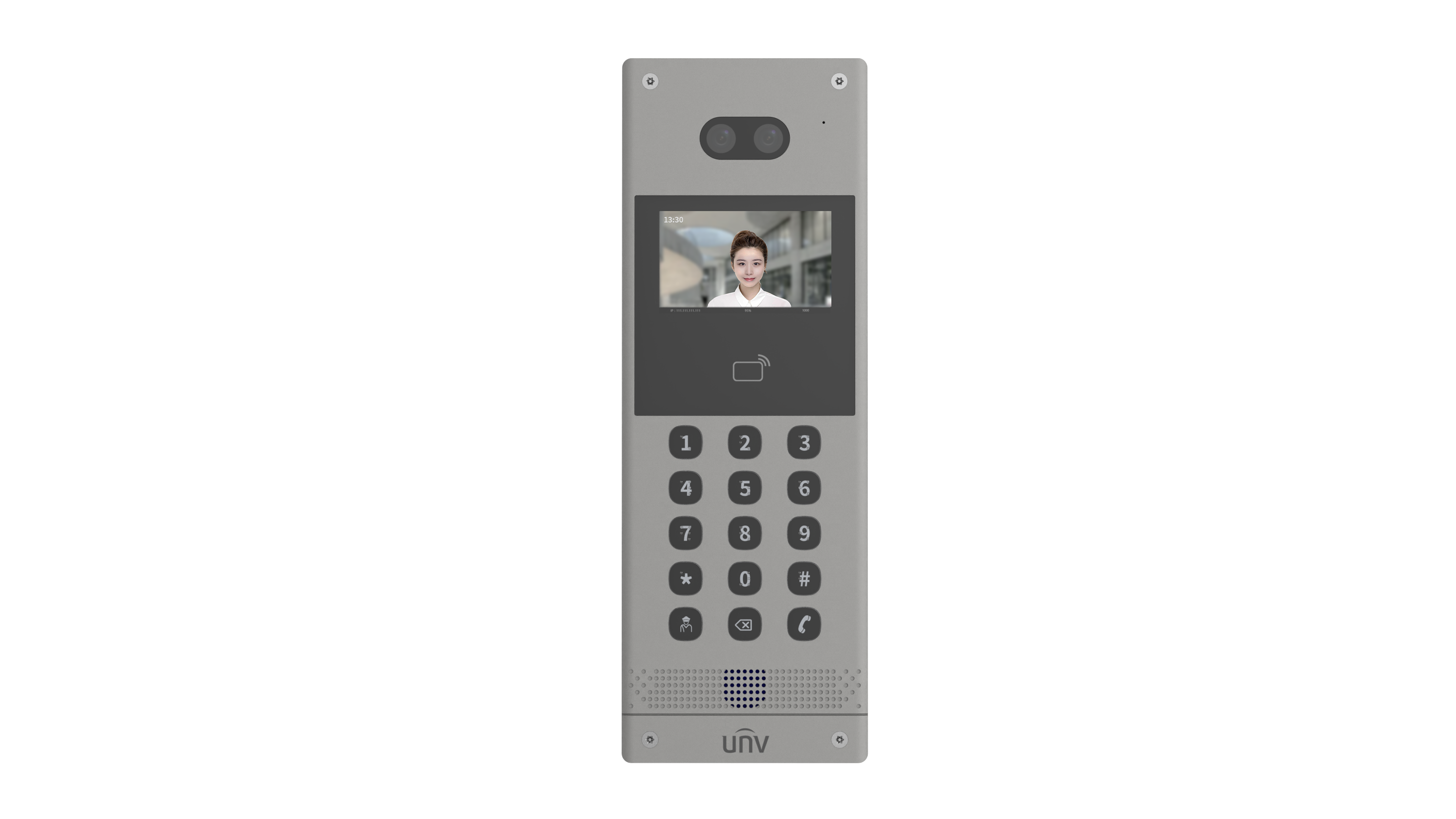

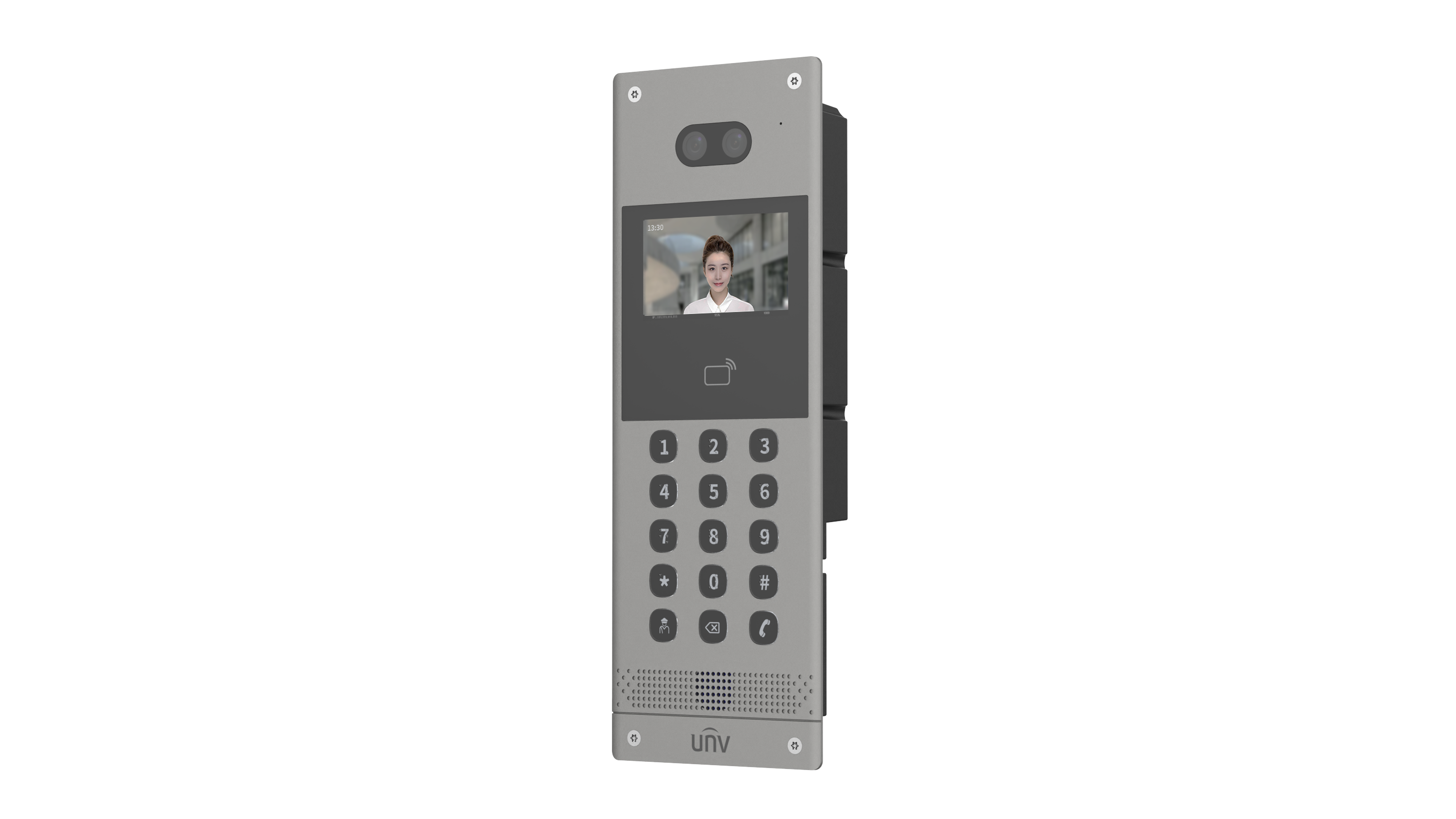

Apartment Door Station(IC Card,15 Keypads)
Features:
• Supports call and intercom with the connected indoor stations and UNV Link.
• Standard recess mount bracket for recess mount.
• Built-in heating module supports operation at a very low temperature.
• Supports controlling two doors.
• Supports braille keypads.
• Front metal casing.
• Supports configuration in batches.
• Supports security protection alarm and tamper alarm triggered by door magnet, infrared, etc.
• Built-in IC card reader.
• Supports connecting a door control security module via a private RS485 interface to prevent the door from being opened in the event of malicious damage to the device.
• Adopts Uniview's proprietary deep learning algorithm model, with the smart recognition rate exceeding 99%, false recognition rate below 1%, and maximum recognition speed of 0.2 seconds.
• 2MP low illumination, high definition, star light image sensor.
• Supports auto illumination.
| Basic Business | |
| Person capacity | 15,000 |
| WDR | Support |
| Protocol | Private protocol |
| Button | 15 buttons (with LED backlight), with braille in rows 1-4 Keypad layout: Row 1: 1/2/3 Row 2: 4/5/6 Row 3: 7/8/9 Row 4: */0/# Row 5: Management center/cancel/call |
| Communication Mode | 100Mbps network interface |
| Network protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP |
| Specification Index | |
| Event Capacity | 100,000 |
| Card Capacity | 15,000 |
| Hardware Specification | |
| FOV | Horizontal: 106.9° Vertical: 56.9° Diagonal: 127.9° |
| Power Consumption | 9W |
| Volume Adjustment | Support |
| Audio Quality | Noise reduction, echo cancellation, auto gain control |
| Audio Input | Built-in mic |
| Audio Output | Built-in speaker |
| Audio Compression Standard | PCM, G711, MP3 |
| Audio Compression Bitrate | 128Kbps |
| Power Supply | DC12V ±25% (VDD12V/GND)、IEEE802.3af PoE power supply |
| Ingress protection | IP65 (apply waterproof glue to the gap between the device and the wall) IK08 (except lens, keypads, and display screen) |
| Operating System | Linux |
| Illuminator | IR illuminator |
| Screen Resolution | 800*480 |
| Screen Size | 3.97 inch |
| Weight | 912g |
| Mount Method | Wall mount, supports exposed installation and recess installation |
| Interface | Power supply*1, network interface*1, RS485*1, Wiegand interface*1 (supports input or output mode), door lock interface*2, IO input*4, IO output*2, door opening button*2, door magnet*2, tamper button*1 |
| Dimensions (L x W x H) | 125.0mm x 52.5mmx 358.0mm |
| Operating Environment | - 40°C to 60°C, 10% to 90% noncondensing, outdoor |
