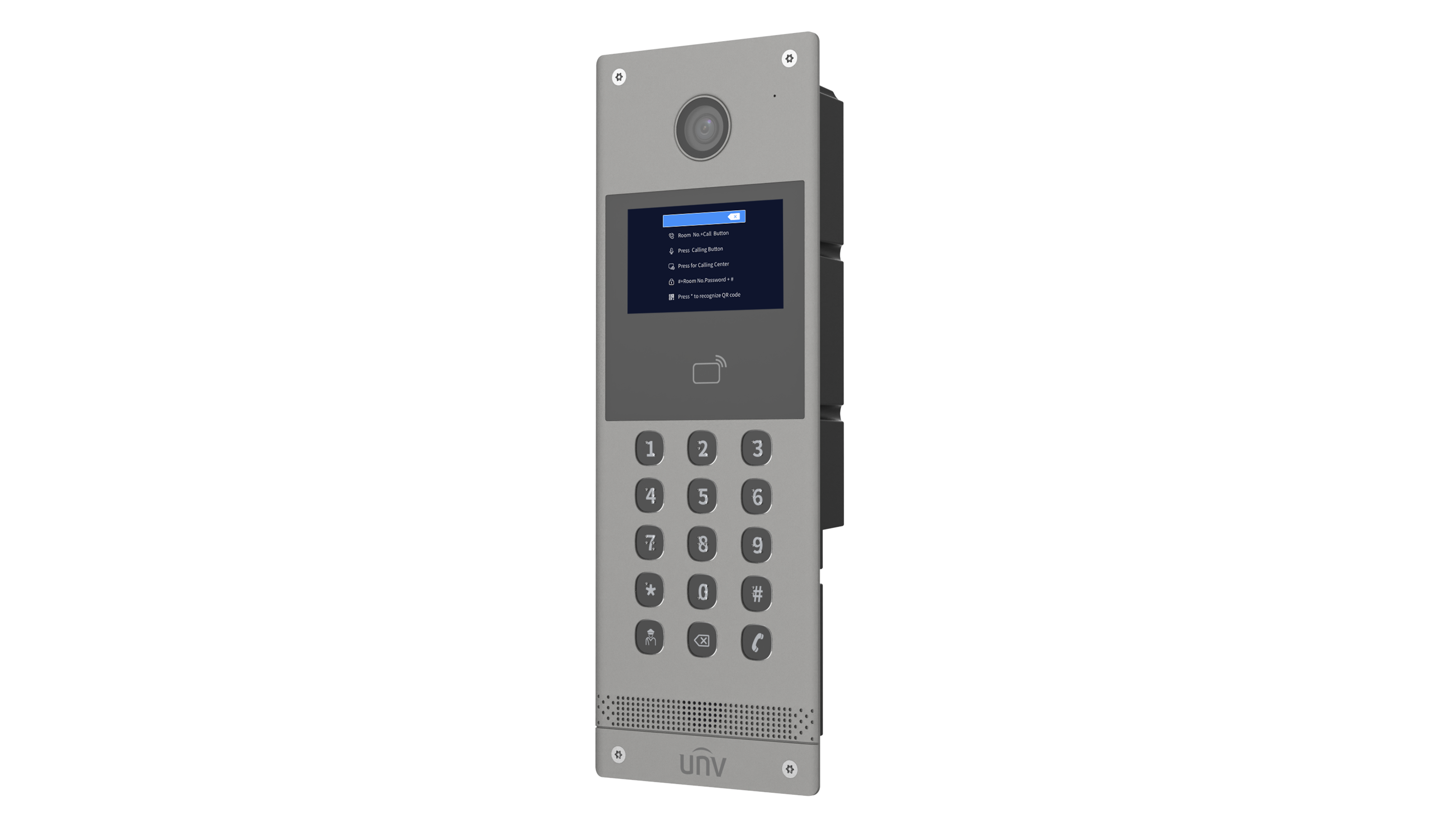

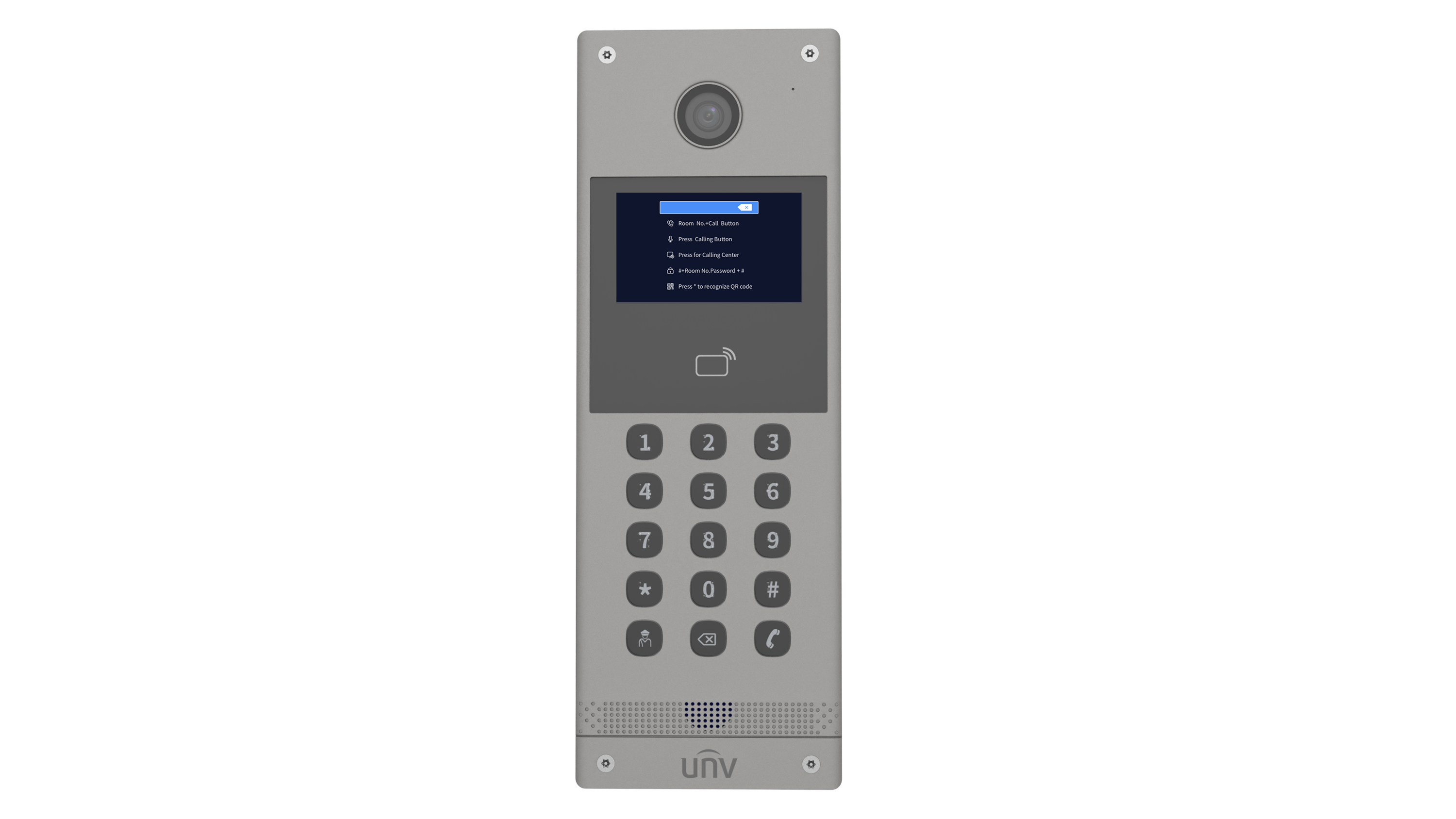

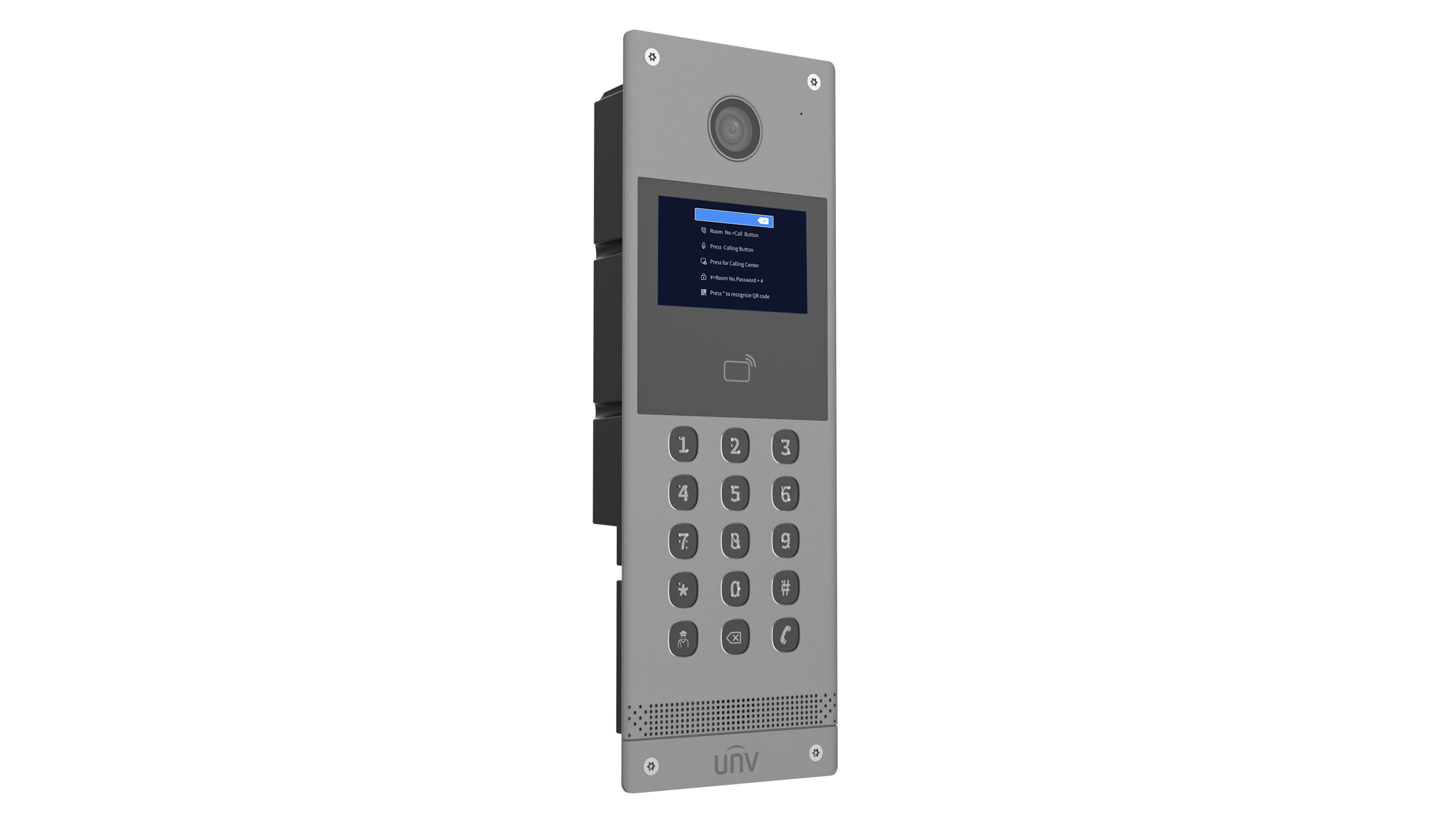

Uniview - OEU-301S-HMKA - Apartment Door Station(IC Card,15 Keypads)
Uniview - OEU-301S-HMKA - Apartment Door Station(IC Card,15 Keypads)
Part number:
OEU-301S-HMKA
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

Apartment Door Station(IC Card,15 Keypads)



Features:

• Delivered with a recess box for recess mount.
• Built-in heating module supports operation at a very low temperature.
• Metal casing.
• Supports batch configuration.
• Supports call and intercom with the connected indoor stations and UNV Link.
• Supports video monitoring, security alarm, and tamper alarm.
• Built-in IC card reader.

Basic Business
WDRSupport DWDR
ProtocolPrivate protocol
Button15 buttons with braille
Buttons layout:
Row 1: 1/2/3
Row 2: 4/5/6
Row 3: 7/8/9
Row 4: */0/#
Row 5: Management center/Call/Cancel

Network protocolTCP/IP, IPv4, HTTP, RTP, RTSP, NTP
Specification Index
Card Capacity10000
Maximum Connected Indoor Station500
Hardware Specification
FOVHorizontal: 106.9°
Vertical: 56.9°
Diagonal: 127.9°

Power ConsumptionPoE: 10.73W
DC12V: 8.62W


Volume AdjustmentSupport
Audio QualityNoise suppression, echo cancellation, AGC
Audio Input1 x Built-in omnidirectional microphone
Audio Output1 x Built-in speaker
Audio Compression Bitrate128Kbps
Protection LevelIP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details)
IK08

Power SupplyDC12V ±25%, IEEE802.3af PoE power supply
Operating SystemLinux
IlluminatorIR light (adaptive)
Screen Size3.97 inch
Weight2.10kg
Mount MethodWall mount
Network100Mbps network port, supports IEEE802.3af PoE power supply
InterfacePower*1, network port*1, RS485*1, IO input*4, IO output*2, door lock*2 (electric lock/door magnet), door opening button*2, door magnet*2, tamper button*1
Dimensions (L x W x H)125mm*358mm*53mm
Operating Environment-40°C to 60°C, 10% to 90%, noncondensing, outdoor
