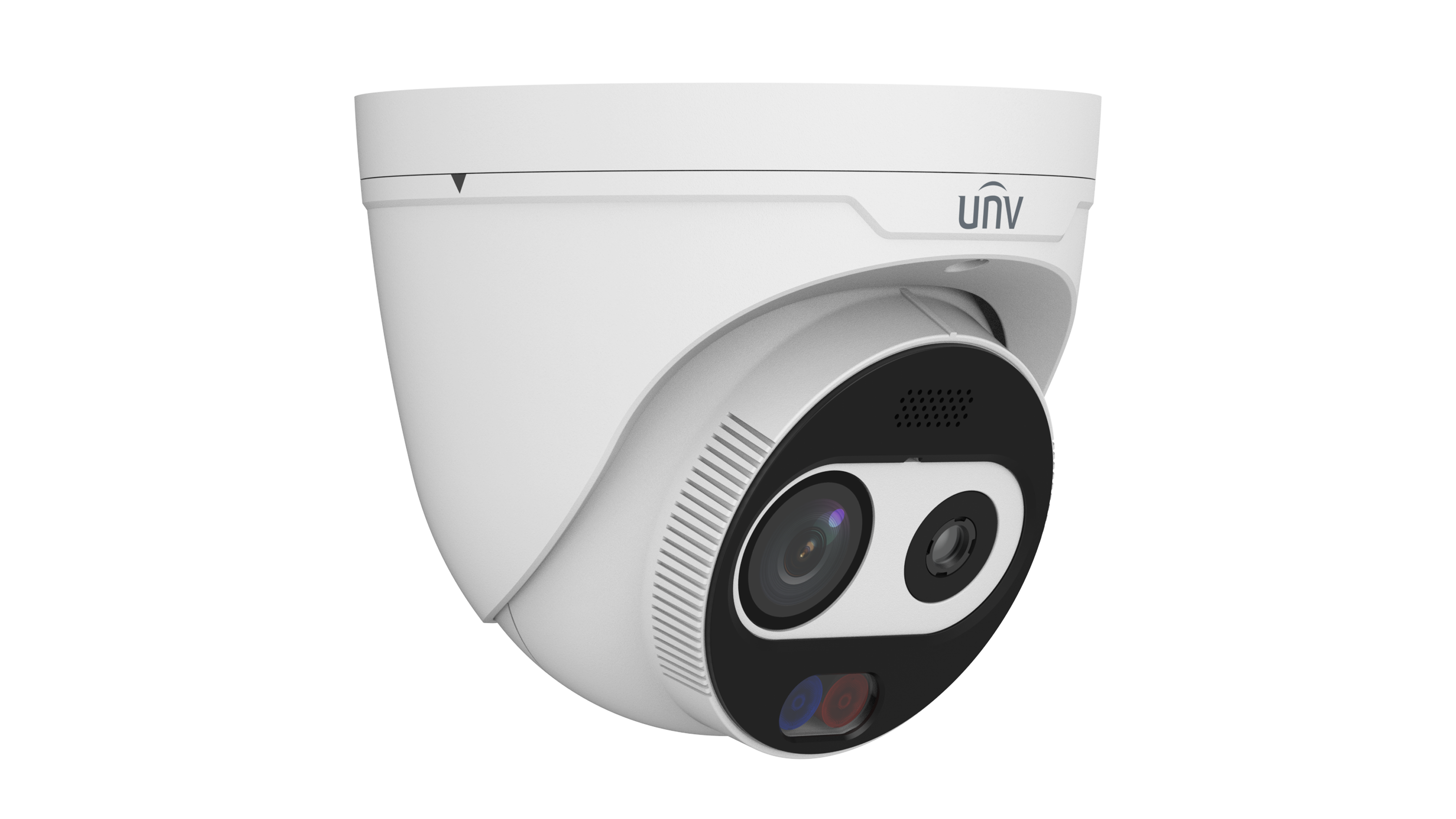

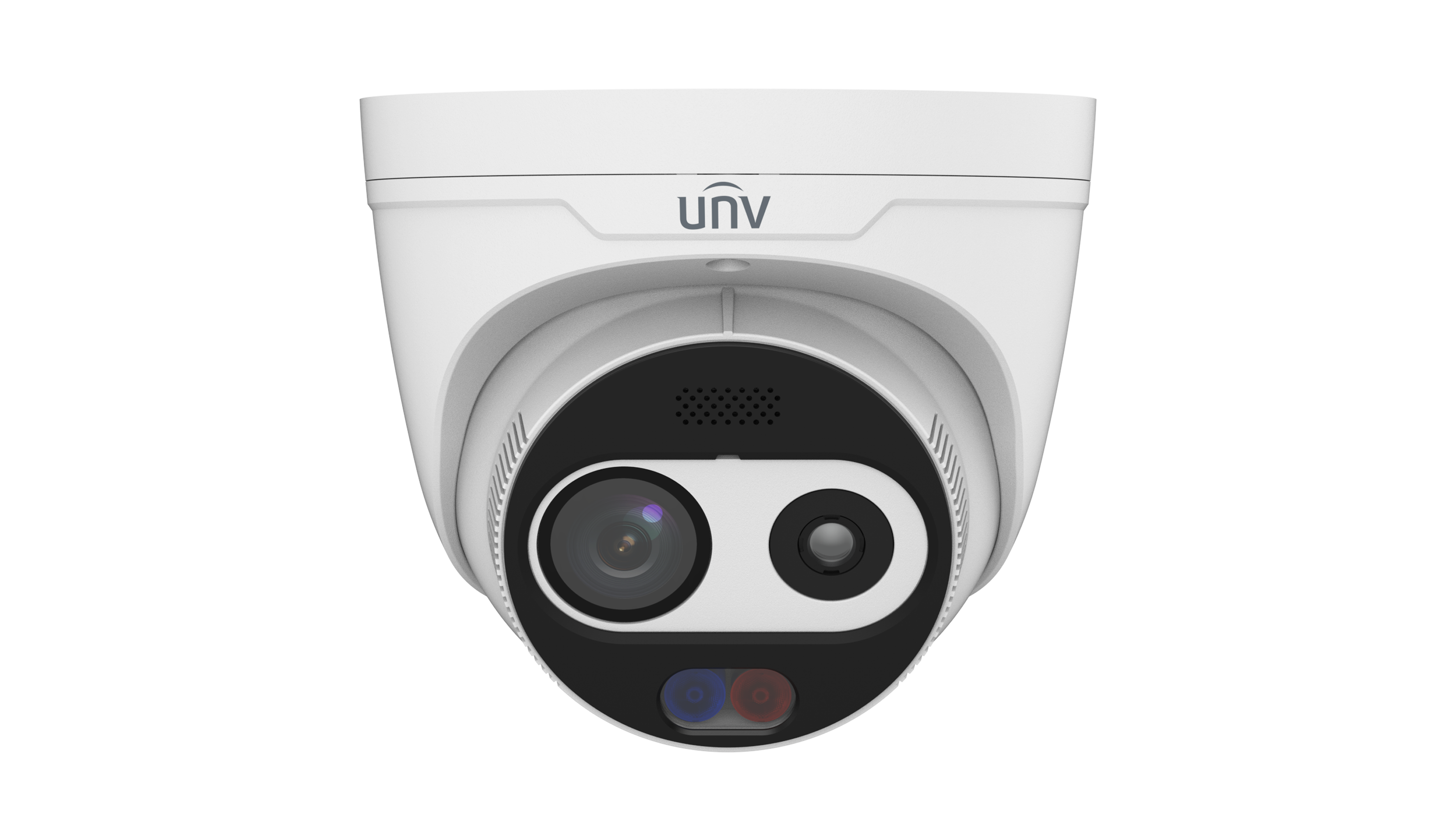

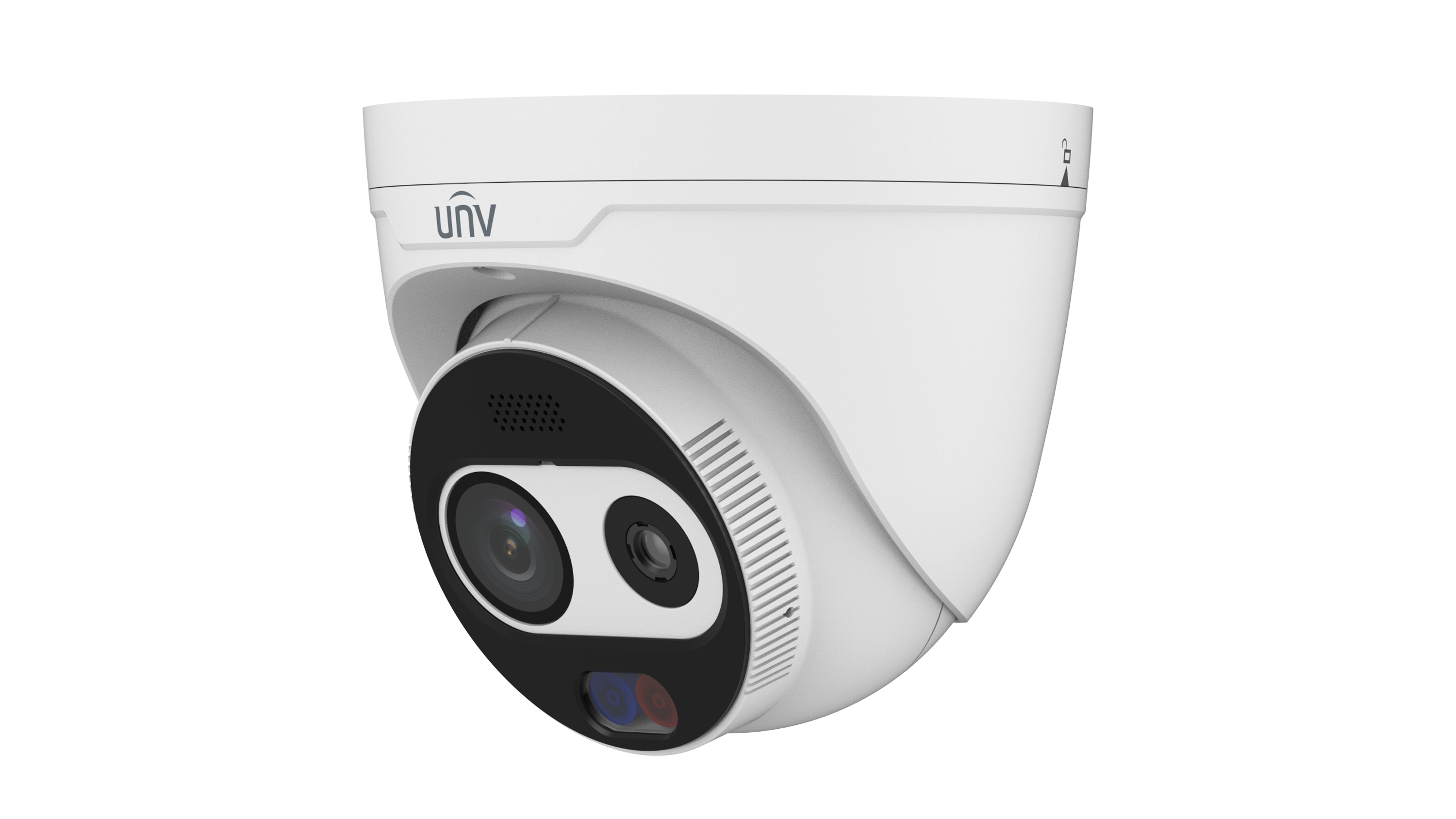

Uniview - TIC3612SA-F3-4F4AC-I1 - Thermal & Optical Dual-spectrum Turret Network Camera
Part number:
TIC3612SA-F3-4F4AC-I1
Price:
Thermal & Optical Dual-spectrum Turret Network Camera
Features:
• Thermal & optical dual-spectrum image, dual video with single IP address, adaptable to various scenes
• 1/2.8" target surface, high sensitivity sensor, suitable for starlight monitoring
• Thermal module supports reliable fire detection and fire shield area
• Thermal module supports temperature detection and cold&hot spot tracking, which highlights abnormal temperatures and links to alarm
• Thermal & optical dual-spectrum smart intrusion prevention can be enabled simultaneously : cross line, enter area, leave area, intrusion
• Optical module supports smog recognition, which can help with fire alarm reconfirmation
• Supports picture-in-picture mode, real-time contrast live, more convenient and clear
• Supports audio and light alarm, with red and blue warning lights built in
• Ultra 265, H.265, H.264, MJPEG
• Max 2688 × 1520@30 fps in the optical module and max 960P@30 fps in the thermal module
• DC 12 V ± 25% or PoE power supply
• Alarm 2 in and 2 out, audio 1 in and 1 out, micro SD, up to 512 G
| Camera | ||
| Original Resolution | N/A | 256 × 192 |
| Sensor | 1/2.8" CMOS | Vanadium oxide uncooled focal plane arrays |
| Min. Illumination | Colour: 0.003 lux (F1.6, AGC ON) B/W: 0.002lux(F1.6,AGC ON) 0 lux with IR | N/A |
| Day/Night | IR-cut filter with auto switch (ICR) | N/A |
| Pixel Size | N/A | 12 um |
| NETD | < 50 mk@F1.0@25 ℃ | < 50 mk@F1.0@25 ℃ |
| Shutter | Auto/Manual, 1 to 1/100000 s | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB | 120 dB |
| S/N | >56 dB | >56 dB |
| Lens | ||
| Focal Length | 4mm | 3 mm |
| Iris | F1.6 | F1.0 |
| Field of View (H) | 72.9° | 58.0° |
| Field of View (V) | 44.4° | 42.5° |
| Field of View (D) | 89.8° | 72° |
| DORI | ||
| DORI Distance (Detect) | 90.0m(295.3ft) | N/A |
| DORI Distance (Observe) | 36.0m(118.1ft) | N/A |
| DORI Distance (Recognize) | 18.0m(59.1ft) | N/A |
| DORI Distance (Identify) | 9.0m(29.5ft) | N/A |
| Illuminator | ||
| Wavelength | 750 nm | N/A |
| Illumination Distance (IR) | 30m | N/A |
| Light On/Off Control | Auto/Manual | N/A |
| Video | ||
| Frame Rate | 4MP(2688*1520), Max 30fps | 960P(1280*960), Max 30fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps | 128 Kbps to 16 Mbps |
| U-code | Support | Support |
| ROI | Support | Support |
| Video Stream | Triple streams | Triple streams |
| OSD | Up to 8 OSDs | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas (8 blacks/ 8 mosaics) | N/A |
| Image | ||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | N/A |
| Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC | Support | N/A |
| BLC | Support | N/A |
| Defog | Digital defog | N/A |
| Palette | N/A | puce, rain, fusion, mazarine, medical, arctic, lava, color 2, color 1, green hot, red hot, black hot, ice hot, depict hot, rainbow 3, rainbow 2, rainbow 1, hot iron, iron oxide red, white hot |
| Intelligent | ||
| Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human and vehicle) |
| Smoke Detection | Support | N/A |
| Temperature Measurement Accuracy | ±8 ℃ (±14.4 ℉) or ±8% (whichever is greater) | |
| Temperature Range | Selectable between -20 ℃ to 150 ℃ (-4 ℉ to 302 ℉) and 100 ℃ to 550 ℃ (212 ℉ to 1022 ℉) | |
| Events | ||
| Fire Detection | N/A | Support |
| Basic Detection | Motion detection, Tampering alarm, Audio detection | N/A |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Audio | ||
| Audio Compression | G.711U, G.711A | G.711U, G.711A |
| Audio Bitrate | 128 Kbps | 128 Kbps |
| Two-way Audio | Support | Support |
| Suppression | Support | Support |
| Sampling Rate | 16KHZ | 16KHZ |
| Storage | ||
| Edge Storage | Micro SD, up to 512 GB | Micro SD, up to 512 GB |
| Network Storage | ANR | ANR |
| Network | ||
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | Up to 32 users. 3 user levels: administrator, common user and operator |
| Client | EZStation, UNV-Link, UNV-Link Pro | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Interface | ||
| Built-in Mic | Support | Support |
| Built-in Speaker | Support | Support |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 2/2 | 2/2 |
| Serial Port | 1 channel RS485 interface | 1 channel RS485 interface |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A | 1 BNC (for debugging) |
| Certification | ||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 50130-4:2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 50130-4:2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN IEC 62368-1:2020+A11:2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | CE LVD (EN IEC 62368-1:2020+A11:2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General | ||
| Power | DC12V(±25%), PoE(IEEE802.3af) | DC12V(±25%), PoE(IEEE802.3af) |
| Power Consumption | Max 12W | Max 12W |
| Power Interface | Ø5.5 mm coaxial power plug | Ø5.5 mm coaxial power plug |
| Dimensions | Φ129 x 114 mm(Φ5.08" x 4.49")(Φ x H) | Φ129 x 114 mm(Φ5.08" x 4.49")(Φ x H) |
| Weight | 0.72kg(1.6lb) | 0.72kg(1.6lb) |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV | 6 KV |
| Reset Button | Support | Support |
| RTC | Support | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Live View | ||
| Maximum Bitstream | 35 | 35 |
| Maximum Bandwidth | 50 Mbps | 50 Mbps |
| OSD Font | Vector | Vector |
| OSD Color | Support | Support |
| OSD Character Number | 40 | 40 |
| Other | ||
| Corridor Mode | Support | Support |
| Software Version | Q6202 | Q6202 |
