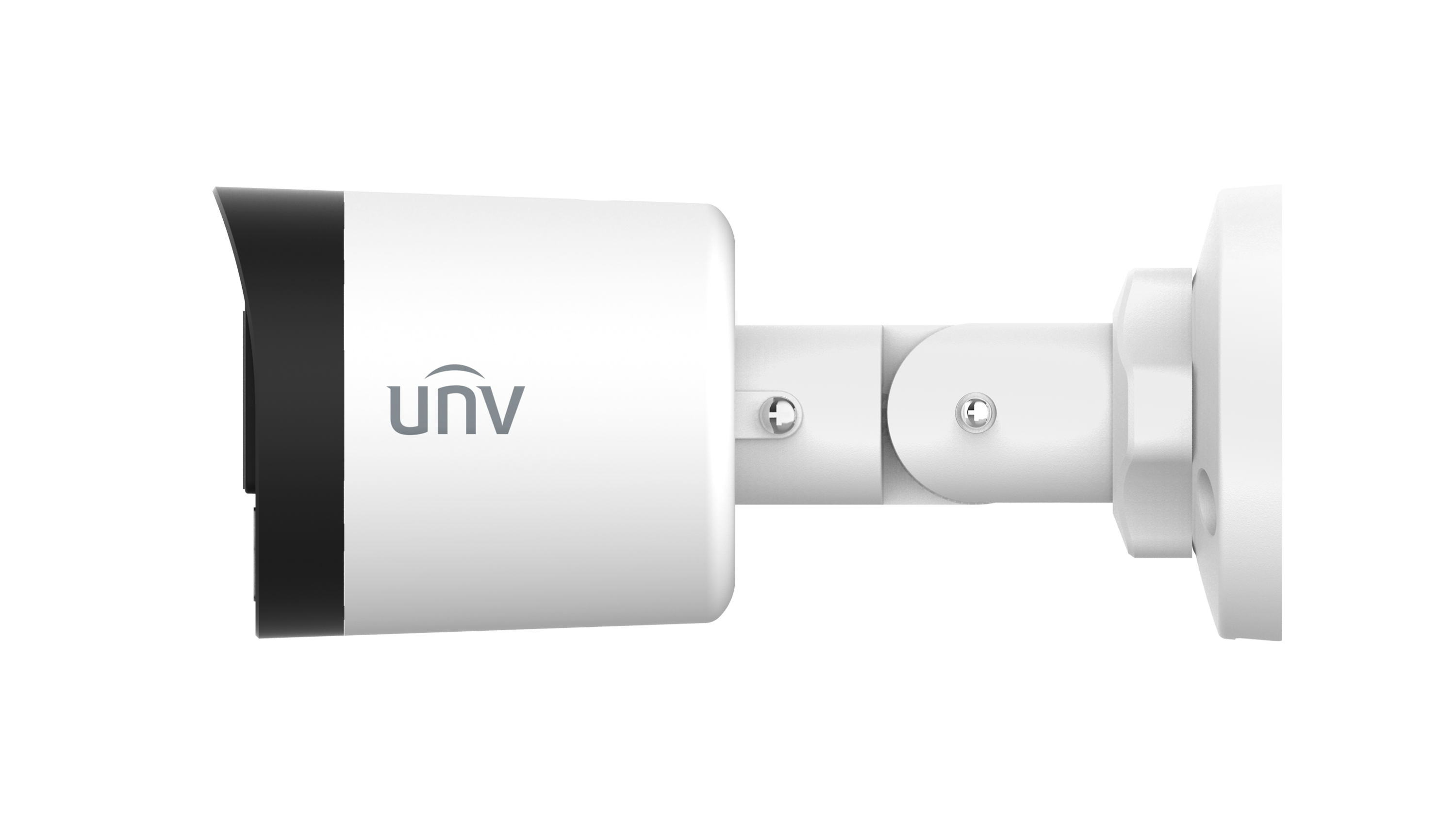

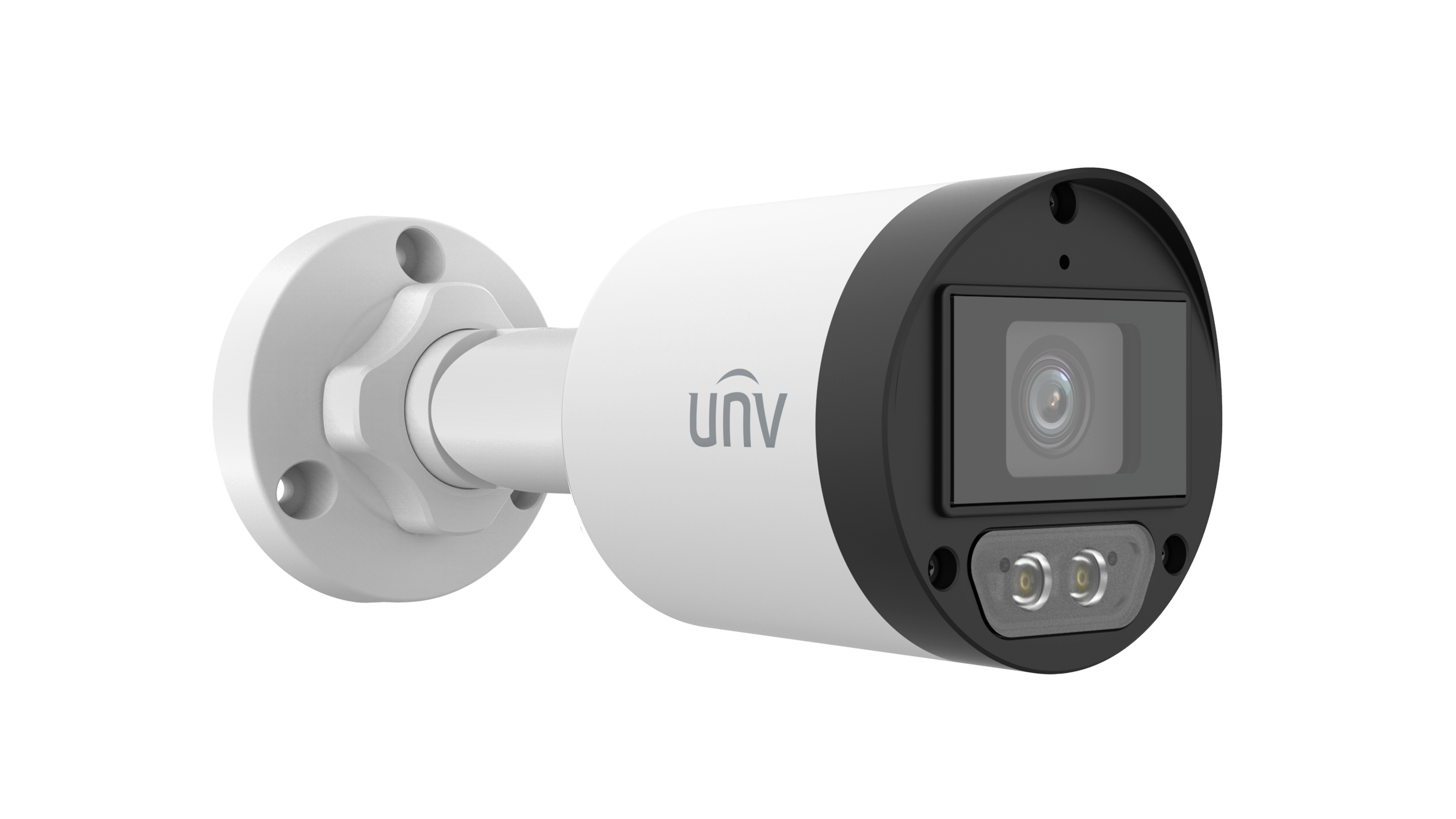

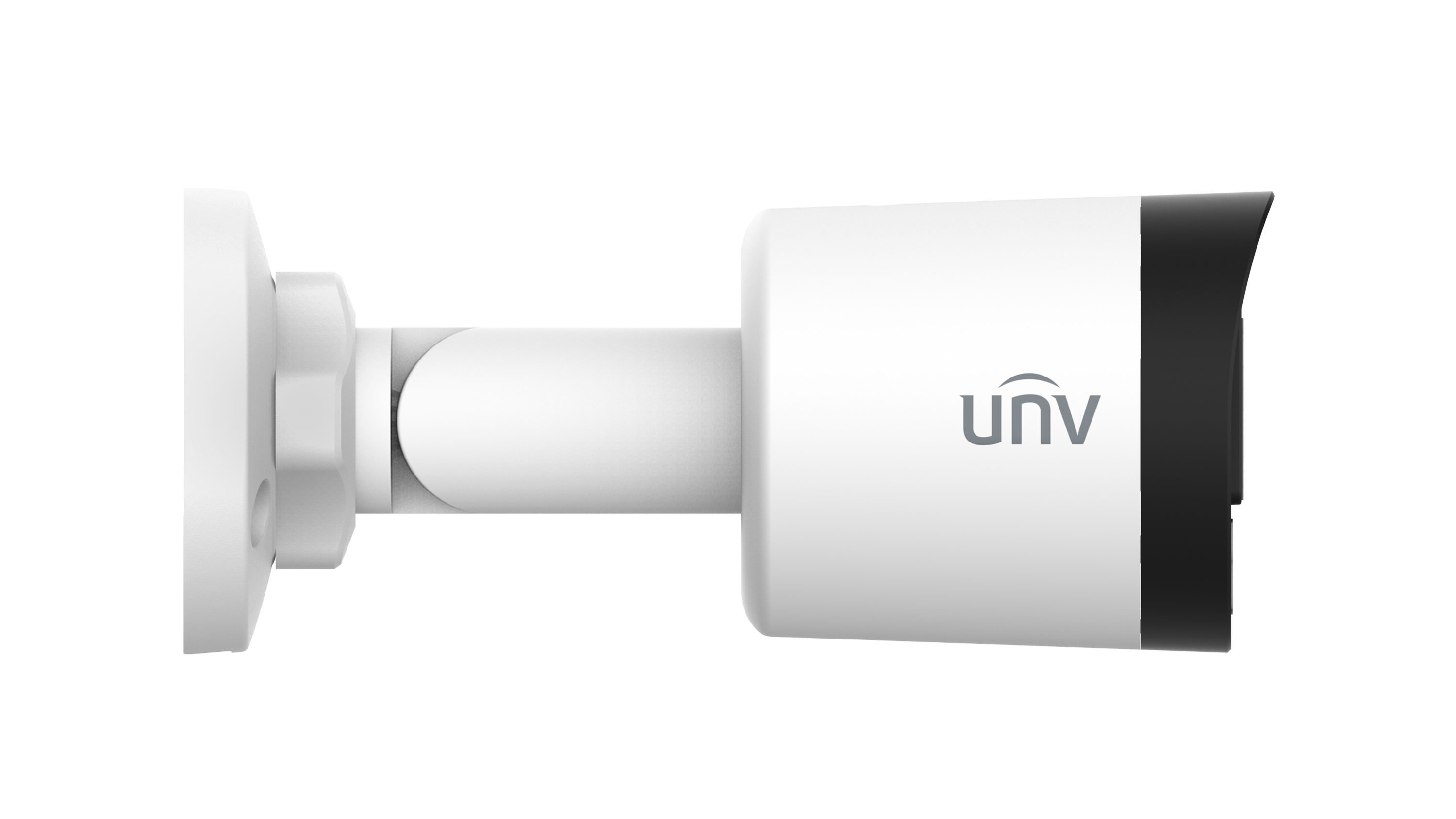

Uniview - UAC-B122-AF28M-W - UNV 2MP White Light Analog Bullet 2.8mm
Part number:
UAC-B122-AF28M-W
Price:

2MP ColorHunter Fixed Warm Light Bullet Analog Camera, 2.8mm



Features:

  • 2MP high quality imaging
  • TVI/AHD/CVI/CVBS
  • Supports white light illumination, 24/7 color images
  • Supports 180° horizontal flip, 180° vertical flip
  • OSD configuration menu, easy to operate
  • IP67 waterproof and dustproof design, high reliability
  • OSD configuration menu in 11 languages
  • Built-in microphone for high quality audio transmission via coaxial cables
  • Supports digital defog
  • Metal front face and housing
UAC-B122-AF28M-W
Camera
Max Resolution2 MP
Sensor Size1/2.9" CMOS
Min. Illumination0.005 lux (F1.6, AGC ON)
0 lux (white light on)
Lens
Focus2.8 mm
Lens MountM12
Angle of View (H)101.5°
Angle of View (V)56.9°
Angle of View (D)117.4°
Illuminator
Illuminator NumberTwo white-light illuminators
Illumination Distance40m
Lifetime≥ 60000 hours
Video
Resolution1080P: 1920(H)×1080(V)
720P: 1280(H) ×720(V)
Frame RateTVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps
AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVBS: PAL, NTSC
Shutter TimePAL: 1/25s-1/50000s,
NTSC: 1/30s-1/50000s
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
Day/Night24/7 color images
Digital Noise Reduction2D/3D
White BalanceTwo modes: Auto (default), Manual
WDRDWDR
FlipSupports 180°horizontal flip, 180°vertical flip
Digital DefogSupport
Audio
Built-in MicSupport
Camera AudioTVI: 1080P@25fps, 1080P@30fps
CVI: 1080P@25fps, 1080P@30fps
Interface
Power Interface5.5 mm Power Interface
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity≤ 95% RH (non-condensing)
Surge Protection4kV for power, 4kV for video output interfaces
Ingress ProtectionIP67
General
PowerDC 12 V ± 25%
Power ConsumptionMAX 3.12W
MountCorner Mount, Pole Mount
Dimensions157mm*67mm*66mm (L*W*H)
MaterialMetal
Weight279g(0.62lb)
