UNV 2MP IR Light Analog Bullet 4.0mm

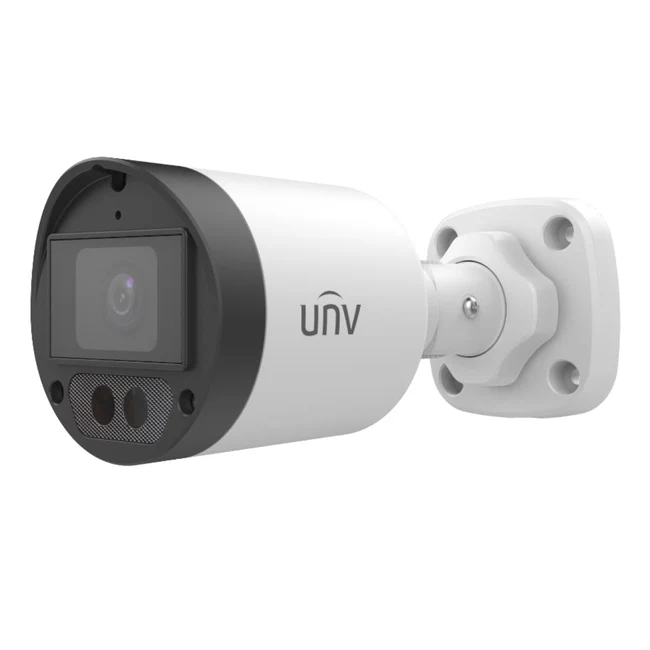

UAC-B122-AF28(40)M is a 2MP LightHunter HD IR fixed mini bullet analog camera with a high-performance 1/2.9-inch CMOS sensor and 3D noise reduction technology. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. It supports IR-cut filter with auto-switch (ICR) and provides color images at daytime and black/white images at night. The camera also supports audio input and synchronous transmission of audio and video.
Features:
- High quality imaging with 2MP resolution
- TVI/AHD/CVI/CVBS
- Supports IR-cut filter with auto-switch (ICR)
- LightHunter monitoring with high-sensitivity sensor
- 3D noise reduction technology delivers clean and sharp images
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high quality audio transmission via coaxial cables
- Supports digital defog
| Model | UAC-B122-AF40M |
| Sensor | |
| Pixel | 2MP |
| Size | 1/2.9" |
| Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR ON) |
| Lens | |
| Lens | 4.0mm |
| Lens mount | M12 |
| Angle of view | H: 83.8° V: 42.7° D: 100.1° |
| Illuminator | |
| Illuminator | Two IR illuminators |
| Illumination distance | 40m |
| Lifetime | ≥60,000 hours |
| Video | |
| Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) |
| Frame rate | TVI: NTSC: 1080P@30fps(default), 720P@30fps PAL: 1080P@25fps, 720P@25fps AHD: NTSC: 1080P@30fps, 720P@30fps PAL: 1080P@25fps, 720P@25fps CVI: NTSC: 1080P@30fps, 720P@30fps PAL: 1080P@25fps, 720P@25fps CVBS: NTSC：960*480 PAL：960*576 |
| Shutter time | NTSC: 1/30s–1/50000s PAL: 1/25s-1/50000s |
| Image | |
| Exposure mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | Three modes: Auto (default), Day, Night |
| Digital noise reduction | 2D/3D |
| White balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Smart IR | Support |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Defog | Digital Defog |
| Audio | |
| Microphone | Built-in Mic |
| Camera audio | TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps |
| Interface | |
| Power | 5.5mm power interface |
| Video output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating environment | |
| Temperature | -30°C to 60°C (-22°F to 140°F) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge protection | 4kV |
| Ingress protection | IP67 |
| General | |
| Power | DC 12V (±25%), with reverse polarity protection, Max 3.2W |
| Mount | 3D bracket supplied, surface mount (default), optional backbox, pole mount bracket |
| Dimensions | 154mm*66mm*66mm (L*W*H) |
| Material | Metal |
| Weight | 240g (0.53lb) |
| Certification | CE, FCC, UL |
