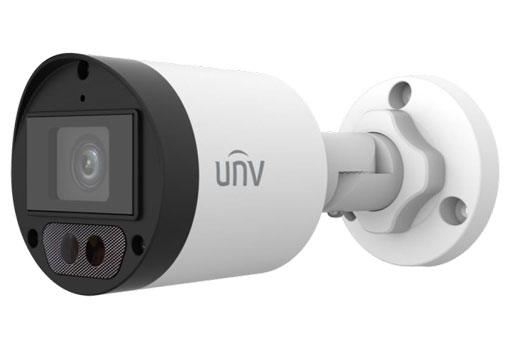

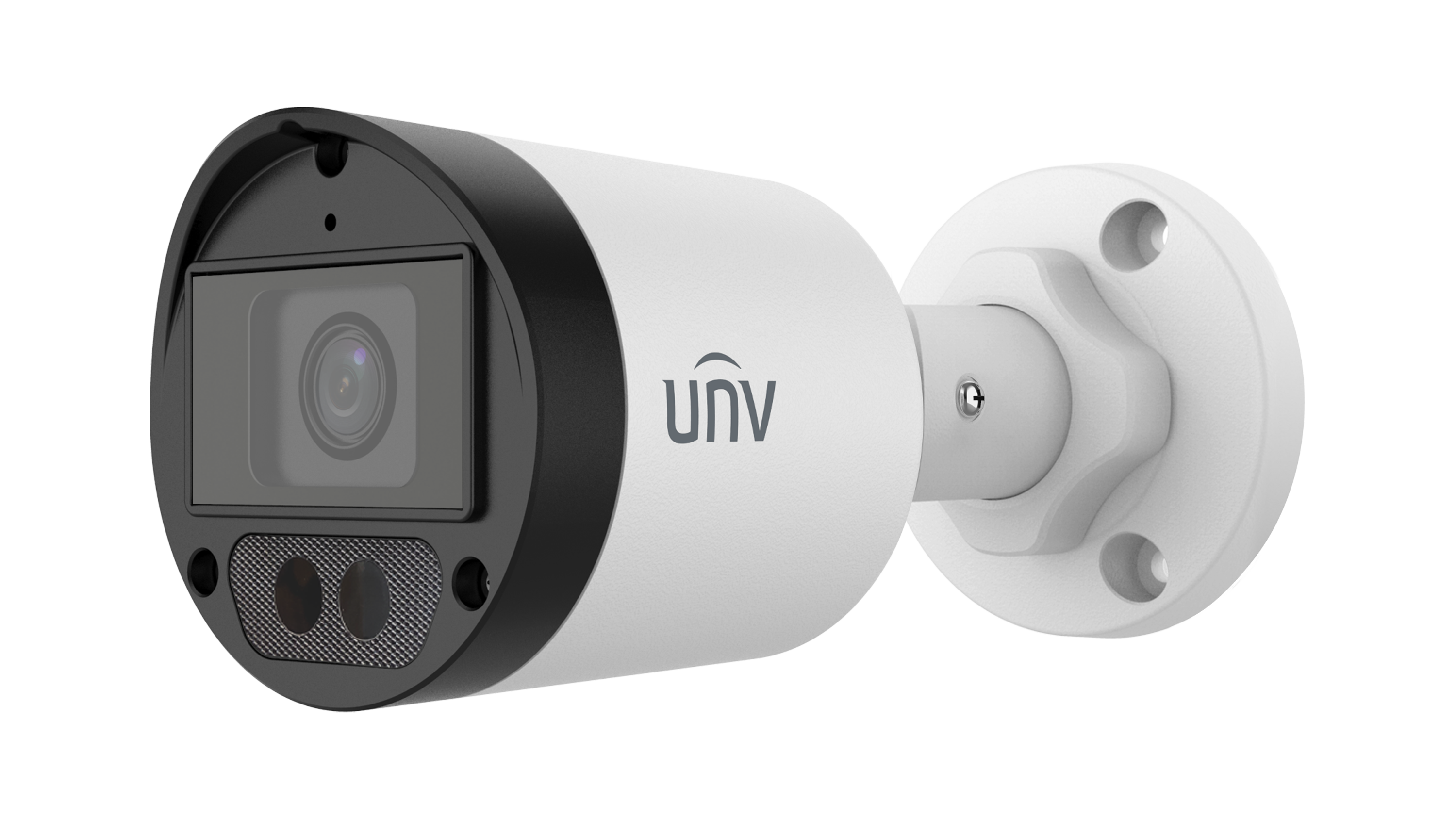

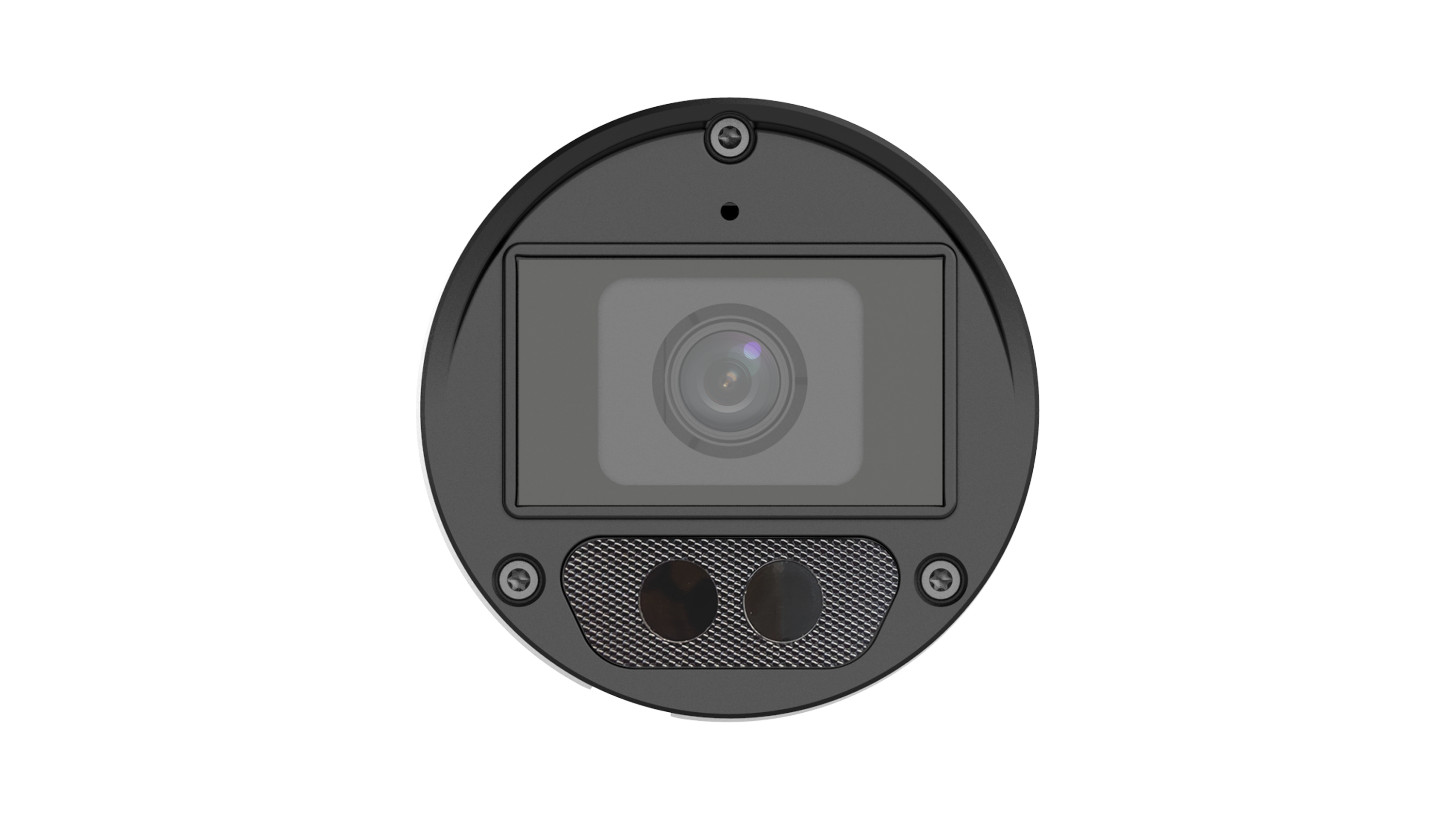

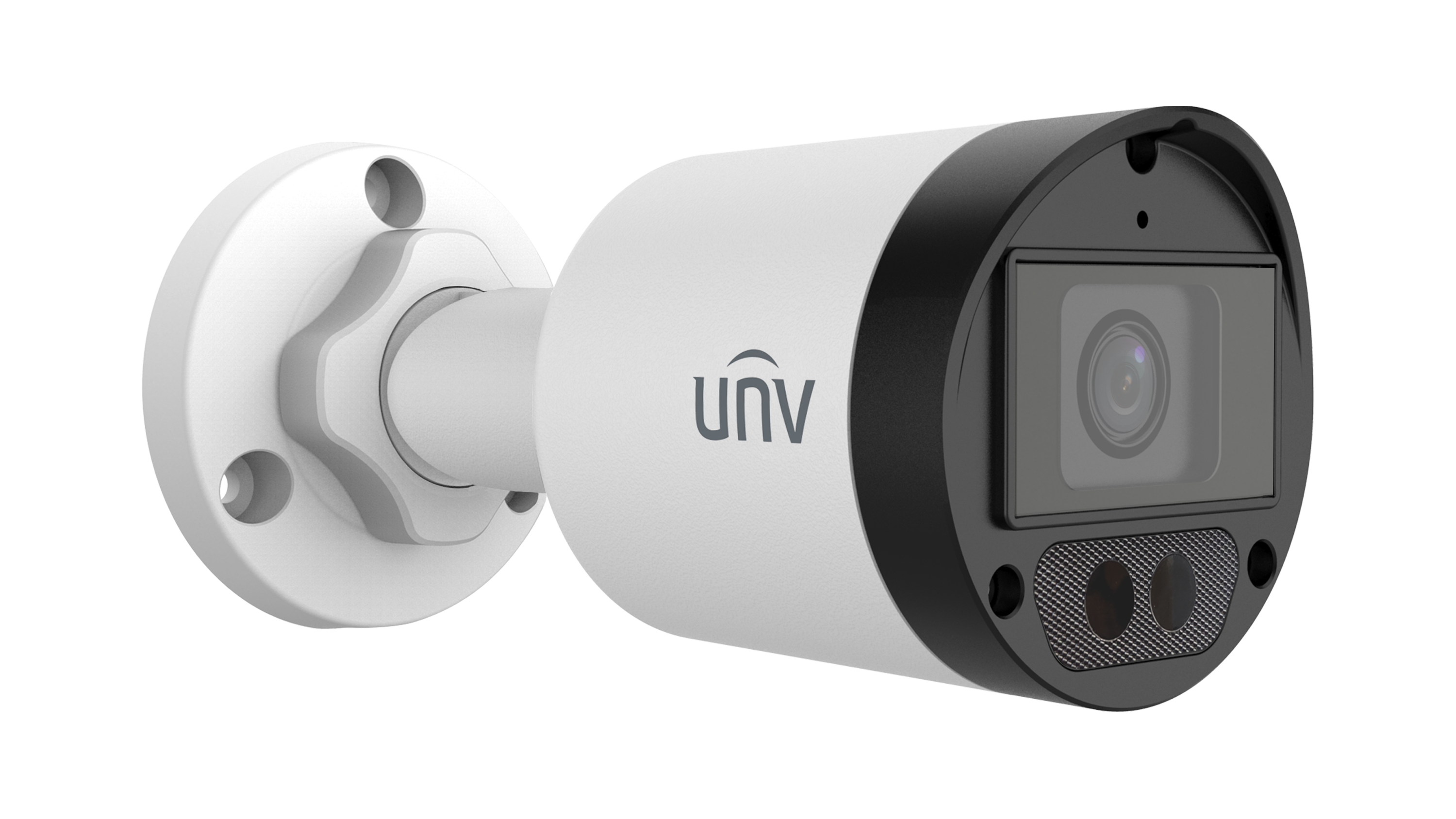

UNV 8MP IR Light Analog Bullet 2.8mm
UAC-B128-ADF28(40)MS is a 8MP LightHunter fixed IR bullet analog camera with a high-performance 1/2.7-inch CMOS sensor and 3D noise reduction technology. It supports flexible switch among TVI/CVI/AHD/CVBS through DIP switches, effectively enhancing product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. It supports IR-cut filter with auto-switch (ICR) and provides color images at daytime and black/white images at night. The camera also supports audio input and synchronous transmission of audio and video.
Features:
UAC-B128-ADF28MS | |
Camera | |
Max Resolution | 8 MP |
Sensor Size | 1/2.7" CMOS |
Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR ON) |
Lens | |
Focus | 2.8 mm |
Lens Mount | M12 |
Angle of View (H) | 109.1° |
Angle of View (V) | 61.0° |
Angle of View (D) | 126.7° |
Illuminator | |
Illuminator Number | Two IR illuminators |
Illumination Distance | 40m |
Lifetime | ≥ 60000 hours |
Video | |
Resolution | 4K: 3840(H) × 2160(V) 5MP@20fps: 2592(H)×1944(V); 4MP: 2560(H)×1440(V) |
Frame Rate | CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC |
Shutter Time | PAL: 1/25s-1/50000s, NTSC: 1/30s-1/50000s |
Image | |
Exposure Mode | Four modes: Global (default), BLC, HLC, WDR |
Day/Night | Three modes: Auto (default), Day, Night |
Digital Noise Reduction | 2D/3D |
White Balance | Two modes: Auto (default), Manual |
WDR | 120 dB WDR |
Smart IR | Support |
Flip | Supports 180°horizontal flip, 180°vertical flip |
Digital Defog | N/A |
Audio | |
Built-in Mic | Support |
Camera Audio | CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps |
Interface | |
Power Interface | 5.5 mm Power Interface |
Video Output | BNC, supports TVI/AHD/CVI/CVBS |
Operating Environment | |
Temperature | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
Humidity | ≤ 95% RH (non-condensing) |
Surge Protection | 4kV for power&4kV for video output interfaces |
General | |
Power | DC 12 V ± 25% |
Power Consumption | MAX 4.8W |
Mount | Corner Mount&Pole Mount |
Dimensions | 157mm*67mm*66mm (L*W*H) |
Material | Metal |
Weight | 300g(0.67lb) |
OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish |
Certification | |
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) |
Safety | CE-LVD (EN 62368-1) |
Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) |
Protection | IP67 (IEC 60529) |
