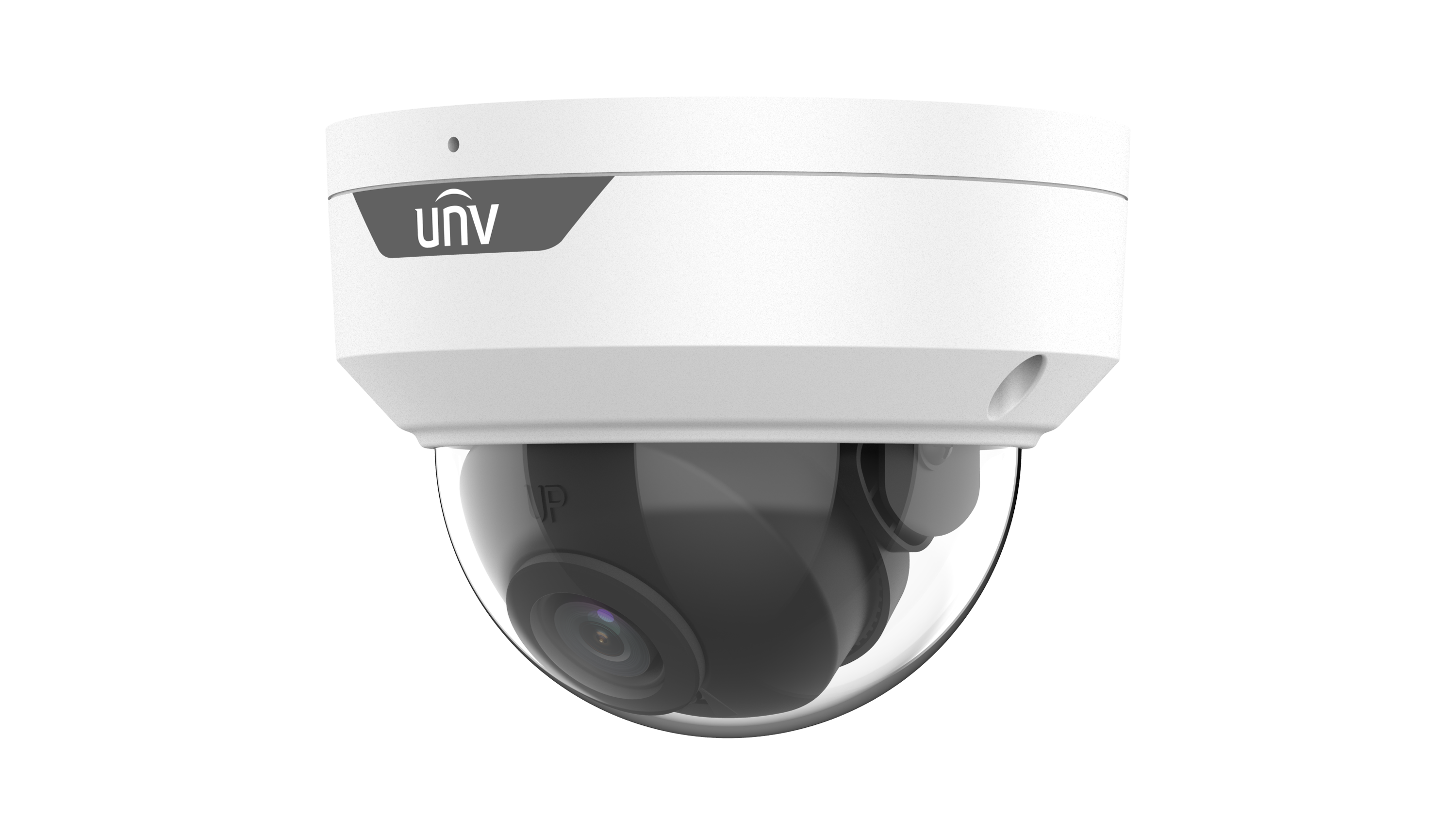

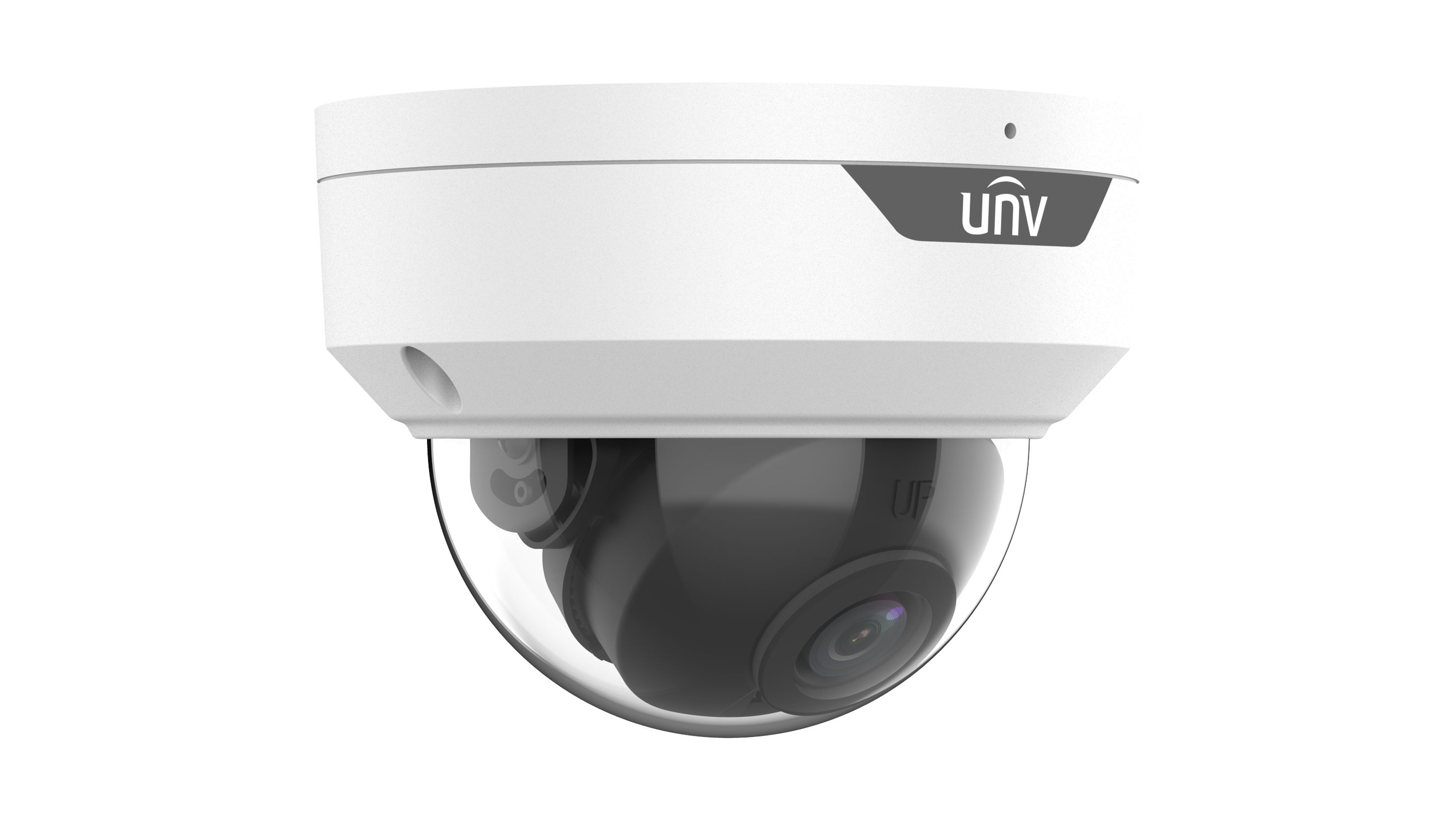

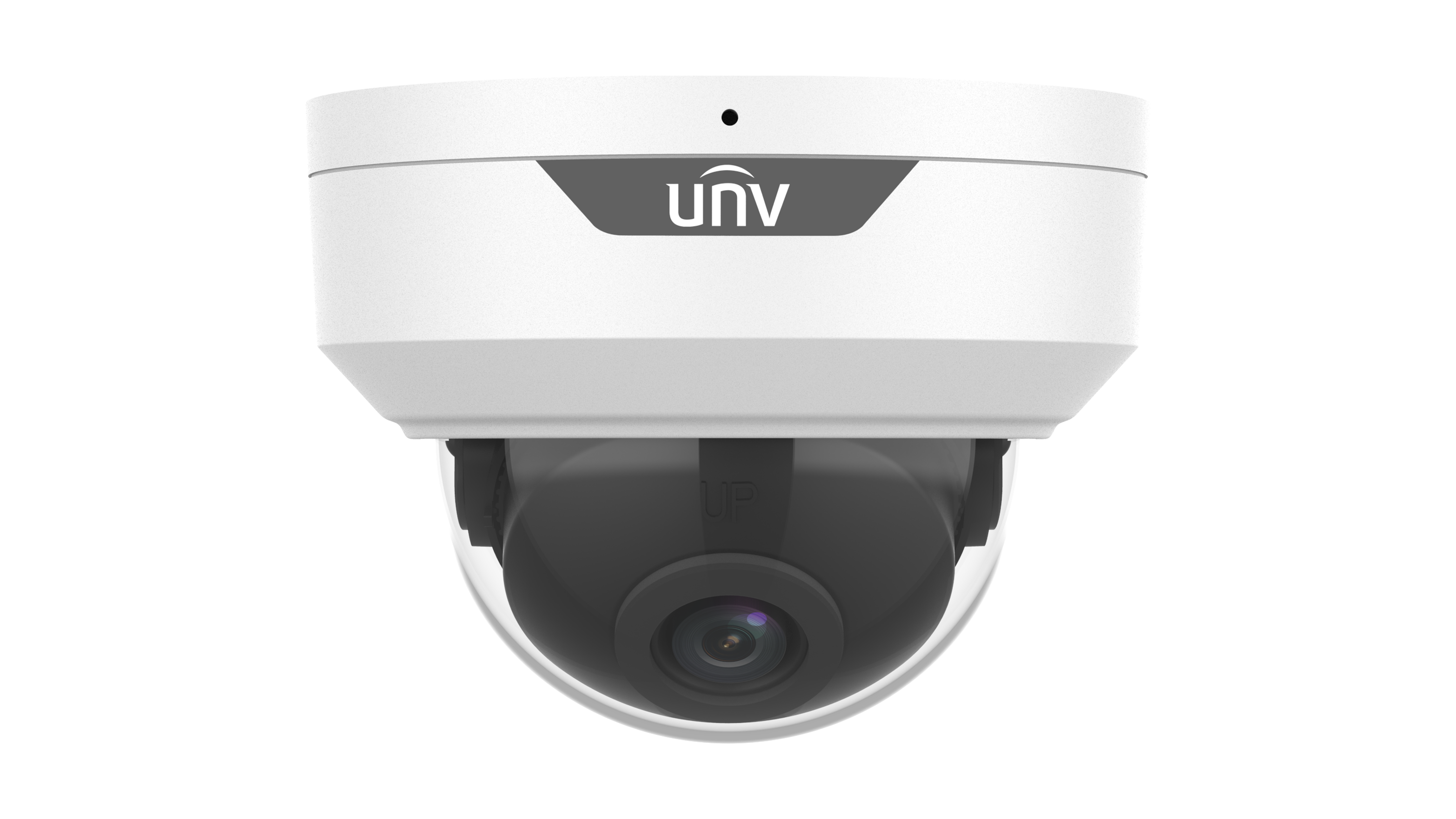

Uniview - UAC-D122-AF28M - UNV 2MP IR Light Analog Dome 2.8mm
Part number:
UAC-D122-AF28M
Price:

2MP LightHunter Fixed IR Dome Analog Camera, 2.8mm



Features:

  • High quality imaging with 2MP resolution
  • TVI/AHD/CVI/CVBS
  • Supports IR-cut filter with auto-switch (ICR)
  • LightHunter monitoring with high-sensitivity sensor
  • 3D noise reduction technology delivers clean and sharp images
  • Supports 180° horizontal/vertical flip
  • OSD configuration menu, easy to operate
  • Water and dust resistant (IP67) and vandal-resistant (IK10)
  • OSD configuration menu in 11 languages
  • Built-in microphone for high quality audio transmission via coaxial cables
  • Supports digital defog
  • Metal base and metal housing
  • 3-Axis
UAC-D122-AF28M
Camera
Max Resolution2 MP
Sensor Size1/2.9" CMOS
Min. Illumination0.005 lux (F1.6, AGC ON)
0 lux (IR on)
Lens
Focus2.8 mm
Lens MountM12
Angle of View (H)101.5°
Angle of View (V)56.9°
Angle of View (D)117.4°
Illuminator
Illuminator NumberOne IR illuminator
Illumination Distance30m
Lifetime≥ 60000 hours
Video
Resolution1080P: 1920(H)×1080(V)
720P: 1280(H) ×720(V)
Frame RateTVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps
AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVBS: PAL, NTSC
Shutter TimePAL: 1/25s-1/50000s,
NTSC: 1/30s-1/50000s
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
Day/NightThree modes: Auto (default), Day, Night
Digital Noise Reduction2D/3D
White BalanceTwo modes: Auto (default), Manual
WDRDWDR
Smart IRSupport
FlipSupports 180°horizontal flip, 180°vertical flip
Digital DefogSupport
Audio
Built-in MicSupport
Camera AudioTVI: 1080P@25fps, 1080P@30fps
CVI: 1080P@25fps, 1080P@30fps
Interface
Power Interface5.5 mm Power Interface
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature-30°C to 60°C (-22°F to 140°F)
Humidity≤ 95% RH (non-condensing)
Surge Protection4 KV for power, 4 KV for video output interfaces
Ingress ProtectionIP67
IK RatingIK10
General
PowerDC 12 V ± 25%
Power ConsumptionMAX 3.3W
MountWall Mount, Pole Mount, Corner Mount, Tilted Mount, Pendant Mount
DimensionsΦ109mm*83mm (diameter*height)
MaterialMetal
Weight372g(0.82lb)
