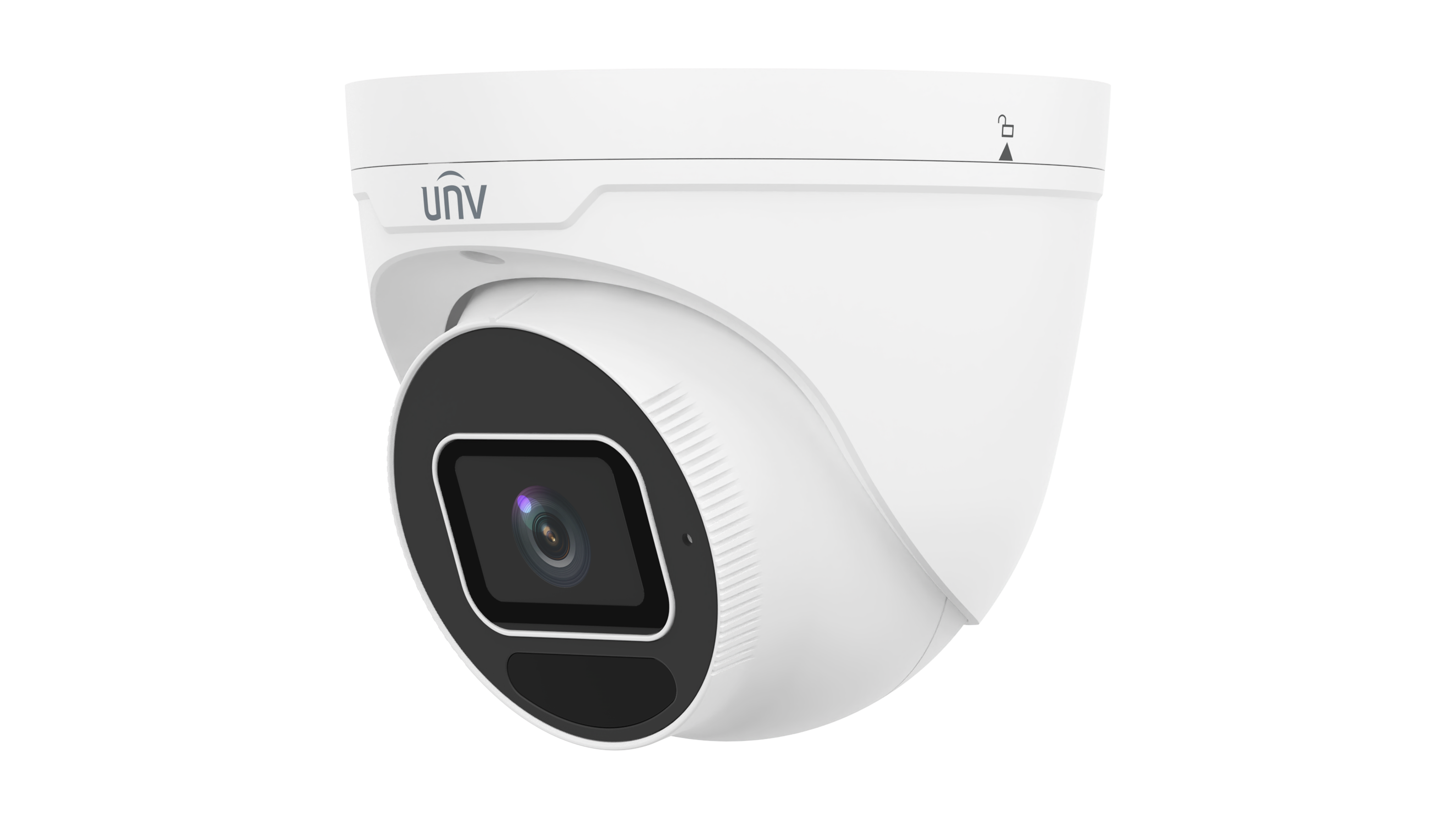

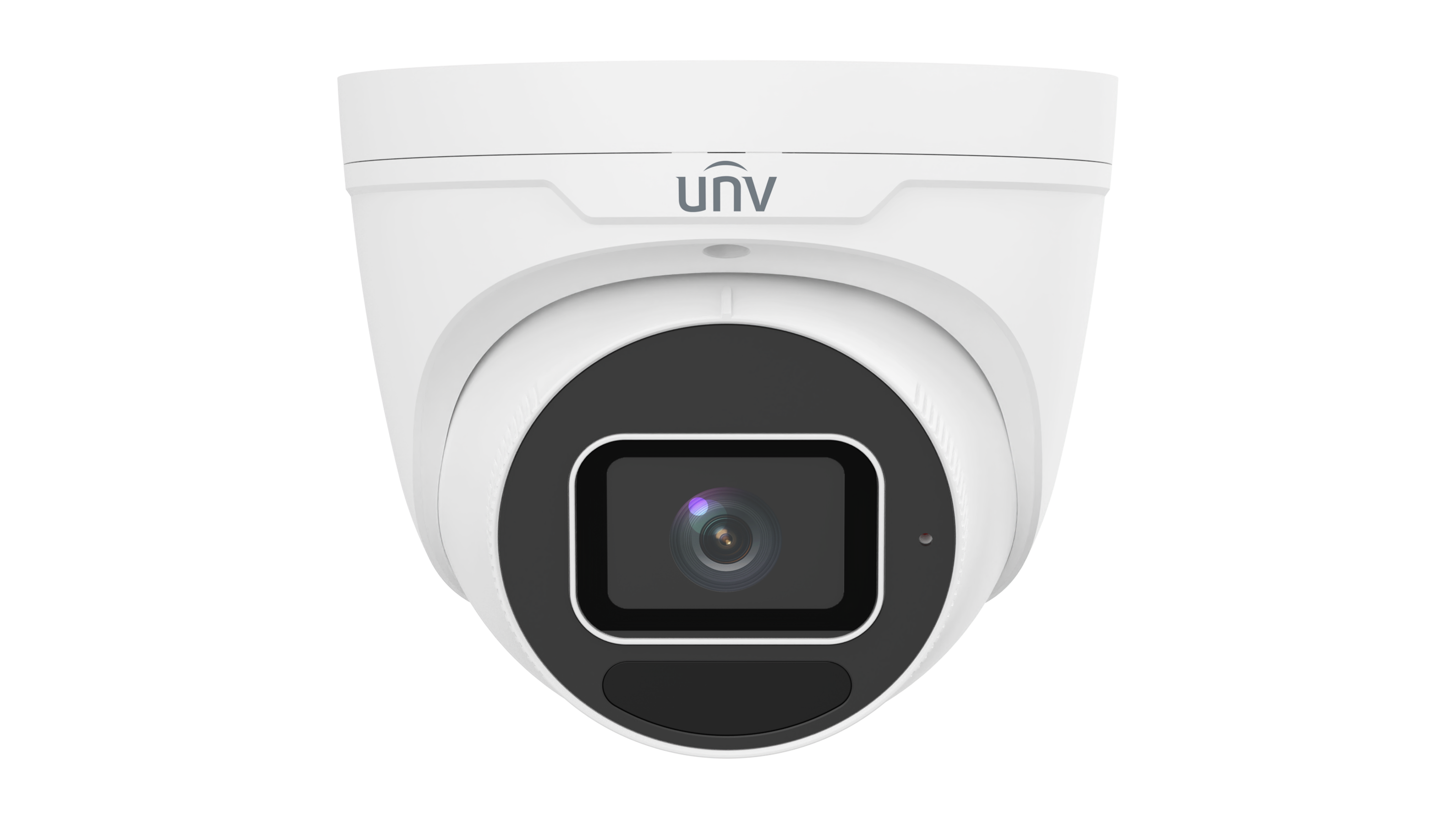

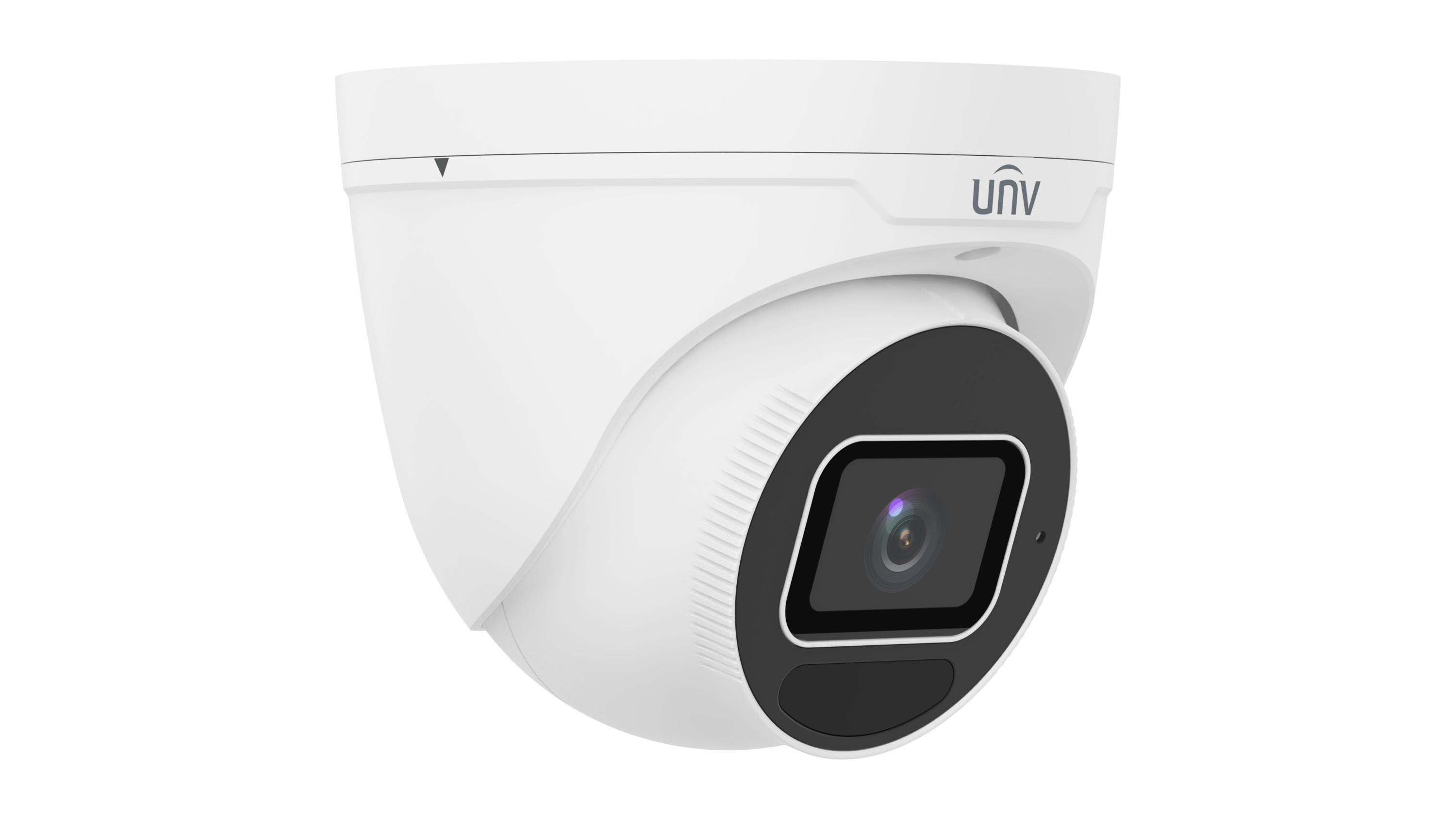

UNV - UAC-T312-AZM - 2MP IR Light Analog VF Bullet 2.8mm
• High quality imaging with 2MP resolution
• 2.8mm-12mm motorized lens
• TVI/AHD/CVI/CVBS
• Supports IR cut filter with auto switch (ICR)
• 3D noise reduction technology delivers clean and sharp images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built in microphone for high quality audio transmission via coaxial cables
| Camera | |
| Max Resolution | 2 MP |
| Sensor Size | 1/3.0" CMOS |
| Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) |
| Lens | |
| Focus | 2.8 to 12 mm |
| Lens Mount | Φ14 |
| Angle of View (Horizontal) | 91.3° ~ 31.3° |
| Angle of View (Vertical) | 52.2° ~ 18.5° |
| Angle of View (Diagonal) | 106.8° ~ 35.9° |
| Illuminator | |
| Illuminator Number | Two IR illuminators |
| Illumination Distance | 40 m |
| Lifetime | ≥ 60,000 hours |
| Video | |
| Resolution | 1080P: 1920(H) × 1080(V) 720P: 1280(H) × 720(V) |
| Frame Rate | CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps TVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25 s - 1/50000 s NTSC: 1/30 s - 1/50000 s |
| Image | |
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | Three modes: Auto (default), Day, Night |
| Digital Noise Reduction | 2D/3D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Smart IR | Support |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Digital Defog | N/A |
| Audio | |
| Built-in Mic | Support |
| Camera Audio | CVI: 1080P@25fps, 1080P@30fps * Audio function of the camera is only available when the camera is used with our G3/Q3/U3 series XVRs. |
| Interface | |
| Power Interface | 5.5 mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
| Humidity | ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV for power, 4 KV for video output interfaces |
| General | |
| Power | DC 12 V ± 25% |
| Power Consumption | MAX 2.78W |
| Mount | Wall Mount, Pole Mount, Corner Mount, Pendant Mount |
| Dimensions | Φ129 × 110 mm (Ø5.1” × 4.3”) |
| Material | Metal |
| Weight | 609 g (1.34 lb) |
| OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
This is a 2MP analog HD varifocal bullet camera. It features a 1/3.0" CMOS sensor and a manual 2.8mm to 12mm varifocal lens, allowing the horizontal field of view to be adjusted from 91.3° down to 31.3°. It supports multiple analog HD formats (TVI, AHD, CVI) and standard CVBS output via a BNC connector, with a maximum resolution of 1080P at 30 frames per second.
For night vision, it includes two infrared LEDs with a range of 40 meters. Its imaging features include Digital WDR, 2D/3D Digital Noise Reduction, and Smart IR. It includes a built-in microphone for audio capture. The housing is constructed from metal with an IP67 protection rating for dust and water resistance. It operates within a temperature range of -30°C to 60°C. It is powered by a DC 12V source with a maximum power consumption of 2.78 watts.
