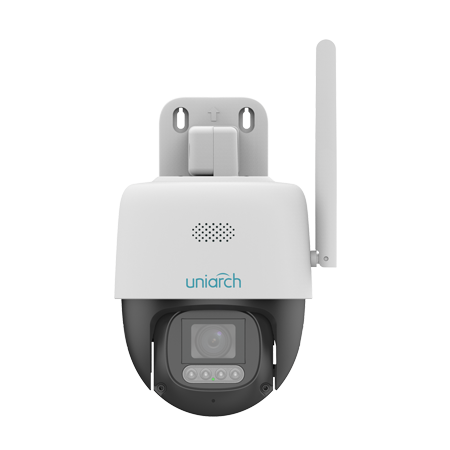

Uniview - Uho-P3C-M5F4 - 5MP Outdoor Wi-Fi PT camera, Wise-isp technology, F1.0 + 1/1.8", Wi-Fi 6, Bluetooth, 3W high power speaker
Part number:
Uho-P3C-M5F4
Price:
5MP Outdoor Wi-Fi PT camera, Wise-isp technology, F1.0 + 1/1.8", Wi-Fi 6, Bluetooth, 3W high power speaker
Features:
- High quality image with 5MP, 1/1.8"CMOS sensor and F1.0 large aperture lens
- 5MP (2880*1620)@25/20fps; 4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps;
- Ultra 265, H.265, H.264
- Colorhunter with Wise-ISP technology ensures 24-hour full-color images
- Support digital WDR (Wide Dynamic Range)
- Built-in Mic & Speaker, support two-way audio, offer better interaction
- Support sound and light warning, makes warning and alarming more noticeable
- Warm Light, up to 30m warm light distance
- Supports 512 GB Micro SD card
- Wi-Fi connection and easy installation
- IP66 ingress protection
| Camera | Uho-P3C-M5F4 | ||||
| Sensor | 1/1.8" progressive scan, 5.0 megapixel, CMOS | ||||
| Min. Illumination | Colour: 0.0003lux (F1.0, AGC ON) | ||||
| Shutter | Auto/Manual, shutter time: 1s ~ 1/100000s | ||||
| WDR | DWDR | ||||
| S/N | >52 dB | ||||
| Lens | |||||
| Lens type | 4mm@F1.0 | ||||
| Digital Zoom | 4 | ||||
| Iris | Fixed | ||||
| Field of View (H) | 89.4° | ||||
| Field of View (V) | 48.2° | ||||
| Field of View (D) | 94.7° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4mm | 62.1(203.6ft) | 24.8(81.5ft) | 12.4(40.7ft) | 6.2(20.4ft) | |
| Illuminator | |||||
| Warm Light Range | Up to 30m (98ft) | ||||
| Light On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264 | ||||
| Frame Rate | Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||
| Video Bit Rate | 128 Kbps~6144 Kbps | ||||
| ROI | Up to 8 areas | ||||
| Video Stream | Dual streams | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Support(Only NVR) | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180° | ||||
| HLC | N/A | ||||
| BLC | N/A | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Basic Detection | Human body detection, Motion detection, Audio Detection | ||||
| Auto tracking | Support | ||||
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | ||||
| Audio | |||||
| Audio Compression | G.711U,G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 512 GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna | ||||
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP | ||||
| Compatible Integration | API | ||||
| Client | Uniarch Client Uniarch APP | ||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
| Wi-Fi | |||||
| Wireless Standards | IEEE802.11b/g/n/ax | ||||
| Frequency Range | 2.4GHz~2.4835GHz | ||||
| Channel Bandwidth | 20/40 MHz Support | ||||
| Modulation Mode | 802.11b: CCK 802.11g/n: OFDM 802.11ax: OFDMA | ||||
| Security | 64/128-bitWEP,WPA-PSK/WPA2-PSK | ||||
| Transmit Power | 802.11b: 17±1.5dBm @11Mbps 802.11g: 16±1.5dBm @ 54Mbps 802.11n: 16±1.5dBm @MCS7 802.11ax: 16±1.5dBm @MCS9 | ||||
| Receive Sensitivity | 802.11b: -76dBm @11Mbps (Typical) 802.11g: -65dBm @54Mbps (Typical) 802.11n: -61dBm @MCS7,HT40(Typical) 802.11ax: -54dBm @MCS9,HE40(Typical) | ||||
| Transmission Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps 802.11ax: up to 270Mbps | ||||
| Pan & Tilt | |||||
| Pan Range | 0° ~ 345° | ||||
| Pan Speed | 1°/s ~ 40°/s | ||||
| Preset speed: 40°/s | |||||
| Tilt Range | 0° ~ 90° | ||||
| Tilt Speed | 1°/s ~ 30°/s | ||||
| Preset speed: 30°/s | |||||
| Number of Presets | 20 | ||||
| Interface | |||||
| Built-in Mic | Support | ||||
| Built-in Speaker | Support | ||||
| Wi-Fi | Support | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Certifications | |||||
| EMC | CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130) FCC (FCC 47 CFR part15 B) | ||||
| RF | FCC ID (FCC CFR 47 part15 C) CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) | ||||
| Safety | CE LVD (EN 62368-1) | ||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||
| Protection | IP66 (IEC 60529) | ||||
| General | |||||
| Power | DC 12V ± 25% | ||||
| Power consumption: Max 13.0W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (Ø x H) | Φ118mm*118mm*199mm (Φ4.6”x 4.6”x 7.8”) | ||||
| Weight | 0.53kg (1.17lb) | ||||
| Working Environment | -30°C ~ 60°C (-22°F to 140°F), Humidity:≤95% RH(non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Reset Button | Support | ||||
| LED indicator | 1, green | ||||
