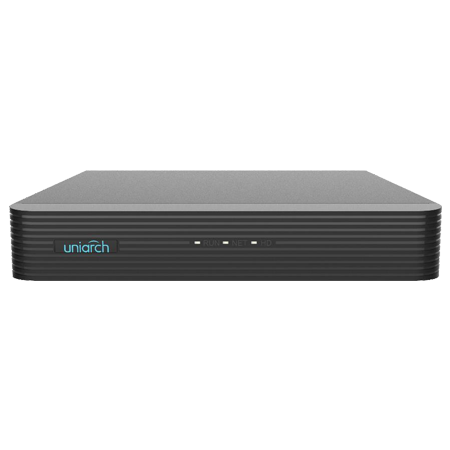

Uniview - XVR-116G3 - Uniarch 1 SATA XVR, 16CH, 5MP Lite
Part number:
XVR-116G3
Price:
Uniarch 1 SATA XVR, 16CH, 5MP Lite
Features:
- Support H.265/H.264 video formats
- Support audio over coaxial cable(only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 16-channel BNC input
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
- Long transmission distance over coaxial cable
- Supports mainstream cameras of ONVIF and RTSP protocols
| XVR-116G3 | |
| Video/Audio Input | |
| Analog Video Input | 16-ch, BNC |
| IP Video Input | 8-ch(up to 16-ch after analog camera conversion) |
| Supported Analog Camera Types | Support AHD input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input |
| Audio Input | 1-ch, RCA |
| Audio Compression | G.711U |
| Network | |
| Incoming Bandwidth | 40Mbps (up to 56Mbps after all analog camera conversion) |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Browser | IE10/11 for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
| Video/Audio Output | |
| VGA Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| HDMI Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | HD:8-ch SD:16-ch |
| Live view display | HDMI/VGA: 1/4/6/8/9/16/25 |
| Two-way Audio | 1-ch, RCA |
| Snapshot | |
| FTP/Schedule/Event Snapshot | Schedule snapshot is not supported 16-ch snapshot, up to 704*576 resolution |
| Encoding | |
| Recording Resolution | 5MP Lite/4MP Lite /1080P Lite/720P/CIF |
| Recording Frame Rate | Main stream: |
| 5MP Lite@6fps | |
| 4MP Lite@8fps | |
| 1080P Lite@12fps | |
| 720P@12fps | |
| Audio Sample Rate | 8KHz,16 bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Decoding | |
| Capability | Analog: 8 x 5MP Lite@6, 8 x 4MP Lite@8, 8 x 1080P Lite@12 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30 |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Smart Alarm | |
| VCA Detection | Ultra Motion Detection(UMD) for analog:8-ch |
| VCA Search | Behavior Search |
| General Alarm | |
| General Alarm | By analog/IP camera: Motion detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Running Out of Space, Space Used Up, Recording Abnormal |
| External Interface | |
| Network Interface | 1RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel:2 x USB2.0 |
| Serial Interface | 1 x RS485 |
| General | |
| Power Supply | 12V DC Power Consumption: ≤ 10 W( without HDD ) |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Dimensions(W×D×H) | 260mm × 229mm × 47mm (10.2" × 9.0" × 1.8") |
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) |
| Certification | |
| Certification | CE/FCC/WEEE |
