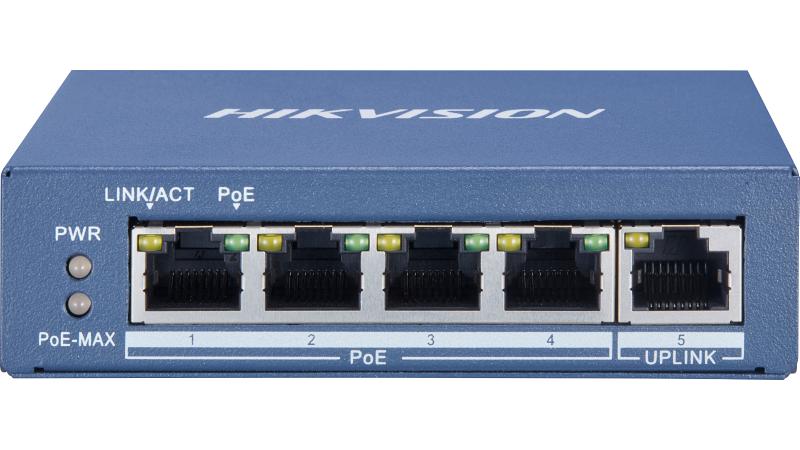

Hikvision - DS-3E0505P-E - Unmanaged, 4Gigabit PoE ports
Part number:
DS-3E0505P-E
Price:
The DS-3E05xxP-E is an unmanaged Gigabit PoE switch that requires no configuration and contains up to 24 gigabit ports. It is ideal for managing simple installations that have a large volume of video traffic from high-megapixel IP cameras.
This series consists of basic standalone switches with gigabit capability on all ports, which allows for multiple PoE field switches to be connected on one DS-3E05xxP-E Series core switch, which saves space and reduces the need to install additional devices.
Features:
- Layer 2 network switch designed for video data transmission
- 4 x 10/100/1000 Mbps ethernet port and 1 x 10/100/1000 Mbps uplink ethernet port
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
- IEEE 802.3 af & at high PoE power supply
- Store-and-forward switching
- Safe and reliable using 6 KV high surge protection
- Plug and play ensures simplicity and convenience.
| DS-3E0505P-E | DS-3E0510P-E | DS-3E0518P-E | DS-3E0526P-E | |
| Network Parameters | ||||
| Port Number | 4 x gigabit PoE ports, and 1 x gigabit RJ45 port | 8 x gigabit PoE ports, 1 x gigabit RJ45 port, and 1 × gigabit SFP fiber optical port | 16 x gigabit PoE ports, 1 x gigabit RJ45 port, and 1 x gigabit SFP fiber optical port | 24 x gigabit PoE ports, 1 x gigabit RJ45 port, and 1 x gigabit SFP fiber optical port |
| Mac Address Table | 2K | 4K | 8K | |
| Switching Capacity | 10 Gbps | 20 Gbps | 36 Gbps | 56 Gbps |
| Packet Forwarding Rate | 7.44 Mbps | 14.88 Mbps | 26.784 Mpps | 38.688 Mbps |
| Internal Cache | 1 Mbits | 1.5 Mbits | 4.1 Mbits | |
| PoE Power Supply |
| PoE Power Pin | Support 4-core power supply, and Ethernet cable 1/2/3/6 provide power supply | |||
| PoE Port | Ports 1 to 4 | Ports 1 to 8 | Ports 1 to 16 | Ports 1 to 24 |
| PoE Power Budget | 60 W | 110 W | 230 W | 370 W |
| Maximum Power Consumption | 65 W | 120 W | 250 W | 400 W |
| General |
| Weight | 6.35 lbs (2.88 kg) |
| Dimensions (L x H x D) | 17.3" x 1.7" x 8.7" (440 mm x 44 mm x 220.8 mm) |
| Operating Temperature | 32° F to 104° F (0° C to 40° C) |
| Storage Temperature | -40° F to 185° F (-40° C to 85° C) |
| Operating Humidity | 5% to 95% (no condensation) |
| Storage Humidity | 5% to 95% (no condensation) |
| Power Supply | 100 to 240 VAC, maximum 6.5 A |
| Power Consumption | 400 W |
