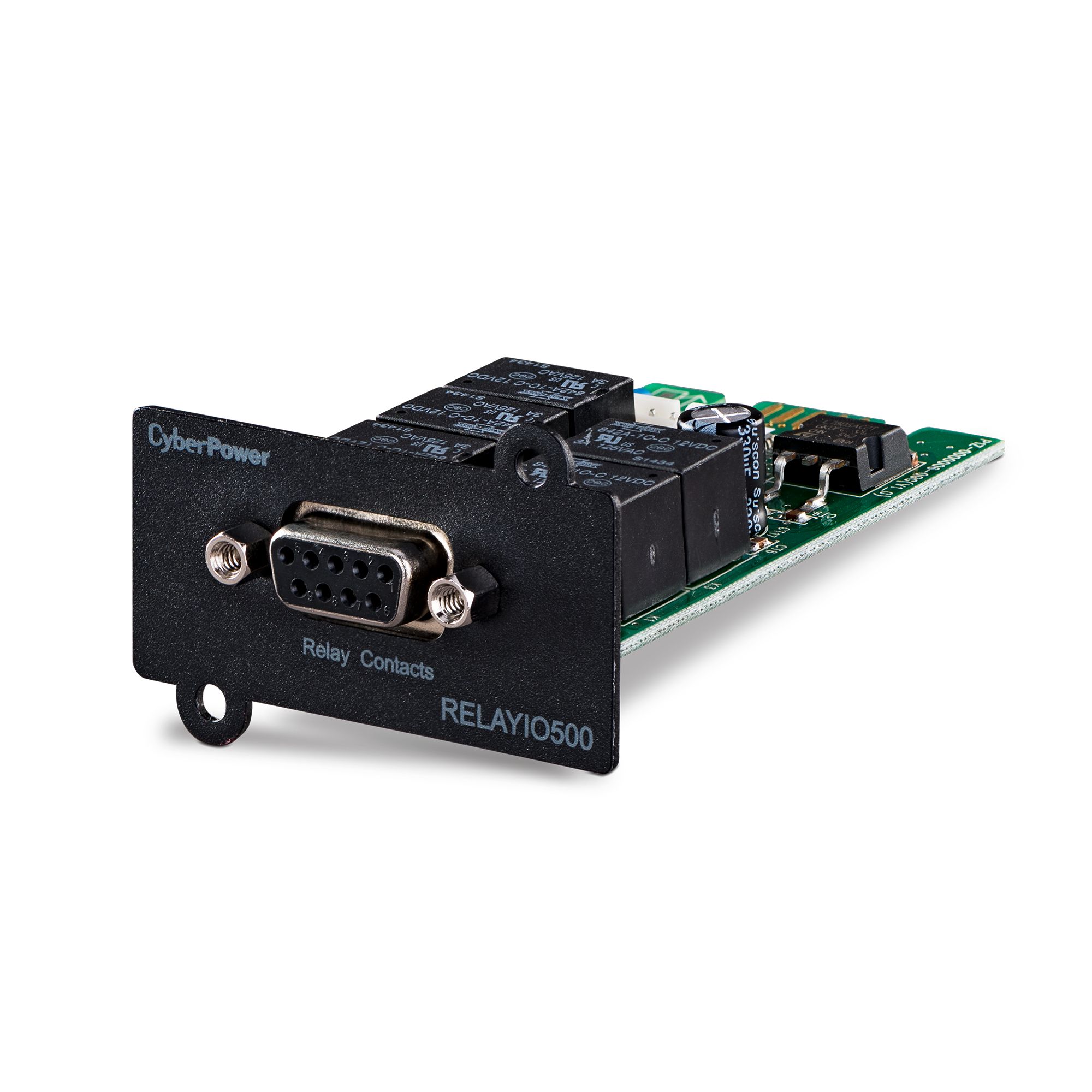

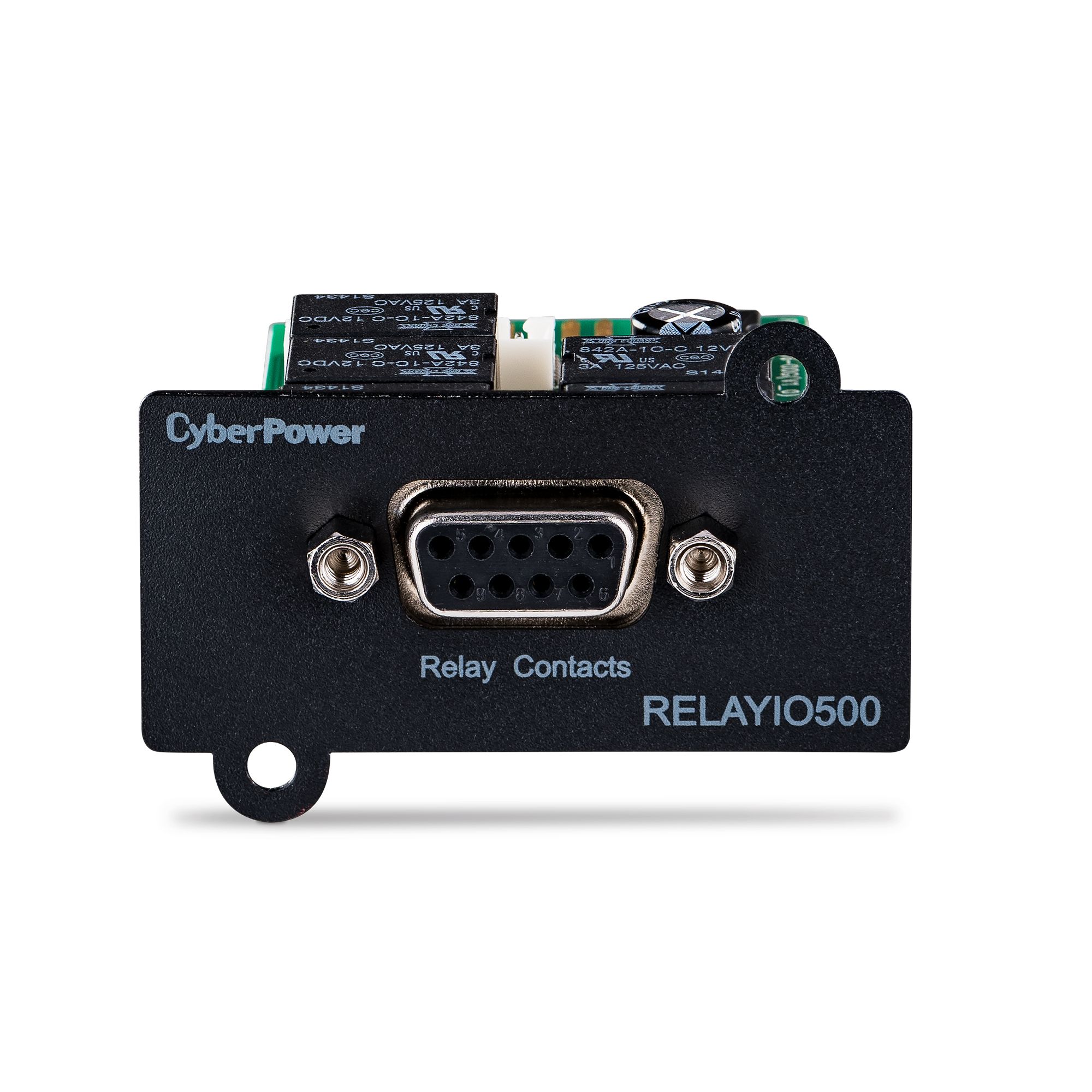

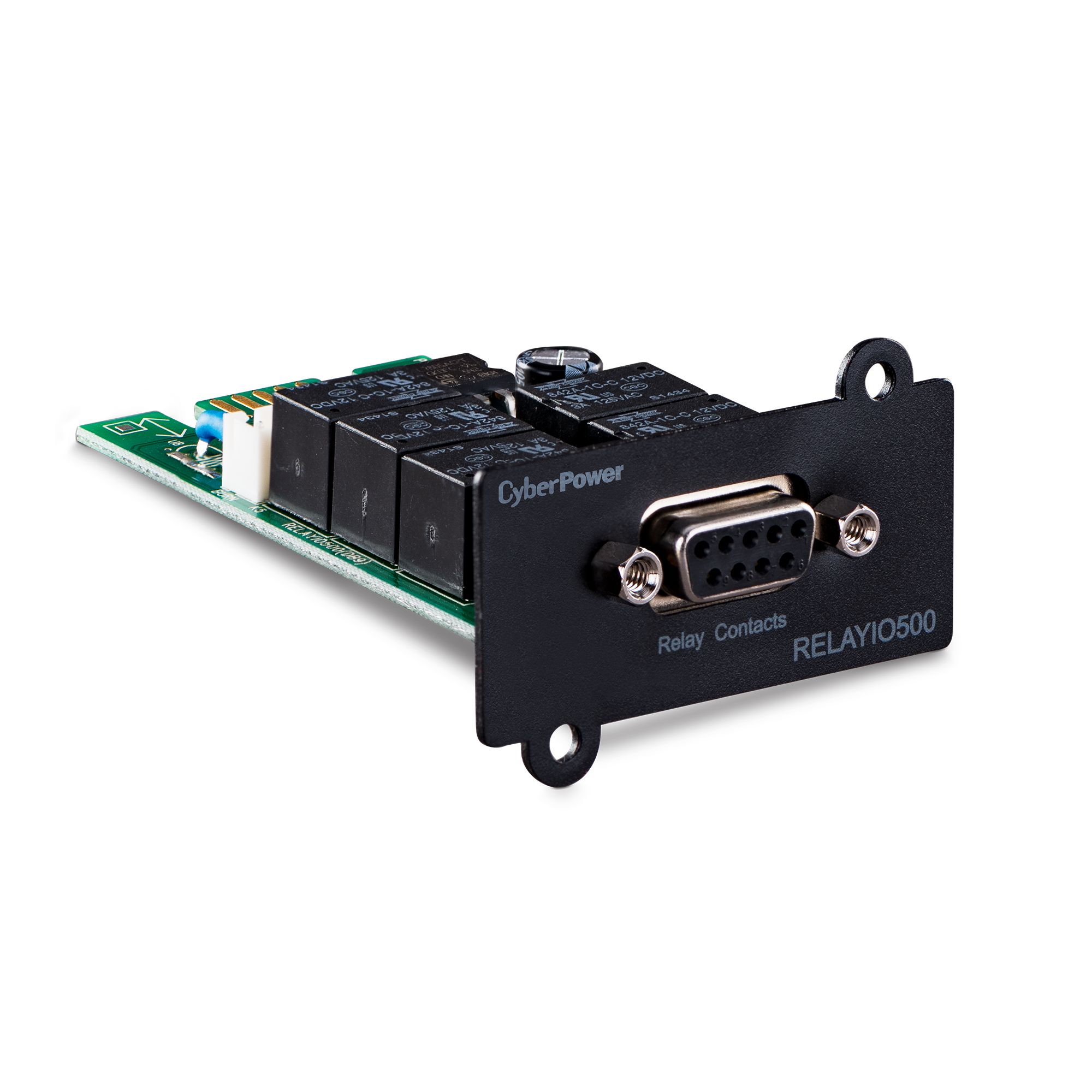

Cyber Power - RELAYIO500 - UPS SYSTEMS Hardware, Provides 5-output and 1-input relay contact closures
Cyber Power - RELAYIO500 - UPS SYSTEMS Hardware, Provides 5-output and 1-input relay contact closures
Cyber Power - RELAYIO500 - UPS SYSTEMS Hardware, Provides 5-output and 1-input relay contact closures
Cyber Power - RELAYIO500 - UPS SYSTEMS Hardware, Provides 5-output and 1-input relay contact closures
Cyber Power - RELAYIO500 - UPS SYSTEMS Hardware, Provides 5-output and 1-input relay contact closures
Cyber Power - RELAYIO500 - UPS SYSTEMS Hardware, Provides 5-output and 1-input relay contact closures
Cyber Power - RELAYIO500 - UPS SYSTEMS Hardware, Provides 5-output and 1-input relay contact closures Cyber Power - RELAYIO500 - UPS SYSTEMS Hardware, Provides 5-output and 1-input relay contact closures Cyber Power - RELAYIO500 - UPS SYSTEMS Hardware, Provides 5-output and 1-input relay contact closures Cyber Power - RELAYIO500 - UPS SYSTEMS Hardware, Provides 5-output and 1-input relay contact closures Cyber Power - RELAYIO500 - UPS SYSTEMS Hardware, Provides 5-output and 1-input relay contact closures

Cyber Power - RELAYIO500 - UPS SYSTEMS Hardware, Provides 5-output and 1-input relay contact closures

Part number:
RELAYIO500
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

Provides 5-Output and 1-Input Relay Contact Closures via Db9 Port to Report Ups Status Inforation and Enable Remote Shutdown of the Ups. See Compatibility Chart for Ups Model Compatibility Details.



They CyberPower RELAYIO500 is a local management solution that provides users the ability to monitor UPS status and events via 5 contact closure outputs. Easy to install in any compatible* Smart App UPS with expansion slot. Input contact closure allows the UPS to be shutdown remotely while on Battery Mode to preserver battery power in the event of a prolonged power outage. The RELAYIO500 comes with a three-year warranty.

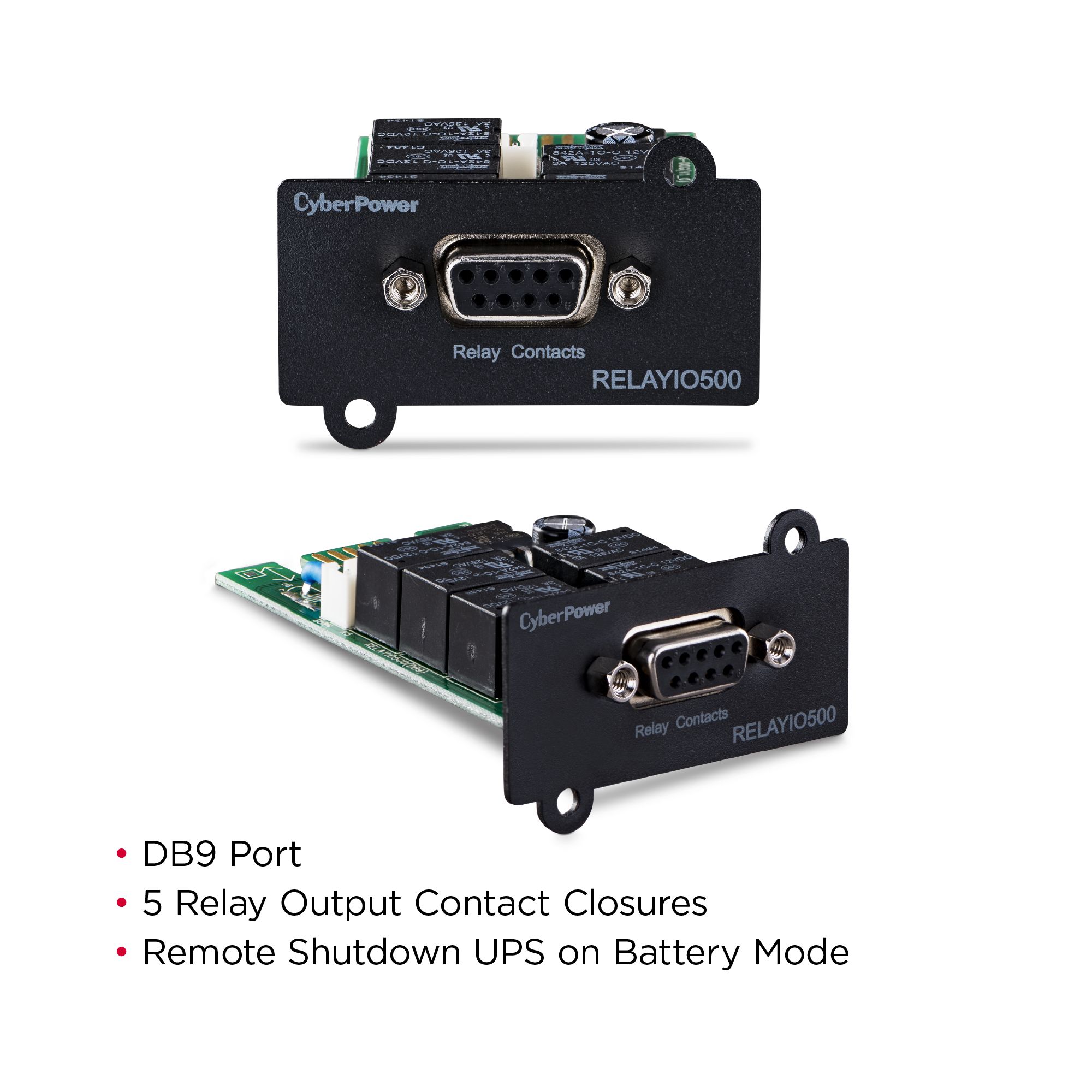

Features:

  • Remote Shutdown in Battery Mode: Preserves battery power in the event of a prolonged power outage.
  • Interfacing with External Alarms: External alarm devices can be interfaced via the DB9 port.
  • Three-Year Warranty: Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
GENERAL
TypeRelay I/O UPS Monitoring Card
Contact Closure Outputs5
Input Signal Contact1 – UPS shutdown in Battery Mode
Output Relay Rating (Max.)30VCD/125VAC, 3A (per relay)
External S/D Voltage7.5V to 12V
PHYSICAL

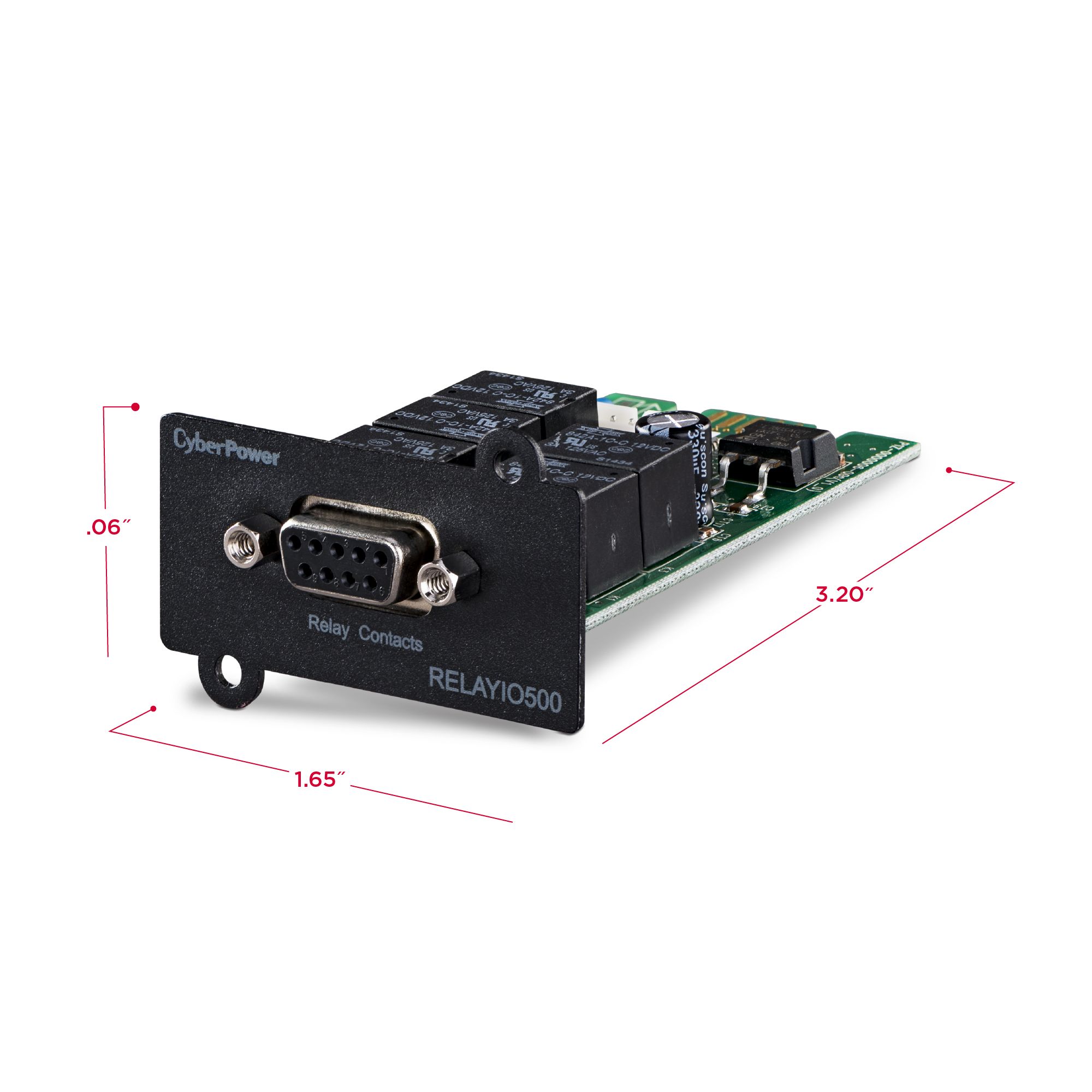

Dimensions (WxHxD) (in.)1.65 x 0.6 x 3.2
Dimensions (WxHxD) (mm.)41.8 x 14.2 x 81
Weight (lbs.)0.11
Weight (kg.)0.052
SHIPPING DIMENSIONS
Dimensions (WXHXD) (in.)6.6 x 2.3 x 6.4
Dimensions (WxHxD) (mm.)168 x 58 x 162
Weight (lbs.)0.35
Weight (lbs.)0.16
ENVIRONMENTAL
Operating Temperature32°F to 104°F / 0°C to 40°C
Operating Humidity0% – 95% non-condensing
Operating Elevation0–10000 feet (0-3000 meters)
Storage Temperature14°F  to 122°F / -10°C to 50°C
Storage Relative Humidity0% – 95% non condensing
Storage Elevation0–50000 feet (0-15000 meters)
COMPATIBILITY
UPS ModelsOR PR series and select OL series models, see compatibility chart for details
CERTIFICATIONS
EnvironmentalRoHS compliant
WARRANTY
Product Warranty3 years limited
Extended WarrantyWEXT5YR-ACC1A
Name
Description
Size
Downloads
File
Data Sheet
0.7mb
File
User Manual
0.2mb
