Cyber Power - CP1500AVRLCDTAA - UPS SYSTEMS TAA Compliant UPS 1500VA/900W Line Interactive UPS, Mini-tower

Part number:
CP1500AVRLCDTAA
Price:

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1500AVRLCDTAA provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and VoIP phone systems. The CP1500AVRLCDTAA uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500AVRLCDTAA comes with a three-year warranty (including coverage of batteries), a $500,000 Connected Equipment Guarantee, and complies with the U.S. Trade Agreement Act (TAA).



Features:

  • Battery Backup: Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Automatic Voltage Regulation (AVR): AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
  • Multifunction LCD: Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
  • Data Line Protection: Prevents power surges that travel through coaxial and Ethernet lines from causing damage to electronics.
  • Line Interactive Topology: Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
  • Simulated Sine Wave Output: Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • ENERGY STAR: This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
  • GreenPower UPS Bypass Design: A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
  • Ultra Quiet Design: Minimizes noise during operation for a quieter work environment.
  • PowerPanel Personal Software: Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available.
  • Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
General
Energy SavingGreenPower UPS™ Bypass Technology
Energy Star CertifiedYes
UPS TopologyLine Interactive
Battery
Battery Quantity2
Battery Size12 V / 9 Ah
Battery TypeSealed Lead-Acid Battery
Hot SwappableYes
Replacement Battery CartridgeRB1290X2
Replacement Battery Cartridge Quantity1
Runtime at Full Load3 min
Runtime at Half Load12 min
Typical Recharge Time8 Hours
User Replaceable BatteryYes
Input
Cord Length6 ft (1.8 m)
Input Frequency Range57 Hz – 63 Hz
Input Plug TypeNEMA 5-15P
Input Voltage Range90 VAC – 142 VAC
Plug StyleRight Angle – 45° Offset
Output
Automatic Voltage RegulationSingle Boost
On Battery Frequency60 Hz ± 1%
On Battery Voltage120 VAC ± 5%
On Battery WaveformSimulated Sine Wave

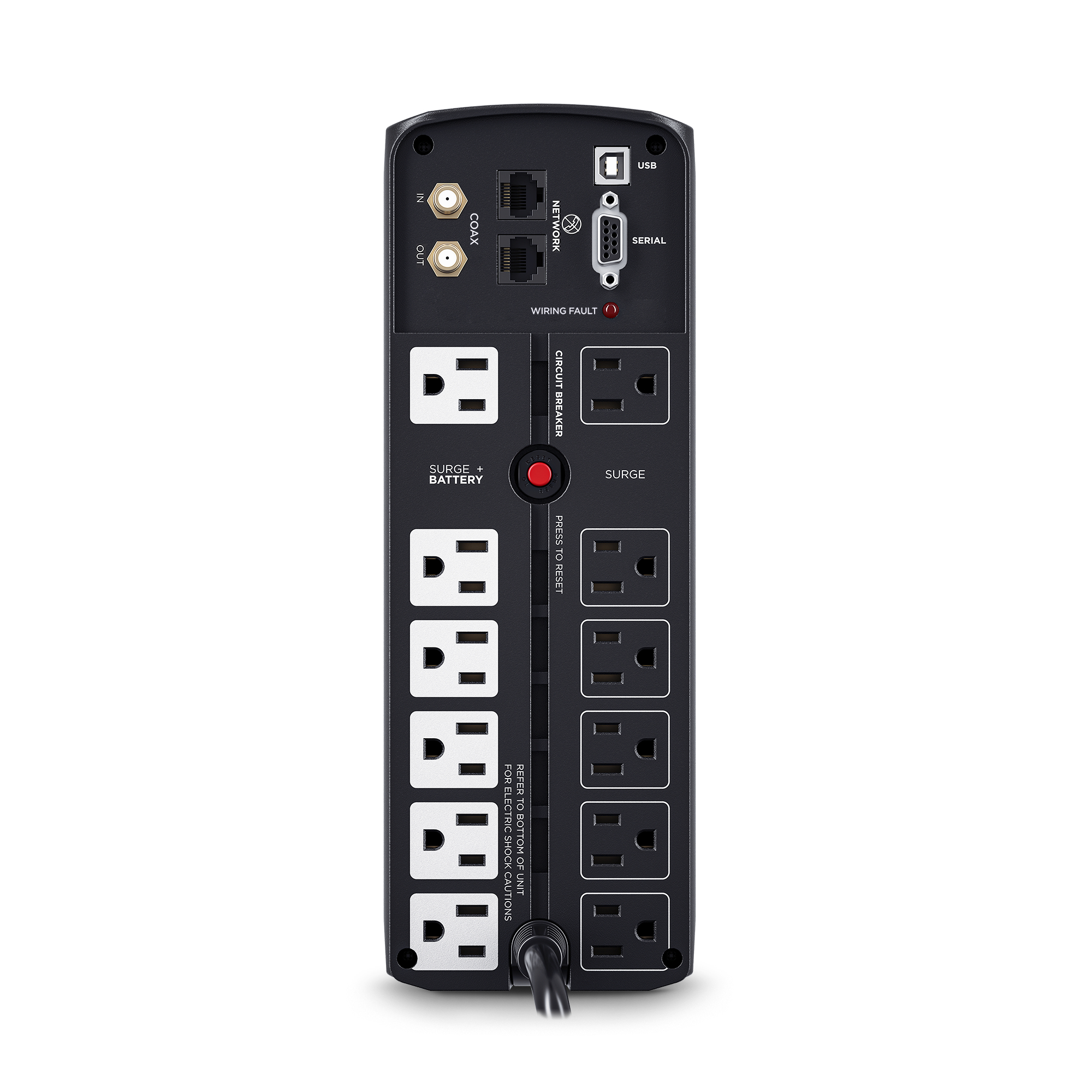

Outlet Type12 – NEMA 5-15R
Outlets – Battery & Surge Protected6
Outlets – Surge-Only Protected6
Outlets – Total12
Overload ProtectionInternal Circuitry Limiting
Circuit Breaker Protected
Typical Transfer Time4 ms
USB Charge PortNo
Under/Over-Voltage Correction+10%
VA1500 VA
Watts900 W
Surge Protection & Filtering
Coax Protection RG61 in
1 out
EMI/RFI FiltrationYes
Network Protection RJ451-in / 1-Out (10/100/1000)
Surge Suppression (Joules)1500 J
Management & Communications
Audible AlarmsBattery Mode
Low Battery
Overload
Fault
HID Compliant USB PortYes
LCDMultifunction LCD
LED IndicatorsPower On
Wiring Fault
Management CableUSB Cable
Serial Port1 Dry Contact
Software (Free Download)PowerPanel® Personal
Physical
ColorBlack
Form FactorMini-Tower
MaterialPlastic
Dimensions
Physical Dimensions – (WxHxD) (cm)9.91 x 27.94 x 35.56 (cm)
Physical Dimensions – (WxHxD) (in)3.9 x 11 x 14 (in)
Physical Dimensions – (WxHxD) (mm)99 x 279 x 356 (mm)
Physical Weight (kg)11.34
Physical Weight (lb)25
Dimensions – Shipping
Shipping – Weight (kg)11.79
Shipping – Weight (lb)26.0
Shipping Dimensions – (WxHxD) (cm)20.07 x 37.47 x 44.45 (cm)
Shipping Dimensions – (WxHxD) (in)7.9 x 14.75 x 17.5 (in)
Shipping Dimensions – (WxHxD) (mm)200.66 x 374.65 x 444.5 (mm)
Environmental
Operating Elevation0 – 10000 ft (0 – 3048 m)
Operating Relative Humidity0 – 90 % (non-condensing)
Operating Temperature32 – 104 °F (0 – 40 °C)
Storage Elevation0 – 50000 ft (0 – 15239 m)
Storage Relative Humidity0 – 95% (non-condensing)
Storage Temperature5 – 113 °F (-15 – 45 °C)
Certifications
EnvironmentalRoHS Compliant
SafetyUL1778
cUL 107 5th
FCC Class B
Warranty
CEG Amount$500000
Connected Equipment GuaranteeLifetime
Extended Warranty OptionWEXT5YR-U2A
Product Warranty3 Year Limited Warranty
