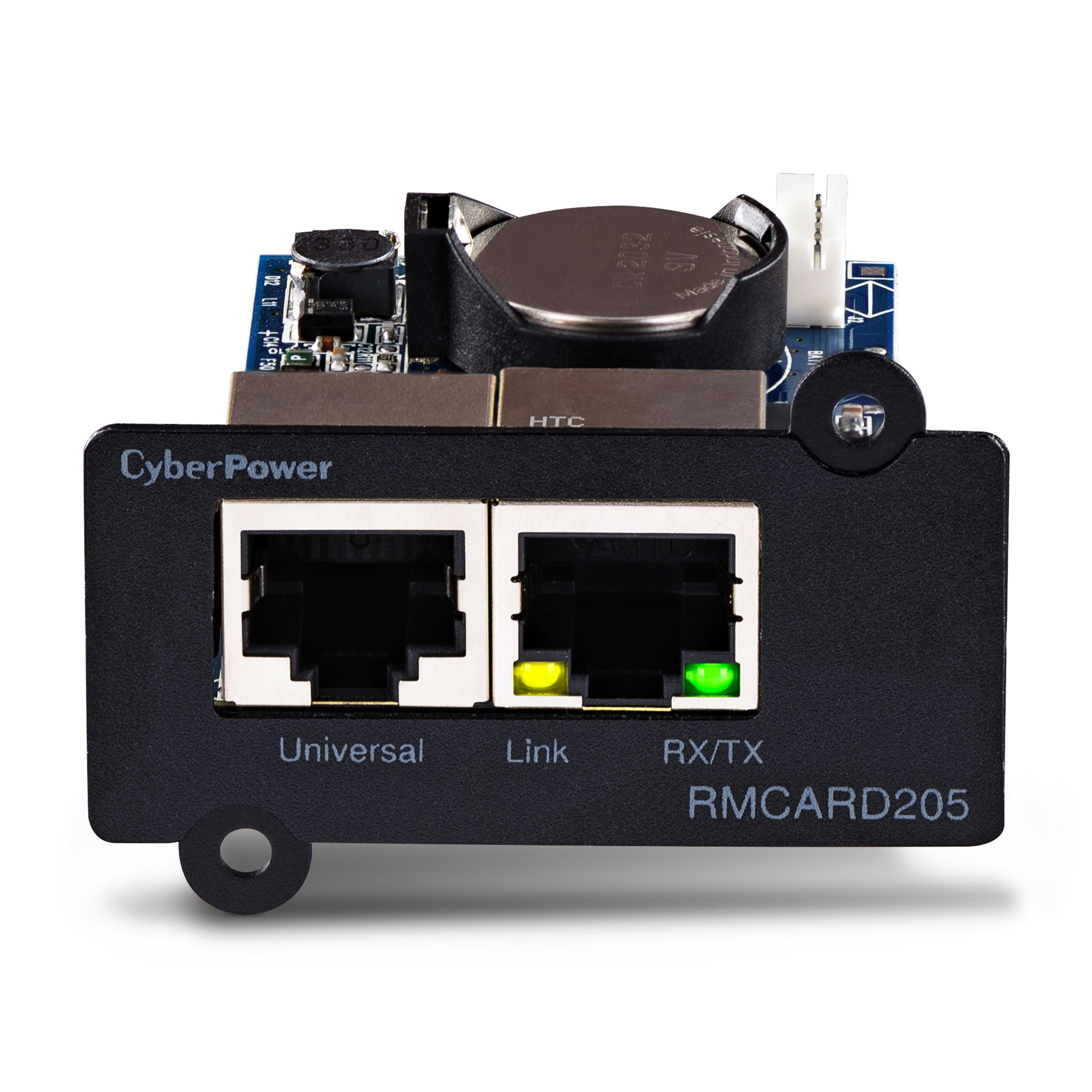

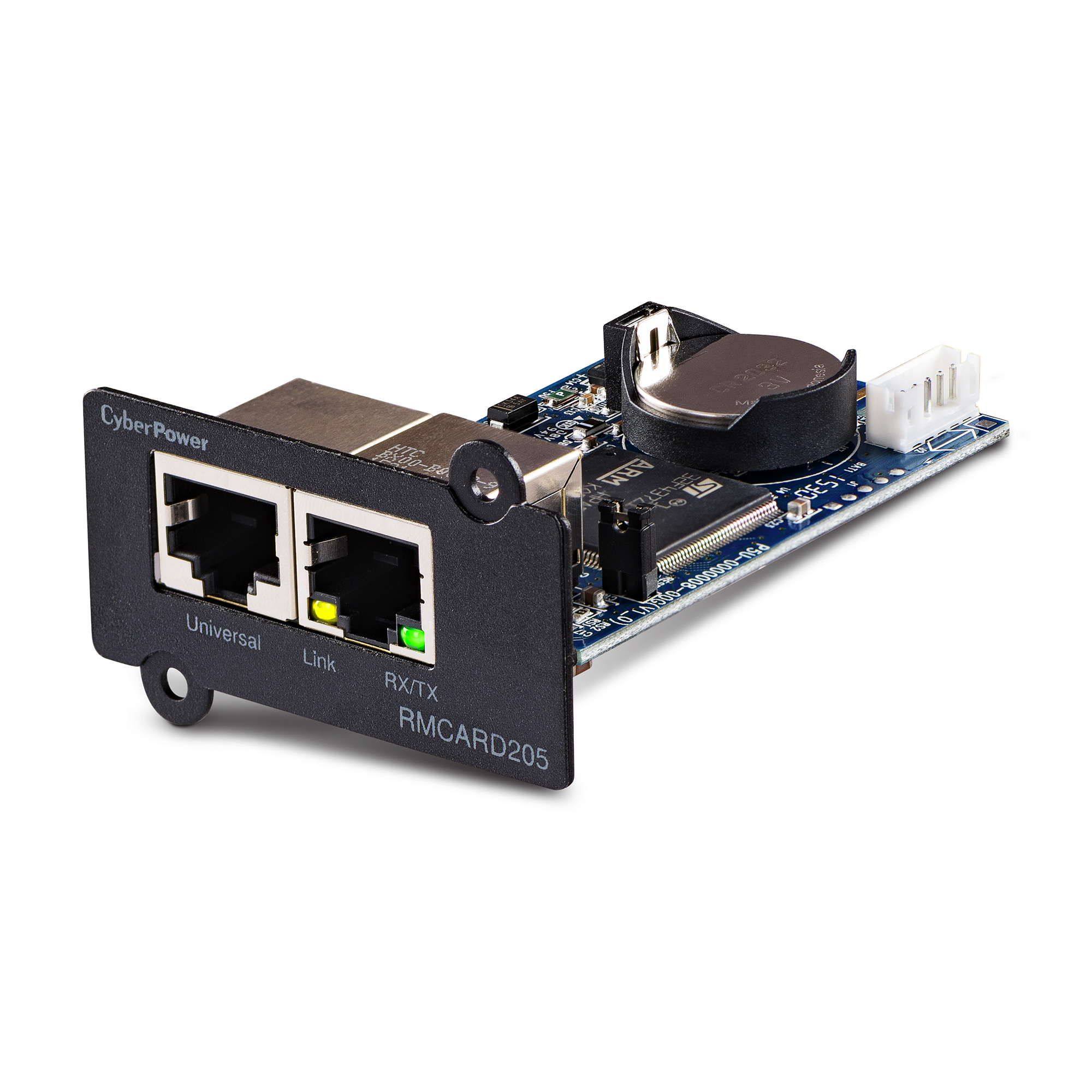

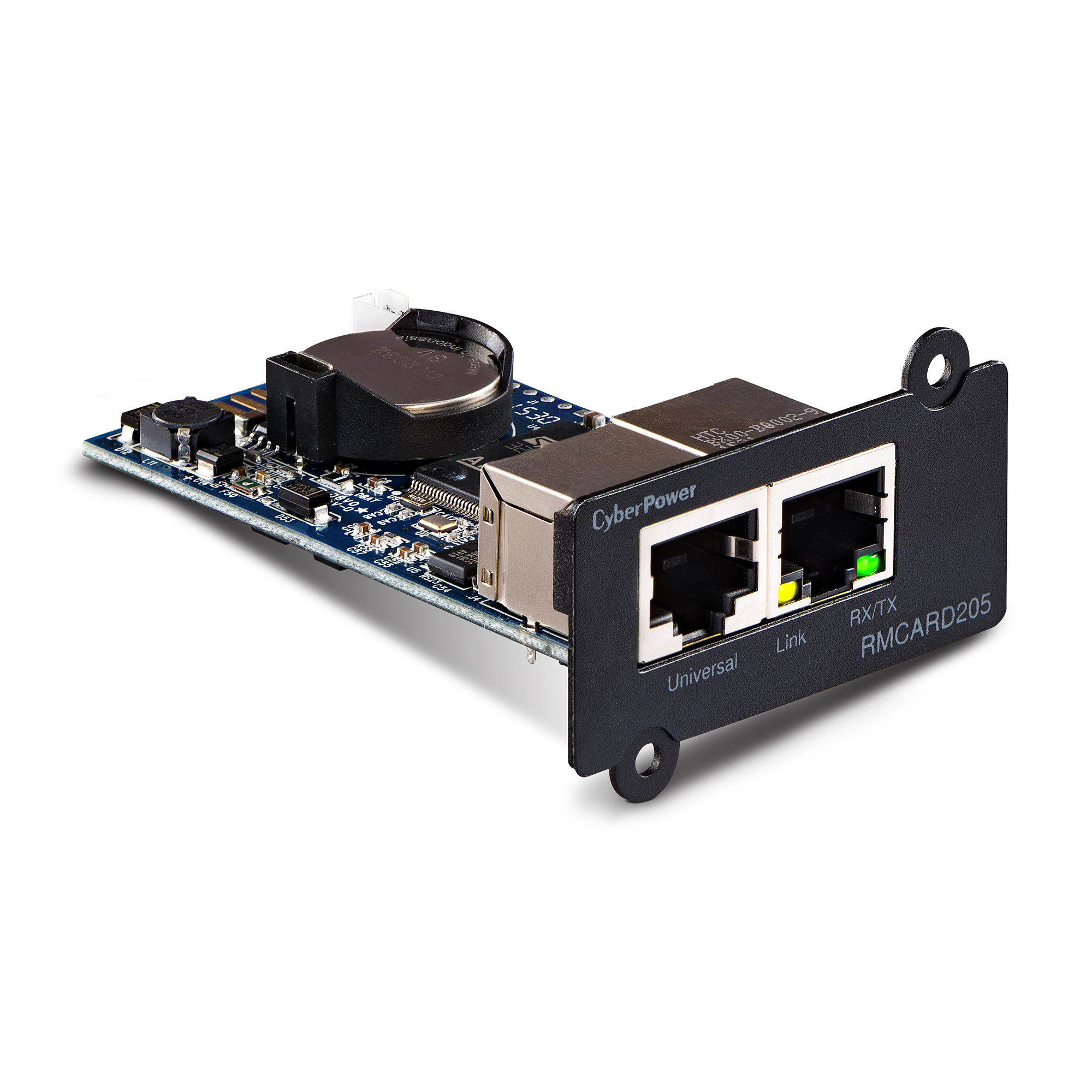

A full-featured network management card, the CyberPower RMCARD205TAA remotely manages, monitors and controls select CyberPower UPS systems and ATS PDUs via a standard web browser, command line interface (CLI), SNMP or network management system (NMS). Especially suited to enterprise installations, the RMCARD205TAA provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, status recording, and automatic event notifications via email, SMS, SNMP traps, or Syslog. PowerPanel Business Edition Client software protects servers and workstations from data loss due to power failure by initiating auto-shutdown command from a UPS when a power loss event occurs.
An optional environmental sensor (ENVIROSENSOR) can be connected to the RMCARD205TAA to monitor the ambient temperature and humidity of a server room, IT closet, or other critical environments. Administrators define temperature parameters in Fahrenheit or Celsius; thresholds can be configured to prompt the RMCARD205TAA to send a predefined notifications. The RMCARD205TAA comes with a three-year warranty.
Features:
General | |
Data Link Protocol | Ethernet 100Base-TX, Ethernet 10Base-T |
Universal Port | Optional ENVIROSENSOR |
Output | |
USB Charge Port | No |
Surge Protection & Filtering | |
Network Protection RJ45 | Ethernet RJ45 |
Management & Communications | |
LED Indicators | Tx/Rx LINK |
Supported Protocols | |
Cisco EnergyWise | v1.2.0 and newer |
DHCP | RFC 2131 |
DNS | RFC 1035 |
FTP | RFC 959 |
HTTP | v1.1: RFC 2616 |
HTTPS | RFC 2818 |
LDAP | v3: RFC 2251 |
LDAPS | v3: RFC 4513 |
MIB | RFC 1213, RFC 1628 |
NTP | RFC 958 |
RADIUS | RFC 2865 |
SCP | v2: RFC 4253, RFC 4254 |
SMTP | RFC 2821 |
SMTPS | RFC 3207 |
SNMP | v1: RFC 1155, RFC 1156, RFC 1157 v3: RFC 3414 |
SSH | v2: RFC 4253, RFC 4254 |
SSL | v3: RFC 6101 |
SysLog | RFC 5424 |
TCP/IP | v4: RFC 791 v6: RFC 2460 |
TLS | v1.1: RFC 4346 v1.2: RFC 5246 |
Telnet | RFC 854 |
Physical | |
Color | Black |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 5.41 x 3.61 x 7.62 (cm) |
Physical Dimensions – (WxHxD) (in) | 2.13 x 1.42 x 3 (in) |
Physical Dimensions – (WxHxD) (mm) | 54 x 36 x 76 (mm) |
Physical Weight (kg) | 0.04 |
Physical Weight (lb) | 0.08 |
Dimensions – Shipping | |
Shipping – Weight (kg) | 9.41 |
Shipping – Weight (lb) | 20.75 |
Shipping Dimensions – (WxHxD) (cm) | 5.84 x 16.51 x 16.76 (cm) |
Shipping Dimensions – (WxHxD) (in) | 2.3 x 6.5 x 6.6 (in) |
Shipping Dimensions – (WxHxD) (mm) | 58.42 x 165.1 x 167.64 (mm) |
Environmental | |
Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
Operating Relative Humidity | 0 – 90 % (non-condensing) |
Operating Temperature | 32 – 104 °F (0 – 40 °C) |
Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
Storage Relative Humidity | 0 – 95% (non-condensing) |
Storage Temperature | 14 – 122 °F (-10 – 50 °C) |
Certifications | |
Environmental | RoHS Compliant |
Safety | FCC DoC Class A CE |
Warranty | |
Extended Warranty Option | WEXT5YR-ACC1A |
Product Warranty | 3 Year Limited Warranty |
