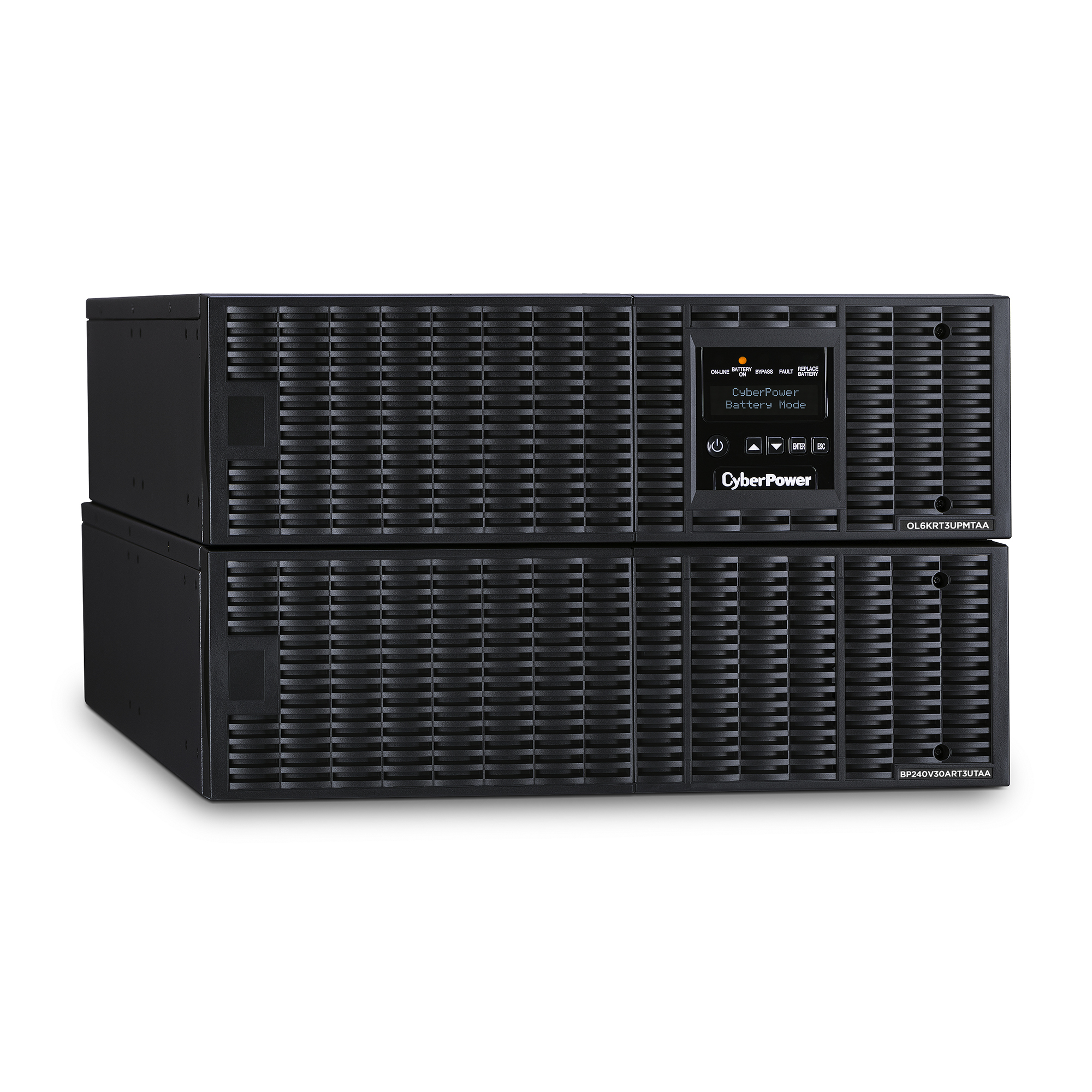

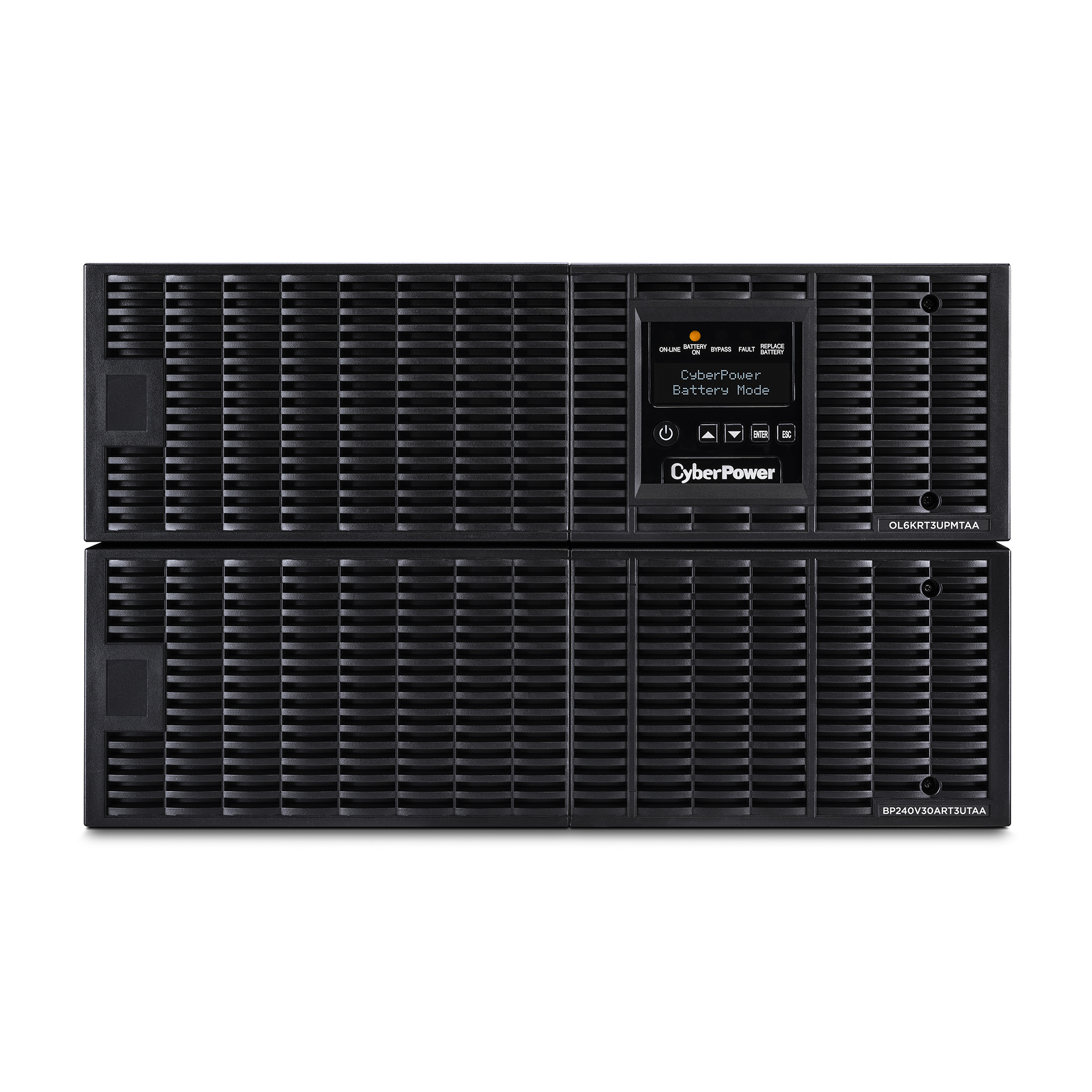

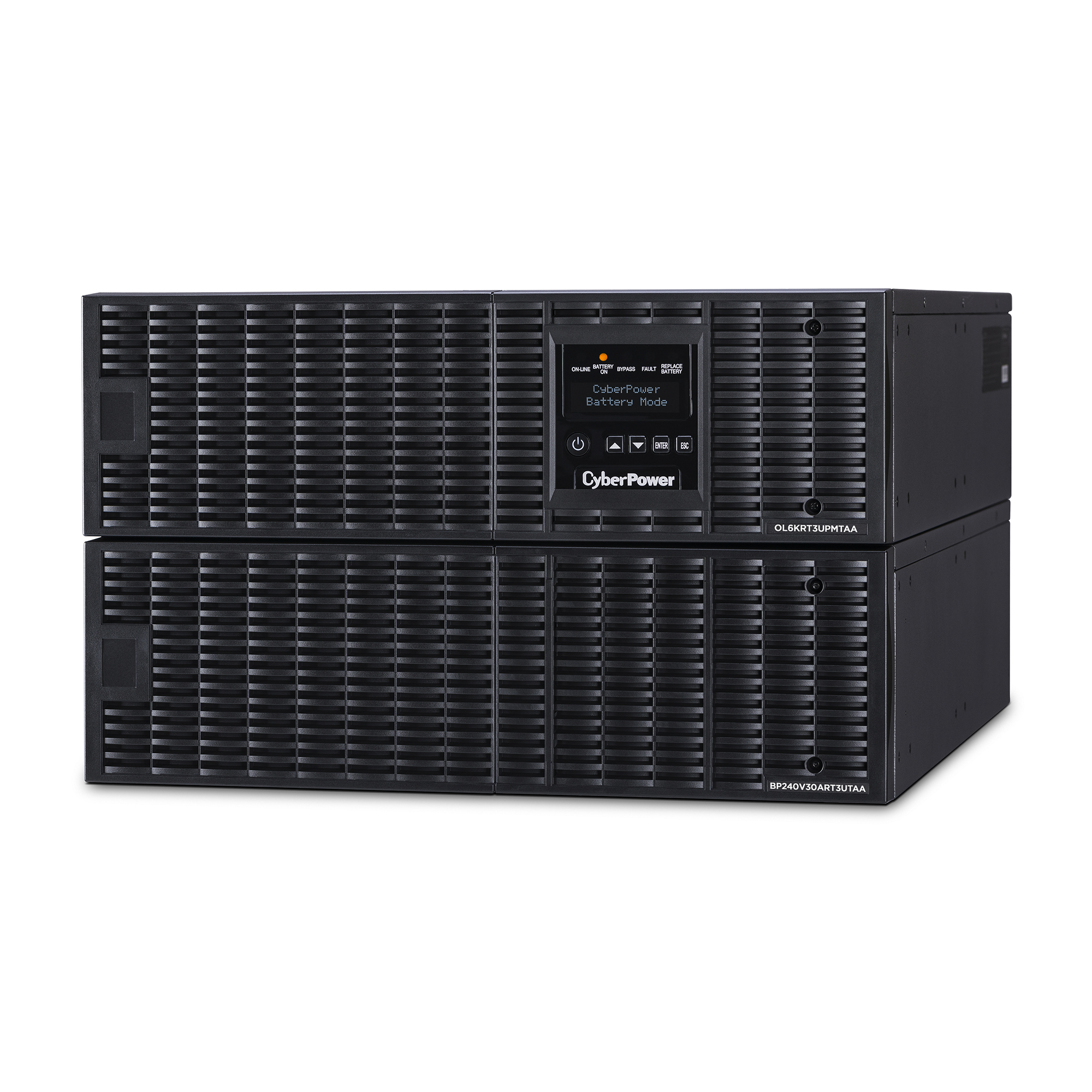

Cyber Power - OL6000RT3UTAA - UPS SYSTEMS TAA Compliant UPS, TAA Compliant 6000VA / 5400W UPS, Pure Sine Wave, 208V

Part number:
OL6000RT3UTAA
Price:

The CyberPower Smart App Online OL6000RT3UTAA UPS has been manufactured to comply with the Federal Trade Agreement Act (TAA). This network-grade UPS protects mission-critical servers, routers and telecom equipment with true sine wave output and double-conversion topology for seamless power protection. The OL6000RT3UTAA also offers generator compatibility and delivers clean AC power with zero transfer time.



Other features include a flexible rack/tower design for easy installation, extendable LCD control panel, Smart Battery Management, Fast Charge Technology, and energy-saving GreenPower UPS™ ECO Mode. The CyberPower OL6000RT3UTAA UPS is protected by a three-year warranty as well as a $300,000 Connected Equipment Guarantee.



Features:

  • Data Line Protection: Prevents power surges that travel through telephone and Ethernet lines from causing damage to electronics.
  • Double-Conversion Topology: Provides consistent, clean, and nearly perfect power, regardless of the condition of incoming power. Systems with this technology operate on isolated DC power 100% of the time and have a zero transfer time because they never need to switch to battery. Double-conversion UPS systems are designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
  • Sine Wave Output: Provides power protection to ENERGY STAR 6.0 systems with Active PFC power supplies.
  • Extendable LCD Panel: Displays UPS statuses and customizable operating settings from up to 10 ft. away (with optional cable). The extendable LCD control panel can be configured in English, Spanish, or French for ease of use.
  • Extended Battery Module (EBM): Extends runtime by adding EBMs. This UPS allows for up to ten added modules.
  • Fast Charge Technology: Allows UPS batteries to return to 100% capacity more rapidly by utilizing a built-in charger inside each EBM. Restores a complete charge within 5 hours regardless of the number of EBMs.
  • Smart Battery Management (SBM): Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
  • GreenPower UPS ECO Mode: Improves UPS efficiency up to 96%; saves on electrical and cooling costs.
  • Hot-Swappable Batteries: Eliminate downtime related to UPS power maintenance for continuous power availability.
  • Critical & Non-Critical Loads: The UPS has two banks of outlets which can be configured so that the non-critical loads shut off after a set timeframe to provide additional runtime for the critical load outlet. Users can prioritize their equipment runtimes to maximize the output of the UPS to meet their power requirements.
  • Emergency Power Off (EPO): Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.
  • Backfeed Protection: Prevents the risk of electric shock from any electric current feeding back from the UPS through the input terminals when utility power is lost. Backfeed protection isolates the UPS and allows service personnel to safely work on the utility power.
  • Generator Compatible: Provides stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.
  • Converter Mode: Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.
  • USB & Serial Connectivity: Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.
  • EMI/RFI Filters: Prevent electromagnetic and radio frequency interference to ensure clean power for connected equipment.
  • Audible Alarms: Identify when the model is running on battery power, overloaded, or has a low battery.
  • Resettable Circuit Breaker: Interrupts an electric current in a circuit when the current becomes too high.
  • LED Status Lights: Indicate Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery.
  • Rack/Tower Versatility: Allows for horizontal rack or vertical tower installation.
  • PowerPanel Business Edition Software: Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.
  • Cisco Compatible: This CyberPower UPS system is a Cisco EnergyWise compliant end device.
  • Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
General
Energy SavingECO Mode Efficiency >96%
UPS TopologyOnline Double Conversion
Battery
Battery Quantity20
Battery Size12 V / 7 Ah
Battery TypeSealed Lead-Acid Battery
Extended Battery ModuleBP240V30ART3UTAA
Hot SwappableYes
Replacement Battery CartridgeRB1270X10
Replacement Battery Cartridge Quantity2
Runtime at Full Load5 min
Runtime at Half Load15 min
Smart Battery Management (SBM) ModeYes
Typical Recharge Time4 Hours
User Replaceable BatteryYes
Input
Backfeed ProtectionYes
Circuit Breaker30 A
Cold StartYes
Cord Length10 ft (3.0 m)
Input Frequency Range40 Hz – 70 Hz
Input Plug TypeNEMA L6-30P
Input Power Factor0.99
Input Voltage Range120 VAC – 139 VAC for 0–25% Load
140 VAC – 159 VAC for 0-50% Load
160 VAC – 179 VAC for 0–75% Load
180 VAC – 280 VAC for 0–100% Load
Nominal Input Voltage200 – 240 VAC
Output
BypassInternal Bypass (Automatic and Manual)
Crest Factor3:1
ECO Mode Voltage Regulation±10%, ±15% (configurable)
Harmonic Distortion< 3% at Linear Load
< 5% at Non-Linear Load
On AC WaveFormSine Wave
On Battery Frequency50/60 Hz ± 0.25Hz (auto-sensing or configurable)
On Battery Voltage200/208/220/230/240 VAC ± 2% (configurable)
On Battery WaveformSine Wave
Outlet Type2 – NEMA L6-20R
2 – NEMA L6-30R
Outlets – Total4
Output Power Factor0.9
Typical Transfer Time0 ms
USB Charge PortNo
VA6000 VA
Watts5400 W
Surge Protection & Filtering
EMI/RFI FiltrationYes
Phone / Network Protection RJ11/RJ451-In / 1-Out (Combo)
Surge Suppression (Joules)2430 J
Management & Communications
Audible AlarmsBattery Mode
Low Battery
Overload
UPS Fault
Replace Battery
Dry ContactsYes
Emergency Power Off (EPO) PortYes
HID Compliant USB PortYes
LCDMultifunction LCD
LED IndicatorsPower On (White)
Line Mode (Green)
Battery Mode (Yellow)
Bypass Mode (Yellow)
Fault (Red)
Replace Battery (Red)
Management CableUSB Cable
Serial Cable
Removable LCD Control Panel OptionYes – Requires DB26 cable (not included)
SNMP / HTTP Remote MonitoringYes – with optional RMCARD302TAA or RMCARD305TAA
Serial Port1 Serial
Software (Free Download)PowerPanel® Business
Physical
ColorBlack
Form FactorRack / Tower
Material of ConstructionMetal
Mounting HardwareYes
Rack Height6U
Dimensions
Physical Dimensions – (WxHxD) (cm)59.99 x 63.8 x 89.99 (cm)
Physical Dimensions – (WxHxD) (in)23.62 x 25.12 x 35.43 (in)
Physical Dimensions – (WxHxD) (mm)600 x 638 x 900 (mm)
Physical Weight (kg)24.9
Physical Weight (lb)54.89
Dimensions – Shipping
Shipping – Weight (kg)119.75
Shipping – Weight (lb)264
Shipping Dimensions – (WxHxD) (cm)62.23 x 64.77 x 91.44 (cm)
Shipping Dimensions – (WxHxD) (in)24.5 x 25.5 x 36.0 (in)
Shipping Dimensions – (WxHxD) (mm)622.3 x 647.7 x 914.4 (mm)
Dimensions – Battery Module
Battery Module – Rack Units3U
Battery Module Dimensions – WxHxD (in)17 x 5.25 x 26 in
Dimensions – Power Module
Power Module – Rack Units3U
Power Module Dimensions – W×H×D (in)17.0 x 5.25 x 26.0 in
Environmental
Audible noise at 1.5M from surface of unit55 dBA
Online Thermal Dissipation1912 BTU/hr
Operating Elevation0 – 10000 ft (0 – 3048 m)
Operating Relative Humidity0 – 90 % (non-condensing)
Operating Temperature32 – 104 °F (0 – 40 °C)
Storage Elevation0 – 50000 ft (0 – 15239 m)
Storage Relative Humidity0 – 95% (non-condensing)
Storage Temperature5 – 113 °F (-15 – 45 °C)
Certifications
EnvironmentalRoHS Compliant
SafetyUL1778
Warranty
CEG Amount$300000
Connected Equipment GuaranteeLifetime
Extended Warranty OptionWEXT5YR-U20A
Product Warranty3 Year Limited Warranty
