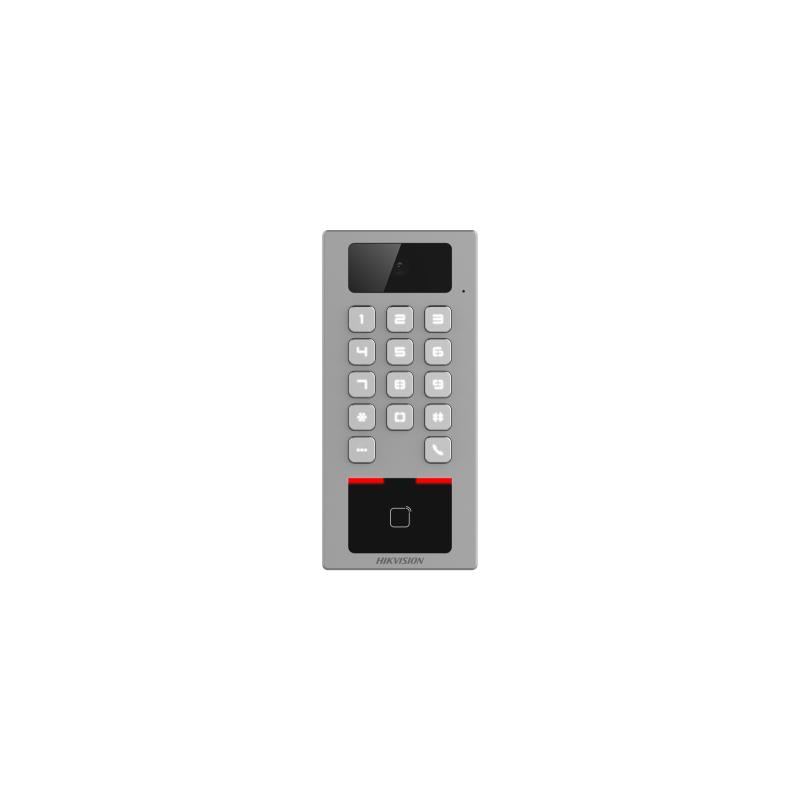

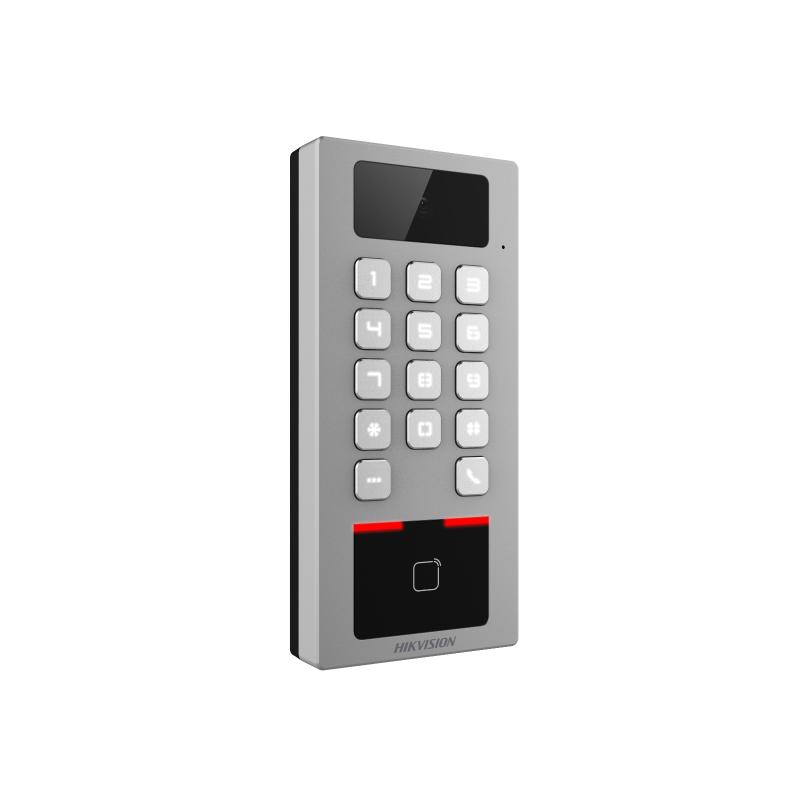

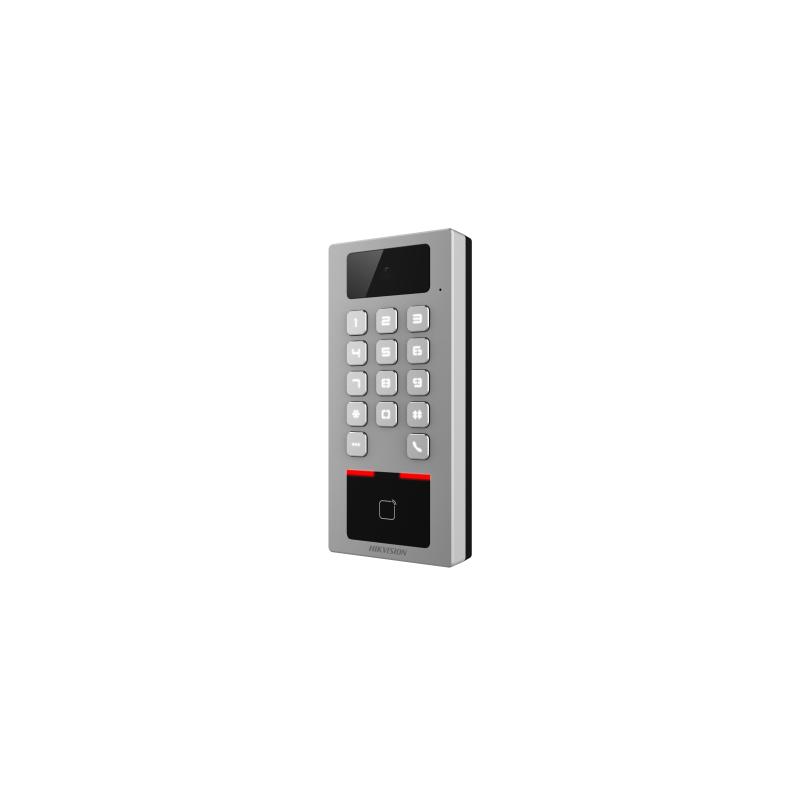

Hikvision - DS-K1T502DBWX-C - Vandal Proof Door Station
Part number:
DS-K1T502DBWX-C
Price:
Access Control Terminal
Features:
- Manage access control and intercom functions in one device
- IP65 & IK09 protections, as well as increased stability with zinc alloy materials
- Supports multiple authentication methods (card, PIN, etc.)
- Remote control via the Hik-Connect mobile app
- Connects to external access controller via Wiegand protocol
- Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
- RS-485 communication for connecting external card reader and calling elevator
- Supports AP mode
- Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
- Supports up to 256 GB SD card memory
- Supports PIN settings under platform mode and local mode
- Setting the priority of wired network and wireless network is available
| Specification | |
| System | |
| Operating system | Linux |
| ROM | 4 GB |
| RAM | 256 MB |
| CPU | 960 MHz |
| Video | |
| Lens | 1 |
| Video compression standard | H.264 and H.265 |
| Resolution | 2 MP |
| FOV | HFOV = 110°; VFOV = 81°; DFOV = 122° |
| Video standard | PAL (Default) and NTSC |
| Aperture | F 2.0 |
| Audio | |
| Audio input | Build-in omnidirectional microphone |
| Audio output | Build-in loudspeaker |
| Volume adjustment | Adjust via web or client |
| Network | |
| Network protocol | IPV4: SADP, SIP 2.0, SIP, RTSP, ISAPI (80\443 Interface), ISAPI, ISUP 5.0; IPV6: SADP, SIP, RTSP, ISAPI (80\443 Interface), ISAPI |
| Wired network | Support |
| Wi-Fi | Support, 2.4 G, 802.11b/g/n |
| Bluetooth | BT 2.1/4.2 |
| Interface | |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Alarm input | 1 |
| Alarm output | 1 |
| TAMPER | 1 |
| RS-485 | 1,RS-485 (Half duplex,HIKVISION） |
| Wiegand | 1, Wiegand (Hik 26bit,Hik 34bit) |
| SD card slot | |
| Capacity | |
| Card capacity | 100,000 |
| Event capacity | 300,000 |
| Authentication | |
| Card type | M1 card,DESfire card |
| Card reading distance | 0 to 3 cm |
| Card reading duration | < 1 s |
| General | |
| Built-in access controller | Yes |
| Supplement light | White light and IR light |
