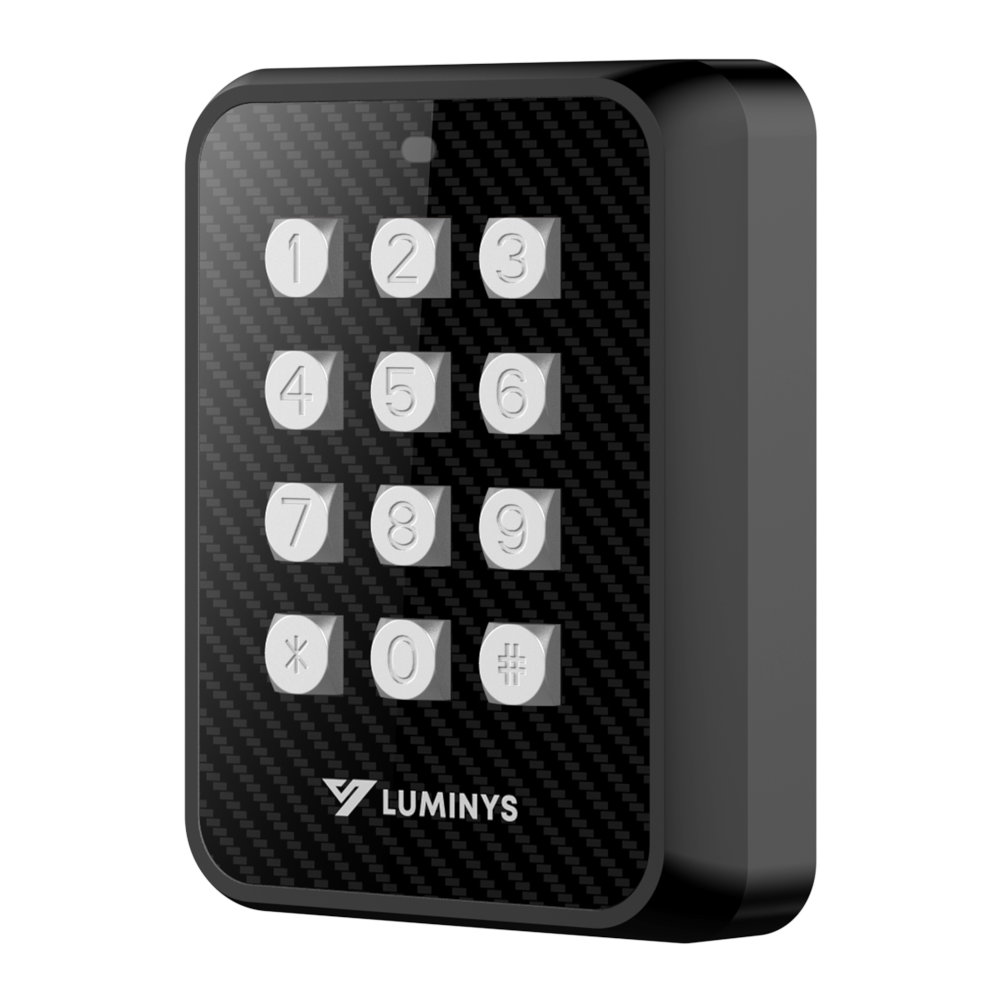

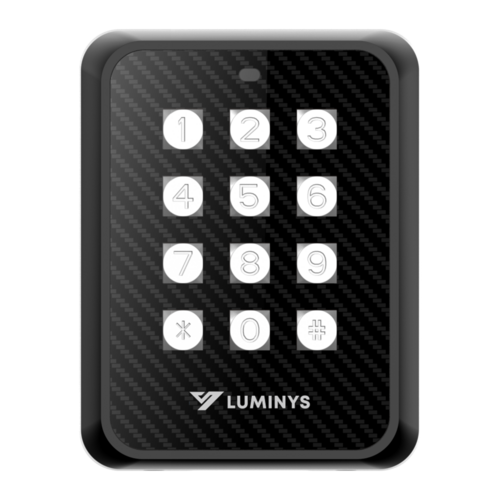

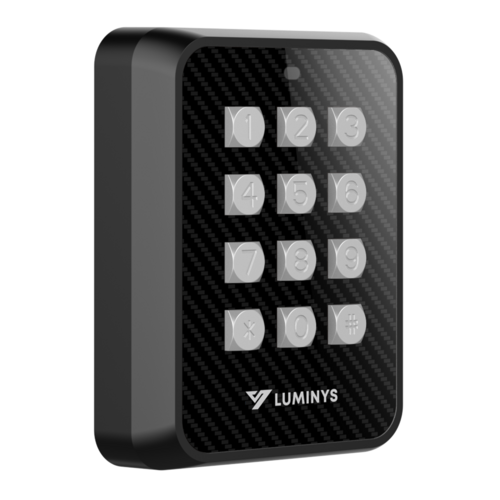

Luminys - RD1PM - Vandal-proof Keypad Access Reader
Part number:
RD1PM
Price:
The RD1PM is part of Luminys’s access control product range. Luminys access control solutions are built for flexibility and scalability and provide reliable, secure access for applications of all sizes.
Key Technologies
IK08 vandal resistance ensures protection against high-impact environments and provides reliability when in demanding locations like warehouses and industrial zones.
Feedback indicators such as integrated LEDs and buzzers provide real-time audio and visual feedback during user interactions.
Features:

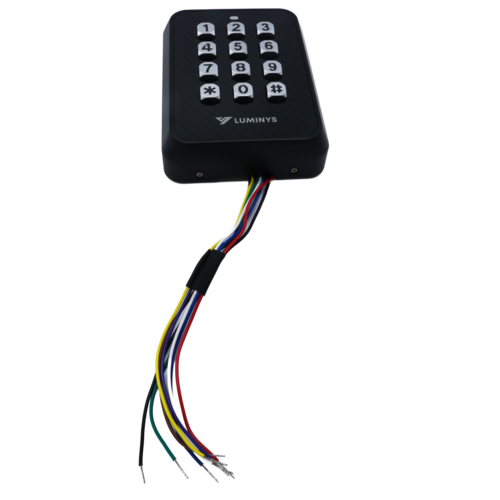

- All-Metal Keypad with Indicator Light and Buzzer
- Supporting MIFARE (IC) Cards Reading and Password Unlocking Method
- IK08 Protection
- Supports RS-485 and Wiegand Communication Protocols
- Equipped with Anti-Tampering Alarm

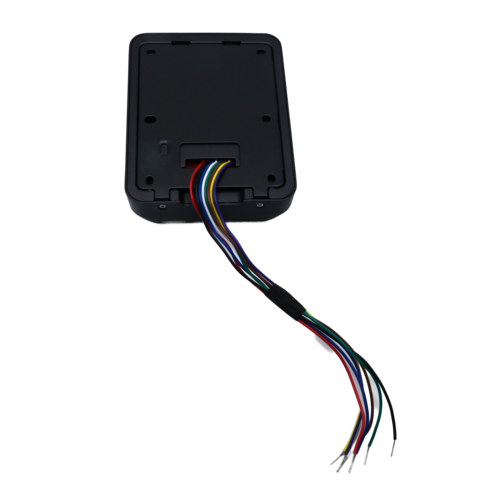

- Supports Surface and Flush Mounting
Certifications and Compliance
- NDAA Compliant
- FCC/FCC ID
- IC/IC ID
| Specifications | |
| System | |
| Card Type | IC (MIFARE) |
| Frequency Range | 13.56 MHz |
| Maximum Transmission Power | 42 dBm at 10 m |
| Verification Method | Card, Password |
| Response Time | 0.1 s |
| Card Reading Distance | 0.0 in. to 1.2 in. (0.0 cm to 3.0 cm) |
| Backlight | Built-In |
| Interface | |
| RS-485 | One (1) Channel |
| Wiegand | One (1) Output Channel |
| Alarm | |
| Event | Tamper |
| Electrical | |
| Power Supply | 9-15 VDC, 100 mA |
| Power Consumption | • Standby: ≤ 0.9 W • Working: ≤ 1.0 W |
| Construction | |
| Net Weight | 1.1 lb (0.5 kg) |
| Gross Weight | 1.2 lb (0.6 kg) |
| Product Dimensions (L × W × H) | 4.33 in. x 3.35 in. x 1.02 in. (110.0 mm x 85.0 mm x 26.0 mm) |
| Package Dimensions (L × W × H) | 6.0 in. × 5.7 in. × 3.0 in. (153.0 mm × 144.0 mm × 77.0 mm) |
| Operating Temperature | 14 °F to 131 °F (-10 °C to 55 °C) |
| Humidity | 0% to 95% (RH), Non-Condensing |
| Protection Ratings | IK08 |
| Material | Zinc Alloy |

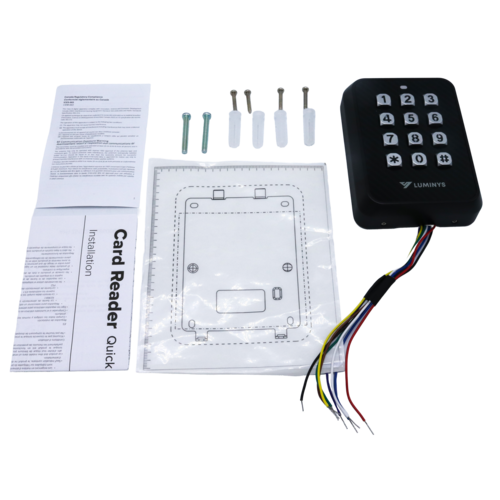

| Installation Method | 86 Case Mount, Surface Mount |
| Certifications and Compliance | |
| Compliance | NDAA, FCC/FCC ID, IC/IC ID |
