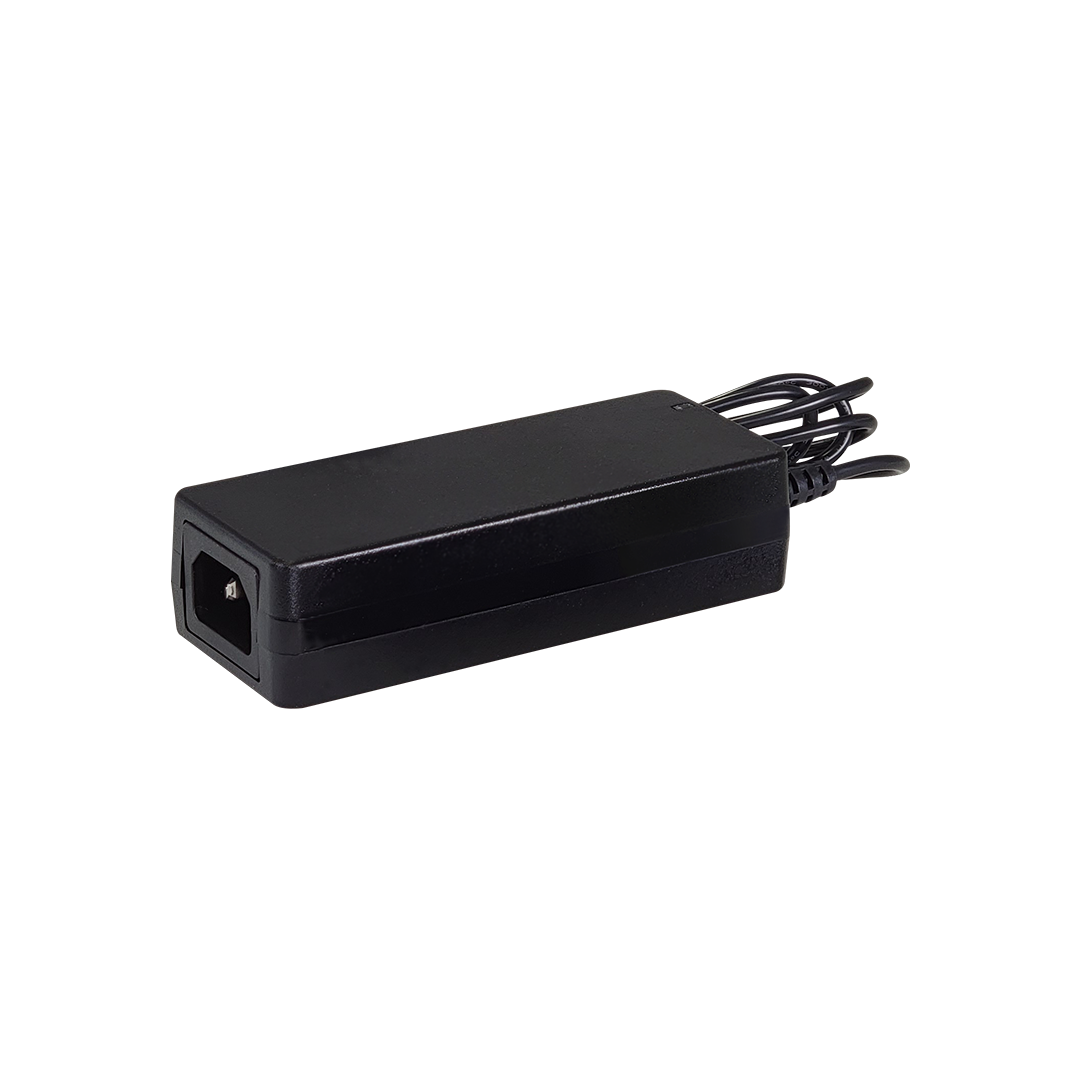

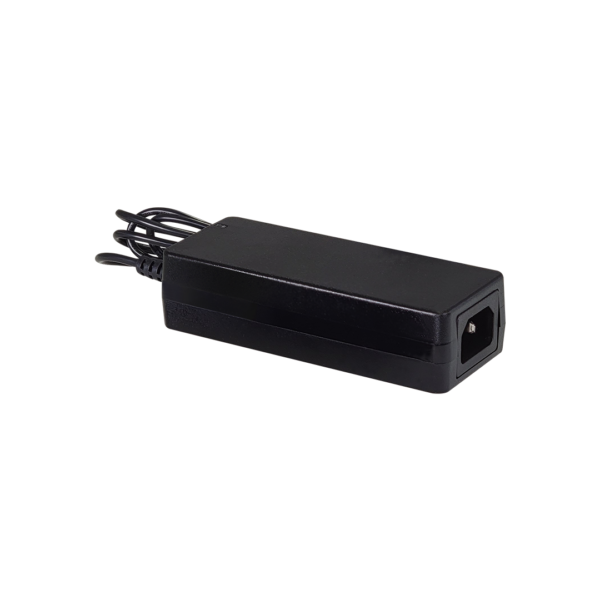

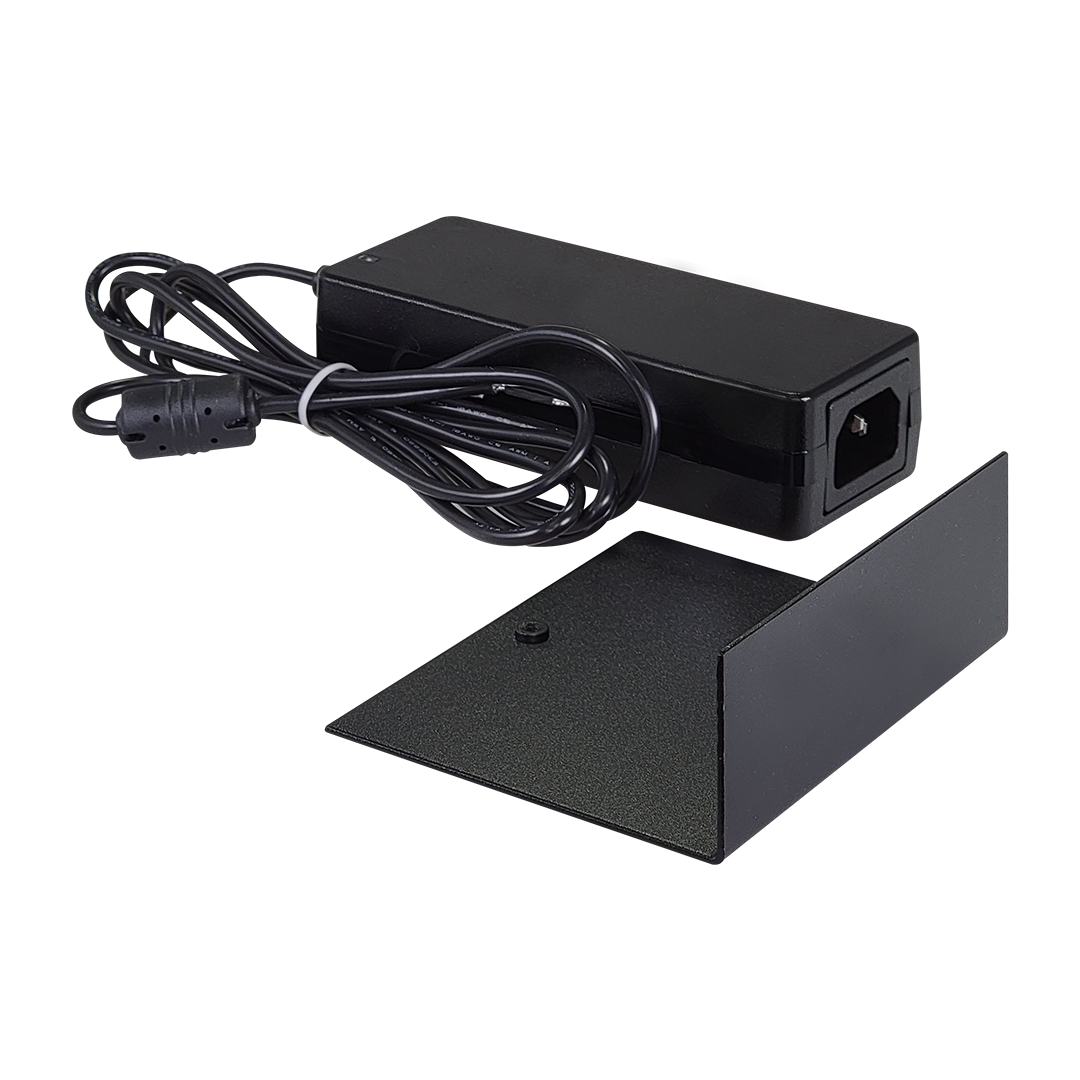

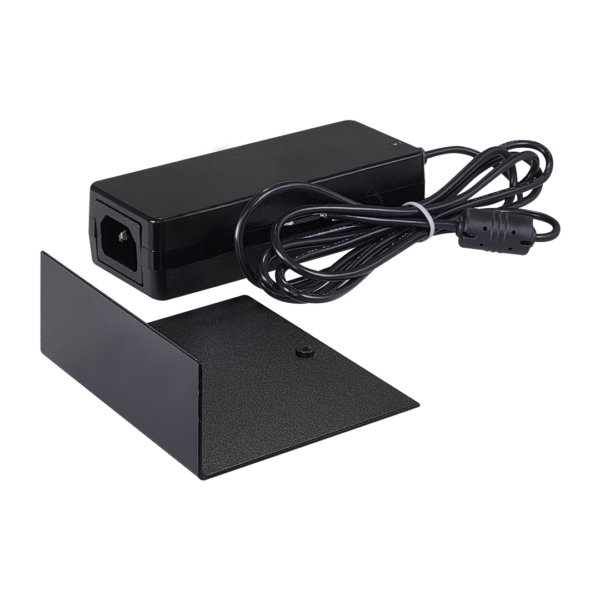

Vigitron - Vi0017 - Wall Mount Power Supply 48 VDC @ 40W, 90-240 VAC Input
Part number:
Vi0017
Price:

Vigitron’s Vi0017 is designed to handle the demanding requirements for PoE power. With the ability to provide both 802.3af (15.4W) and 802.3at (30W), it reserves up to 10W to respond to limited over-power surges resulting from IP camera accessory functions such as day/night, auto back focus, LED, and PTZ start-up. The extra power will avoid PoE and system shut down, and will save time and money from costly service calls. Built-in overload and over-voltage protection serve to protect both the power supply and device power from damage. The Vi0017 monitors conditions during power outage and will automatically restart power when the condition is no longer present. The Vi0017 operates under a wide temperature range from -30°C to 60°C (-22°F to 140°F).



Features:

  • Designed for powering PoE sources 802.3af (15.4W) and 802.3at (30W)
  • The 40W output provides extra power required to handle power surges to avoid PoE shut down
  • Overload protection
  • Auto recovery mode, monitors power conditions, and will automatically restart power to avoid potential service calls
  • Wide operating temperature range of -30°C to 60°C
Specifications
Electrical
Input90-264VAC @ 47Hz-63Hz
Output48VDC@ 840mA, 40W
ProtectionOverload: 105 to 150% of rated power output
Overvoltage: 50.4 to 64.8V
Protection MethodOverload: Short duration - Automatic recovery after fault is no longer present
Overvoltage: Shut down - Repower for recovery
ConnectorsAC Input : IEC 320-C14 Inlet
DC Output: P1J - Center pin positive
Regulatory
RegulatoryUL, FCC
SafetyUL60950-1
TUV EN 60950
BSMI CNS14336
EmissionsEN 55022, Class B
EN 61000-3-2, 3
FCC, Part 15/CiSPR22 Class B
CNS13428 Class B
GB9254 Class B
GB17625.1
EMC ImmunityEN61000-4-2-3-5-6-8-11
Environmental
Humidity20% - 90% RH non-condensing
TemperatureOperating: -30°C to 60°C
Storage: -40°C to 85°C
Mechanical
Dimensions4.9 x 2 x 1.2 in., 125 x 50 x 31.5 mm (HxWxL)
Weight0.55 lbs. (249g)
Housing MaterialFully Enclosed Plastic Case
