Vigitron - Vi0019 - ViewMate™ 60W PoE IP Camera Setup Tool
Part number:
Vi0019
Price:

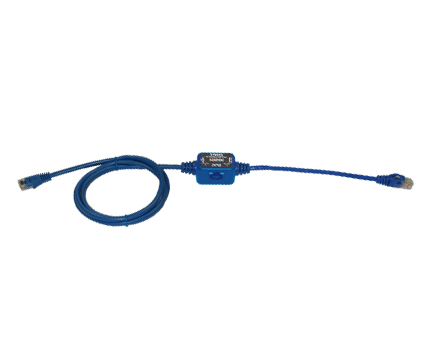

Vigitron’s ViewMateTM Vi0019 is a compact but powerful tool for installing and troubleshooting POE-enabled IP cameras. When connected, ViewMateTM passes the POE power from the “Network” port to the remote POE device, and the “Laptop” port provides a direct network connection from the remote POE camera to a local laptop for focusing and setting up POE enabled IP cameras.



The Vi0019’s integrated two LEDs provide a clear indication of PoE status. It is compatible with IEEE 802.af, IEEE 802.at and IEEE 802.bt and most non-standards POE systems up to 60W for 10/100 BASE-T environments.



ViewMate’s innovative design offers a small and rugged packaging with a built-in 3-foot Cat 5 cable. It is an ideal diagnostic tool for all installers working with both security PoE systems.



Features:

  • Provides a simple way to set up and focus PoE powered IP cameras
  • Maintains PoE power to the IP camera while making a wired Ethernet connection to a laptop to view the camera image
  • Indicates PoE presence at the camera
  • Does not require an external power source
  • 10/100BASE-T compliant with integrated network crossover
  • Compatible with IEEE 802.af/.at /.bt and most non-standard PoE solutions up to 60W
  • Low cost and easy to use
  • Speeds up the IP camera installation
Specifications
Electrical
Connectors“POE In”: RJ-45 Connector
“Monitor”: RJ-45 Connector
“Camera”:Built-in 3-foot Cat-5 cable with RJ45 plug
Network Interface10BASE-T and 100BASE-T, Half or Full Duplex Includes integrated network crossover
Laptop Interface10BASE-T and 100BASE-T, Half or Full Duplex Integrated network crossover
POE StandardsIEEE 802.3af, IEEE 802.3at and Most non-standard POEs to 30W
Status LEDPSE over Spare Pairs : Red LED
PSE over Data Pairs : Red LED
Power Supplyno external power needed
PoE StandardsIEEE 802.3 af, IEEE 802.3 at up to 60W
Environmental
Humidity0 to 95%, non-condensing
TemperatureOperating: -40°C to +75°C
Storage: -40°C to +80°C
Mechanical
Dimensions0.85x1.06x1.36 in., 2.2x2.7x3.5 cm (HxWxL) excluding cables
Weight0.13 lb, 60 g
MaterialABS plastic, UL rating of 94V-0
