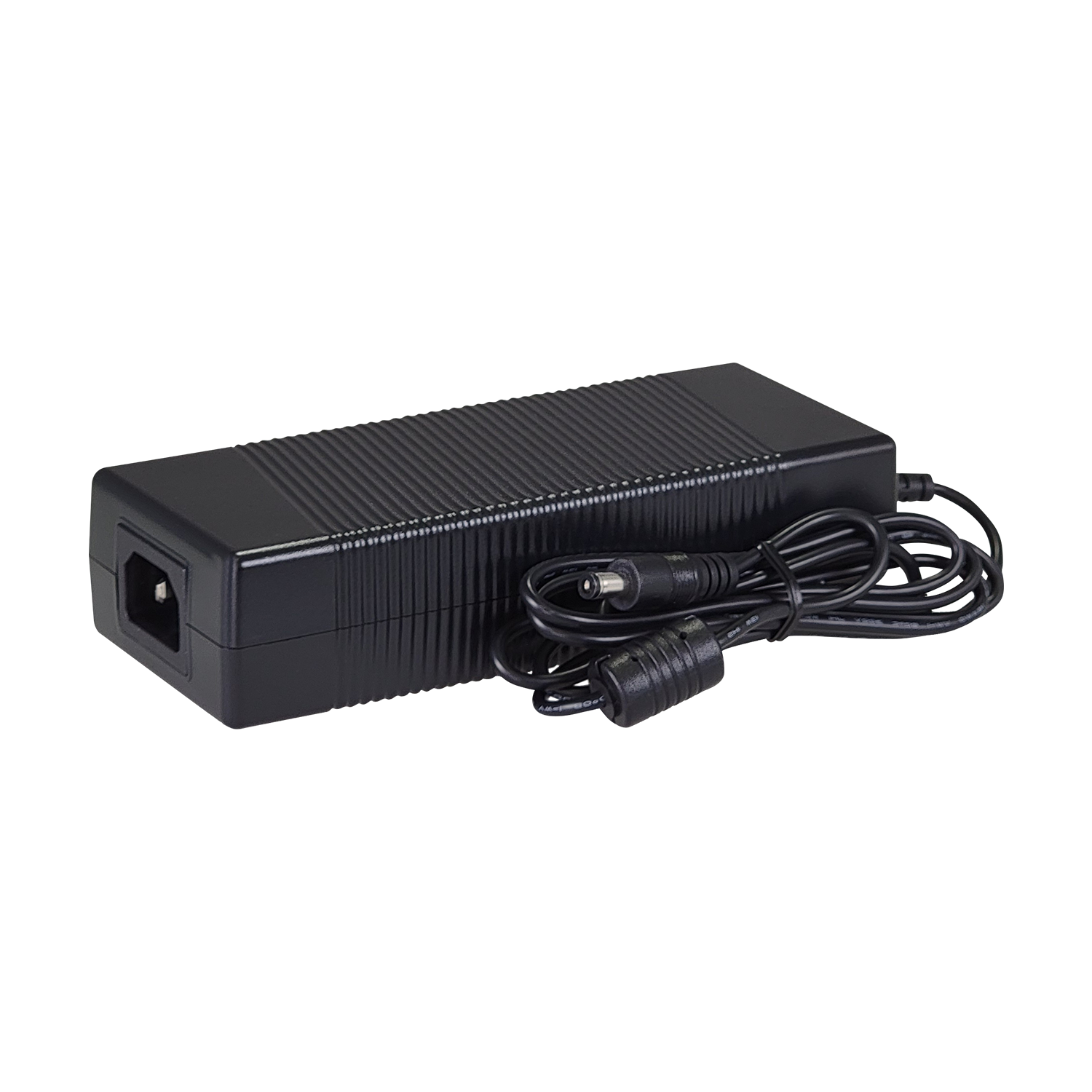

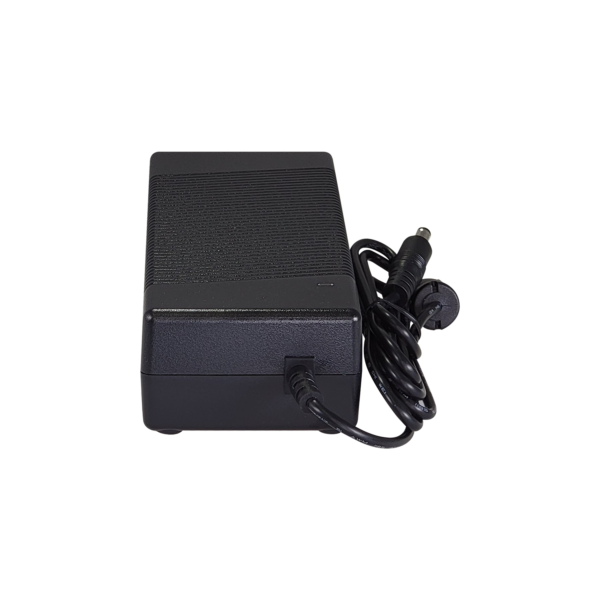

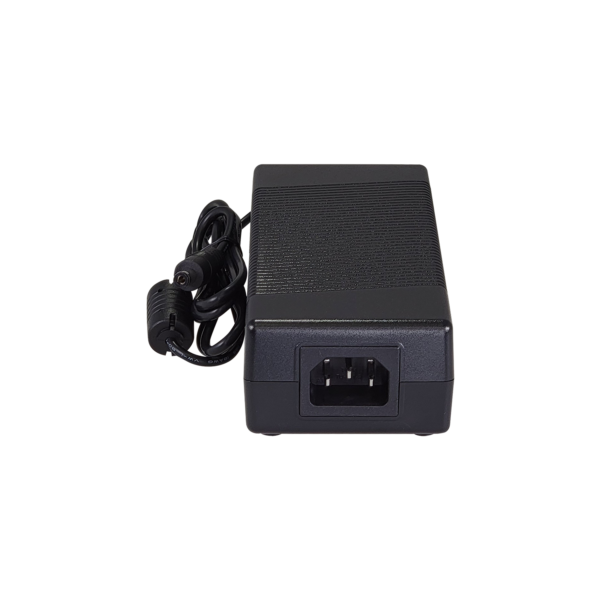

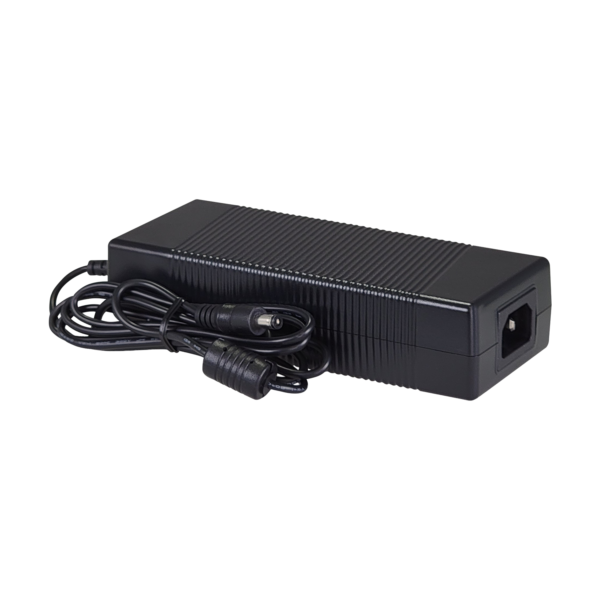

Vigitron - Vi1120 - Desktop Power Supply, 56 VDC @ 2.14, 120W, 90-240 VAC Input
Part number:
Vi1120
Price:

The Vi1120 is a 120W/ 56VDC power supply that is designed to meet the power requirements of CCTV products requiring high power levels. With Level 5 energy efficiency the Vi1120 provides high power, high-efficiency meeting Level V energy efficiency standards. Its Over Voltage Protection (OVP), Short Circuit Protection (SCP), and Over Current Protection (OCP) make it a very safe power supply. The Vi1120 intelligent system will evaluate fault conditions and once they are no longer present, will return to normal operations.



The Vi1120 operates at temperatures ranging from 0°C to +40°C with the ability to cold start under full load at 25°C. The Vi1120 is an ideal solution for powering CCTV systems.



Features:

  • High power Output: 56VDC at 2.1A
  • Universal power input 100-240 VAC
  • Comply with major safety and emission standards
  • The highest degree of safety and protection
  • Provides Over Voltage Protection (OVP)
  • Provides Over Current Protection (OCP)
  • Provides Short Circuit Protection (SCP) with automatic recovery
  • Meets Energy Star V / Erp ( Stage 2 ) / MEPS V
  • High Energy Efficiency
  • Compact size
Specification
Electrical
INPUT
Input VoltageUniversal 100 ~240 V.A.C, 47~63 Hz
Current1.6A Maximum
Inrush Current80A Max./ 230 V.A.C.
Cold Start25 degrees C @ full load
Efficiency>= 87%
OUTPUT
Output Voltage+56VDC =/-5%
Current2.15A
Regulation53.2V minimal ~56V typical~58.8V Maximum
Ripple/Noise300mV Maximum
Total Power120W
Output Plug PinCenter Pin: Power
AssignmentShield: Ground
ProtectionOver Voltage Protection (OVP) 105% ~150%
Over Current Protection (OCP) 105%~150%
Short CircuitAutomatic recovery after fault is removed Protection (SCP)
Regulatory
UL/cULUL60950
FCCFCC 47 CFR Part 15 Subpart B
ICES-003 Issue 4
ANSI C63.4-2009
CEEN 55022:2006+A1:2007
EN 61000-3-2:2006
EN61000-3-3:2008
En55024:1998+A1:2001+A2:2003
EMS ImmunityEMC Directive 2004/108/EC
(EN55022/EN55024)
Energy EfficiencyEC 278/2009 for external power supplies Level Verified V
EnvironmentalRoHS, WEEE
Environmental
TemperatureOperating: 0 C (32F) ~+40C (104F)
Storage: -20C (-4F) ~+80C (176F)
HumidityRelative Operating: 20%-80% RH
Relative Storage:10%-90%
CoolingNatural Air- No fan required
Mechanical
DimensionsCase: 6.6x2.3x1.5 in, 16.8x6.6x3.9 cm (HxWxL)
Cable: 59 in., 150cm
Weight1.3 lbs., 580g
HousingABS plastic, UL rating of 94V-0
