Vigitron - Vi2001 - In-line MaxiiGuard™ 10/100/1GBaseT Ethernet Surge Protector
Part number:
Vi2001
Price:

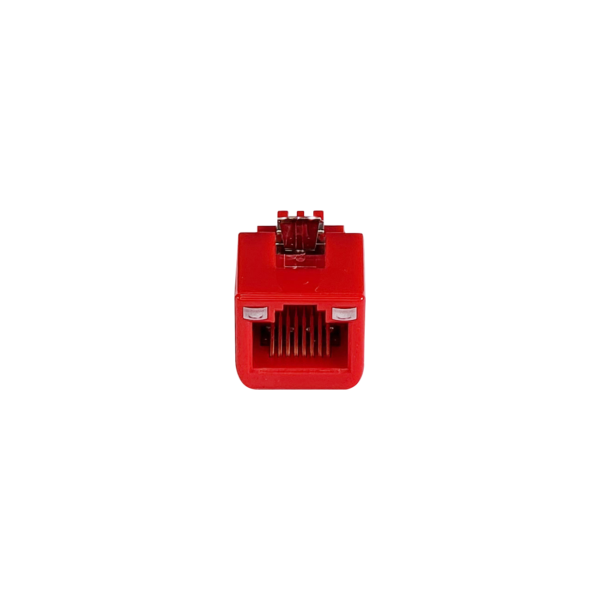

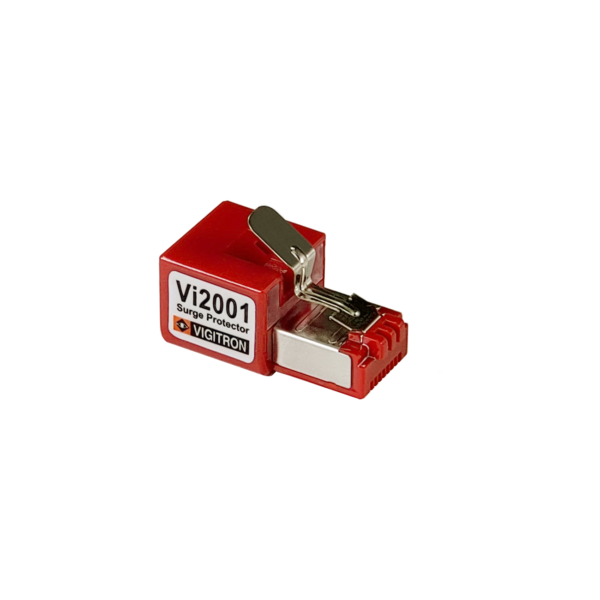

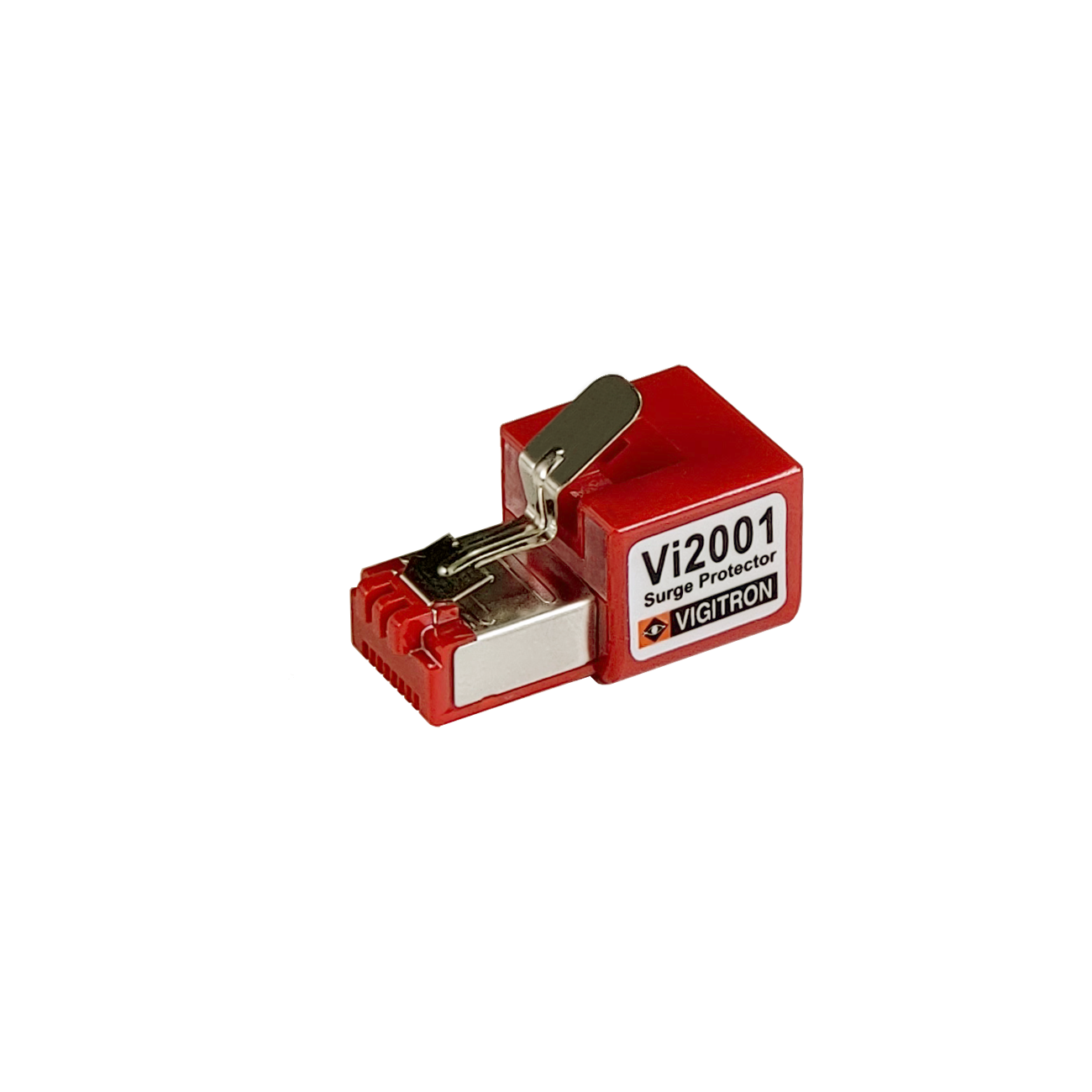

Vigitron’s Vi2001 inline Ethernet surge protector is designed to provide protection where cable runs can be subject to electric spikes from outside environmental sources. These spikes can damage equipment. The Vi2001 minimizes this potential by its built-in ability to self-discharge these spikes.



Its small format and easy to install is compatible with any RJ45 connectors without the need for additional mounting or separate ground cable. Port data transfer is provided at 10/100/1000BaseT. The Vi2001 requires the shield of RJ45 connectors to be connected to the chassis ground.



Features:

  • Direct in line port plug in module saving valuable equipment space
  • Innovative direct inline port plug in module saving valuable equipment space
  • Able to ibe nstalled only those ports that require extra protection
  • Ideal protection for standard and extended Ethernet runs
  • Provides port protection for cameras, DVRs and NVRs
  • Compatible with 10/100/1000 Base-T ports
  • Does not require extra ground cable
  • Compatible with 802.3af, 802.3at and 802.3bt PoE standards
  • Tested and certified to EN61000-4-5 and EN55024 surge standards
Specifications
Electrical
Ethernet InterfaceStandard 10/100/1000BaseT
Ethernet CableCategory 5 or higher
Power SupplyNo power required
Status LEDsTraffic, Link through Light-pipe
ConnectorsMale RJ-45, Female RJ-45
GND ConnectionThrough Metal Tab
Compatible withIEEE 802.3af PoE, IEEE 802.3at PoE
Compliances
Tested and Certified forIEC 61000-4-2: ESD @ 15Kv (air), 8Kv (contact)
IEC 6100-4-5: Lightning @ 8/20us
IEC 61000-4-2: 2006
EN 55024:
 Compliance CategoryB
Let through Voltage 115Kv (air)
8Kv (contact)
Environmental
Humidity0 to 95%, non-condensing
TemperatureOperating: -40°C to +75°C
Storage: -40°C to +85°C
Mechanical
Dimensions0.55x0.63x1.1 in., 14x16x28 mm (HxWxL)
Weight0.009 lb (4 g)
