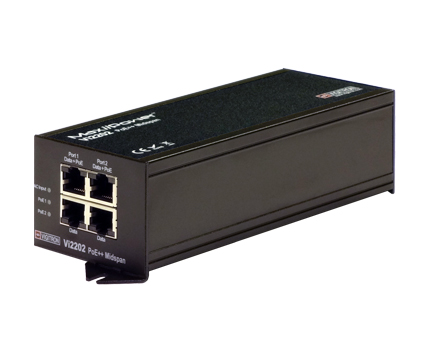

Vigitron - Vi2202 - 2-Port MaxiiPowe™ af/at 60W PoE Midspan w/ built in power supply
Part number:
Vi2202
Price:

Vigitron's Vi2202 is a unique two port PoE Midspan designed for the most demanding power applications of 10/100/1000 Base-T networks. With the ability to provide up to 65W per port, it is the most cost effective method for powering PTZ domes cameras with heaters and blowers.



The Vi2202 can virtually meet requirements of any high power PoE application. Its unique internal control system enables it to handle both single PD and dual PD PoE cameras. A highly reliable internal power supply can provide up to 65W shared between 2 ports. For applications requiring 2 ports of PoE++, it can be used with with Vigitiron's Vi1120 external power supply to provide up to total 120W PoE power.



The Vi2202's compact design dual channel design is smaller, lighter and easier to fit in environmental enclosures than most single channel power supplies.



Features:

  • 2-port IEEE 802.3.af/at/60W compliant POE for 10/100/1000 Base-T networks
  • Built-in 65W universal power supply
  • Delivers up to 32W per port simultaneously on both ports or 64W on a single port
  • Delivers up to 60W per port simultaneously on both ports when used with Vi1120
  • Automatically senses PD power class and single or dual PD devices.
  • Status LEDs indicate power on each port
  • Provide high data rate and high power, ideal for Mega-pixel cameras
  • Fully transparent to Ethernet networks and higher layer protocols
  • Type tested to RFC 2544 TCP/IP network bandwidth packet transmission standards
  • Provides input connector for external Vi1120 power supply
  • Compact design
  • Limited lifetime warranty
Specification
Electrical
Ethernet InterfaceStandard 10/100/1000 BaseTX
UTPCategory-5 (or higher)
Output Power64W agreagated stand aloane @ 52 VDC 120W agreagated w/Vi1120 external power supply@57 VDC
AC Input Power90-264VAC, 50-60 Hz
PoE Standards802.3af
 802.3at
 UPoE
Status LEDsPower: Green LED
PoE On: Green
ConnectorsInput Interface: Shielded RJ-45
Output Interface: Shielded RJ-45
Main Power: IEC 320-C14 inlet
External Power Supply: Round 2.5mm Connector
Regulatory
SafetyCE, UL, cUL
EnvironmentalRoHS, WEEE
Environmental
Humidity0 to 90%, non-condensing
Temperature

Operating: -20°C to +50°C

Storage: -30°C to +70°C

Mechanical
Dimensions1.87x2.56x6.17 in., 4.7x6.5x15.3 cm (HxWxL)
Weight0.95 lb (430 g)
MaterialExtruded Aluminum
Included Accessories
Molded IEC 7 ft. (200 cm) power cord
