Vigitron - Vi2208A - 8-Port MaxiiPower™ af/at 36/72W Managed PoE Midspan (300W PS)
Part number:
Vi2208A
Price:

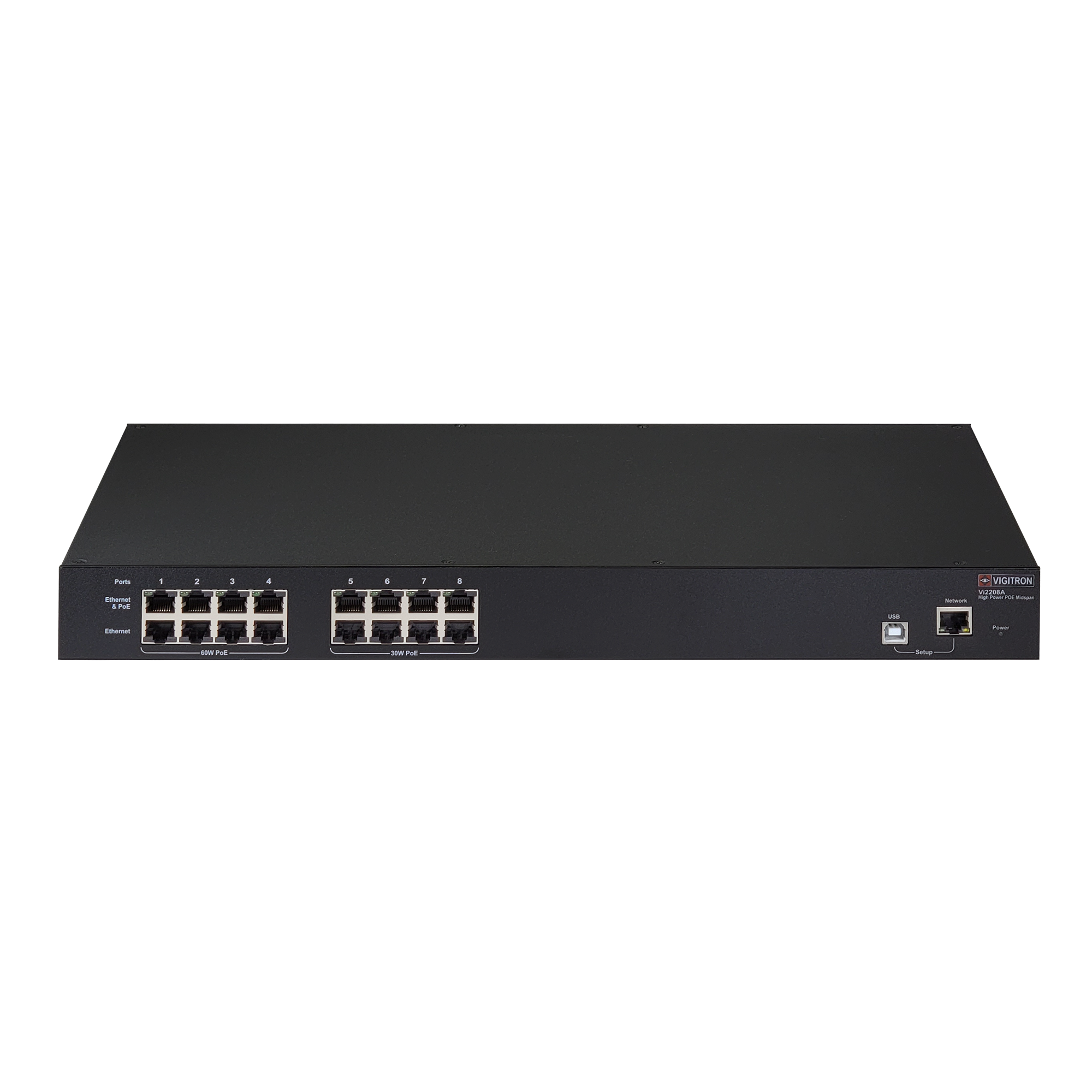

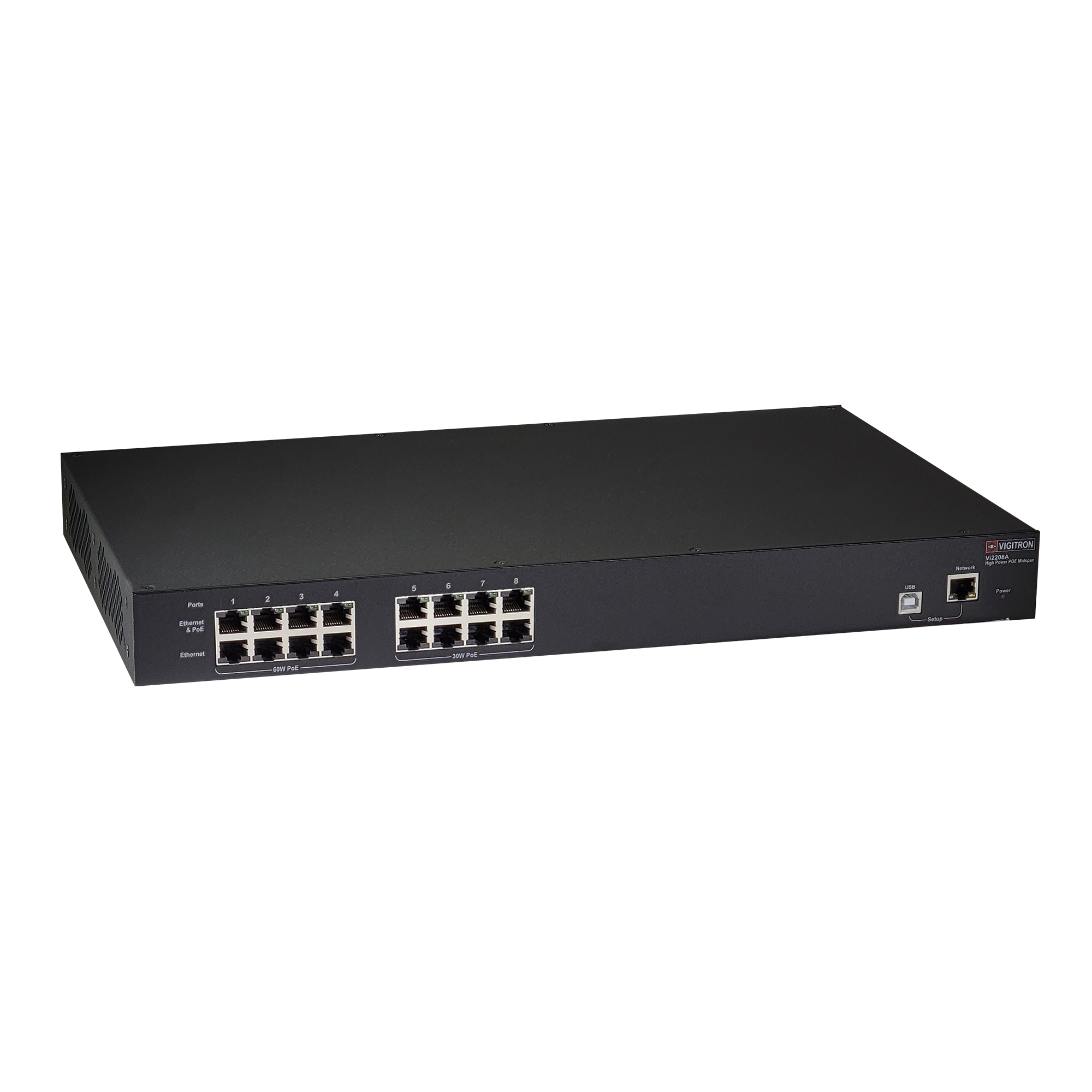

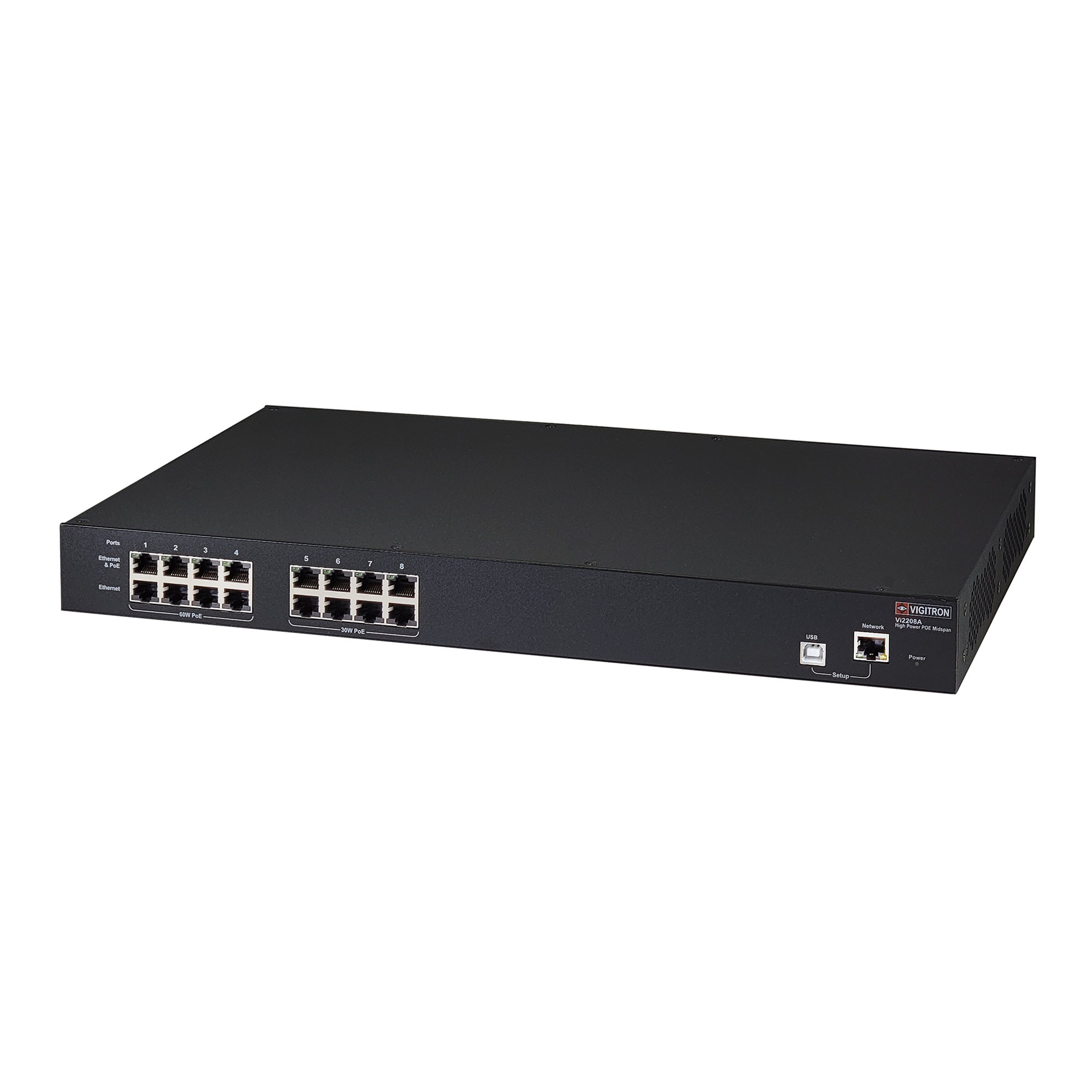

The MaxiiPower Model Vi2208A is an 8-port high power PoE midspan. It is compatible with 10/100/1000BaseT Ethernet networks. It meets IEEE 802.3af and IEEE 802.3at standards and UPoE+ delivering up to 36W per port simultaneously and up to 72W on each port of 1-4. The Vi2208A is fully manageable by an easy-to-use GUI that can be accessed via direct connection to the USB port or remotely over network connections. It is equipped with LEDs to provide power status. No IP settings or configurations are required, and it is completely transparent to the Ethernet network and higher-layer protocols.



The MaxiiPower midspans are 1U high and can be easily installed in 19” racks. They are ideal for a wide range of CCTV or IT applications that require high power such as IP cameras, wireless access points or VoIP to be connected to a central LAN switching fabric with ease.



Features:

  • 8 ports of IEEE 802.3.af/at and UPoE+ compliant PoE for 10/100/1000 Base-T networks
  • Deliver up to 36W per port simultaneously on all ports for a total of 300W
  • Ports 1-4 can provide up to 72W each
  • Per-port delayed PoE power up programmable for reducing start-up power surges
  • Automatically senses PD power class and single or dual PD devices
  • LED Indicators provide power on each port
  • Provides high data rate and high power for long-distance, ideal for Mega-pixel cameras
  • 19”, 1U rack or wall mountable
  • Fully transparent to Ethernet networks and higher layer protocols
  • Fully manageable with Windows GUI accessible through a local USB port or network connection with default plug and play option
  • No IP address programming or other networking setup required
  • Limited lifetime warranty
Electrical
Ethernet InterfaceStandard 10/100/1000 BaseT
UTPCategory-5 (or higher)
Output Power56 VDC, 36W max. per port,
 72W max. per ports 1-4
Total power supply350W
PoE Budget300W
AC Input Power90-264VAC, 50-60 Hz,
 9A @ 90VAC, 2.5A @ 200VAC
Output Status LEDGreen LED
ConnectorsEthernet Input Interface: Shielded RJ-45
Extended Output Interface: Shielded RJ-45

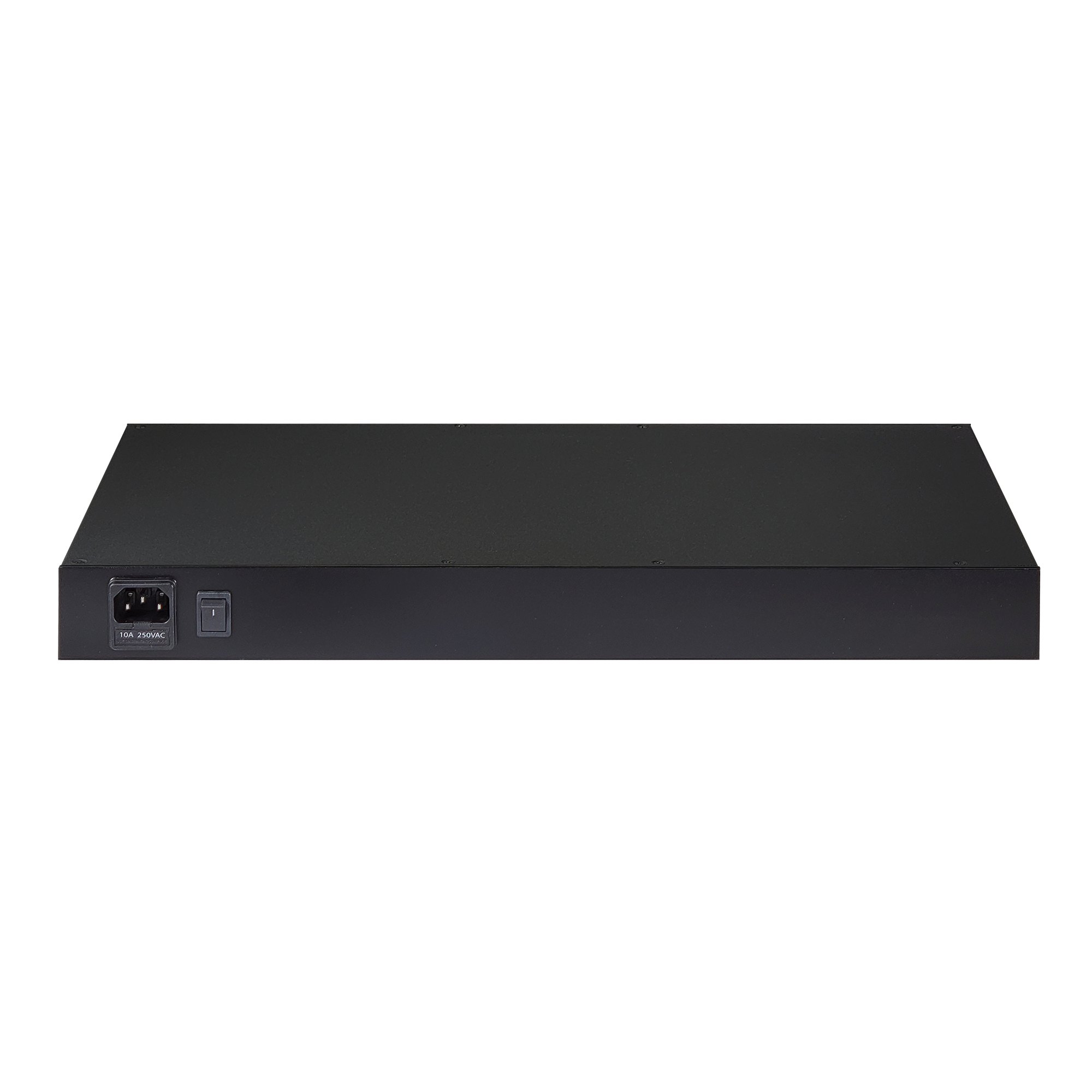

Main Power: IEC 320-C14 inlet
Setup PortUSB or Network with WindowsTM GUI
Regulatory
FCCPart 15, Subpart B, Class B 2010
EmissionEN 55022:206+A1:2007
Standards:EN61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008
EN55024:1998+A1:2001+A2:2003
Safety

CE

UL 60950-1, 2nd Edition, 2007-03-27, CSA C 22.2 No.

60950-1-07 2nd Edition, 2007-03


EnvironmentalRoHS, WEEE
Environmental
Humidity0 to 90%, non-condensing
TemperatureOperating: -10°C to 40°C
 Storage: -30°C to +70°C
Mechanical
Dimensions1.75x17x12 in, 4.3x43x30.5 cm (HxWxL)
Weight8 Lb, 3.6 Kg
MaterialSheet metal and Extruded Aluminum
Accessories
Mounting brackets for front or rear installations
Rubber feet for desk applications
Molded IEC 7 ft. (200 cm) power cord
