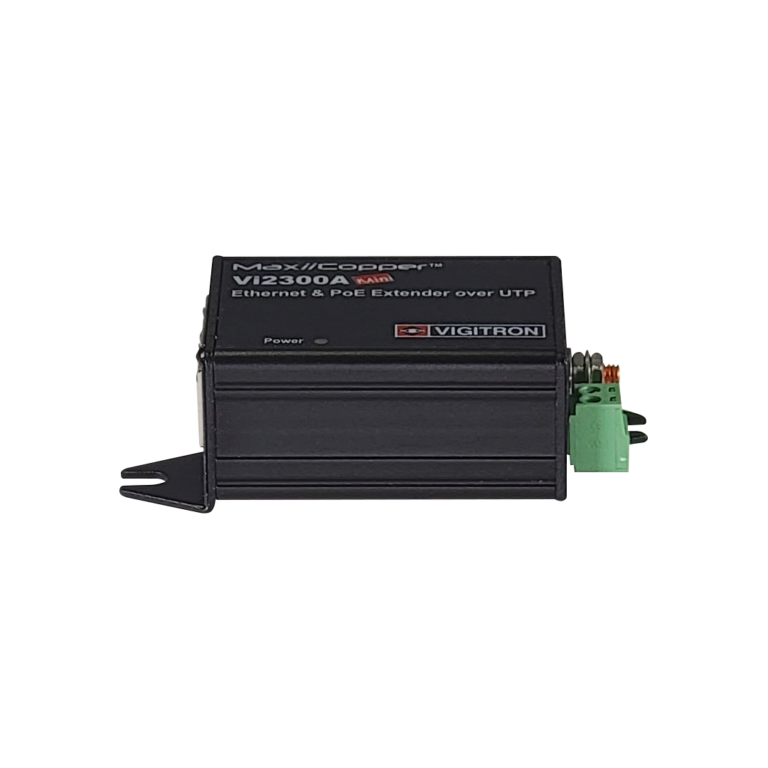

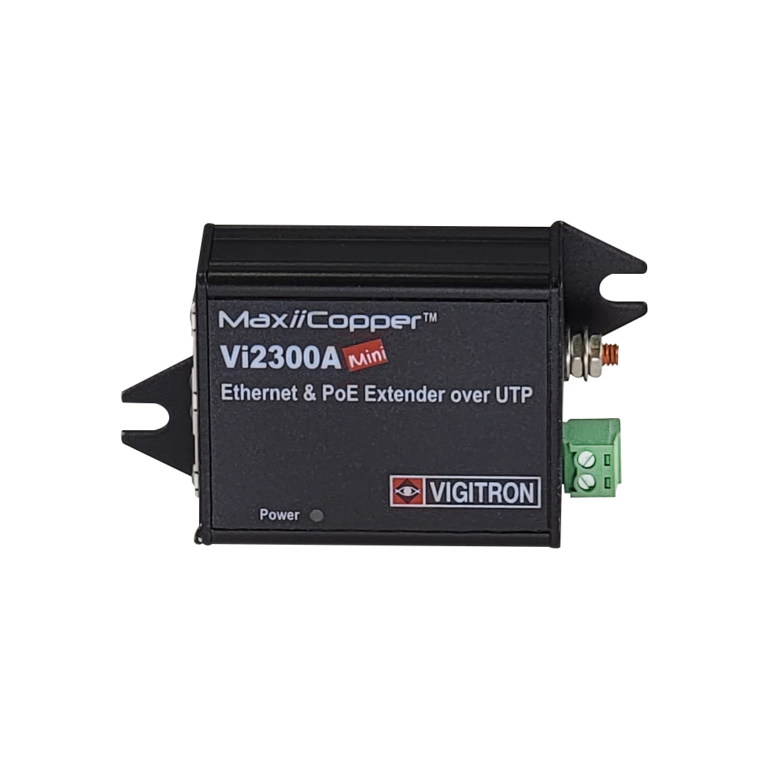

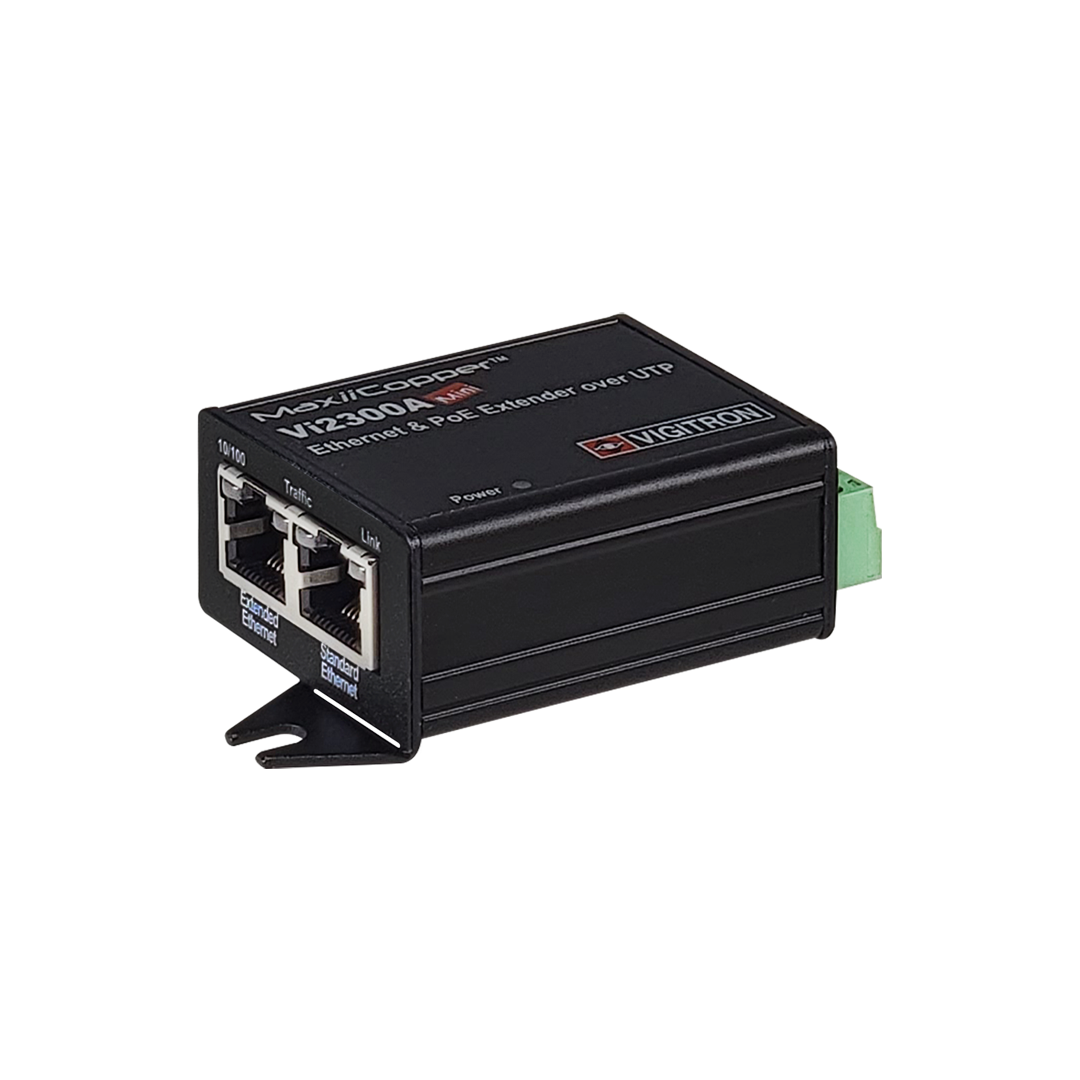

Vigitron - Vi2300A - 1-Port MaxiiCopper™ Mini Ethernet Extender over UTP, af/at/bt 72W PoE, Requires PoE source or optional Vi0012 power supply
Part number:
Vi2300A
Price:

1-Port MaxiiCopper Mini Ethernet Extender over UTP, 60W PoE, Requires PoE or optional Vi0012 power supply. Vigitron’s Mini MaxiiCopper Vi2300A UTP Ethernet extender brings new performance standards to the growing need for high speedtransmission of full bandwidth Ethernet and high-power PoE power over extended distances. The compact mini extenders are designed to easily fit in standard 4 x 4 and J-Boxes, providing weatherproofing and compliance with fire and other environmental requirements. Its unique Symmetric Bandwidth (SBW) assures full bandwidth transmission is maintained over the entire operational distance for both uploads and downloads with Virtual Zero Packet Loss (VZPL). Bandwidth assurance provides the ability to transmit multiple cameras on single camera runs with no information loss. It can use 1 pair or 4 pairs of UTP and requires no switch setting or network programming.



Extended Pass Through PoE (EPTP) eliminates the need for additional remote site power while allowing a single PoE source, such as a PoE network switch, to provide power to both transceivers and the camera. The Vi2300A can pass through PoE power, up to 74Watts, UPoE compliant. Type tested under NEMA-TS2 environmental standards for extended temperature operation between -40°C to +75°C. The Vi2300A is the perfect solution for extended distance data and power transmission for warehouses, parking lots, campuses, casinos, and many more. MaxiiCopper’s Vi2300A is low power and can easily fit inside most cameras housing and junction boxes. Best of all, it is MegaPixel Certified (MPC), type tested to network packet performance standards, and major camera brand compatibility tested to assure you error free and reliable operations. Installation cost savings, proven performance, and major camera brand compatibility all go into making Vigitron’s Mini MaxiiCopper Vi2300A the best choice for extended distance data and power transmission.



Features:

  • Extends Ethernet beyond 328 feet (100 m) limitation up to 3,000 feet (914 m) over UTP cables
  • Compact design fits inside 4 x 4 and J-Box enclosures
  • Able to fit inside weatherproof and plenum rated enclosures
  • Requires no switch setting or network programming
  • Extended Pass-Through PoE (EPTP) compatible with 802.3af, at, bt up to 74W
  • Mega-Pixel Certified (MPC) High data rate, ideal for high bandwidth requirements of Mega-pixel cameras, multiple IP cameras systems, and cameras requiring Jumbo Frame transmission
  • Symmetric Bandwidth (SBW) provides consistent upload and download with Virtual Zero Packet Loss (VZPL)
  • Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
  • Supports one-pair or four-pair UTP wires with built-in transceiver cable connectivity tester
  • Type tested for -40°C to +75°C temperature range under conforming to NEMA-TS2 testing standards
  • Removable wings provide easy mounting
  • Complies to major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPS.
Electrical
Ethernet InterfaceStandard 10/100BaseT
Data RateAuto select 10/100 Mb/s
Full speed / full duplex at maximum rated distances
UTP100 Ohm +/- 20%, Cat5 or better
10BaseT: up to 3,000 ft. (914 m)
100BaseT: up to 2,100 ft. (640 m)
Power Consumption12 VDC, 1.8 W w/PoE, 1.5 W w/external power supply
Status LEDsPower On
Standard Ethernet: Traffic, Link
Extended Ethernet: Traffic, 10/100BaseT
ConnectorsEthernet Interface: RJ-45 Connector
Extended Interface: RJ-45 Connector
Power: 2-pin Pluggable Terninal Block
RFC2544 TCP/IP Packet Transmission
PoE CompatibilityIEEE 802.3af, IEEE 802.3at, IEEE 802.3bt PoE Standards up to 74W
RFC2544 TCP/IP Packet Transmission
768 UDP, 2068 HTTP, 793 TCP
791 IP, 1783 TFTP, 894 IP over Ethernet
UPoE Compliant to 74W
Jumbo Frame SupportYes
Regulatory
FCCPart 15, Subpart B, Class B 2010
EmissionsEN 5502:2006+A1:2007, EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008, EN 55024:1998+A1:2001+A2:2003
SafetyCE
EnvironmentalRoHS
Environmental
Humidity Operating0 to 95%, non-condensing
TemperatureOperating: -40°C to +75°C
Storage: -40°C to +85°C
Mechanical
Dimensions0.97x1.75x2 in., 2.5x4.4x5 cm (HxWxL)
Weight0.15 lb, 67 g
MaterialExtruded Aluminum
