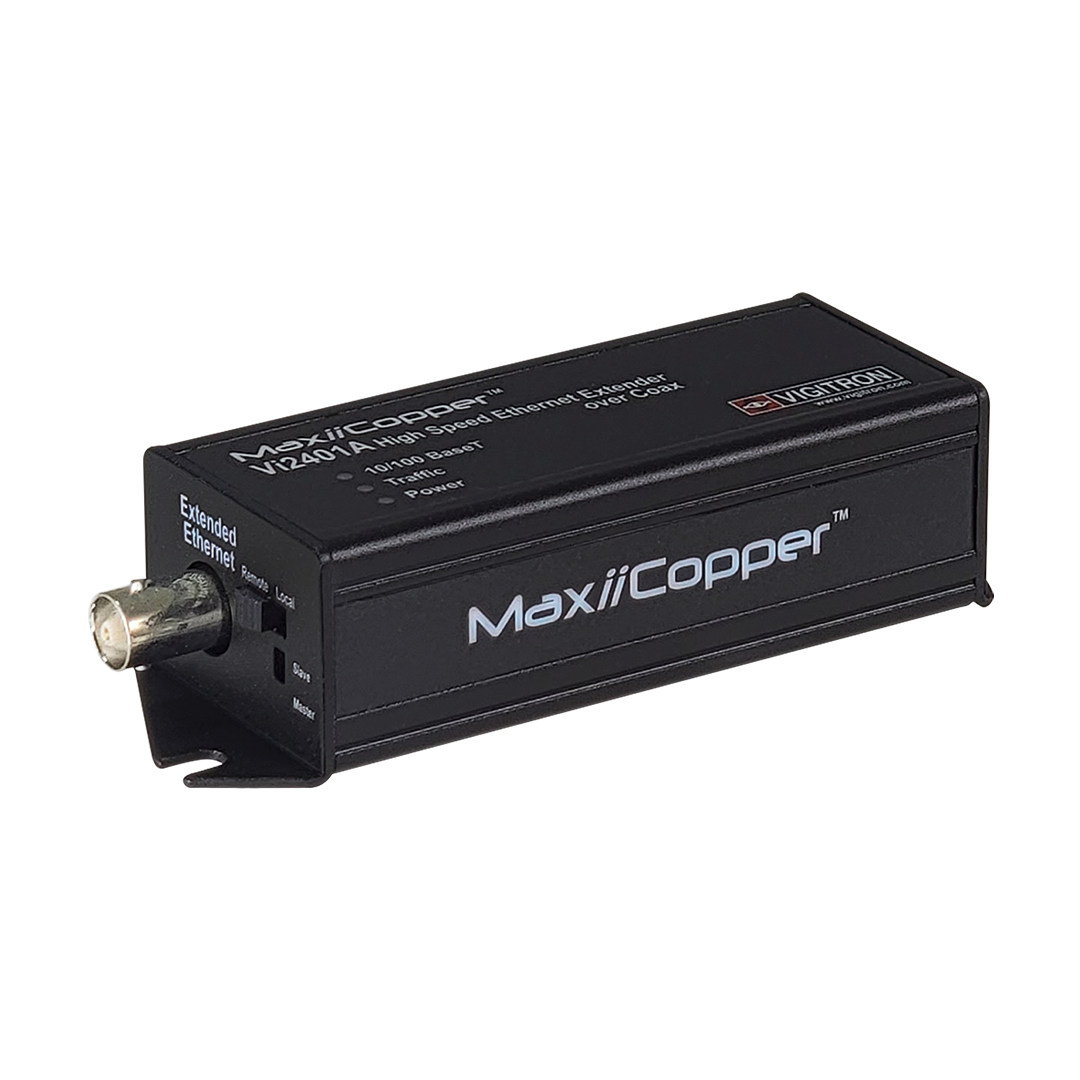

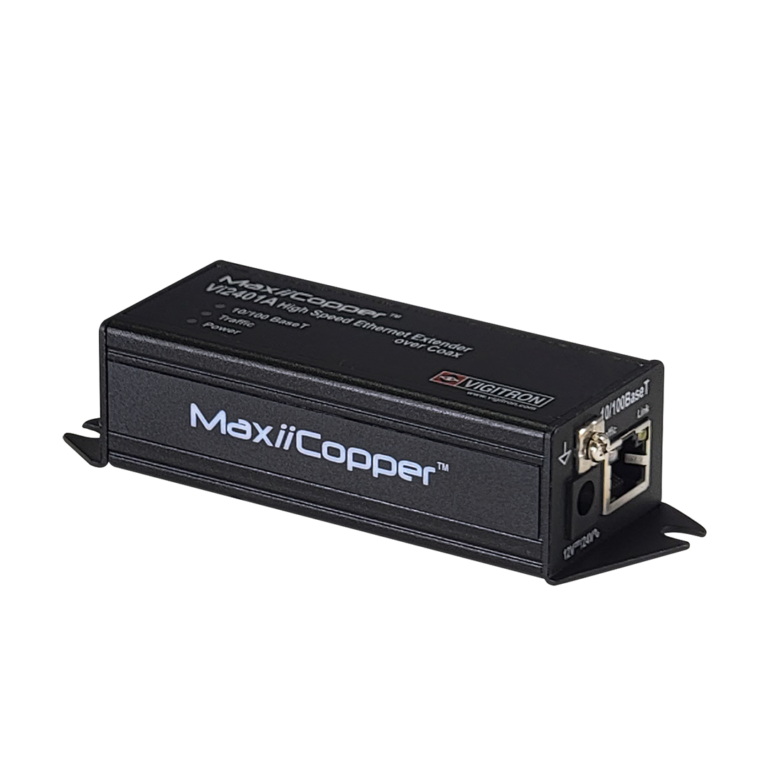

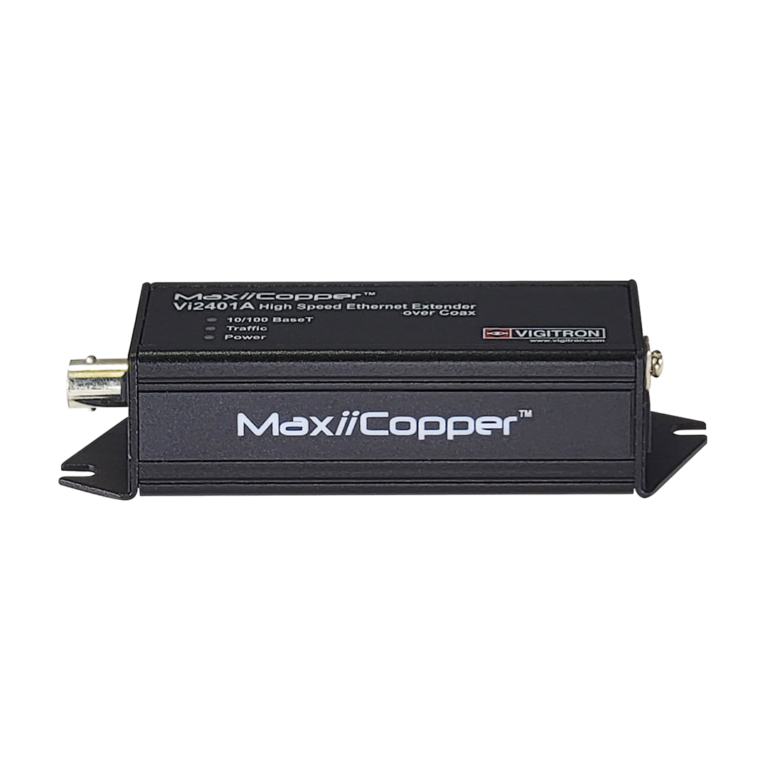

Vigitron - Vi2401A - 1-Port MaxiiCopper™ Ethernet Extender over Coax, af/at 37W PoE, Requires PoE or optional Vi0012 power supply
Part number:
Vi2401A
Price:

Vigitron’s Mini MaxiiCopper Vi2401A is an Ethernet over Coax extender that brings new performance standards to the growing need for high-speed transmission of full bandwidth Ethernet and PoE over extended distances of coaxial cables. The compact mini extender is designed to easily fit in standard 4 x 4 and J-Boxes, providing weatherproofing and compliance with fire and other environmental requirements. Its unique Symmetric Bandwidth (SBW) assures full bandwidth transmission is maintained over the entire operational distance for both uploads and downloads with Virtual Zero Packet Loss (VZPL). Bandwidth assurance provides the ability to transmit multiple cameras on single camera runs with no information loss.



Up to 36W Pass-Through PoE (PTP) eliminates the need for additional remote site power while allowing a single PoE source, such as a PoE network switch, to provide power to both transceivers and the camera. Type tested under NEMA-TS2 environmental standards for extended temperature operations between -40C° to +75C°, the Vi2401A is the perfect solution for extended-distance data and power transmission for warehouses, parking lots, campuses, casinos, and many more. Best of all, the Vi2401A is MegaPixel Certified (MPC), the type tested to network packet performance standards, and major manufacturer compatibility tested to assure you error-free and reliable operations. Installation cost savings, proven performance, and major camera brand compatibility all go into making Vigitron’s Mini MaxiiCopper Vi2401A your best choice for extended distance data and power transmission.



Features:

  • Transmits Ethernet and PoE up to 5,000 feet (1,515 m) over Coax cables
  • Saves equipment costs and reduces installation time
  • Pass-Through PoE (PTP) compatibility with 802.3af and 802.3at Power over Ethernet reduces installation costs while maintaining camera safeguards
  • MegaPixel Certified (MPC) High data rate, ideal for high bandwidth requirements of Mega-pixel cameras, multiple IP cameras systems, and cameras requiring Jumbo Frame transmission
  • Symmetric Bandwidth(SBW) provides consistent upload and download with Virtual Zero Packet Loss (VZPL) over a total specified distance
  • Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
  • Type tested for -40°C to +75°C temperature range under NEMA-TS2 testing standards
  • Complies to major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPS
Electrical-
Ethernet InterfaceStandard 10/100BaseT
Data RateAuto select 10/100 Mb/s
Full speed / full duplex at maximum rated distances
Coax75 Ohm, 5,000 feet (1,515 m) at 10BaseT
1,800 feet (549 m) at 100BaseT
Power Consumption12 VDC, 24 VAC, PoE @150 mA (max.)
1.8 W with external power supply or PoE

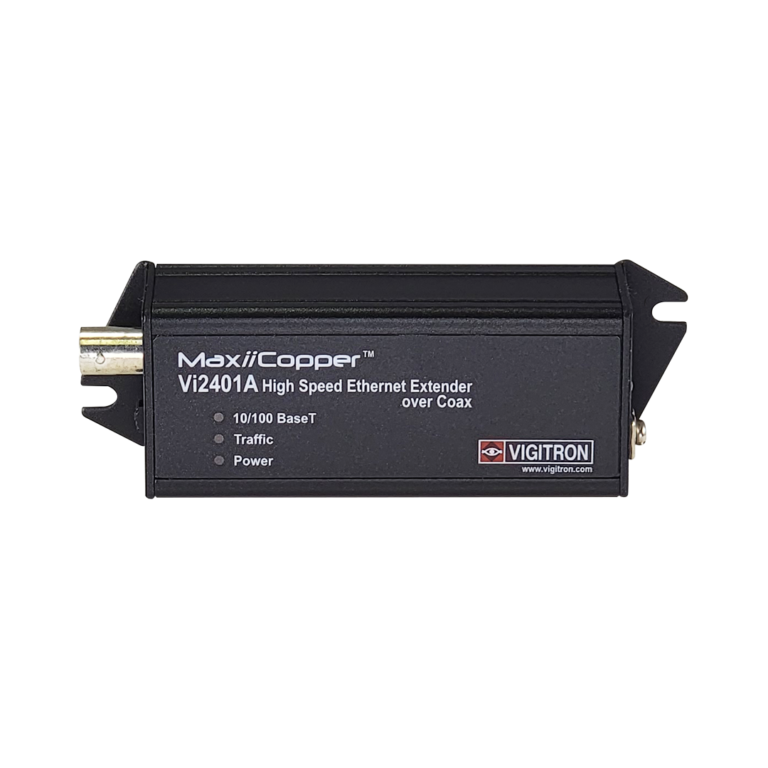

Status LEDsPower On
Standard Ethernet: Traffic, Link
Extended Ethernet: Traffic, 10/100BaseT
ConnectorsEthernet Interface: RJ-45 Connector
Extended Interface: Female BNC
Power: IEC380-8 inlet
Power: 2-pin Pluggable Terninal Block
PoE CompatibilityIEEE 802.3af, at, bt PoE Standards up to 74W
RFC2544 TCP/IP Packet Transmission
768 UDP, 2068 HTTP, 793 TCP
791 IP, 1783 TFTP, 894 IP over Ethernet
2544 TCP/IP Packet Transmission
Jumbo Frame SupportUp to 9,600 bytes
Regulatory-
FCCPart 15, Subpart B, Class B 2010
Emissions-
SafetyCE, WEEE
EnvironmentalRoHS
Environmental-
Humidity0 to 95%, non-condensing
TemperatureOperating: -40°C to +75°C
Storage: -40°C to +85°C
Mechanical-
Dimensions1.15x1.6x3.73 in., 3.0x4.0x9.5 cm (HxWxL)
Weight0.212 lb, 96 g
MaterialExtruded Aluminum
